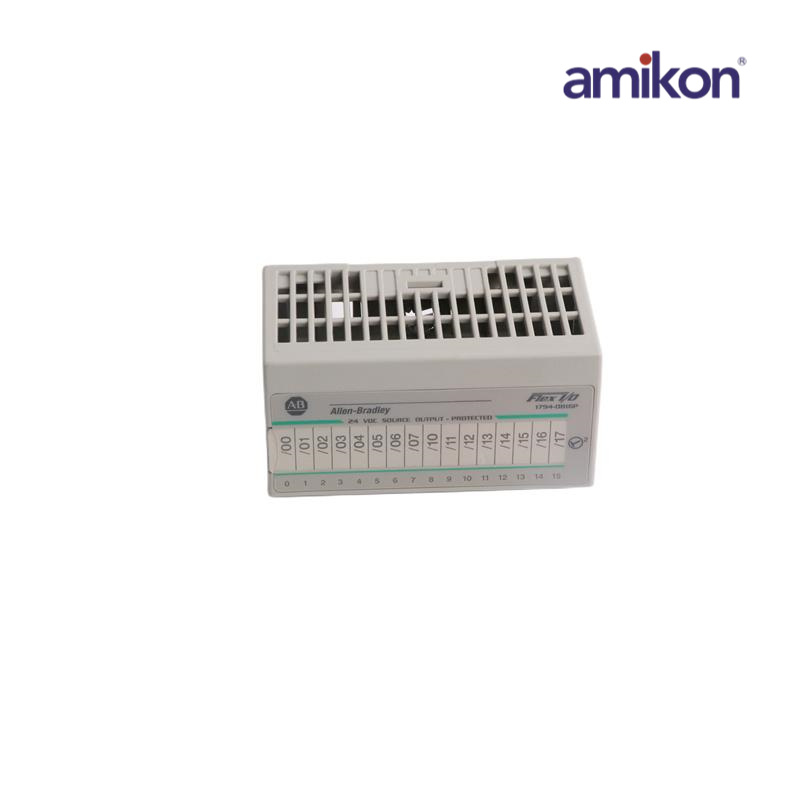

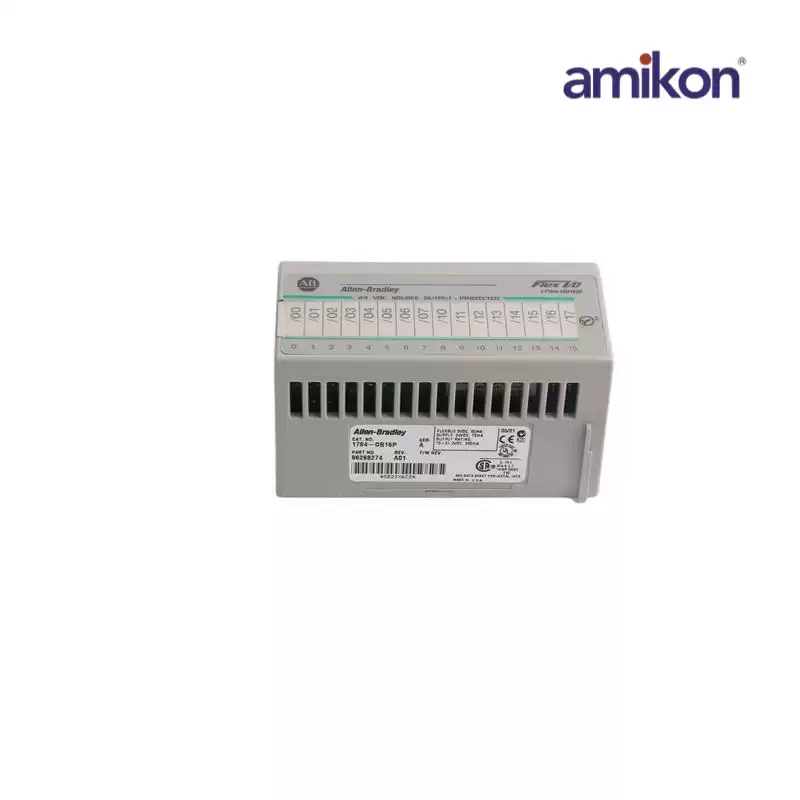

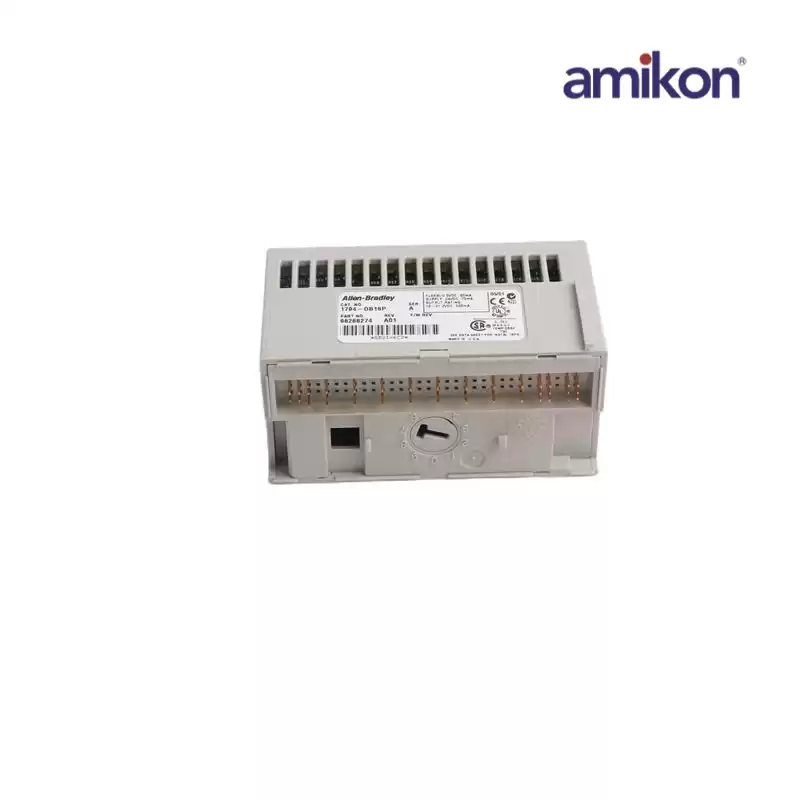

1794-OB16
|
|
Dimensions ：
|
6.2cmx5.5cmx9.7cm
|
Weight：
|
0.1KG
|
|
The thermal dissipation of the 1794-OB16 module is 18.1 BTU per hour. The maximum off-state voltage is 31.2 Volts DC. The module dimensions are 3.7 x 3.7 x 2.7 inches. The approximate weight for the 1794-OB16 module is 78 grams. The module has 16 yellow indicators for field-side status indicationThe 1794-OB16 module is a digital DC output module for FLEX I/O. It has 16 current sourcing outputs.
The minimum, maximum, and nominal on-state voltages are 10 Volts DC, 31.2 Volts DC, and 24 Volts DC, respectively. The output current rating of all the 16 outputs (each rated at 0.5 Amps) is 8 Amps while the minimum on-state current is 1 milliamp per channel and the maximum on-state current is 500 milliamps per channel. The maximum on-state voltage drop is 0.5 Volts DC.
|
|
