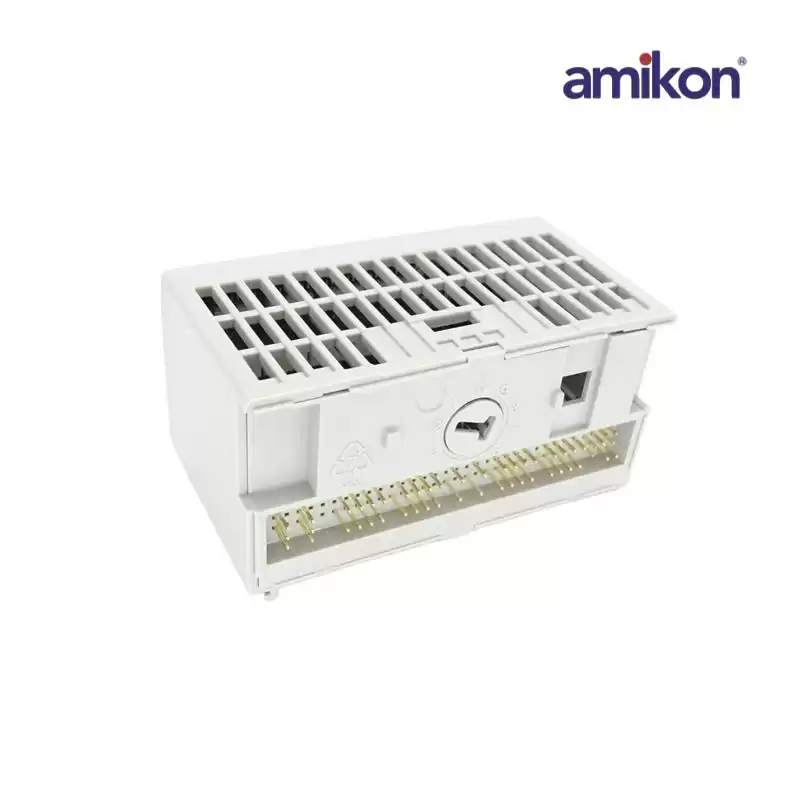

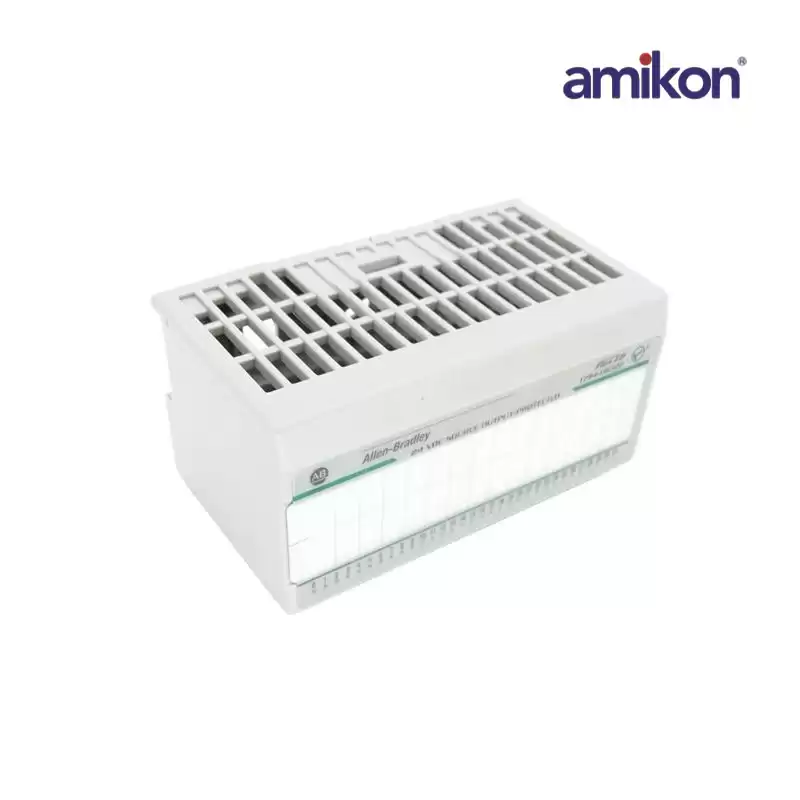

1794-OB32P FLEX I O Digital 24V DC Module
|
|
Dimensions ：
|
13.7cmx8.5cmx6.2cm
|
Weight：
|
0.22kg
|
|
Full Description: 1794-OB32P Discrete output module This module comes with individual channel protection, having thirty-two (32) 24 Volt DC sourcing output channels. It is compatible for use with the 1794-TB32 and 1794-TB32S terminal base units.
|
|
The 1794-OB32P is a sourcing discrete output module. This module is part of the Flex I/O product family, featuring thirty-two (32) electronically protected output channels. Discrete output modules, including the 1794-OB32P, are used to implement the control output commands of Programmable Logic Controllers (PLC).
The 1794-OB32P can be installed using a DIN rail mount and is only compatible with the 1794-TB32 and 1794-TB32S terminal base units. The on-state output voltage of the 1794-OB32P module ranges from a minimum of 10V DC and a maximum of 31.2V DC and it also has a maximum on-state output voltage drop of 0.5V DC.
|
