Manufacturer Automation
Brand

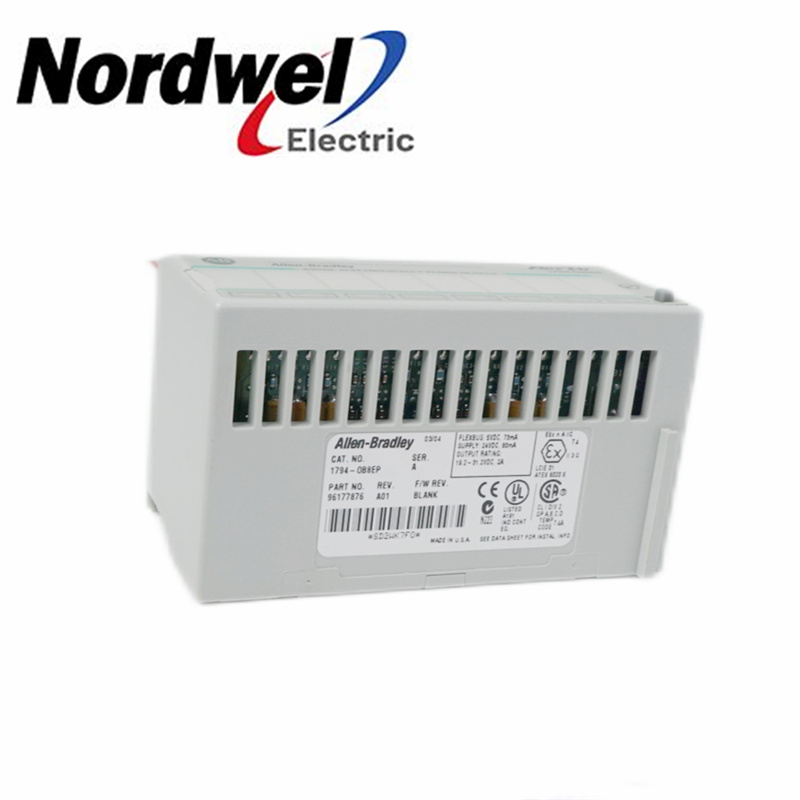

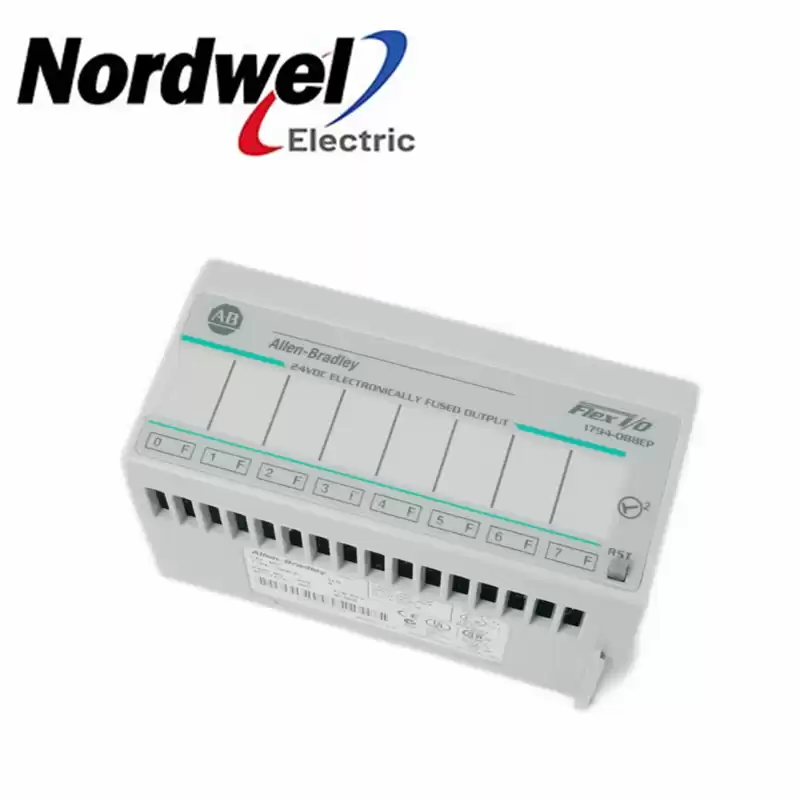

Part Number/Catalog No. 1794-OB8EP
Product Type Flex I/O Digital DC Output Module
Outputs 8 Sourcing Current
On-state Voltage nom. 24V DC
Output Current Rating 2A max. per Output
On-state Current max. 2A per Channel
On-state Voltage Drop max. 0.2V DC
Off-state Leakage Current max. 0.5mA
Isolation Voltage 50V Continuous
Flexbus Current 73mA @ 5V DC
Power Dissipation 5.5W @ 31.2V DC max.
Thermal Dissipation 18.8 BTU/hr. @ 31.2V DC max.
