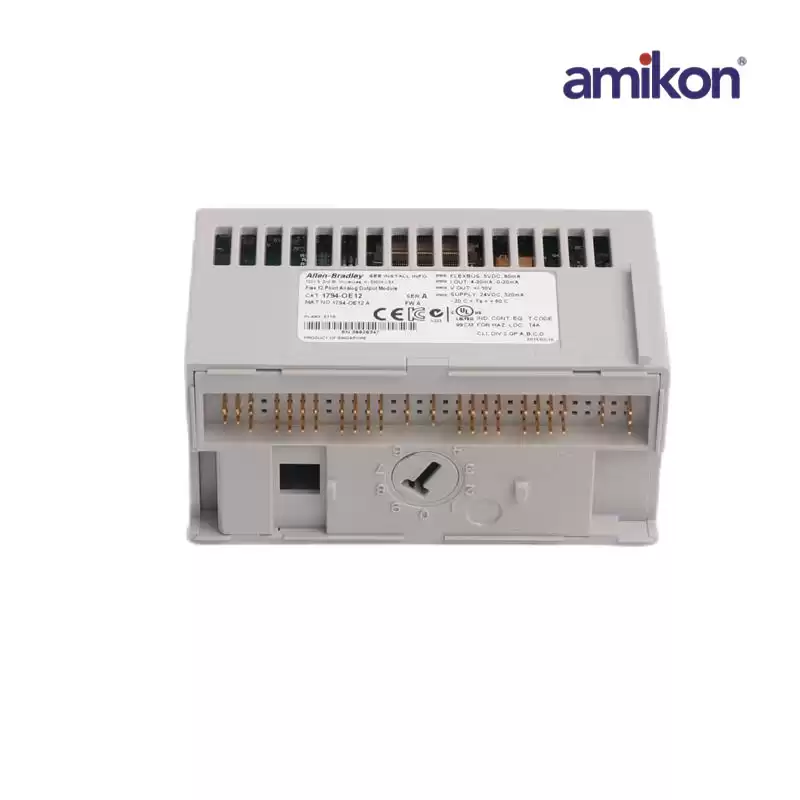

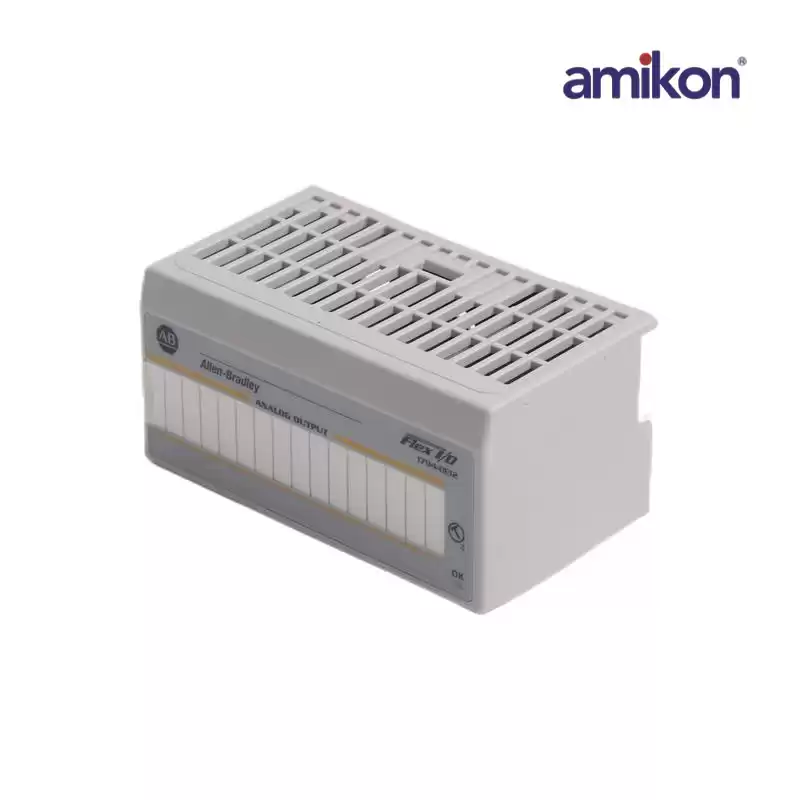

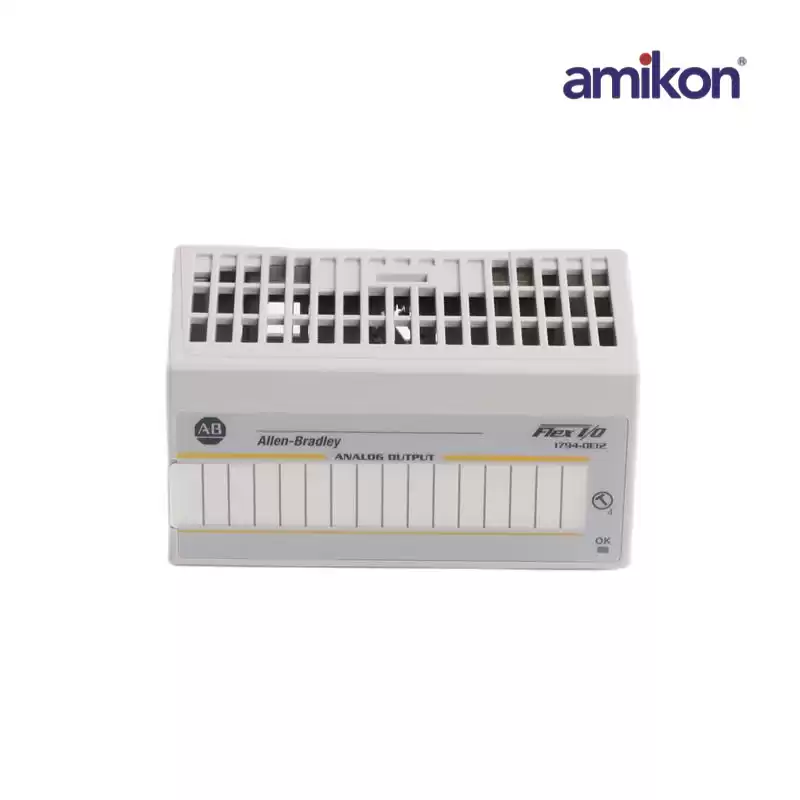

1794-OE12 FLEX I O Analog Output Modules

1794-OE12 FLEX I O Analog Output Modules

Dimensions ：

4.5cmx16.6cmx27.5cm

Weight：

1.2kg

Full Description:It delivers output current signals such as 4-20 mA, 0-20 mA and Voltage signals such as ±10VDC. It is compatible with a terminal bases such as 1794-TB3G or 1794-TB3GS

The 1794-OE12 comes with an internally installed analog to digital circuit (ADC) converter. It converts digital data to analog signal with conversion resolution of 16 bit in 2’s complement data format. Each output channels has an absolute accuracy of 0.1% Full Scale @ 25 °C, both for Voltage and Current signals with accuracy drift of 0.004% full scale/°C on both signal configuration.

The 1794-OE12 module also has a FlexBus current of 80 mA and a continuous isolation voltage of 50V that has been tested at 850V DC for 60 seconds, particularly between the user power to the system.The 1794-OE12 has a Current draw of 80 mA and supply voltage requirement of 10.5-31.2VDC.
