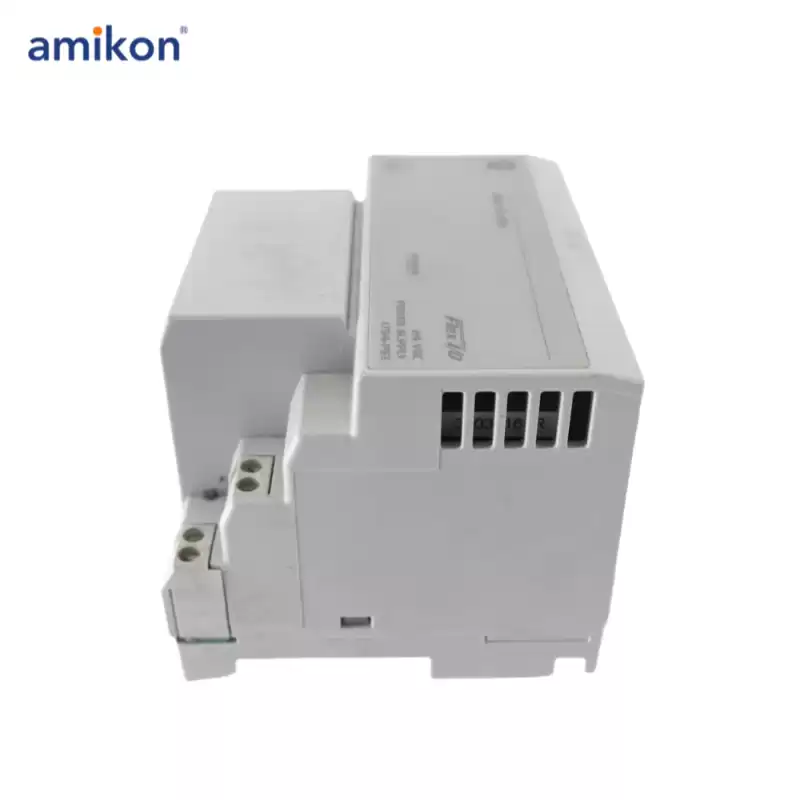

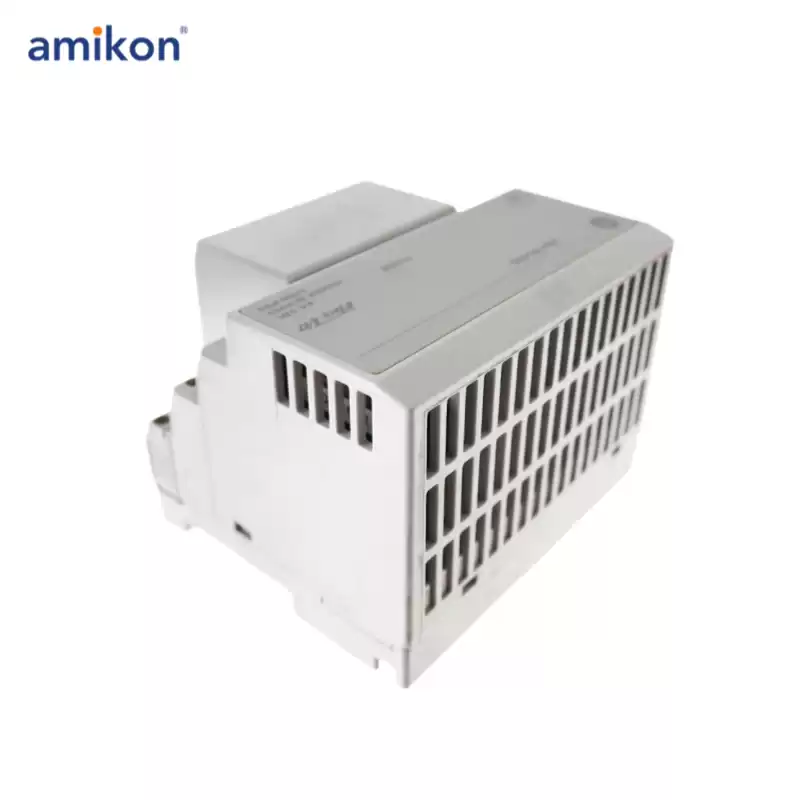

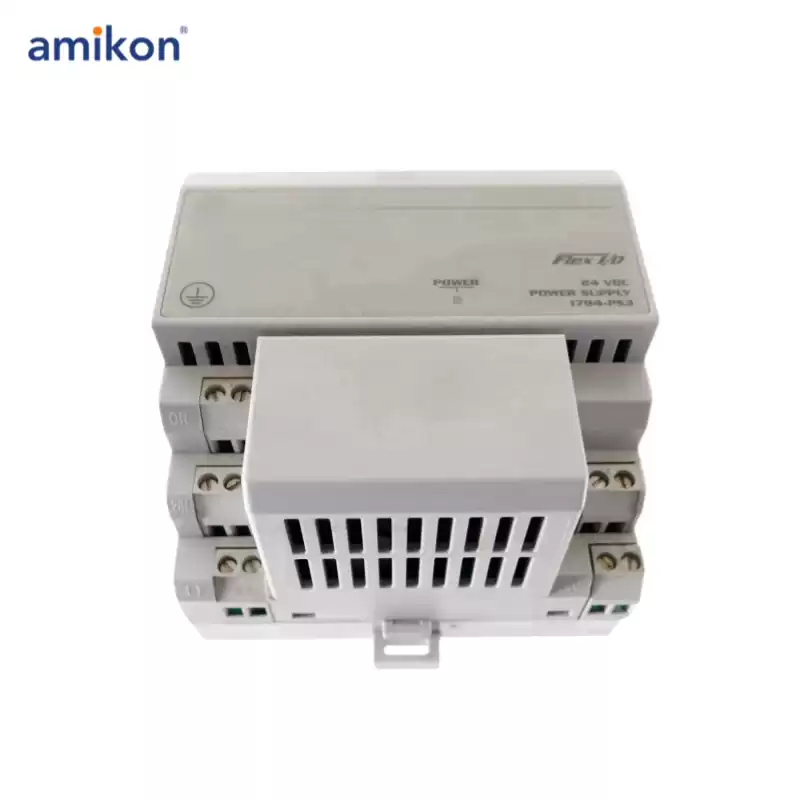

1794-PS3 Flex I/O DC Power Supply Module
|
|
1794-PS3 Types
|
The 1794-PS3 is a power supply module in the Flex I/O distributed I/O family, designed specifically to supply backplane power to Flex I/O assemblies and support the operation of installed modules.
|
|
This module operates across a supply voltage range of 85-264V AC, at 47-63Hz, with nominal values of 120V AC at 50/60Hz (drawing up to 1.7A) and 230V AC at 50/60Hz (drawing up to 1.1A).
|
|
It requires a maximum input current of 1.9A and can handle an inrush current of 40A for a typical single AC cycle at 265V AC input and 55°C ambient temperature.
|
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
|
Product Attribute
|
Specification
|
|
Part Number
|
1794-PS3
|
|
Product Family
|
Flex I/O System
|
|
Product Description
|
Flex I/O Power Supply
|
|
Product Type
|
Flex I/O DC Power Supply Module
|
|
Input Voltage Range
|
85-264V AC
|
|
Supply Voltage Nominal
|
230V AC, 47-63Hz, 1.1A max
|
|
Input Frequency Range
|
47-63 Hz
|
|
Nominal Input Voltage
|
120V AC, 50/60 Hz; 1.7A max
|
|
|
230V AC, 50/60 Hz; 1.1A max
|
|
Maximum Input Current
|
1.9 A
|
|
Output Power
|
72 Watts
|
|
Output Surge
|
Sufficient to drive 10 adapters
|
|
Overcurrent Protection
|
3.2 A
|
|
Power Dissipation, Max
|
12 W
|
|
Output Voltage Nominal
|
24V DC
|
|
Output Voltage Range
|
20.4-27.6V DC
|
|
Minimum Load
|
50 mA
|
|
Overvoltage Protection
|
35V DC
|
|
Isolation Voltage
|
2500V DC
|
