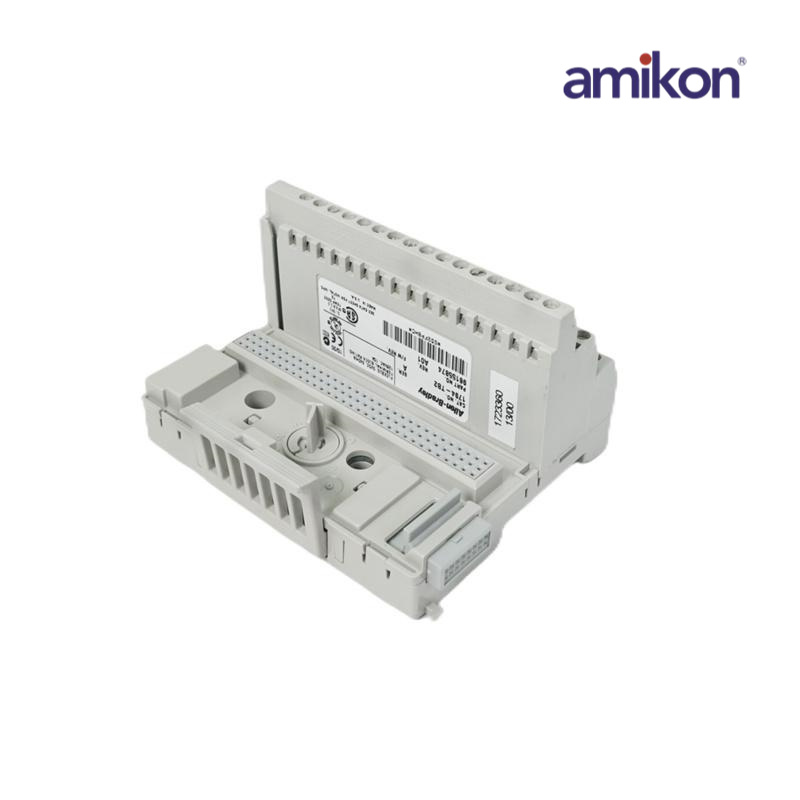

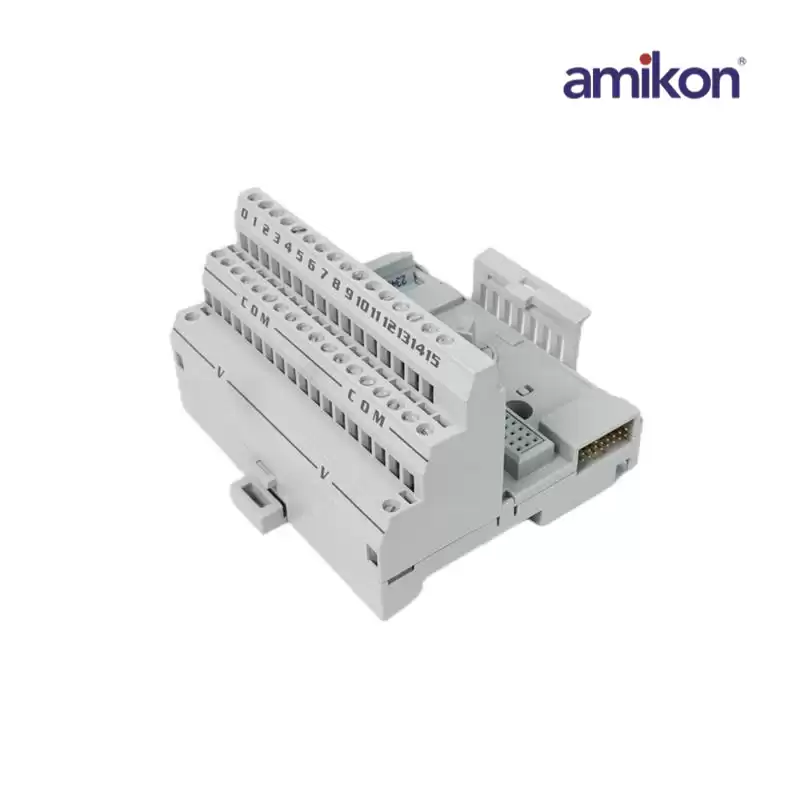

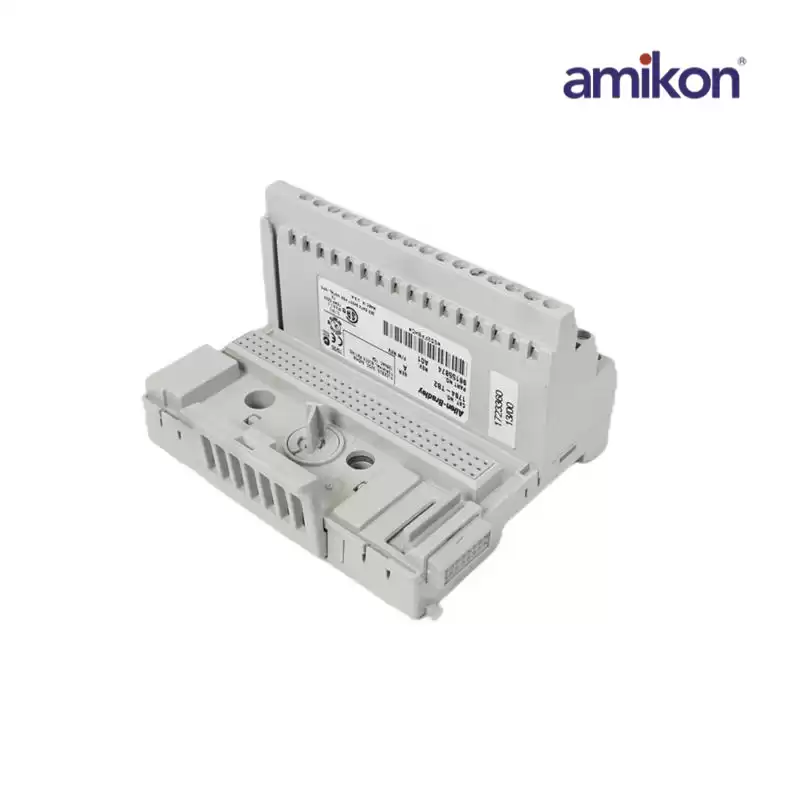

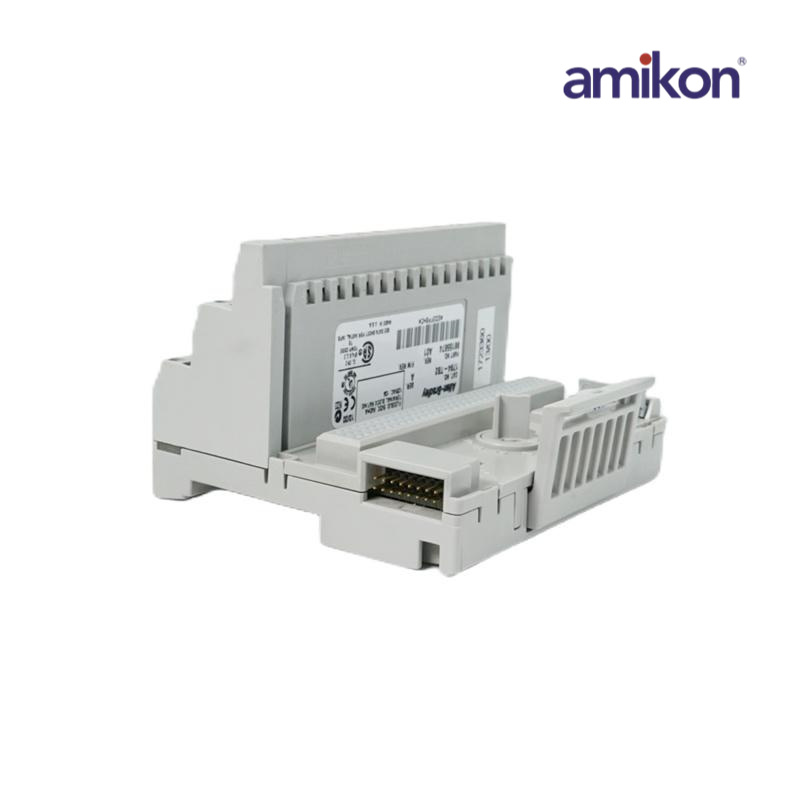

1794-TB32 Terminal Base Unit
|
|
Dimensions ：
|
10.2cmx7.6cmx5.1cm
|
Weight：
|
0.1kg
|
|
Full Description: 1794-TB32 Flex I/O 32-Point Terminal Base Unit, 3-Wire screw termination, Cage Clamp. A 32-point version of the 1794-TB3 to be used with 32-point digital modules and 1794-IB16D
|
|
The 1794-TB32 has the following components: a female Flexbus connector, a male Flexbus connector and a cover plug for it, a key switch, holes for mounting it on a panel, input/output terminal strips, a locking tab, and a module locking latch.
The 1794-TB32 has a maximum current capacity of 10 Amps and a 125 Volts AC/DC maximum voltage rating. The isolation voltage of this base unit is not fixed, as its channel-to-channel isolation depends on the inserted module.
|
