Technical Specifications for 1794-TBN
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Voltage
|
250V Cotinuous
|
|
Part Number/Catalog No.
|
1794-TBN
|
Input Current
|
0.85A at 24 Volts
|
|
Module Type
|
Flex IO Controller
|
Wire Size
|
0.34-3.3mm^3
|
|
Manufacture Year
|
2021
|
Terminal Screw Torque
|
1.4 Nm
|
|
Product Package
|
Original Package
|
UPC
|
10612598137883
|
About 1794-TBN
|

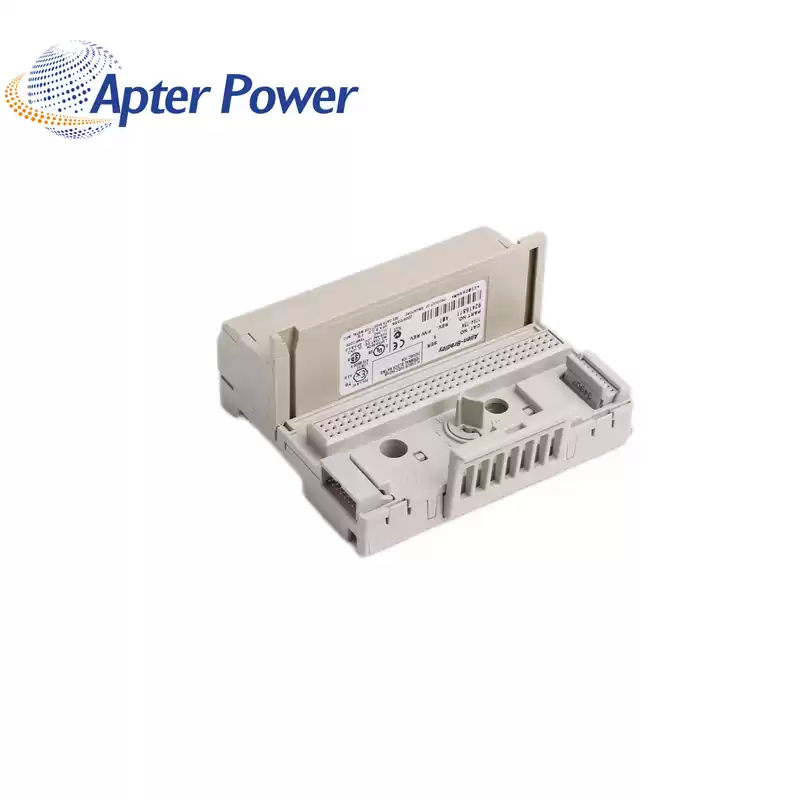

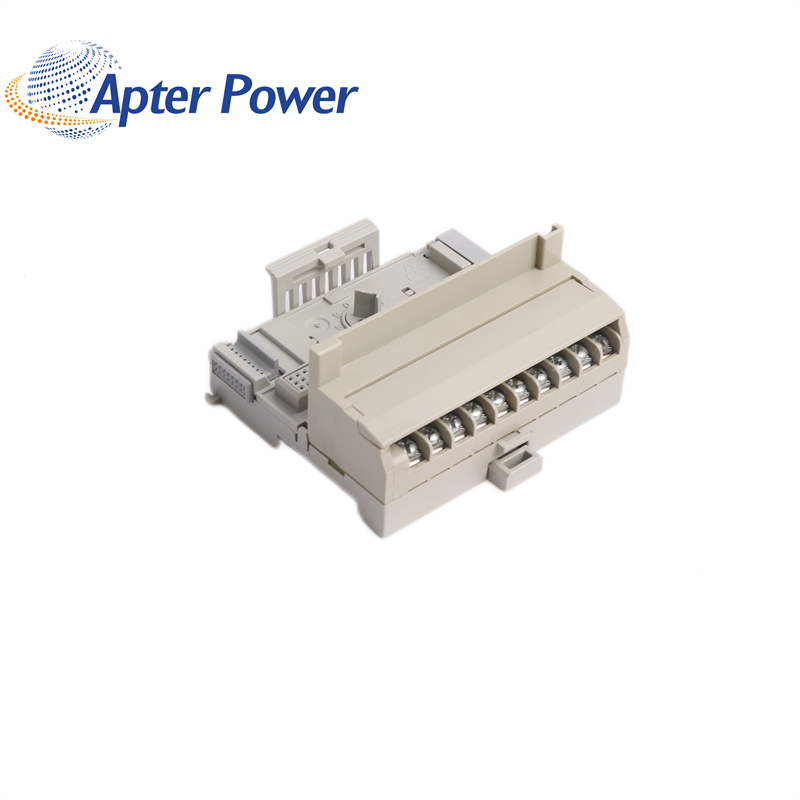

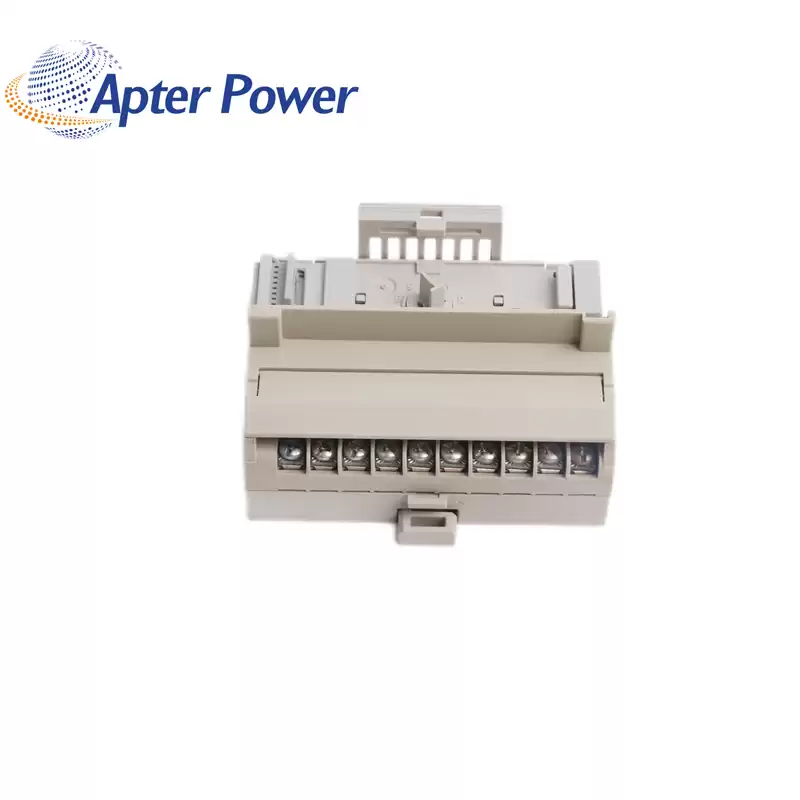

The 1794-TBN Terminal Base Unit by is a 16 I/O terminal base point with 250V AC/DC electrical rating and a maximum current capacity of 10A. The module has 2 common terminals, 2 +voltage terminals, and it uses the NEMA style screw clamp for larger gauge wire with a cover for 10 I/O wirings and for I/O termination.
The 1794-TBN has 5V DC and 640mA FLEXBUS rating, and it also has a V/COM terminal rating of 250V DC/AC at 50-60 Hz and 10A current. It provides 1.4 Nm (12 lb-in) terminal screw torque and the unit also provided a voltage isolation dependent on the unit module installed in it. It base circuitry utilizes copper wire with a 0.34 x 3.3 mm2 (22-12 AWG) solid or stranded wire size and with a 1.2 mm (3/64 inches thick insulation.
The 1794-TBN is designated the T4A (North America) and IEC T4 temperature codes and it comes with an open-style enclosure. It has a rated temperature between -20 and 70 °C (-4 and 158 °F) around an ambient 5-95% non-condensing relative humidity range and is stored at a temperature between -40-85 °C (-40-185 °F). The 1794-TBN’s total dimensions with the module installed are 94mm x 94mm x 69mm (3.7in x 3.7in x 2.7in) and it is CE, CSA, C-TICK, CUL, GOST, KC, MARINE, and UL-certified.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
