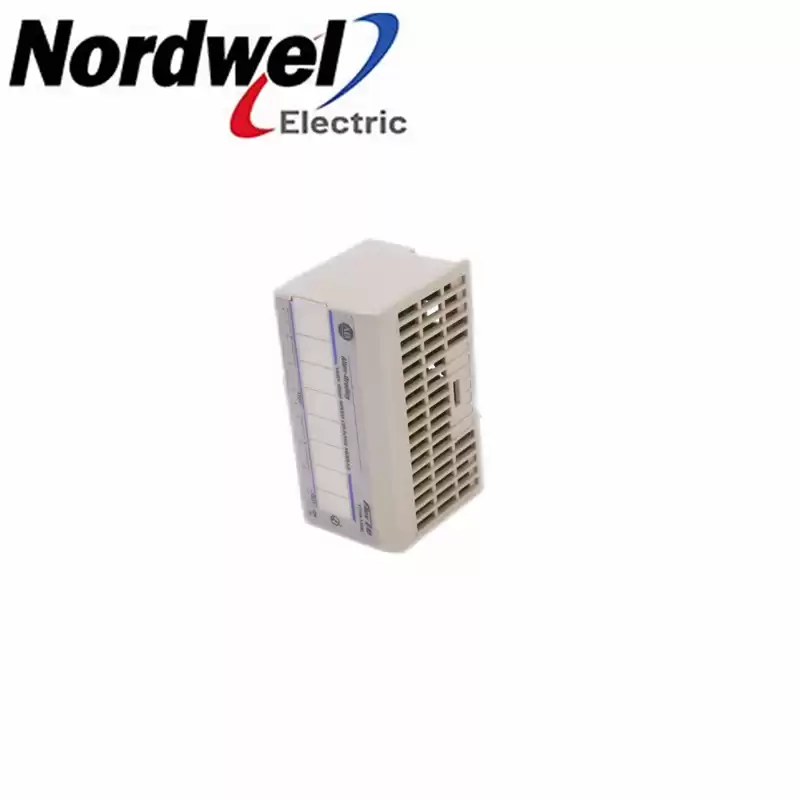

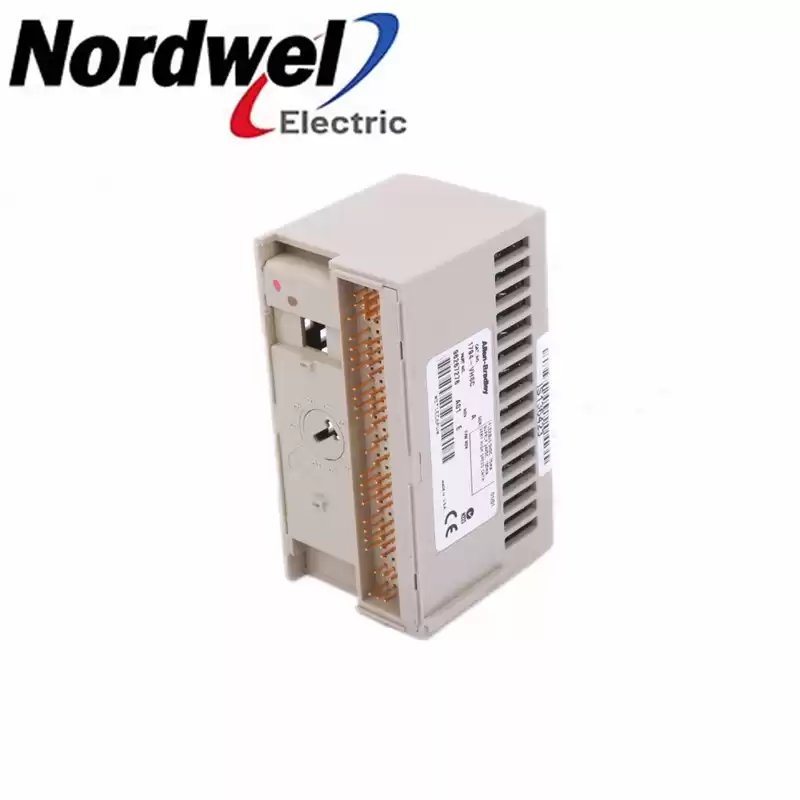

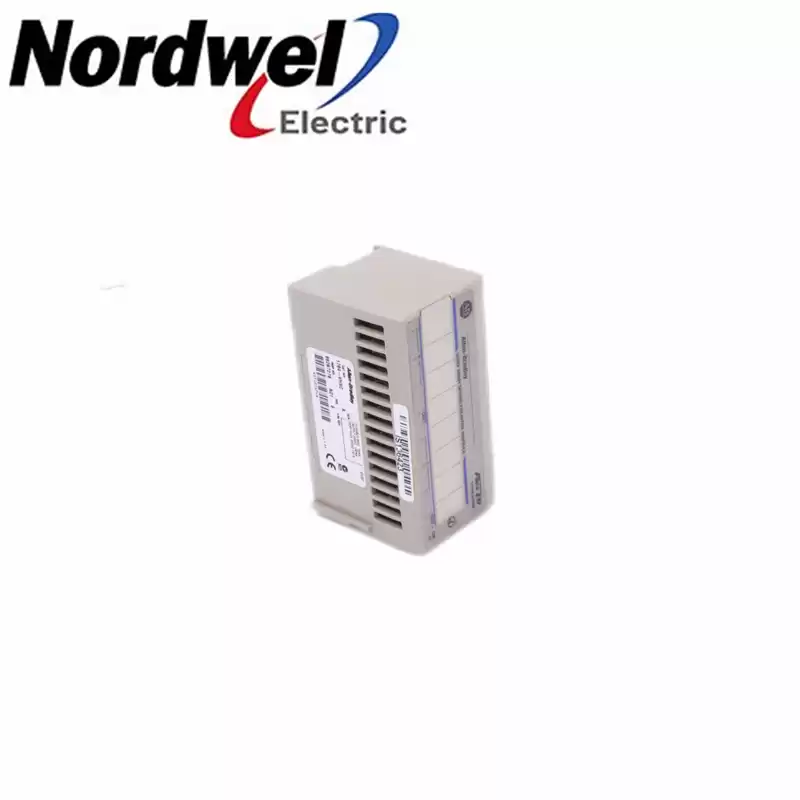

| 1794-VHSC | Flex I/O Very High Speed Counter Module

Description | 1794-VHSC | Flex I/O Very High Speed Counter Module
Place of OriginUSA
CertificationCOO
Manufacture YearThe latest year
Dimensions7.6 cm x 5.1 cm x 10.2 cm
Part Number1794-VHSC
Weight0.1 kg

Description

Manufacturer Automation
Brand
Part Number/Catalog No. 1794-VHSC
Product Type Flex I/O Very High Speed Counter Module
Input Channels 2
Inputs per Counter 2 Groups of 3
Input Voltage 5V DC
Input Off-state Voltage <1.8V DC
Input Off-state Current <0.25 mA
Input On-state Current >5mA
Outputs 2 Isolated Groups of 2
Output Supply Voltage Range 10-31V DC
Power Dissipation 5.0W @ 31.2V DC max.
Thermal Dissipation 17.1 BTU/hr. @ 31.2V DC max.
