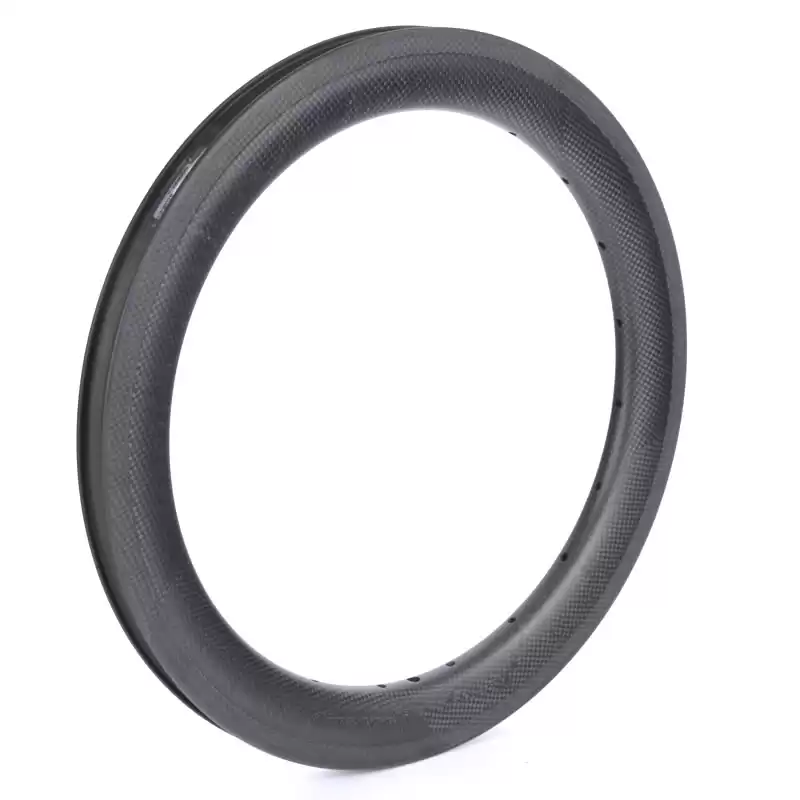

Product Model:349mm/369mm 17inch BMX bicycle carbon clincher rims
This 35mm Deep 23mm wide and 45mm Deep 23mm wide 17er BMX bike carbon rims made of Full carbon fiber T700,have great strength but light weight.better for folding bike,BMX bike and other children Kids bicycle.
17inch carbon Rims have basalt or Disc brake to choose.
349mm/369mm carbon rims with 23mm wide,clincher tyres,easily to change the inner tube.
UD or 3K appearance to choose.also have matte or glossy to finish.
Wholesale carbon bicycle rims,with competitive price and fast delivery.
Features:
1.349mm/369mm 17inch BMX bicycle rims made of Full carbon fiber T700.Made in high temprature carbon resin with high performance brake surface.
2.35mm Deep 23mm wide and 45mm Deep 23mm wide carbon rims,17inch clincher rims have great strength but lightweight.349mm/369mm carbon rims is suit for BMX bicycle,folding bike and road riding.
2.17"clincher rims 355mm/369mm, also use to better children kids bicycle.
3.The new style 17er rims are made in one piece molding,each rim is made by one piece long carbon fiber,no wrinkles,better for the strength and lightweight.
4.17er carbon rims have basalt and Disc brake to choose.
5.We offer decal and painting service for OEM your brands.
6.We can customized Different appearance carbon rims.
7.Fast delivery,strong technical force and good service.
8.Best quality carbon wheels manufacturer.
9.5 years warranty
Specification:
|
Model
|
D35-W23-369mm
|
D45-W23-369mm
|
|
Size
|
349mm 17inch
|
369mm 17inch
|
|

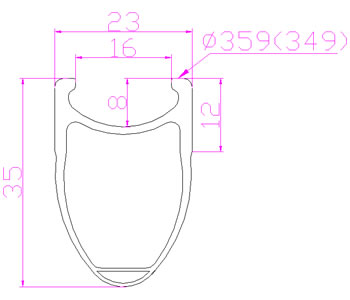

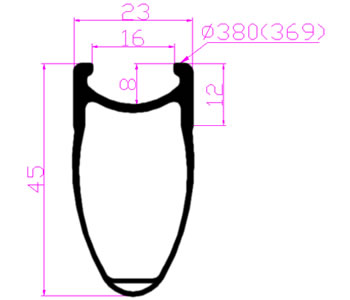

Sectional Drawing
|
|
|
|
Material
|
Toray T700
|
Toray T700
|
|
Depth
|
35mm
|
45mm
|
|
Wide
|
23mm
|
23mm
|
|
Weight
|
310+/-15g
|
330+/-15g
|
|
Appearance
|
3K/UD or Customized
|
3K/UD or Customized
|
|
Spokes holes
|
18-36#Customized
|
18-36#Customized
|
|
ERD
|
296mm
|
296mm
|
|
Assembly Hole Dia.
|
8mm
|
8mm
|
|
Spokes hole Dia
|
4.4mm
|
4.4mm
|
|
Valve hole Dia.
|
6.6mm
|
6.6mm
|
|
Flatness
|
<0.25mm
|
<0.25mm
|
|
Roundness
|
<0.5mm
|
<0.5mm
|
|
Max Spoke Tension
|
>300kg
|
>300kg
|
|
Ultimate Strength
|
>300kg
|
>400kg
|
|
Torsion Strength
|
>50kg
|
>50kg
|

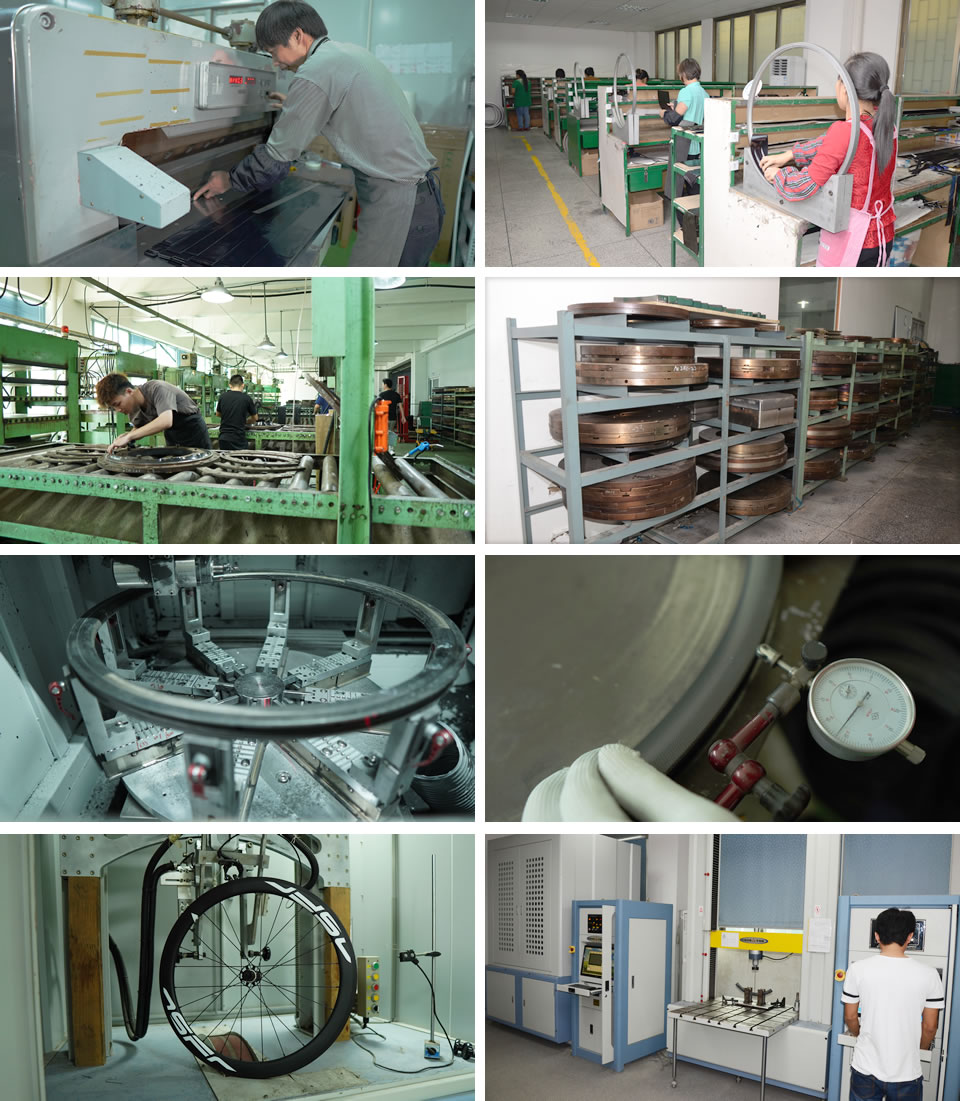

Factory production manufacture
100% Quality Inspection:
Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.
5 years warranty:
The warranty covers five years form the initial pruchase of the product.
The warranty applies to the original purchaser and the assignmnet is invalid.
The warranty requires proof of pruchase,product serial number and defect picture.
Please keep your proof of purchase for any future warranty problems.
This warranty does not cover:
1. Normal wear and tear and depreciation.
2. Any man-made damage caused by accident,misuse,etc.
3. Improper installation,maintenance or other conduct by an unauthorized technician.
