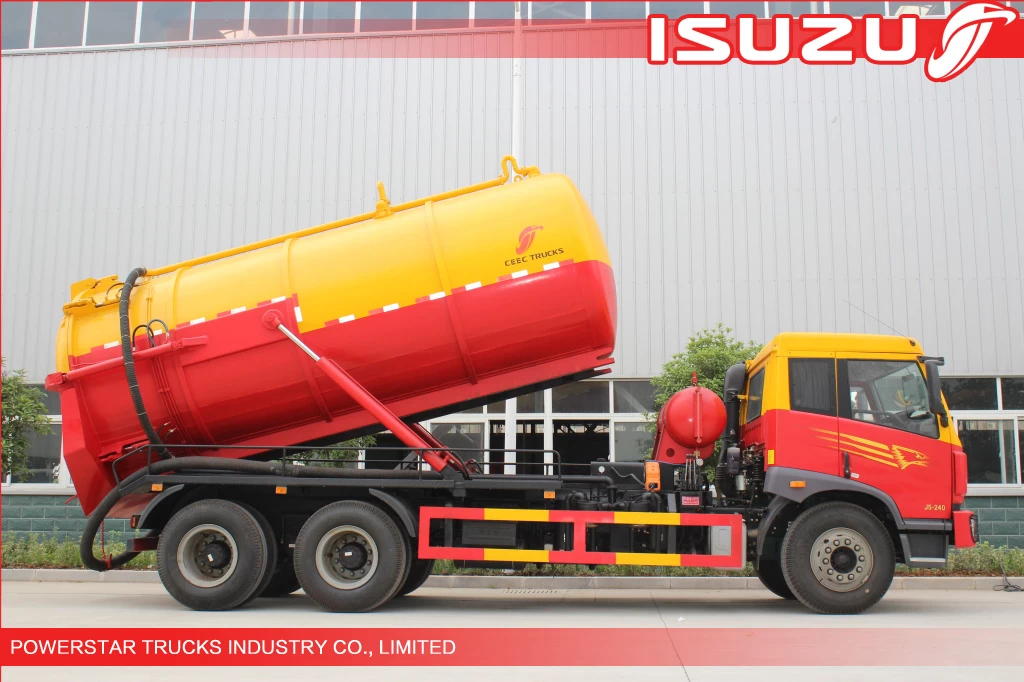

18,000Liter Congo Heavy duty Vacuum Loader Vehicle Isuzu

Model

PT5250GXW

Driving Type

6x4    (Left hand drive)

Wheelbase

4350+1350 mm

Engine

206 kw (280hp)

Vacuum Tank

Tank shape

Cylinder

Material

Carbon Steel

Dirty water tank

16,000~18,000  Liters

Thickness

6 mm

Dish thickness

6 mm

Designed pressure

-0.9 bar

Strengthen ring

Cool bended U shape, add the strengthen ring on the tank our circle

Over Pressure device

Fixed on the top of the tank

Vacuum valve

For keeping the tank's inside vacuum

Safety support

fix with safety valve during working

Rear Cover

Operation

Opened by hydraulic

Lock device

Manual locking device

Seal

Rigidity and manual synthetic rubber seal rings

Water discharge valve

one way 100mm ball valve

Vacuum Pump

Model

As option

Working pressure

700 Pa

Flow rate

68 L/s

Color

As option
