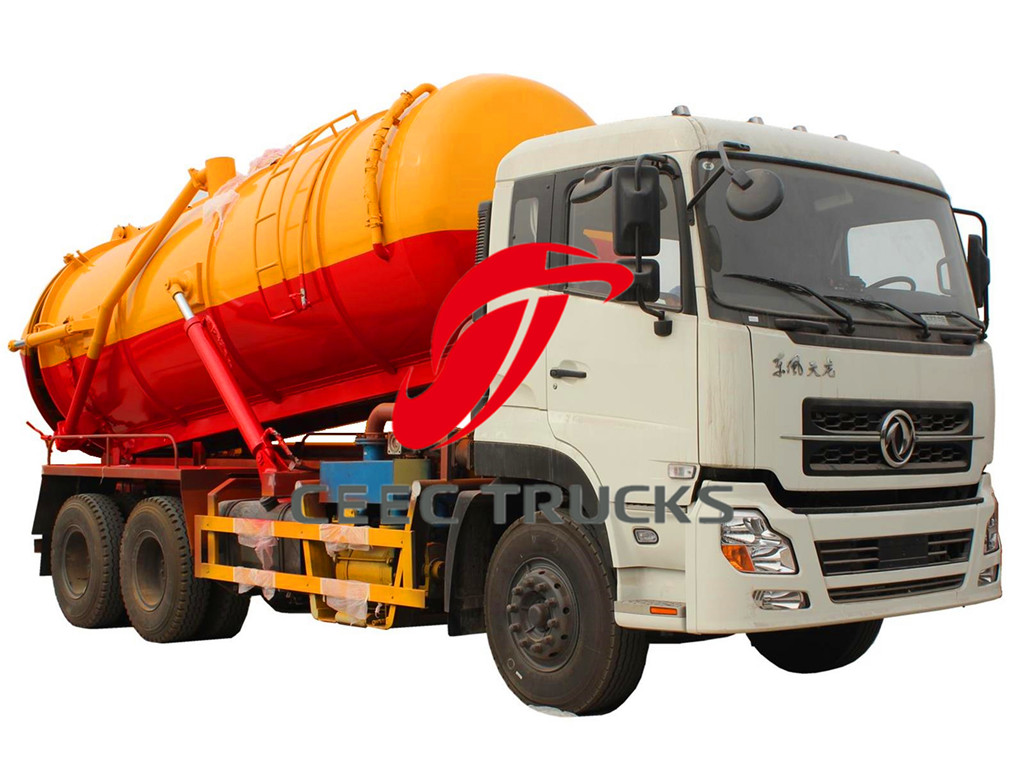

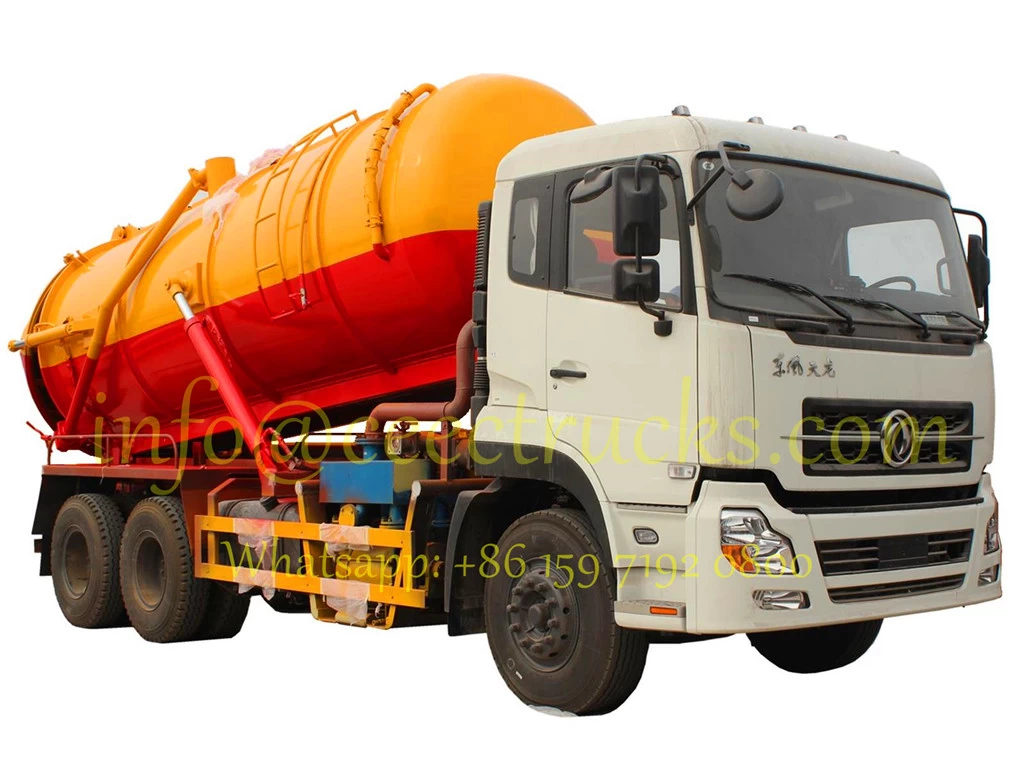

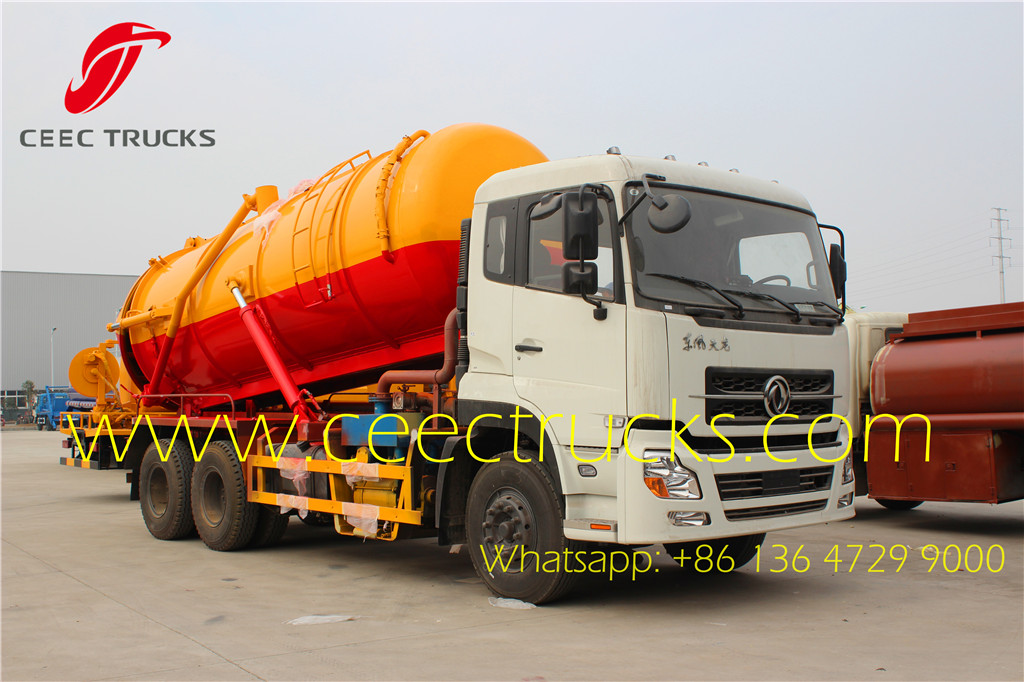

2016 hot model 18000liters vacuum sucker truck
China best quality vacuum sewage suction truck optional chassis
1. Model: we have sewage suction truck and sewage suction cleaning truck;
2. Drive model: 4*2, 4*4, 6*4, 8*4;

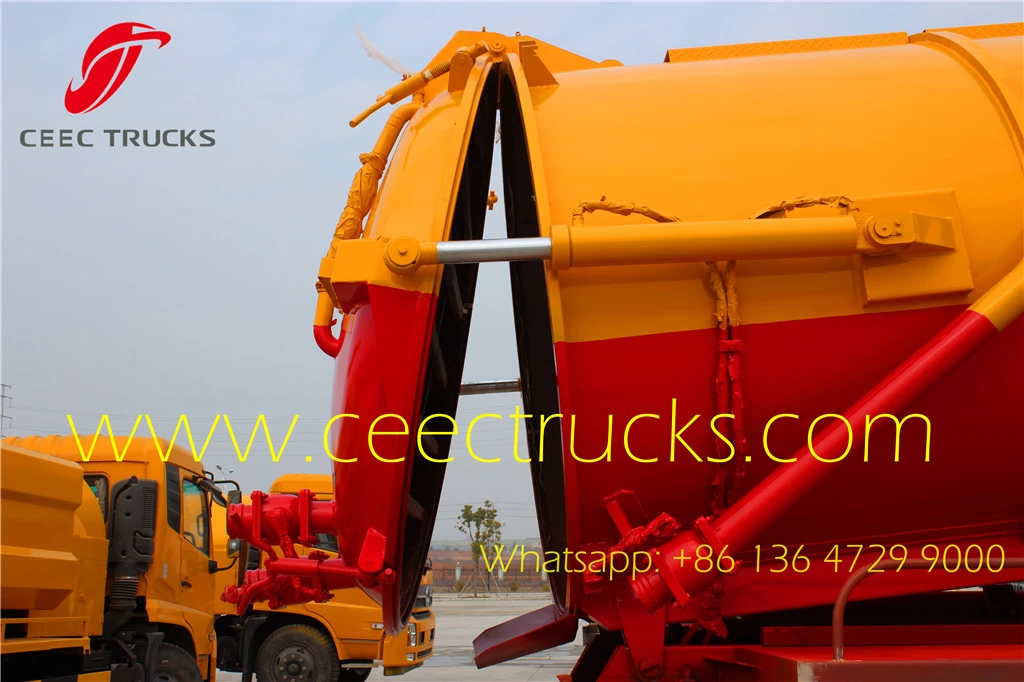

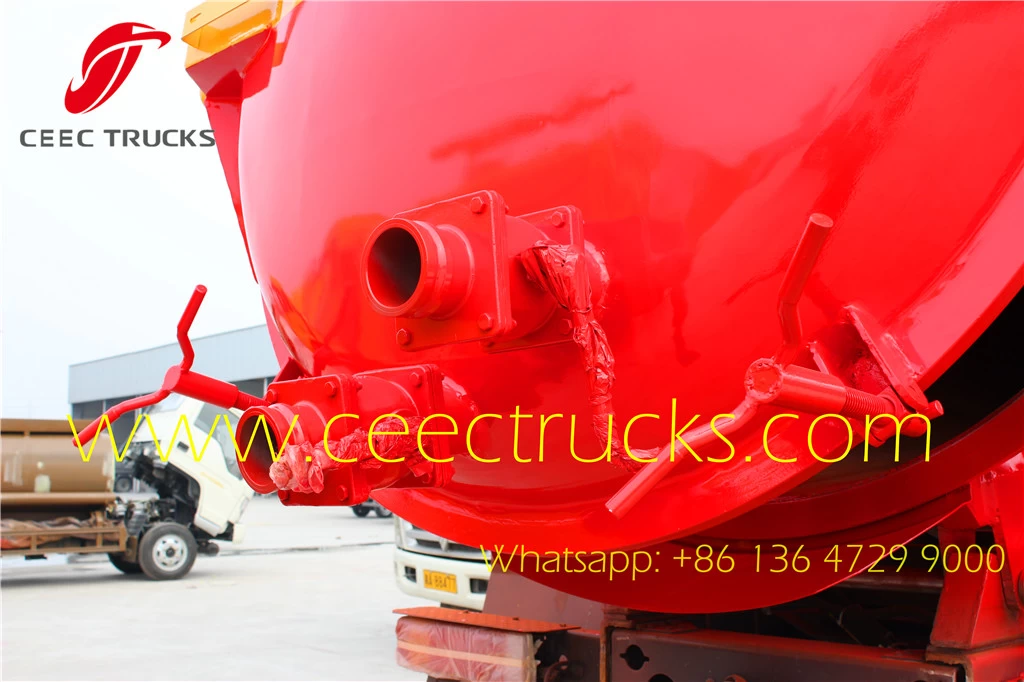

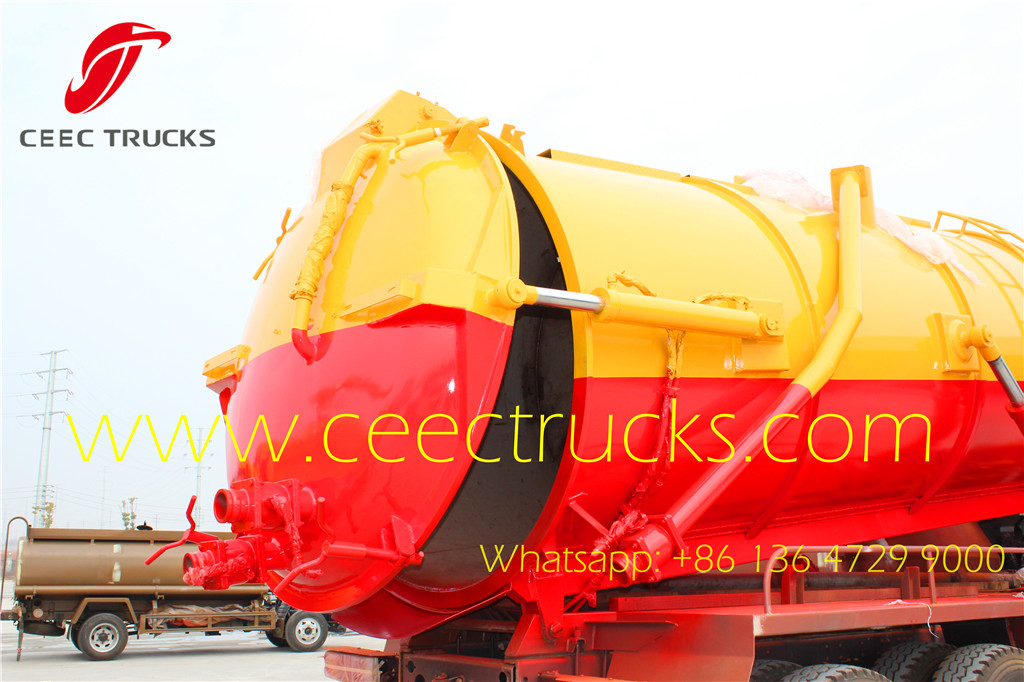

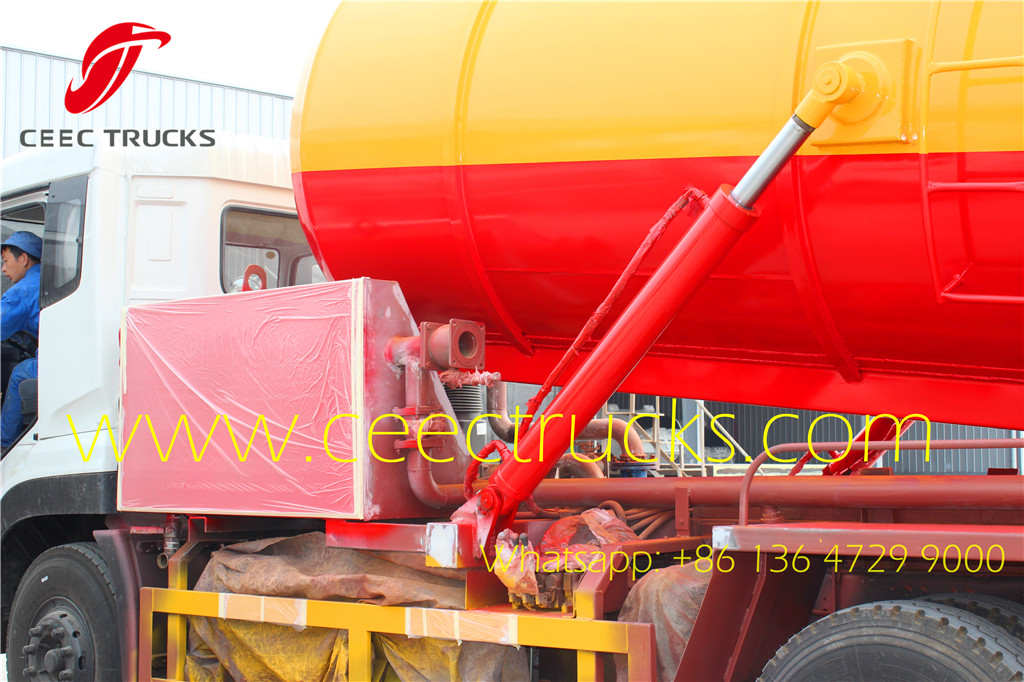

3.Equipments: round tank with material of carbon steel, vane vacuum pump imported from Italy, with lifting system, rear cover can be opened by hydraulic device, equipped with self-flowing hole and special valve, suction depth can reach 5-8 meter, equipped with special sewage suction pipe;
4. Tank capacity:3-20CBM;
5. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper;

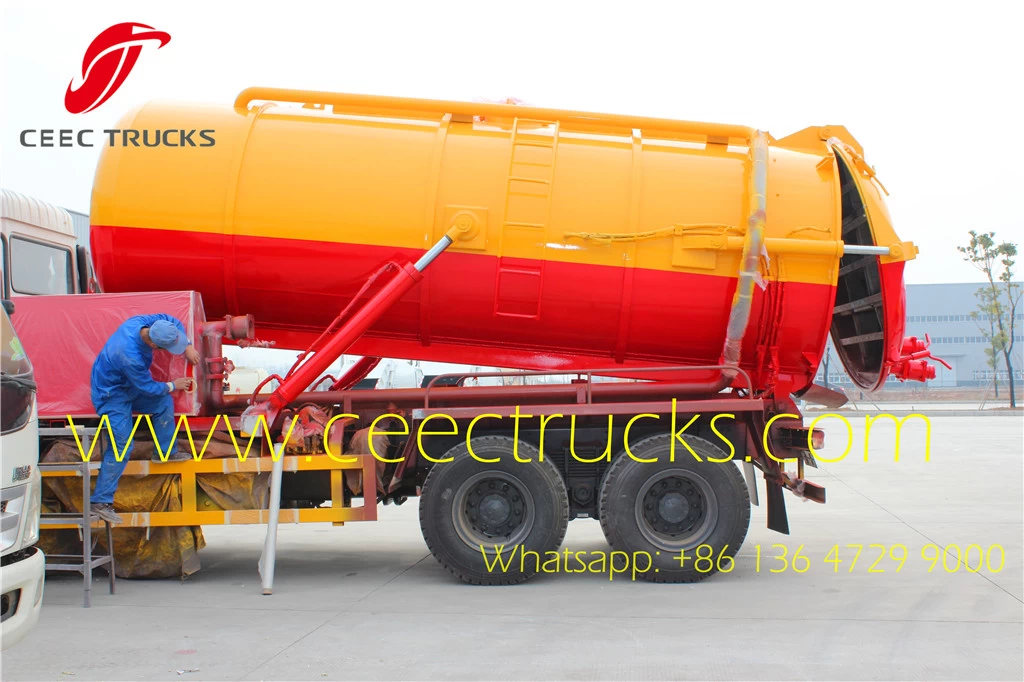

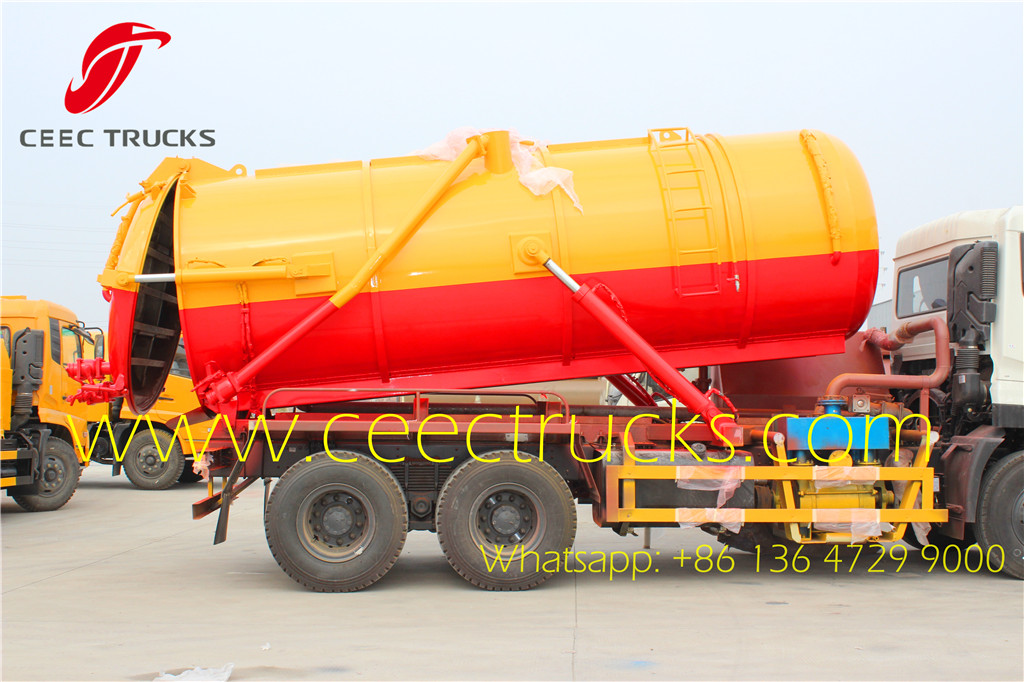

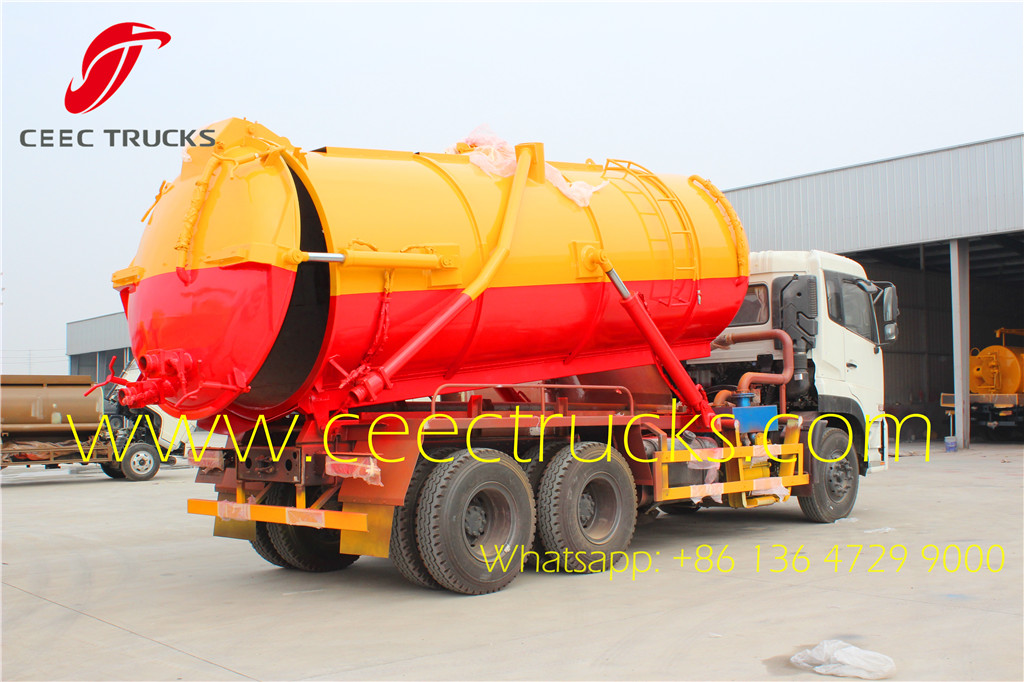

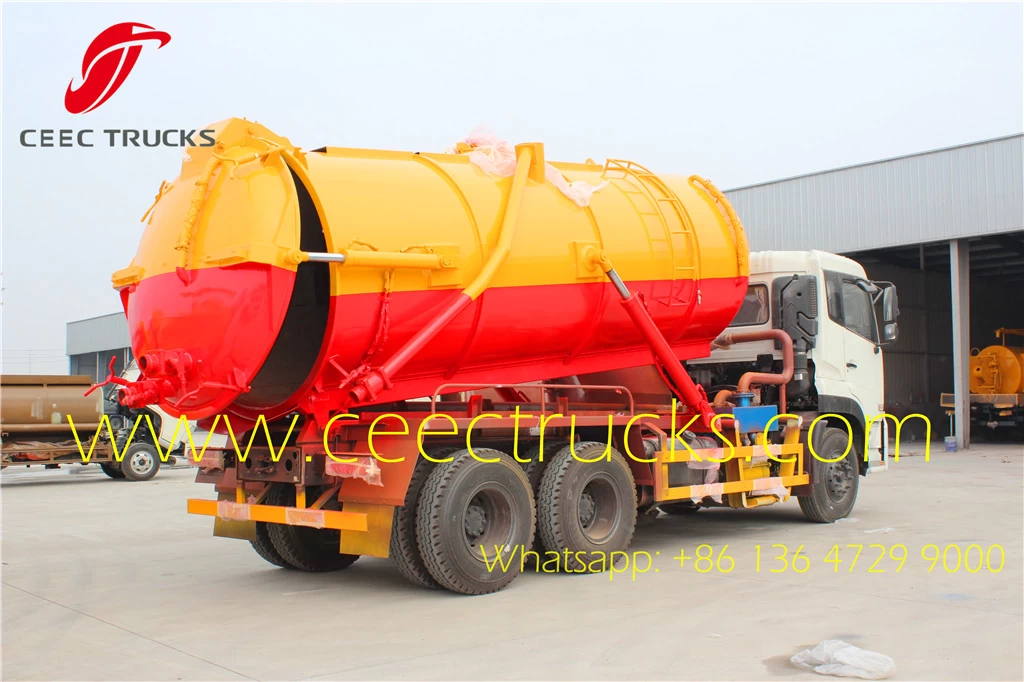

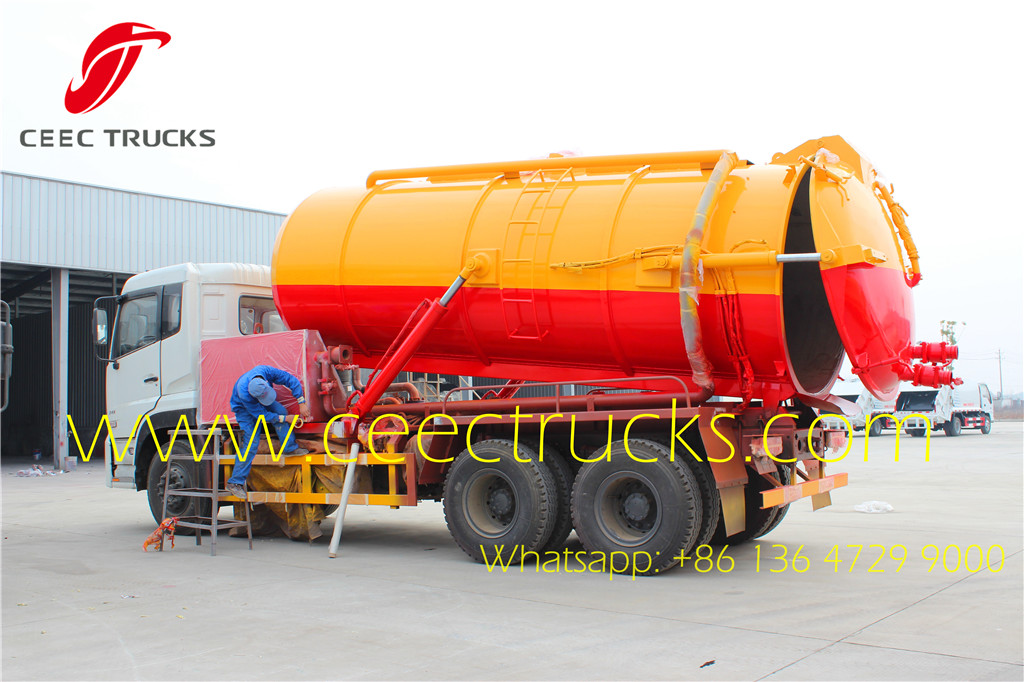

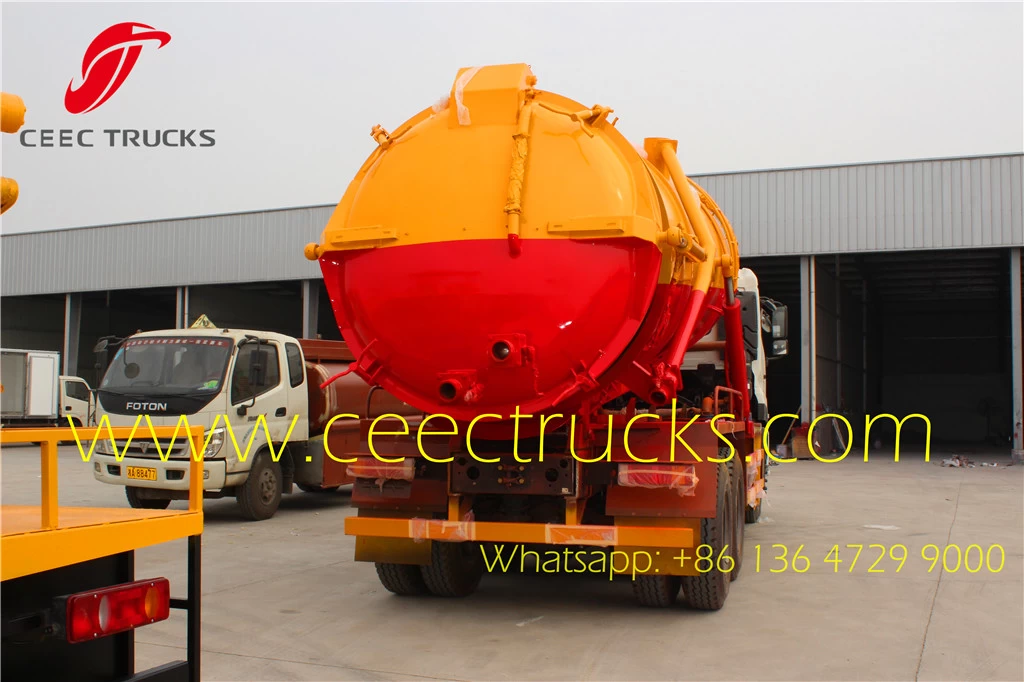

6. Detail parts introduction for CEEC TRUCKS produced cesspit emptier as follow:
Similar Keywords: Dongfeng heavy cesspit emptier, 18CBM vacuum suction truck, septic
suction truck, sludge tipper, sewer scavenger, vacuum tank, truck
vacuum, sucker machine, sewage disposal truck, gully emptier, cesspool
emptier, sewer suction truck…
| Item
|
Descriptions
|
Spesifications and Types
|
| Vehicle
|
Brand
|
CEEC TRUCKS
|
| Overall Dimensions L*W*H
|
9600*2500*3690mm
|
| Weights
|
GVW.
|
25000kgs
|
| Kurb Weight
|
12305kgs
|
| Rated Payload
|
12500kgs
|
| Chassis
|
Chassis Brand
|
Dongfeng
|
| Drive Type
|
6x4
|
| Steering
|
LHD
|
| Engine
|
Brand
|
dongfeng engine
|
| Power
|
180Kw /245HP
|
| Emmission Level
|
EURO 2 or Euro 3 or EURO 4
|
| Performance
|
Max. Speed
|
90km/h
|
| Wheel base
|
4350+1350mm
|
| Tyre Specifications
|
10.00-20,10.00R20,11.00-20,11.00R20
|
| No. of Tyre
|
10 pcs (1 spare tyre included)
|
| Cab
|
Cab Capacity
|
2 persons allowed
|
| Body/Superstructure
|

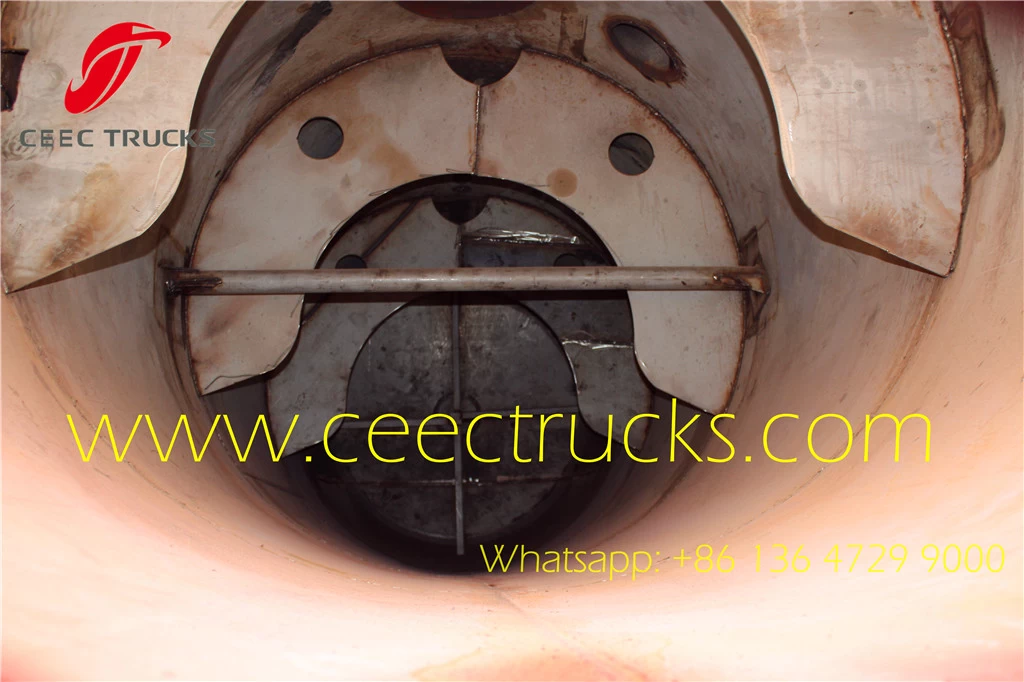

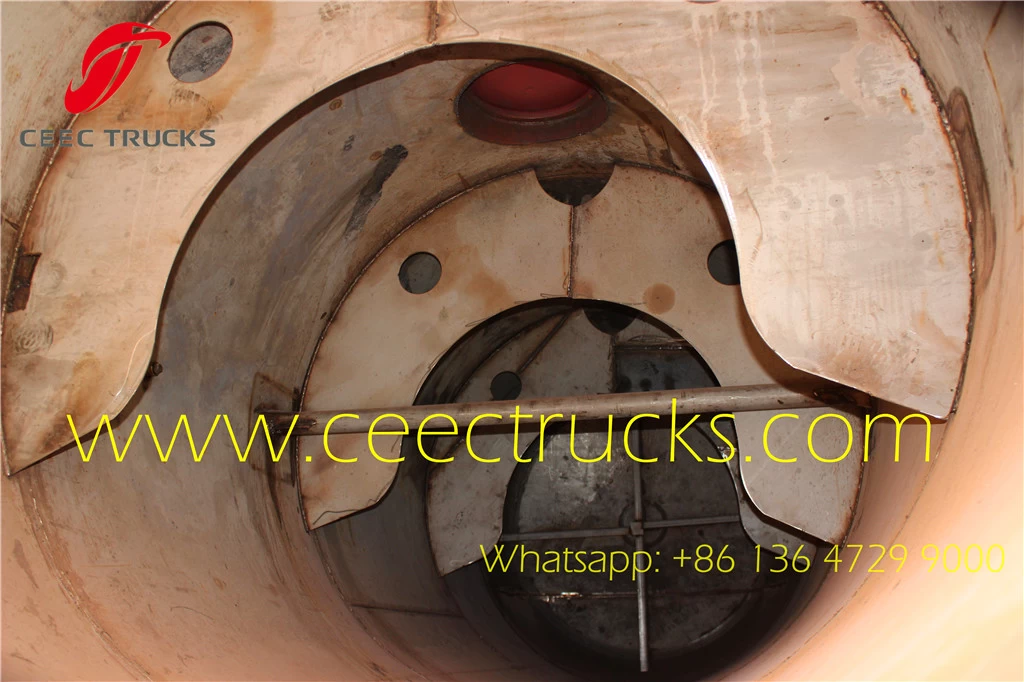

Tank
|
Capacity
|
16-18 m³
|
| Material
|
5mm or 6mm high quality carbon steel
|
| Vacuum pump
|
China famous vacuum pump
|
| Vacuum rate
|
99% thorically
|
| Suction head
|
6m
|
| Rotation speed
|
500 rpm,low noise,high efficiency
|
| Basic
Equipments
|

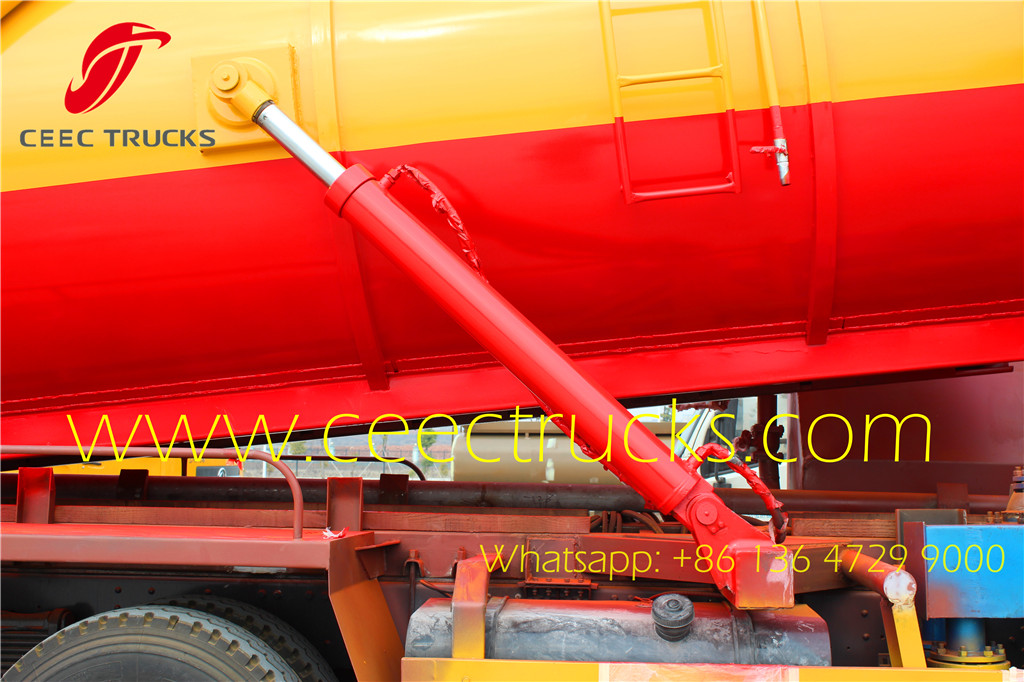

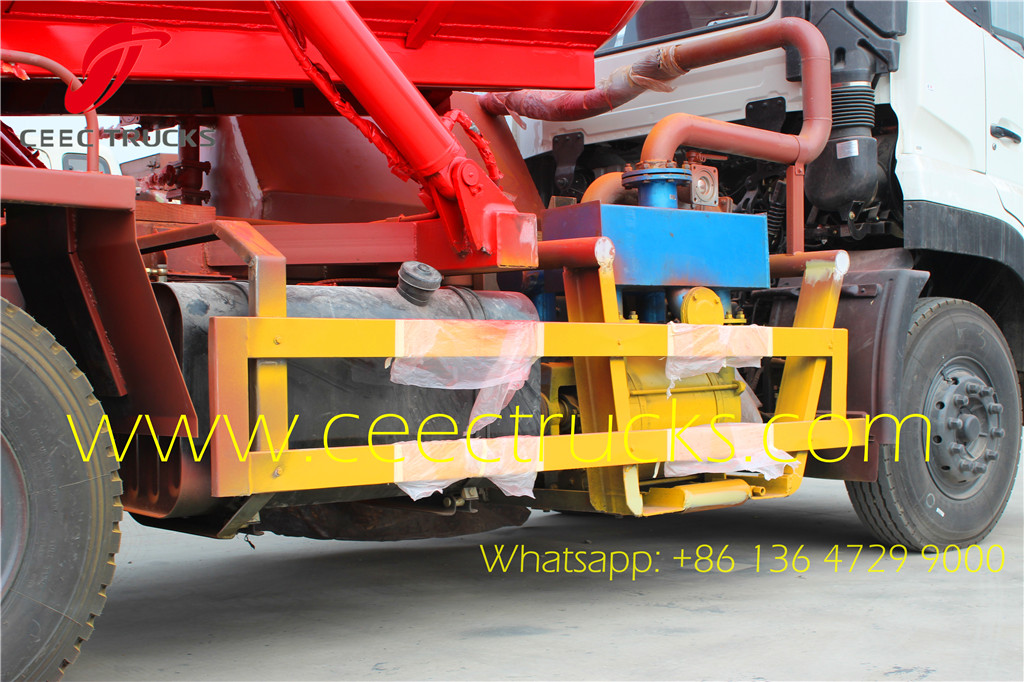

Install vacuum pumps and hydraulic systems driven by engine through
PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand
washing tank and a piece of 6m suction hose
|
| Paint
|
Tank color is according to client’s requirements.
|
| Optional Equipments
|
Italy or Spain vacuum pumps
|
| Stainless steel
|
| Anti-rust coating inside tank
|
