180mm Lithium ion Battery Roll to Roll Coating Machine for Battery Electrode Sheets
Product specification
1.LIO-TBJ-200 Lab coating machine is a compact Roll to Roll continuous coater for battery electrode sheets with a small size for battery research labs.

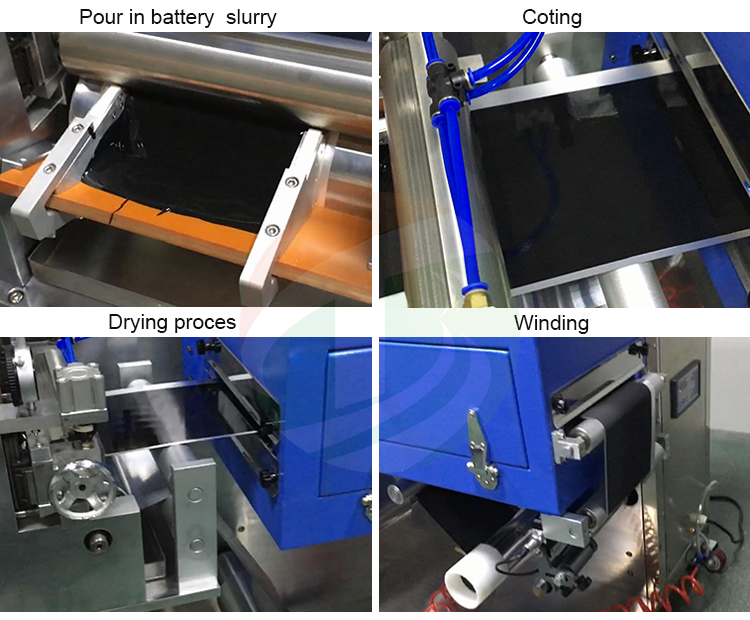

2.This coating system integrates the functions of reeling in and out, slurry feeder, coating blade, baking oven, and final electrode winding (reeling in). It can coat electrode sheets up to 180mm in width and 500 meter in length automatically.
3.This lab coating machine is mainly used for LFP, LCO, LMO and NCM system battery cathode and anode electrode continuous coating.
4.The Lab coating machine is with four Direction wheel in bottom, it can be removed easily for laboratory use.
|
Model
|
Lab coating machine LIO-TBJ-200
|
|
Source voltage
|
AC 110v/220v, 50HZ/60HZ
|
|
Power
|
3000W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Coating mode
|
Continuous coating
|
|
Max coating width
|
180mm
|
|
Applicable matrix thickness
|
Aluminum foil : 11-30um
Copper foil : 8-30um
|
|
Mechanical tape speed
|
≤5m/min, with accuracy ±0.1m/min
|
|
Coating speed
|
0-750 mm / minute, adjustable
|
|
Coating thickness
|
30-200um
|
|
Applicable slurry viscosity
|
1500-15000cps
|
|
Coating roller accuracy
|
≤1um
|
|
Coating accuracy
|
Double dry thickness accuracy error : <±4um
Single side dry thickness accuracy error : <±2um
Double coated alignment error : <±0.5mm
Average length of error : <±0.5mm
|
|
Roller inner diameter
|
3inches
|
|
Tension control
|
Low friction tension system
|
|
Struggle to control precision
|
<±0.3mm
|
|
Oven temperature
|
150°C adjustable, with accuracy ±1°C,
Independent PID adjustable
|
|
Weight
|
500kg
|
|
Dimension(L*W*H)
|
1200*800*900mm
|

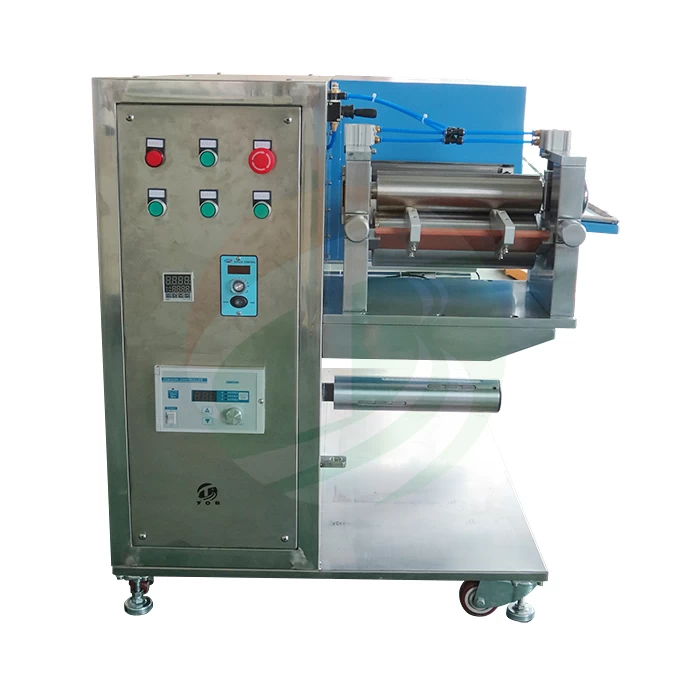

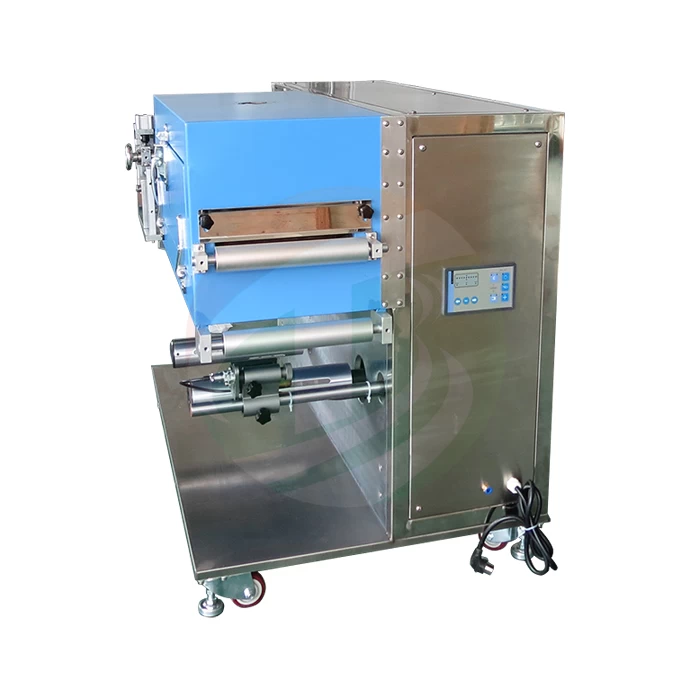

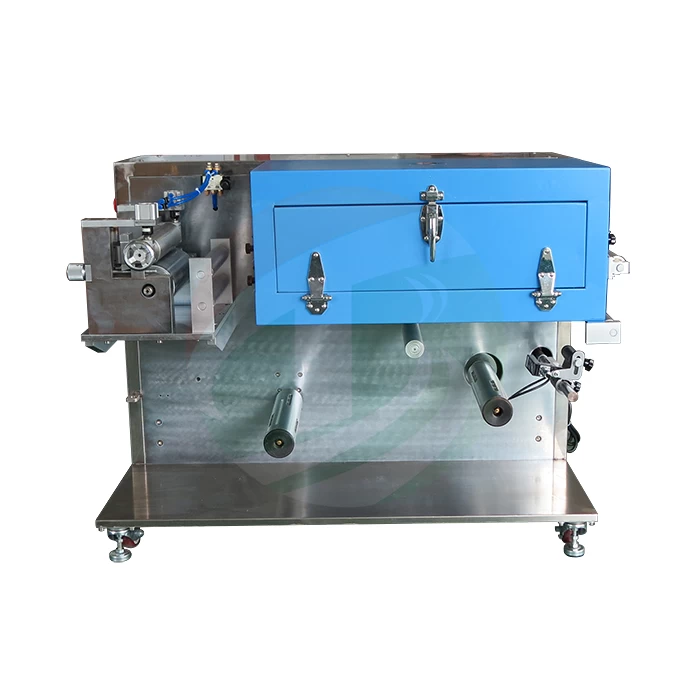

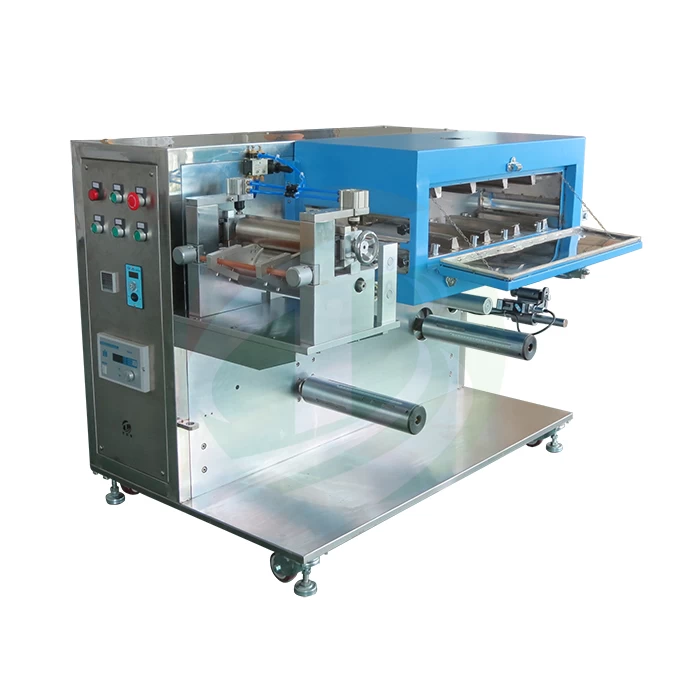

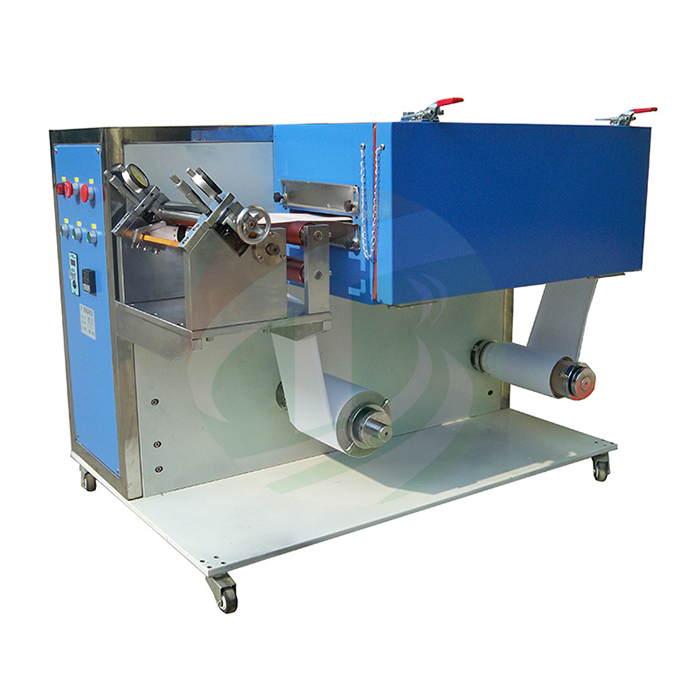

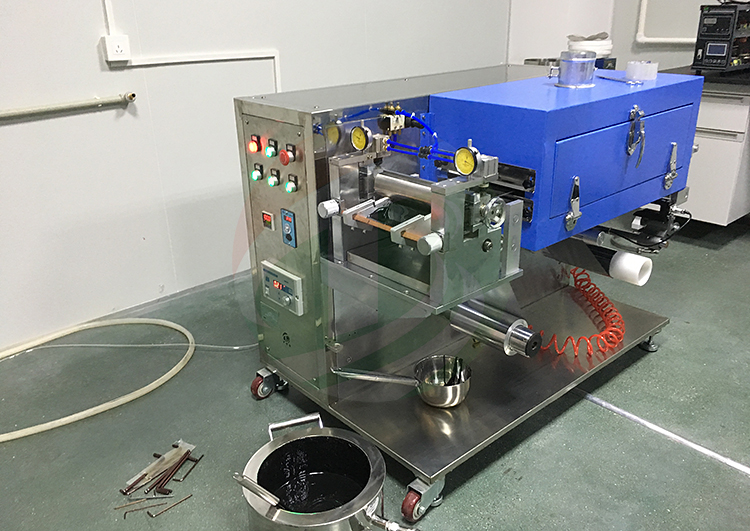

Product Images

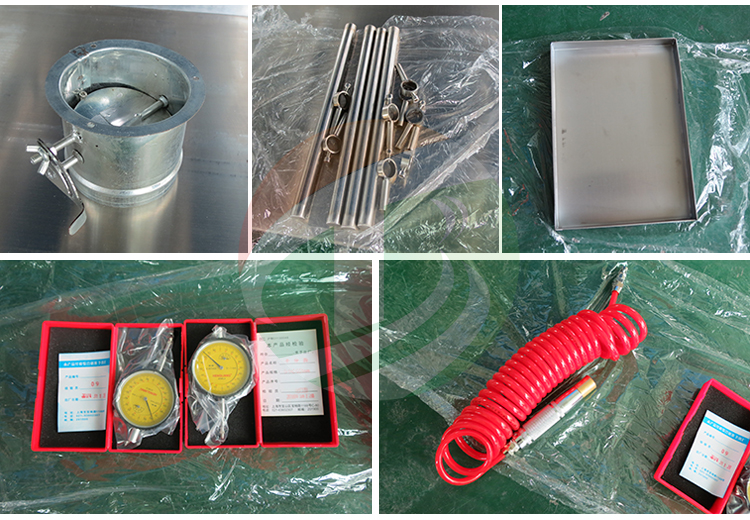

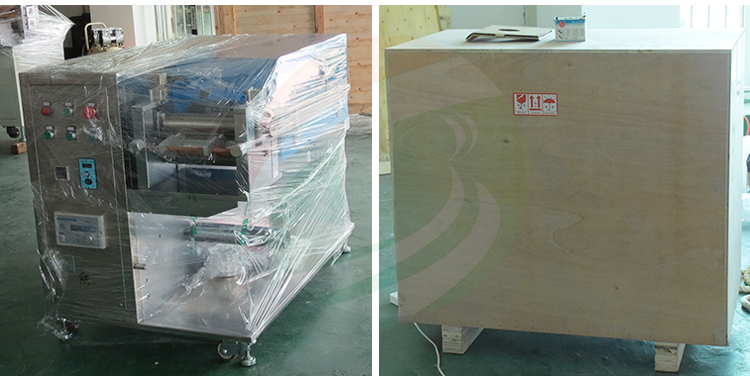

Product Packing
