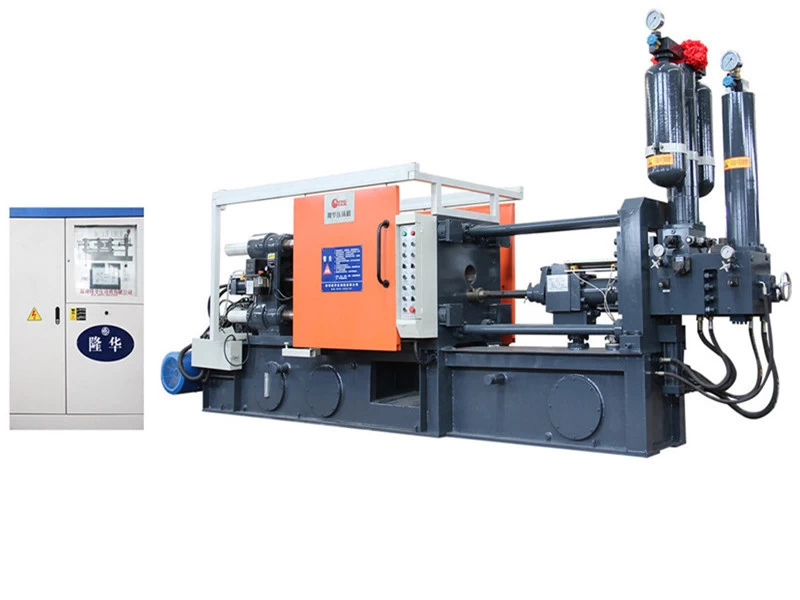

180T Aluminium cold chamber die casting machine
Parameters of cold chamber die casting machine(180T)
|
Items
|
Unit
|
Specification
|
|
Hydraulic Working Pressure
|
MPa
|
14
|
|
Clamping Force
|
KN
|
1800
|
|
Space Between Tie Bars
|
mm
|
480*450
|
|
Tie Bar Diameter
|
mm
|
￠85
|
|
Die Opening Stroke
|
mm
|
380
|
|
Injecction Force(intensify)
|
KN
|
270
|
|
Plunger launch distance
|
mm
|
130
|
|
Injection position
|
mm
|
0 -- 140
|
|
Plunger Diameter
|
mm
|
￠50----￠70
|
|
Injection Stroke
|
mm
|
350
|
|
Casting pressure (intensify)
|
MPa
|
112/78/57
|
|
Casting Fiange Protrusion
|
mm
|
10
|
|
Casting Fiange Diameter
|
mm
|
110
|
|
(40Mpa) Max Casting Area Under 40Mpa
|
CM2
|
450
|
|
lnjection Weight(Al)
|
Kg
|
2.4
|
|
Die Height(Min--Max)
|
mm
|
200～550
|
|
Ejector Force
|
KN
|
110
|
|
Ejector Steoke
|
mm
|
80
|
|
Motor Capacity
|
Kw
|
15
|
|
Machine Dimensions (L*W*H)
|
m
|
5.22*1.4*2.35
|
|
Referential Machine Weight For Uplifting
|
T
|
6.7
|
|
Oil Tank Capacity
|
L
|
600
|
WE reserve the right to make any technical improvement without further notice
FAQ
|
Q: Are you trading company or manufacturer ?
|
|
Our factory is a manufacturer. Our advantage is production, export products of good quality, factory prices directly.
|
|
Q:Why choose us?
|
|
1.Our machine Efficient, energy saving, environmental protection,Quality has been recognized by the national quality supervision department.
|
|
2.Our service has been recognized by international customers.
|
Die casting machine products：
Packaging and delivery of die casting machines：
We have our own factory, containers can be directly from the factory to extract die-casting machine and related machine parts. Our packing is standard packing. The wooden cases we use are for export use only.
Auto die casting machine composition
Please contact me
