Water Cooled 4016 Series Perkins Power Diesel Generator Diesel 1850 kva 16 Cylinder
The 4016TAG1A is a turbocharged, air-to-air charge-cooled, 16 cylinder vee form diesel engine. Its premium design and specification features provide economic and durable operation as well as exceptional power to weight ratio, improved serviceability, low gaseous emissions, overall performance and reliability essential to the power generation market. The 4016TAG1A is specially tuned for improved load acceptance response in standby duty
Output Ratings
Phase Rating, 50Hz, PF 0,8
|
Voltage
|
Standby Rating (ESP)
|
Prime Rating (PRP)
|
|
kVA
|
kW
|
kVA
|
kW
|
|
400/230
|
2035
|
1628
|
1850
|
1480
|
Diesel Engine Specifications
Powered by UK engine 1850kva super silent diesel generator price with 4016TAG1A
|
Engine Model
|
4016TAG1A
|
|
Engine manufacturer
|
Perkins
|
|
Number of Cylinders
|
16 cylinders
|
Net engine power
|
1537
|
|
Exhaust gas flow max (after turbo)
|
252
|
|
Aspiration
|
Natural
|
|
Bore×Stroke
|
160mm x190mm
|
|
Displacement
|
61.1L
|
|
Compression ratio
|
13:1
|
|
Standby Power/Speed
|
2183kWm / 2925hp
|
|
Speed Governor
|
Electrical
|
|
Cooling System
|
Forced water cooling cycle
|
|
Steady speed droop
|
≤1%
|
|
Total lubrication system capacity
|
237L
|
|
Coolant capacity (engine only)
|
260L
|
|
Mechanical efficiency
|
88
|
|
Alternator
|
DC24V
|
Alternator Specifications
|
manufacturer Name
|
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
|
|
brand
|
Samford or Leroysomer
|
|
model
|
PI 734B,LSA52.3S5
|
|
Control system
|
PMG,AREP
|
|
A.V.R.
|
Included
|
|
Voltage regulation
|
±1.0%
|
|
Insulation system
|
Class H
|
|
Protection
|
IP23
|
|
Rated power factor
|
0.8
|
|
Winding pitch
|
2/3
|
|
Winding leads
|
6
|
|
Frequency (Hz)
|
50
|
|
Voltage (V)
|
220V,400
|
|
Phase
|
3
|
|
Output ratings (kVA/kW)
|
|
|
----------------Cont.H-40°C
|
1860/1488
|
|
----------------Standby-27°C
|
2050/1640
|
|
THF
|
<2%
|
|
TIF
|
<50
|
|
Max. overspeed (Rev/Min)
|
2250
|
|
Bearing
|
Single
|

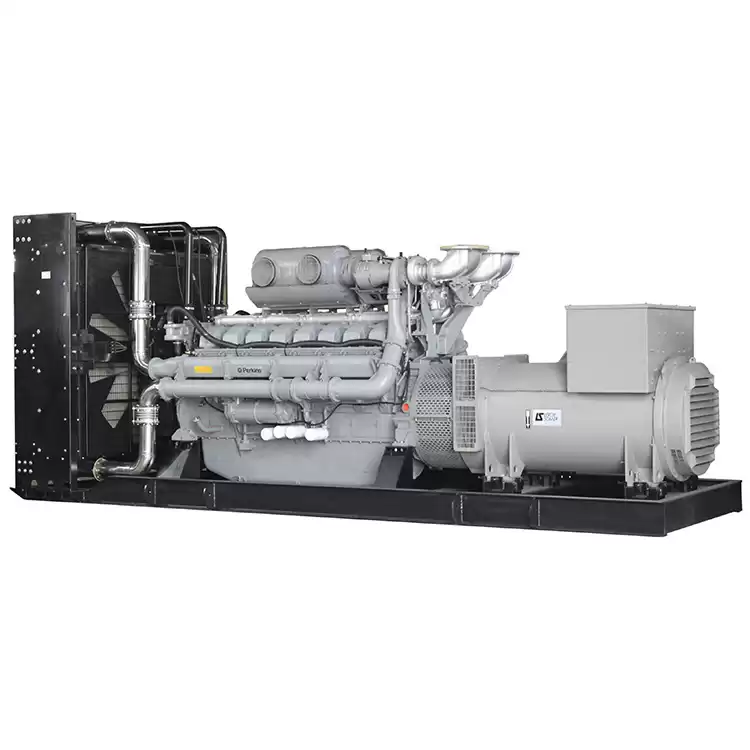

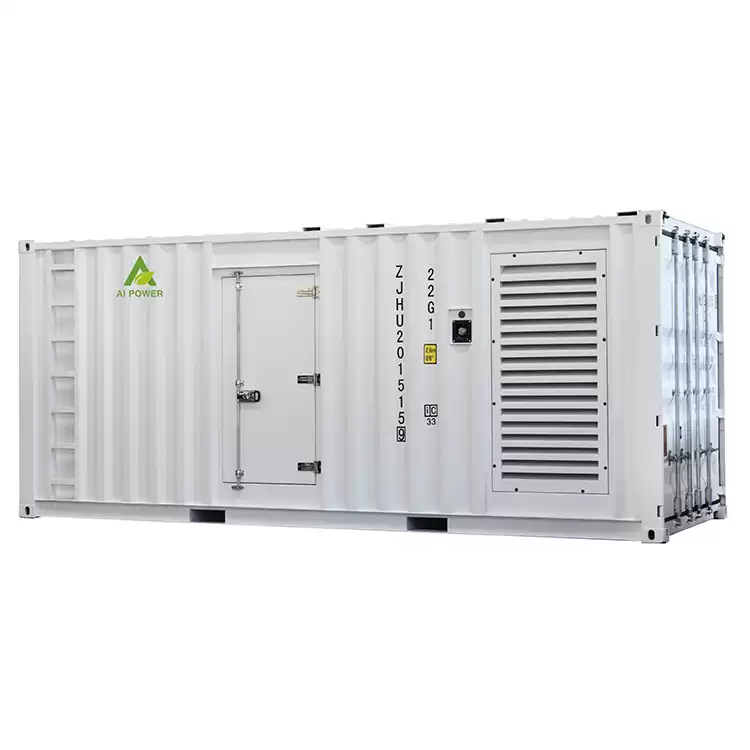

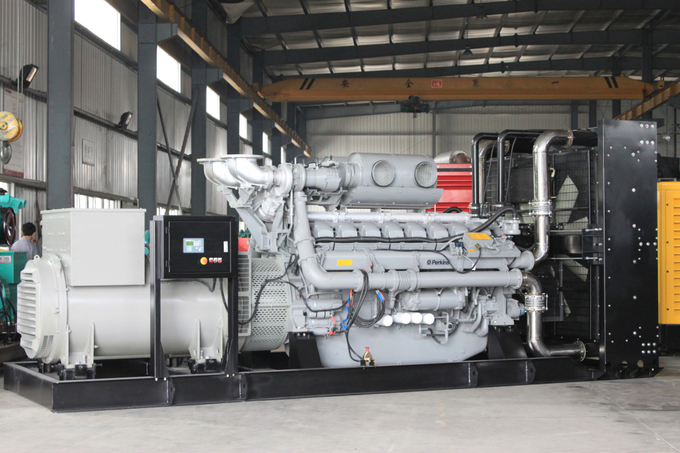

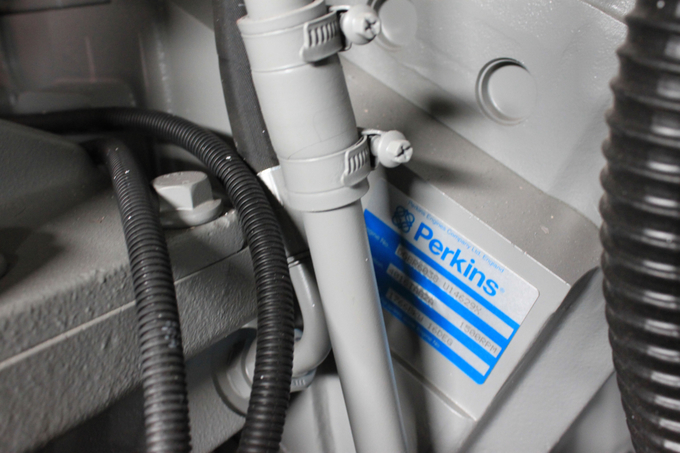

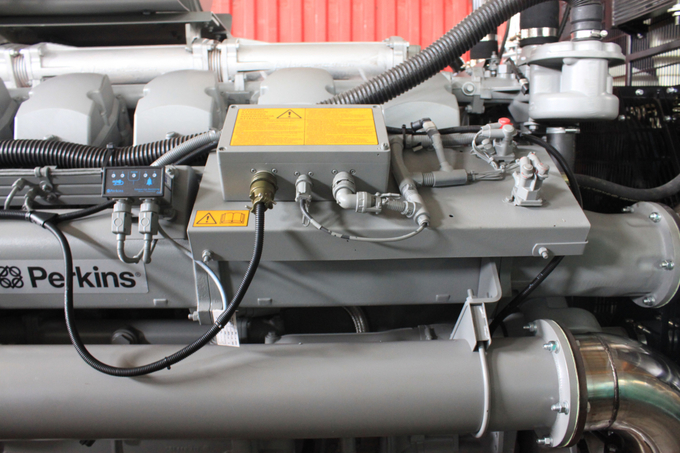

Perkins Prime Generator 1480KW/1860KVA 4016TAG1A Photos
-
