18650 21700 26650 32650 Cylindrical Cell Labeling Machine Battery Insulation Paper Sticking Machine Sticker Insulating Adhesive Paper Pasting Machine
FEATURE
This machine can use a big roll of barley paper or PVC to automatically paste cylindrical cells.
1. Stickers pasted stable, consistent, and long lasting.
2. Automatic failure alarm.
3. Easy to program, adjust, and opertate for new hands.
4. High Efficiency, fully automatic, saving labor cost.
SPECIFICATION
|
Input gas source
|
0.4-0.8Mpa
|
|
Function Style:
|
stepper drive with pneumatic
|
|
Input voltage:
|
AC220V
|
|
Sticker Matrials:
|
Barley paper or PVC
|
|
Sticker Matrials Size:
|
Barley paper Maxium 350mm;Scroll Internal Diameter 72-75MM
|
|
Adaptable Battery Cell
|
18650 battery Plus-n-Minus
|
|
Power:
|
Electric power or pneumatic
|
|
Control Instrument:
|
7.5feet contact screen,PLC programming machine and step motor
|
|
Electrodes to the body distance:
|
100 mm (Scalable adjustable)
|
|
Producivity:
|
4000pcs/h; singal 4pcs
|
|
External dimensions
|
1.3M*1M*1.3M
|

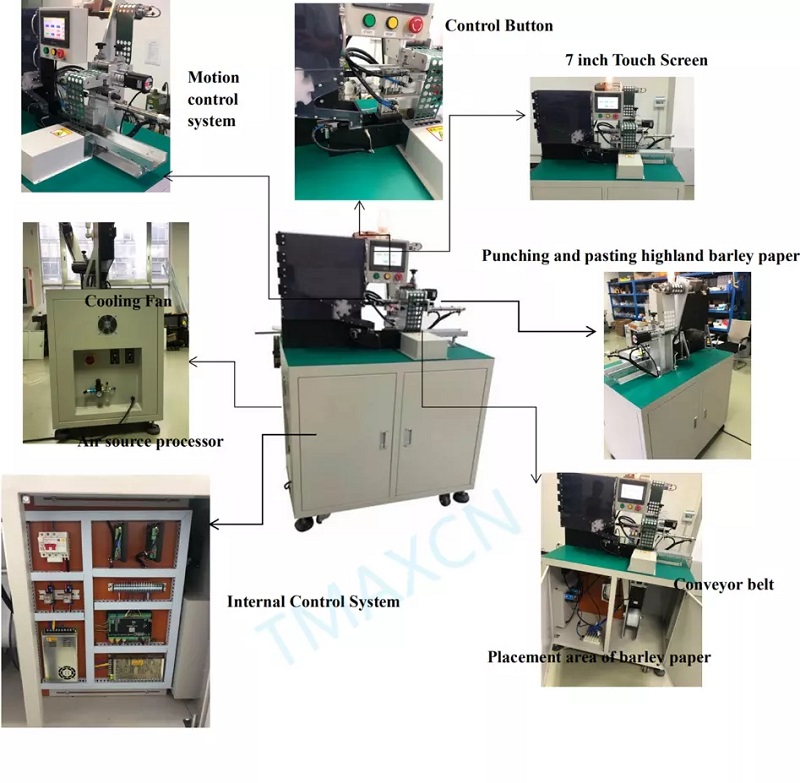

PRODUCT DETAILS

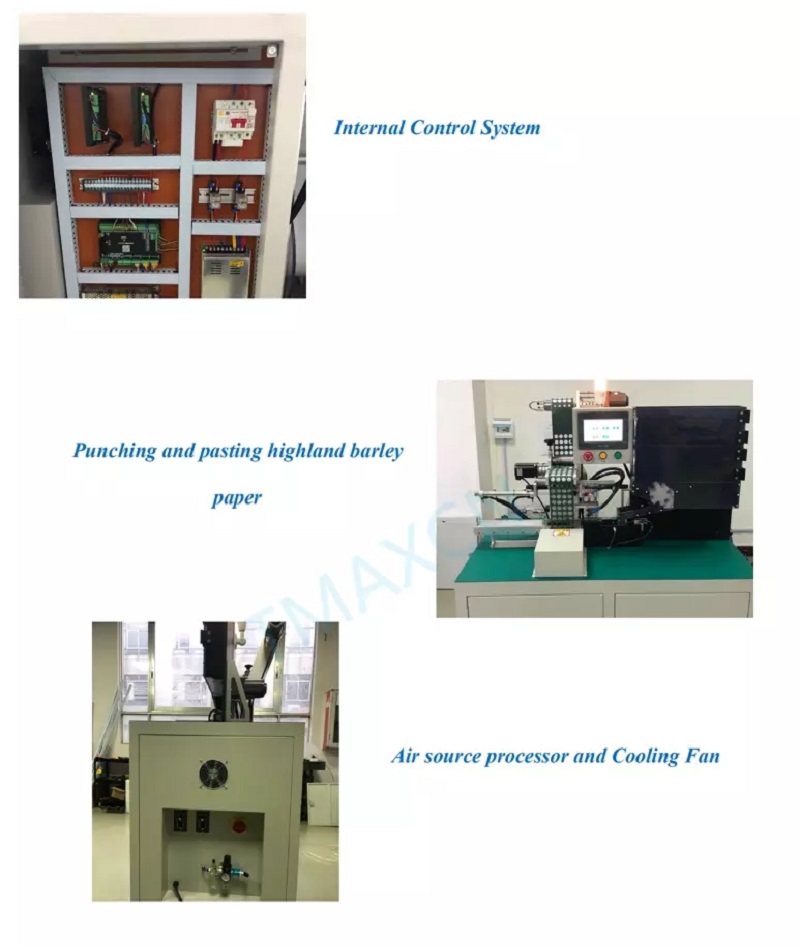

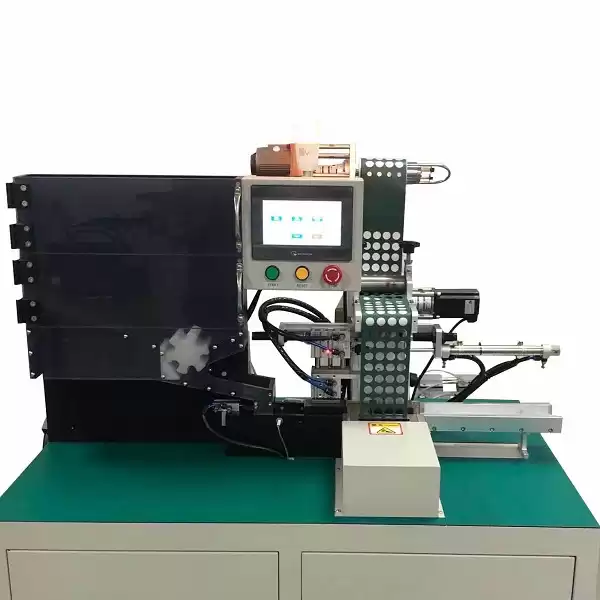

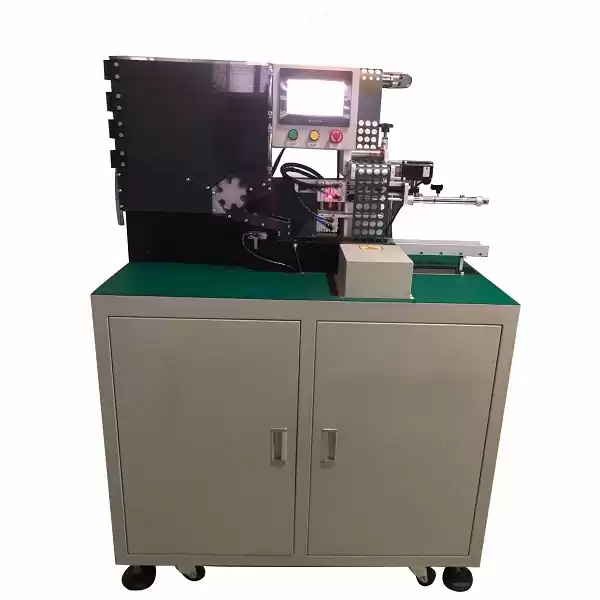

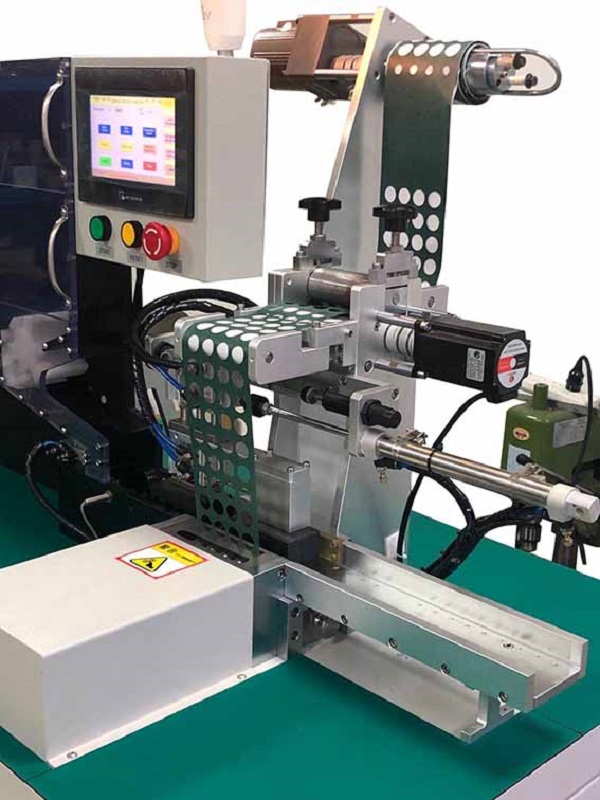

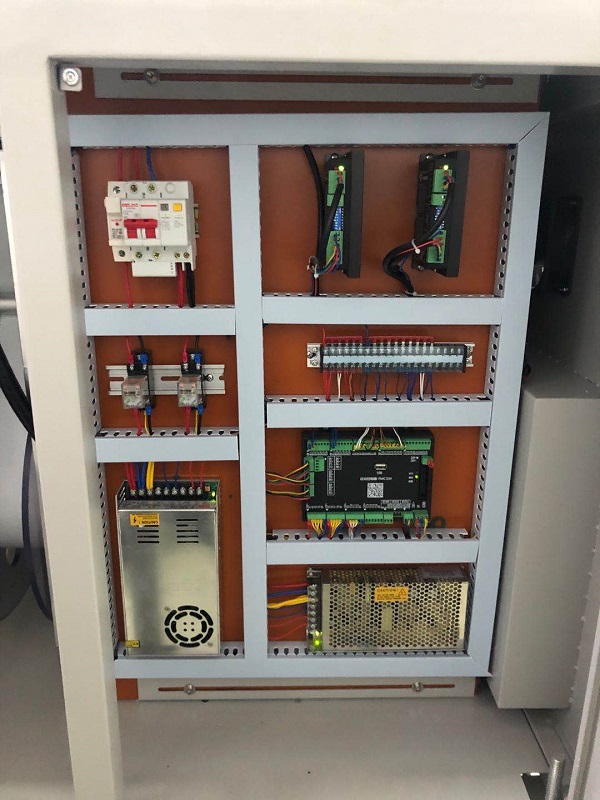

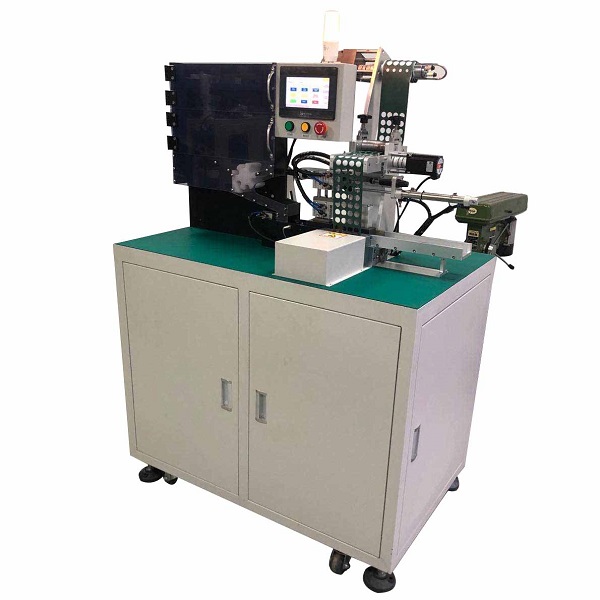

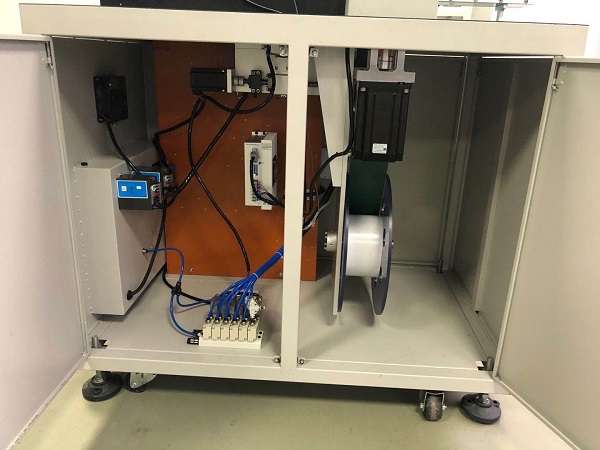

PRODUCT IMAGES
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
