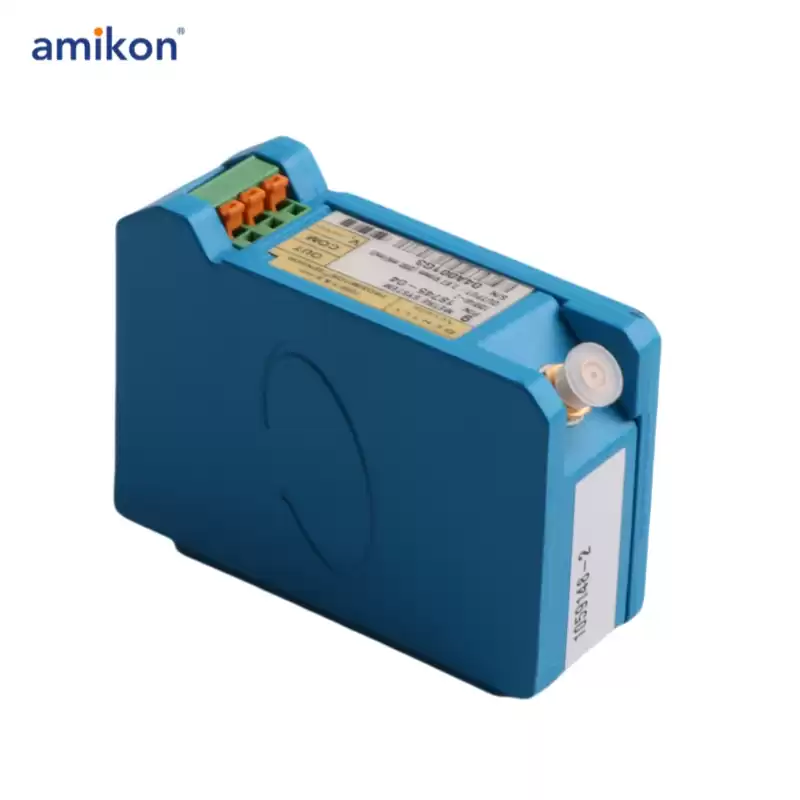

18745-03 | Bently Nevada 7200 Series Proximitor Sensor

18745-03 | Bently Nevada 7200 Series Proximitor Sensor

SPECIFICATIONS:
Part Number: 18745-03
Manufacturer: Bently Nevada
Product Type: 7200 XL 5/8mm Proximity Sensor Module
Transducer Power Supply: 24 Vdc
VoltageCompliance: 0 to +12 Vdc
Input signal range: +10.0 V to -24.0 V
Number of channels: 12
Dimensions: 10.2cm X 11.4cm X 13.2cm
Weight: 0.23 kg
Availability: In Stock
Country of Origin: United States

18745-03 is a 7200 XL 5/8mm Proximity Sensor Module manufactured and designed by Bently Nevada as part of the 3300 Series used for machinery vibration monitoring systems. The 7200 5 mm and 8 mm Proximity Transducer Systems are non-contacting, gap-to-voltage transducer systems that measure static as well as dynamic distances between the probe tip and the observed target. The general application is any requirement for an accurate, non-contacting displacement measurement. However, the most common use is for shaft position and vibration measurements on rotating and reciprocating machinery. They are designed for use with virtually any machine type including gas and steam turbines, compressors, pumps, centrifuges, electric motors, and generators. The systems offer 80 mils (2 mm) of linear measuring range and are compatible with API 670 requirements. A system consists of a probe with an integral coaxial cable, an extension cable, and a Proximitor. All 7200 proximity transducer systems are compatible with 3300 and 9000 Monitoring Systems.
