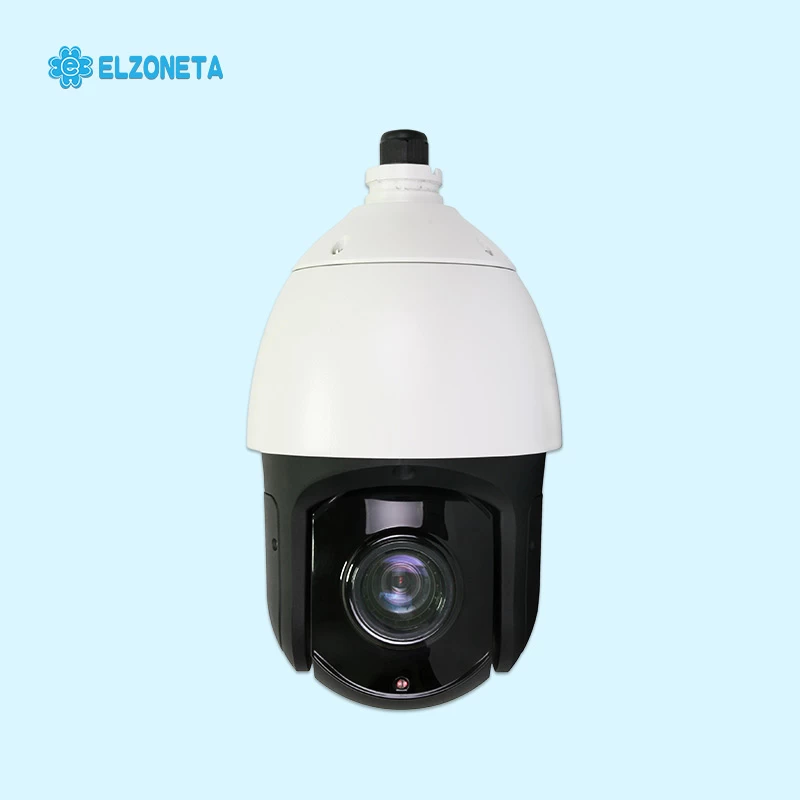

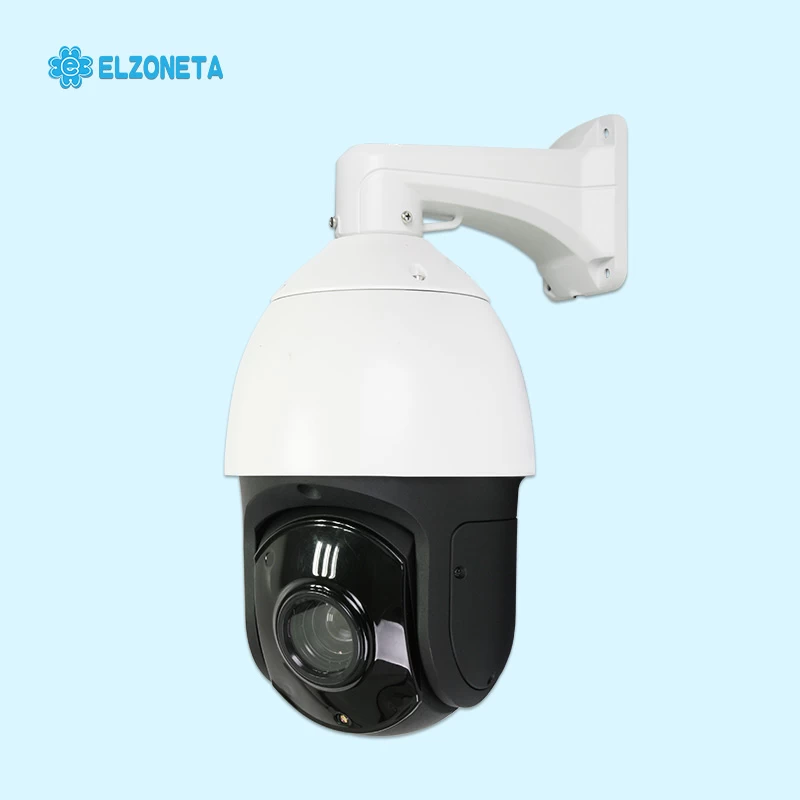

Model
|
EC-HS03S
|
|
sensor
|
1/2.7”
Progressive Scan CMOS
|
|
Effective
pixels
|
1920x1080
|
|
Low
illumination
|
color：0.5Lux，black-white：0.05Lux，
|
|
White
balance
|
auto. indoor. outdoor. Sodium lamp mode, manual
|
|
Gain
control
|
Auto/manual
|
|
S/N
|
> 50dB（ AGC OFF，Weight
ON）
|
|
Back-light
compensation
|
On/off
|
|
DWDR
|
Support
|
|
Electronic
shutter
|
1/2 ～1/20,000s，support slow shutter
|
|
Day-night
mode
|
Auto ICR, auto color to black mode
|
|
Iris
|
F1.6～F2.8
|
|
Focus
mode
|
Auto/manual
|
|
Focus
lens
|
4.7～84.6mm,18x optical zoom
|
|
Mini focus
distance
|
100mm~1000mm(Wide-Tele)
|
|
Pan angel
|
68.5°～4.2 °(Wide-Tele)
|
|
Close
range
|
10～1000mm(Wide-Tele)
|
|
IR
distance
|
120M
|
|
IR angel
|
three group angel
can be adjusted based on the zoom
|
|
Pan speed
|
Horizontal rotation
360 ° continuous rotation，0.6°～220°/S
|
|
Tilt
speed
|
auto flip，0.8°～75°/S
|
|
Tilt
range
|
0°～90°，auto
flip 180°
|
|
Proportional
zoom
|
Support, change the
speed based on the zoom
|
|
Preset
|
220
|
|
Patrol
|
8, each group can add
32pcs preset
|
|
Pattern
scan
|
4,each group can
record 100pcs motions
|
|
A.B scan
|
Support
|
|
Park
function
|
Support，preset, cruise, pattern scan, two-point
line sweep, horizontal automatic
|
|
interface
|
1pc DC female, 1pc RS485
interface, 1pc audio interface, 1pc Rj45 network access
|
|
Max image
size
|
1920X1080
|
|
Frame
rate
|
50Hz: 25 frame (1920×1080,1280×720)60Hz: 30 frame (1920×1080,1280×720)
|
|
Video
compression
|
H.264/MJPEG
|
|
Network
protocol
|
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP/IP
,DHCP,PPPoE
|
|
Simultaneous view
|
Max 6CH
|
|
Triple
stream
|
Adopt H.264High
profile/M-JPEG dual encoding， triple
stream output(2CH H.264+1CHMJPEG)
|
|
Safe mode
|
authorized user name and password and MAC address binding;HTTPS
encryption;IEEE 802.1x network visit control
|
|
Network interface
|
Built-in RJ45 network interface,support 10M/100M IP DATA
|
|
Application interface
|
Provide Linux、NindoNs SDK develop
bag and CGI protocol,can be second fast developed
|
|
CMS
|
HCMS
|
|
Browser
|
Support IE7、IE8、IE9,Chrome8+,Firefox3.5+,Safari5+
|
|
PTZ control protocol
|
pelco-d、pelco-p,HIKVISIO,DAHUA
|
|
Power consumption
|
DC 12V4A、 Max 10W in day-time, Max 30W in night
|
|
Working
tem and hum
|
-20℃～+60℃，≤90%RH(no frostless)
|
|
Protection
grade
|
TVS3000V lightning protection, surge
protection and voltage transient protection, weather proof (for outdoor):
IP66
|
|
Package
size(mm)
|
290×290×460 mm
|
