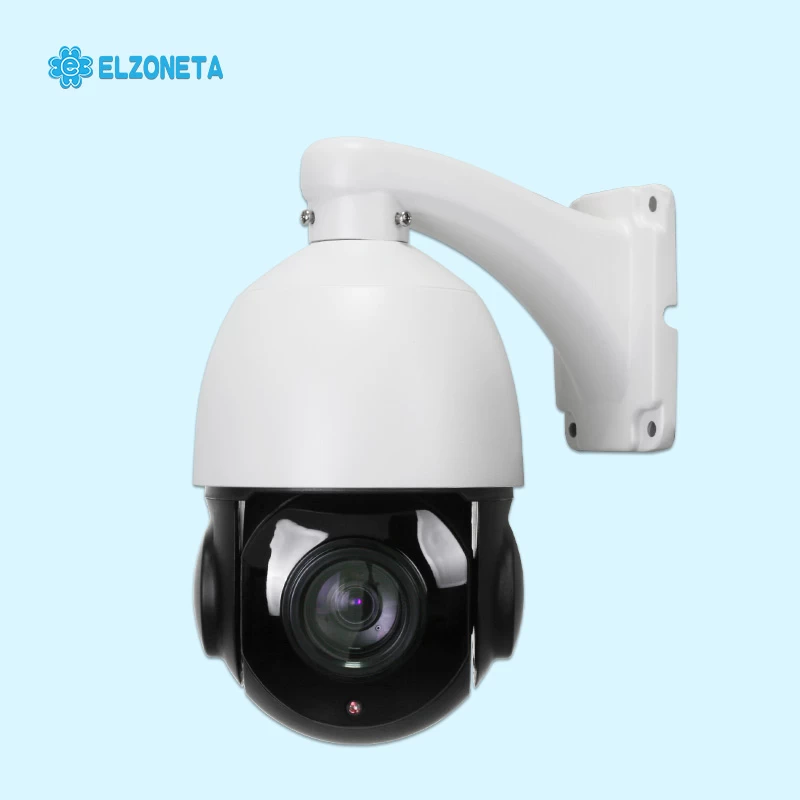

EC-HS02S 18X Middle Speed IP Dome Camera
High Speed dome camera is a highly integrated CCTV security system product with integrated pan and tilt system, communication system, and camera system. The pan and tilt system is a rotating part driven by a motor. The communication system refers to the control of the motor and the image and signal. And the camera system refers to the integrated machine movement.
In additional to High Speed Dome Camera, there are also Middle Speed Dome Camera ( Medium Speed Dome Camera) and Uniformity Speed Dome Camera.
High Speed Dome Camera and Middle Speed Dome Camera both can be controlled by variable speed. But the speed for Middle Speed Dome camera is 60-120°/s, for High Speed Dome Camera is above 120°/s. Uniformity Speed Dome Camera cannot be controlled by variable speed,its speed is under 15°/s.
It is applicable to urban monitoring, stadiums, ports, subways, campuses, buildings, hotels and so on.
Features
1) 6PCS high-power infrared light, turn divided into two groups, no flashlight effect, IR distance 60m.

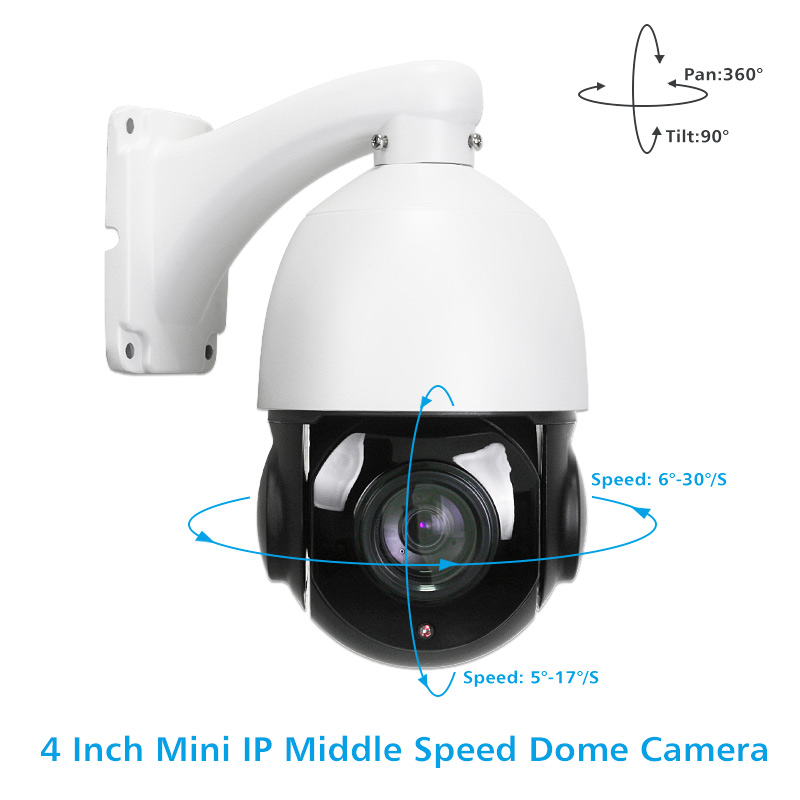

2) 360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area;
3) Pan speed is 6°～30°/s and tilt speed is 5°～17°/s;
4) Support 220 preset; 8 patrols, each patrol can contain up to 32 presets; support 4 patterns, can totally record up to 10 minus. Support A,B line scanning and positioning limit;
5) Support proportional zoom function, rotation speed can be adjusted automatically according to zoom;
6) Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling condition after the power supply has been turn on)
7) Product Guarantee for 2 years
Specification
|
Model No.
|
EC-HS02S
|
|
PTZ parameter
|
IR distance
|
60m
|
|
Pan range
&speed
|
360°endless pan
range and speed 6°-30°/S
|
|
Tilt range &
speed
|
0°- 90°tilt
range, auto flip, speed 5°-17°/S
|
|
Zoom parameter
|
Video parameter
|
Image sensor
|
1/2.9" 2.0MP CMOS IMX323
|
|
Resolution
|
Main stream（1280×960、1280×720、720×576、640×480）
|
|
Sub stream（640×480、352×288、320×240、176×144）
|
|
Low lux
|
0.1Lux（color mode）、0.01Lux（black mode）、0 Lux（IR night on）
|
|
Electronic
shutter
|
1/2 ～ 1/20,000s, support slow shutter
|
|
Coding parameter
|
Video
compression
|
Adopt H.264High
profile/M-JPEG double stream, three stream output(2 input H.264+1 ouput
MJPEG);
|
|
stream rate
|
256Kbps～10000Kbps(main stream),32Kbps～2000Kbps(sub stream)
|
|
Frame rate
|
Max
30fps(1920*1080)
|
|
Lens spec
|
Focal length
|
5.35-96.3 mm
|
|
Optical zoom
|
18X
|
|
Iris value
|
F1.6~F1.8
|
|
Angle of view
|
68°～6.7° (wide angel-telescope)
|
|
Function
|
WDR
|
Support digital WDR.
|
|
Mobile remote
|
Support android,
IOS smart phone remote control(for optional)
|
|
Digital noise
ratio
|
Support DNR,3DNR
|
|
White balance
|
auto、outdoor、indoor、lamp mode、manual
|
|
3D positioning
|
Support click on
the center、select and amplify
|
|
compatibility
|
Support
Hikvision、Dahua、Jufeng CMS、UC2 etc software platform joint in、compatible with many
brands NVR connection
|
|
Day and night
transfer
|
auto/manual
|
|
Port
|
Network
interface
|
Built-in RJ45
port，support 10M/100M
|
|
Power supply
|
DC 12V/2A
|
|
Others
|
Power
Consumption
|
20（MAX）
|
|
Working
Temperature and Humidity
|
-20℃～+60℃，≤90%RH(frostless)
|
|
Protection grade
|
TVS3000V
lightning protection, surge protection and voltage transient protection,
weather proof: IP66
|
|
Package size(mm)
|
280*280*225
|
|
Weight (Kg)
|
4KG(with zoom
module)
|
