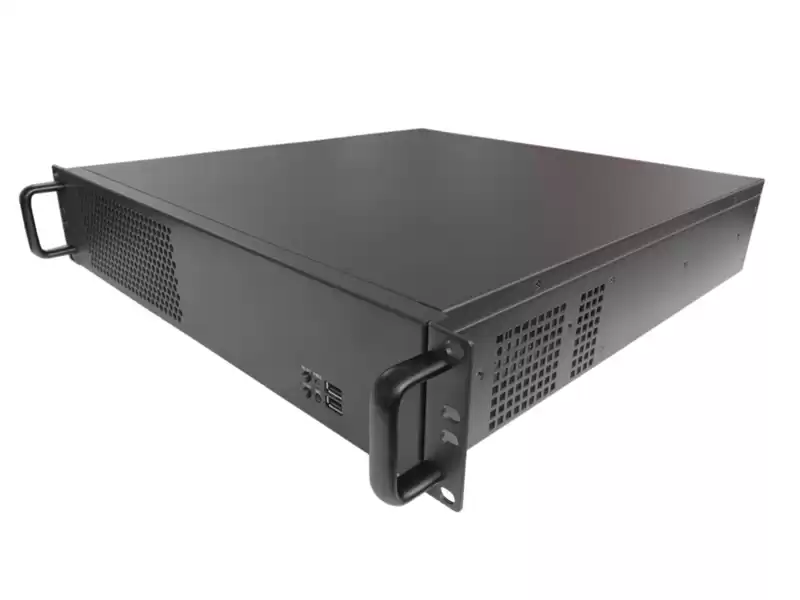

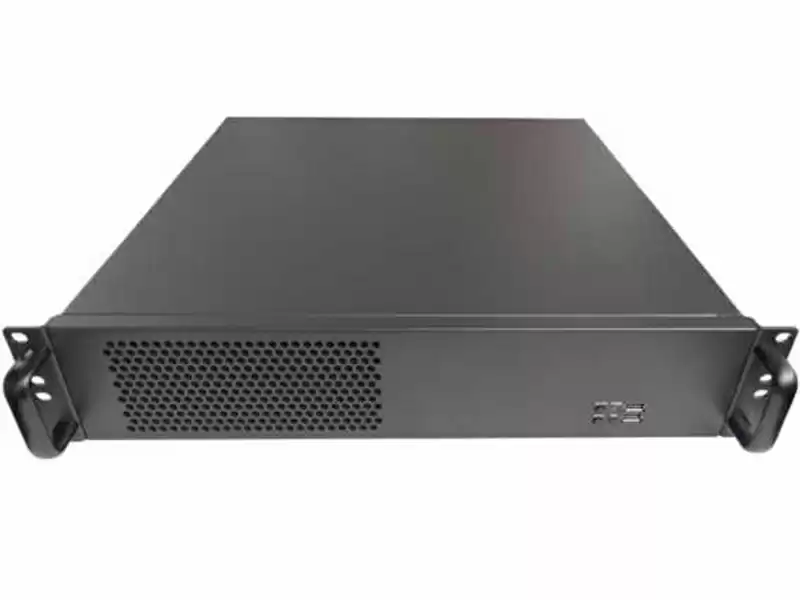

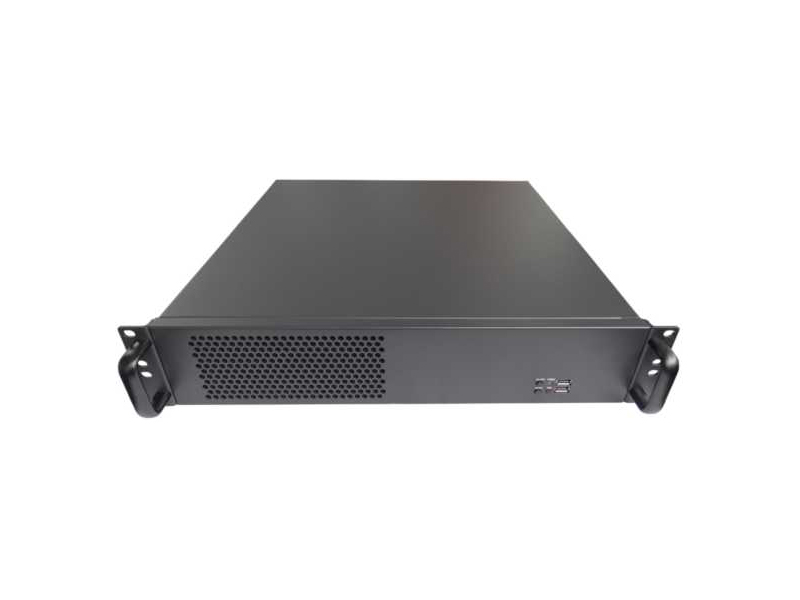

19 Inch Standard Rackmount 2U IPC Rack-mount Computer with 7-slot or 4-slot Expansion
Product Introduction
IPC offers a wide range of enclosures compatible with various server and workstation motherboards that offer outstanding reliability, flexibility and scalability in a cost-effective package. These server enclosures present an outstanding value to system integrators, OEM/ODM manufacturers, and channel partners alike.
| Specifications |
Optional Configurations |
| Chassis |
all steel structure, industrial black |
Other colours can be customized |
| Front |
Electric socket; reset switch; Power/HDD indicator, 2USB2.0; 1 x 5.25" DVD |
Customizable with customer logo or more serial or parallel ports |
| Back |
1U power supply; large square hole for motherboard; 4-slot expansion |
Optional PS/2 power supply, 7-slot expansion |
| Hard disk rack |
shock-resistant hard drive cages, supporting 3* 3.5" hard drives |
Optional 2.5" hard drive |
| Adaptive Motherboard |
Support all ATX motherboards in Yanyue |
Optional all Micro-ATX motherboards in Yanyue |
| CPU/GPU |
Intel i3 2120 Dual Core 4 Threads 3.3G Hz |
Support all generations of Celeron, Pentium, i3, i5, i7 series CPU |
| Memory |
4G DDR3 |
Optional 2G/8G/16G/32G memory |
| Hard Disk |
1T HDD |
Optional 32G/64G/256G/1T SSD; support 2.5 inch SSD and HDD |
| Interfaces |
AC input;PS/2;4USB2.0;2USB3.0;2RJ45(Gigabite);VGA,DVI;HDMI;Audio Line-Out;MIC Input;2COM(Standard) |
Depending on the motherboard baffle interface |
| Expand |
PCIEx16; PCIEx4; 2PCI |
Depending on the expansion slot on the motherboard |
| Size |
Handle not included:483*401.5*88.5 |
Net/Gross Weight |
4.5/5KG |
| Power Supply |
250W 1U Industrial Powern Supply |
Optional 300 PS/2 Industrial Power Supply |
| Installation mode |
19" Standard Rackmount |
Product Features
■ Heat dissipation, dust and vibration resistance
■ Support all ATX/ Micro-ATX motherboards in Yanyue
■ 4 half-height + 3 full-height expansion slots
■ Flexible configuration, flexible configuration of CPU, memory, hard disk according to customer requirements
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

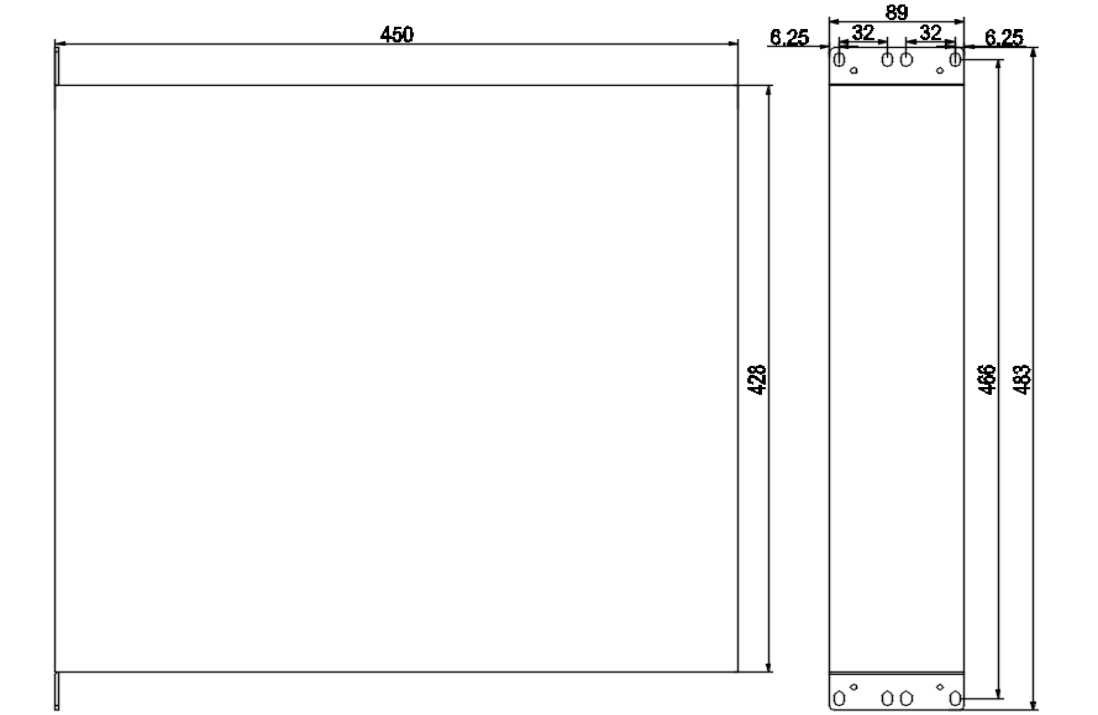

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
