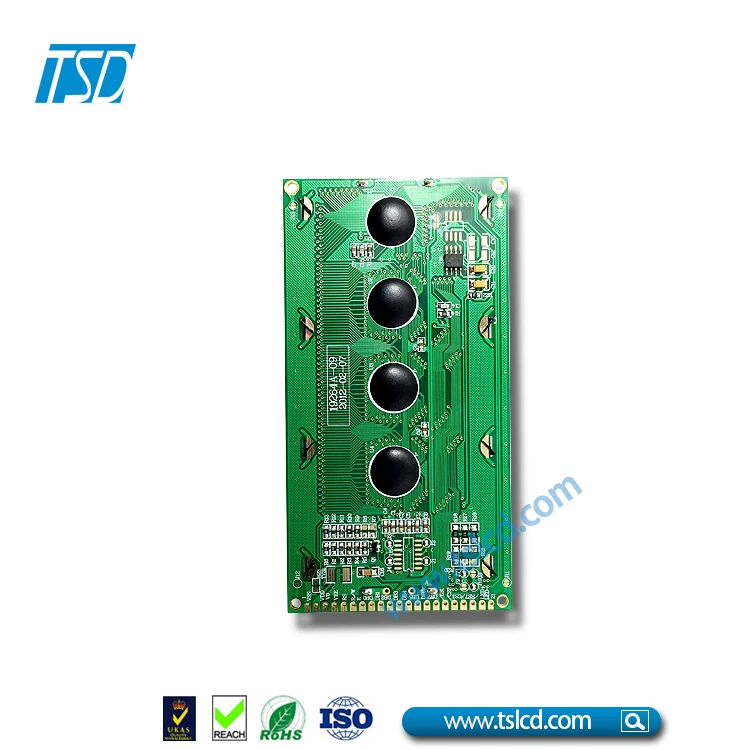

192x64 Graphic LCD Module

192x64 graphic lcd module

COB technology

STN-YG/ STN-blue/FSTN positive

Price competitive


Facebook Twitter Pinterest LinkedIn 分享
Item Spec.
Display type STN,green,positive,transflective
Operating voltage 5.0v
Structure COB graphic lcm module, 192x64 dots
Outline(mm) 130.0x65.0x13.5max
View Area(mm) 104.0x40.0mm
Active Area(mm) 97.5x32.5mm
Dot size 0.458x0.458mm
Dot pitch 0.05x0.05mm
Controller IC S6B0108
Viewing direction 6H
Operating temperature -0°C-50°C
Storage temperature -10°C-60°C
Drive Mode 1/64 DUTY, 1/9 BIAS, vop=15.0v
Backlight White LED
Connector Zebra
