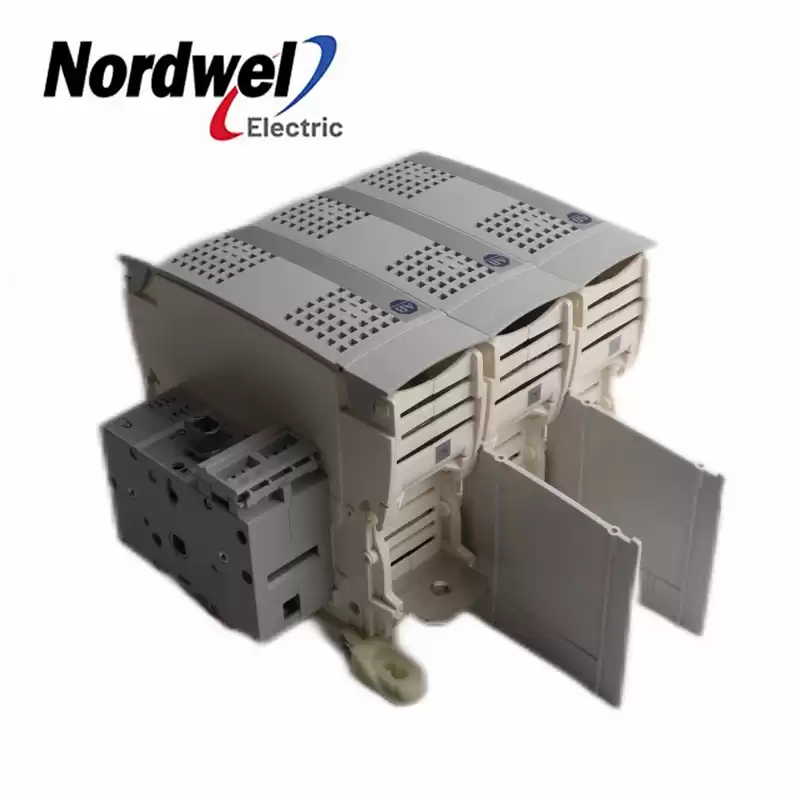

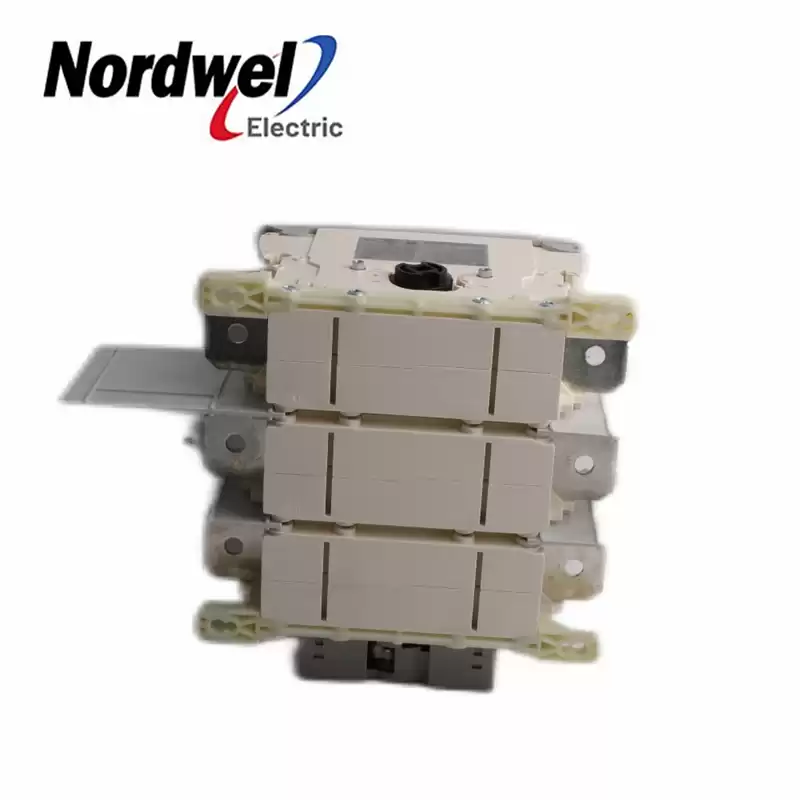

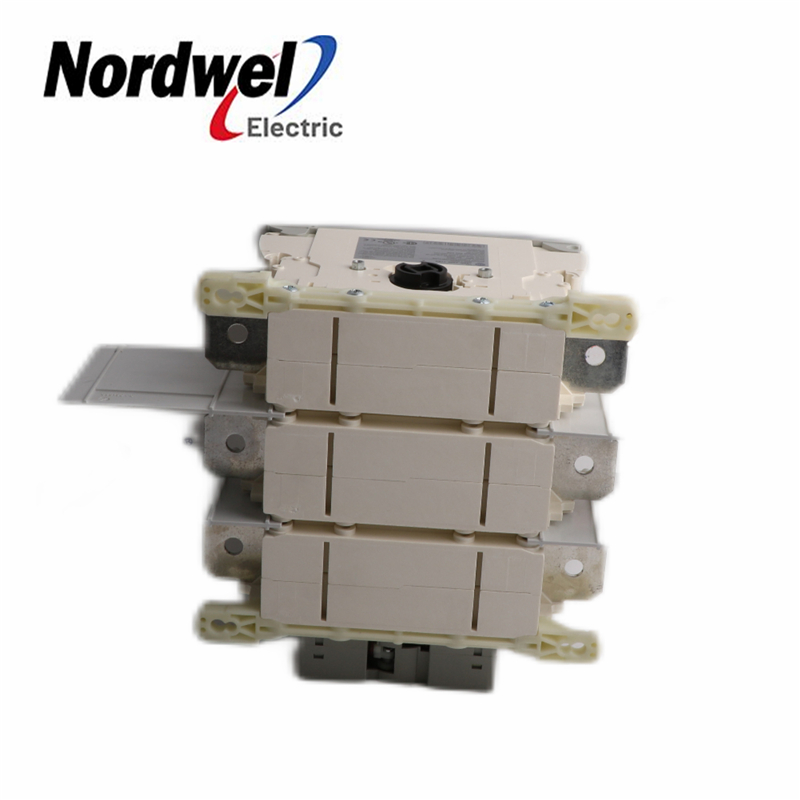

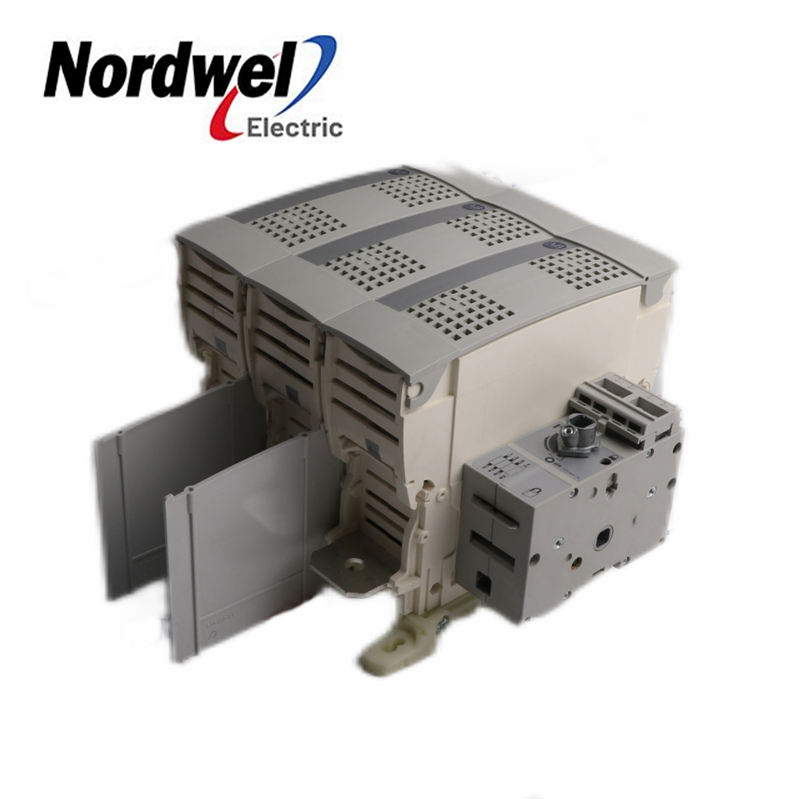

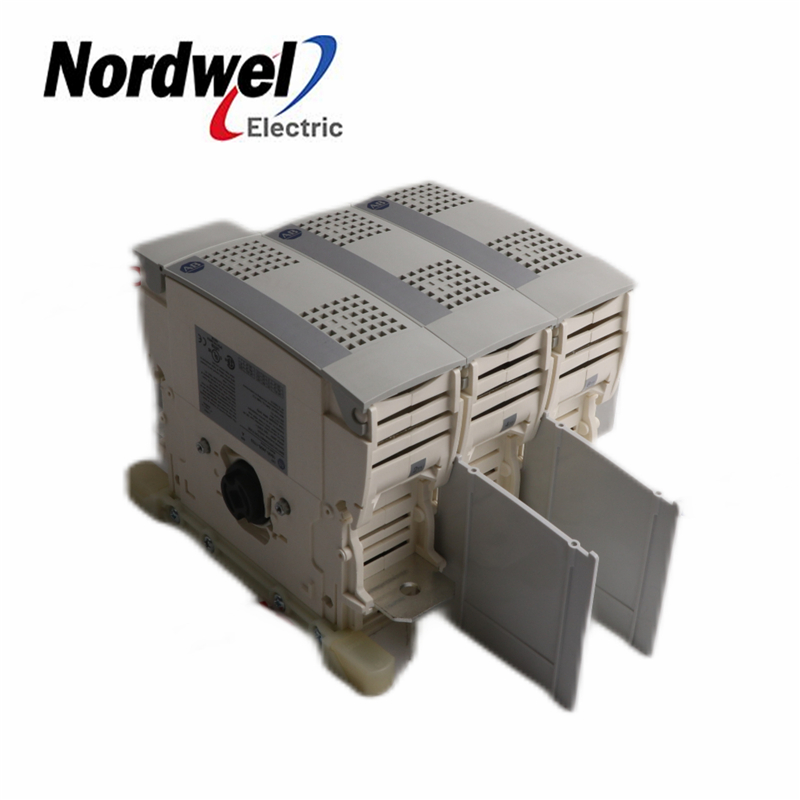

The 194R-J400-1753 switch is an 400 Amps disconnect switch. The disconnect switch features a
current rating of 400 Amps and the module comes with the panel mounting option. The 194R-J400-1753 switch is
a 3-pole disconnect switch and the module comes with a 600 Volts AC voltage rating and a 250 Volts DC alternative
voltage rating. The fused disconnect switch has a rated voltage of 690 Volts AC while the short circuit rating is 200
kiloamps. The ambient operating temperature is rated at -20 to 60 degrees Celsius while the ambient storage
temperature range is -40 to 65 degrees Celsius. The protection class per the IEC 529 standards is switch bodies
with the IP 20 rating and fuse carriers with the IP 30 rating. The 194R-J400-1753 switch supports up to 6 auxiliary
contacts.
Technical Specifications for 194R-J400-1753
Brand / Automation
Series 194R Switches
Part Number 194R-J400-1753
Ambient Operating Temperature -20 to 60 degrees Celsius
Ambient Storage Temperature -40 to 65 degrees Celsius
Interrupting Capacity 200 kA
Amps 400 A
Number of Poles 3
