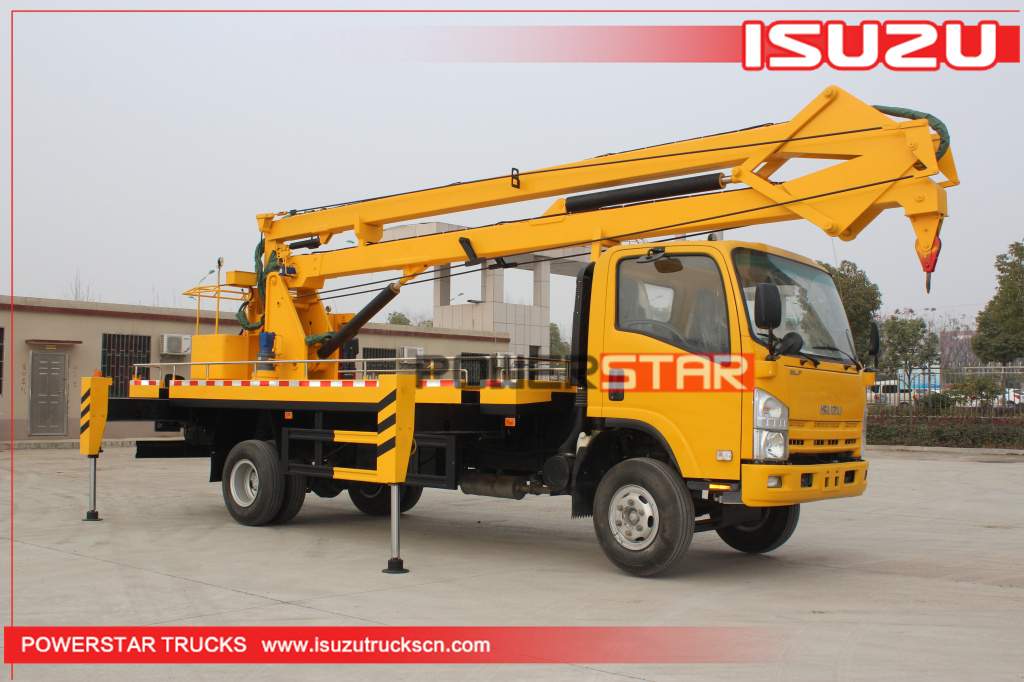

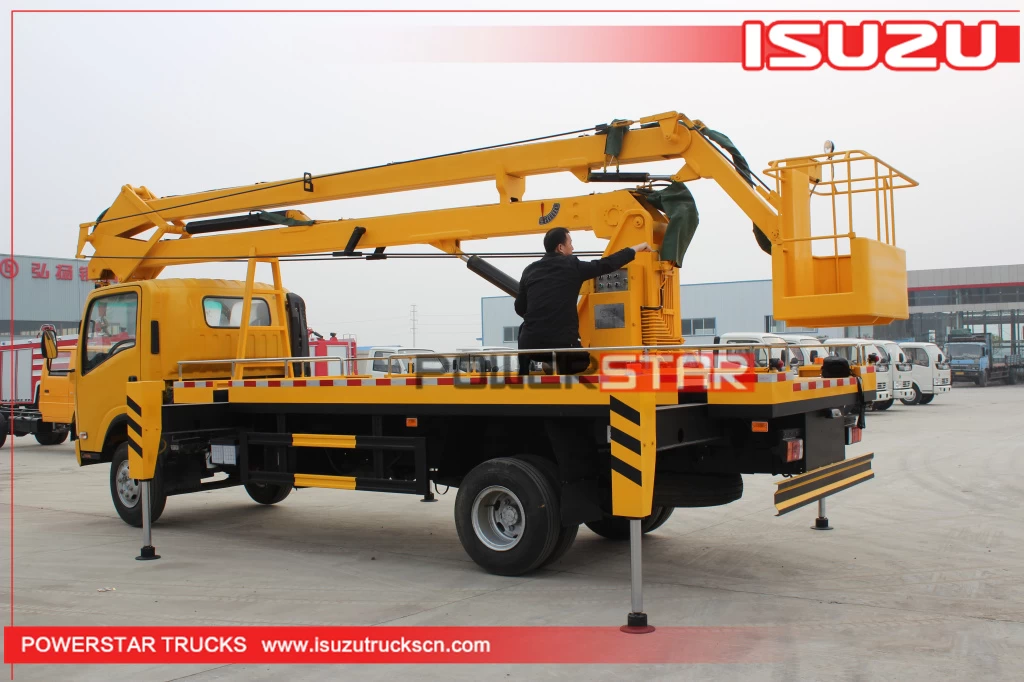

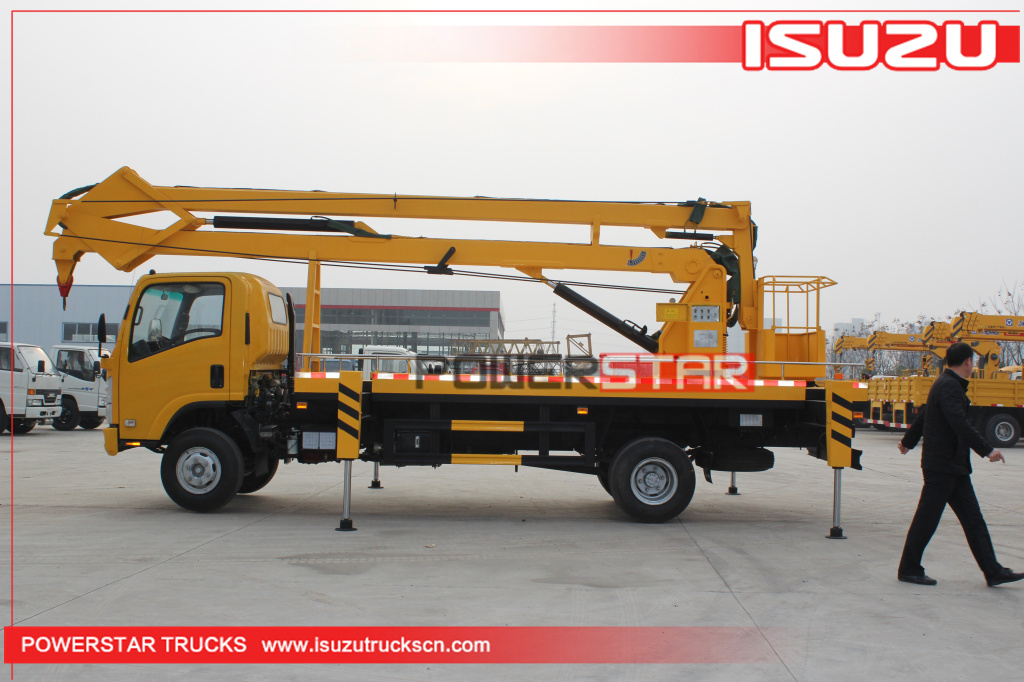

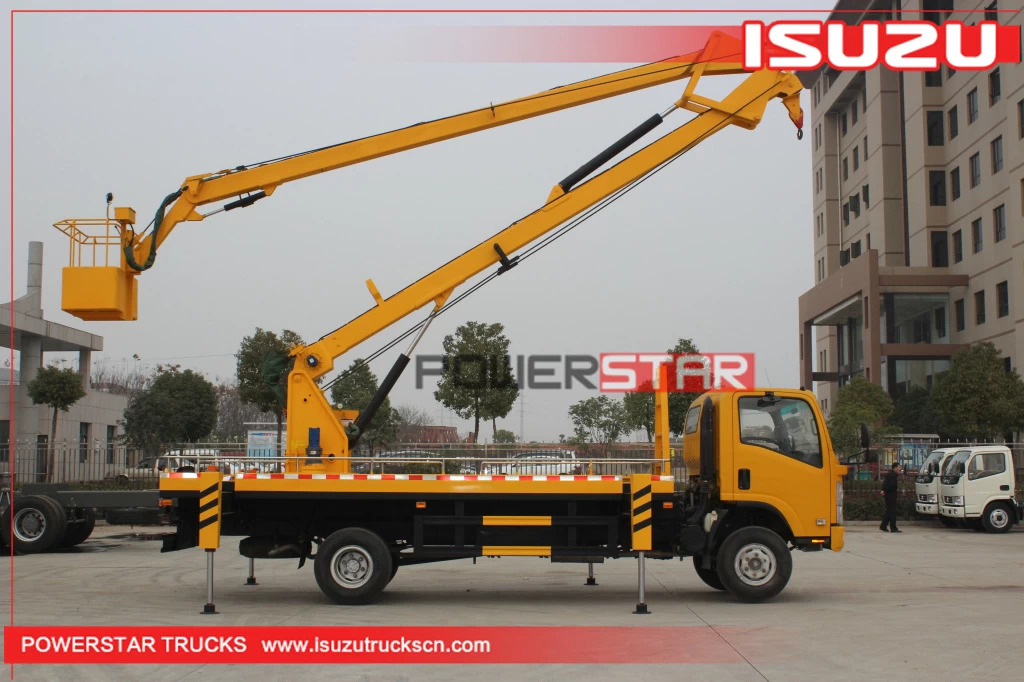

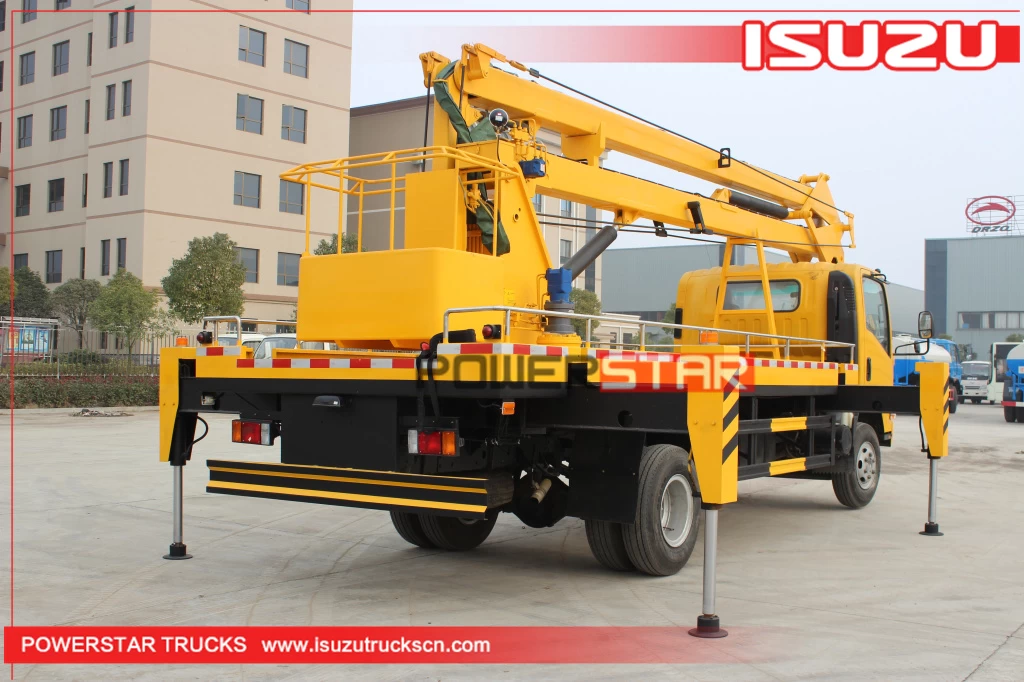

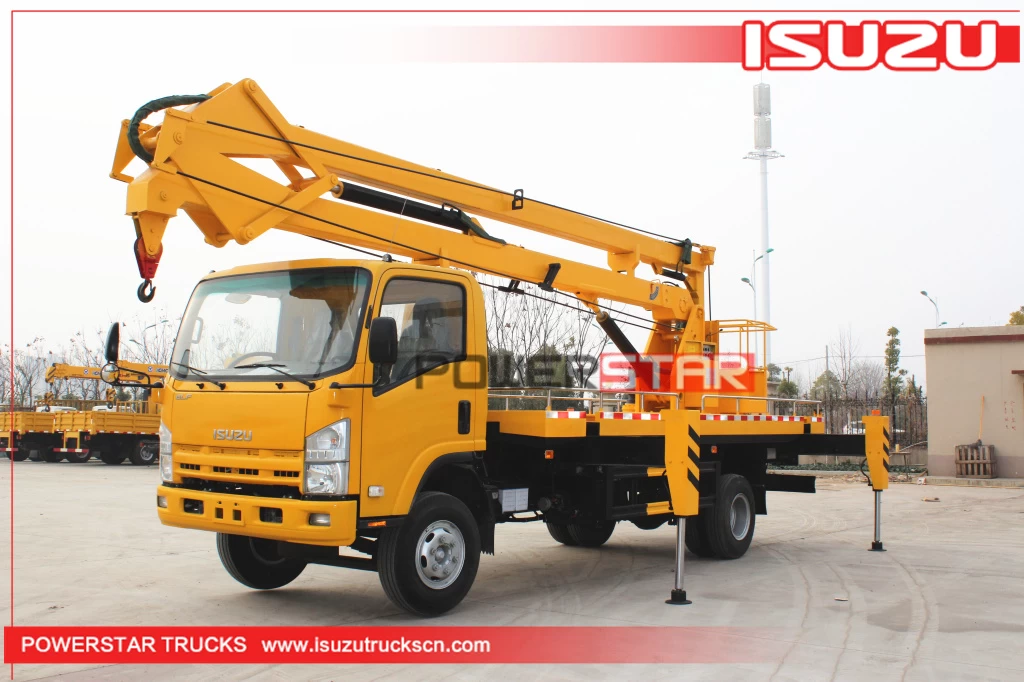

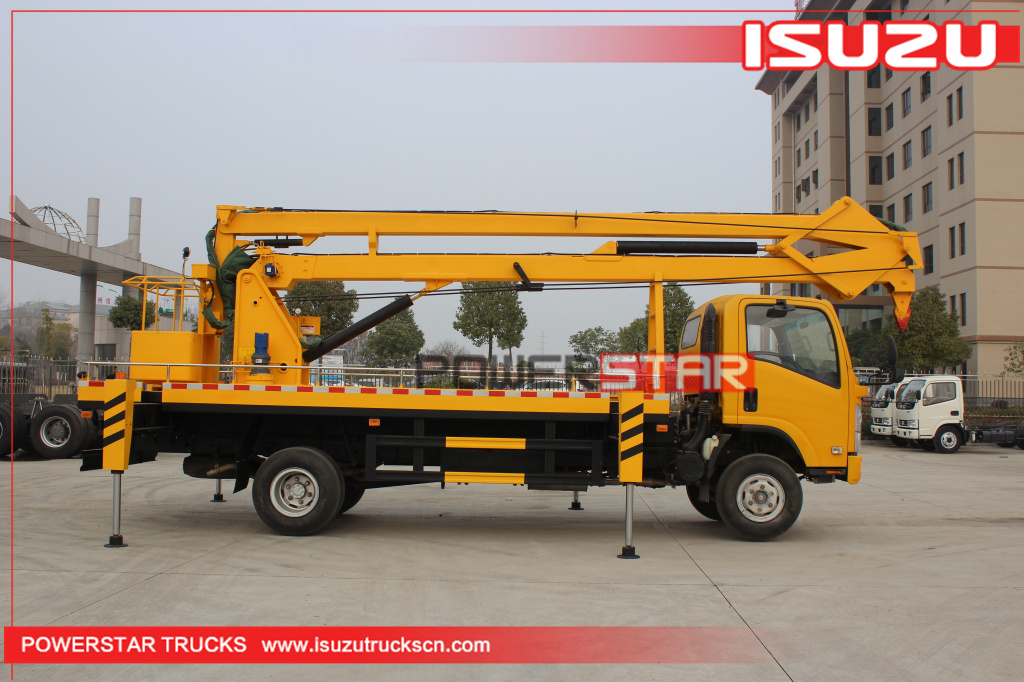

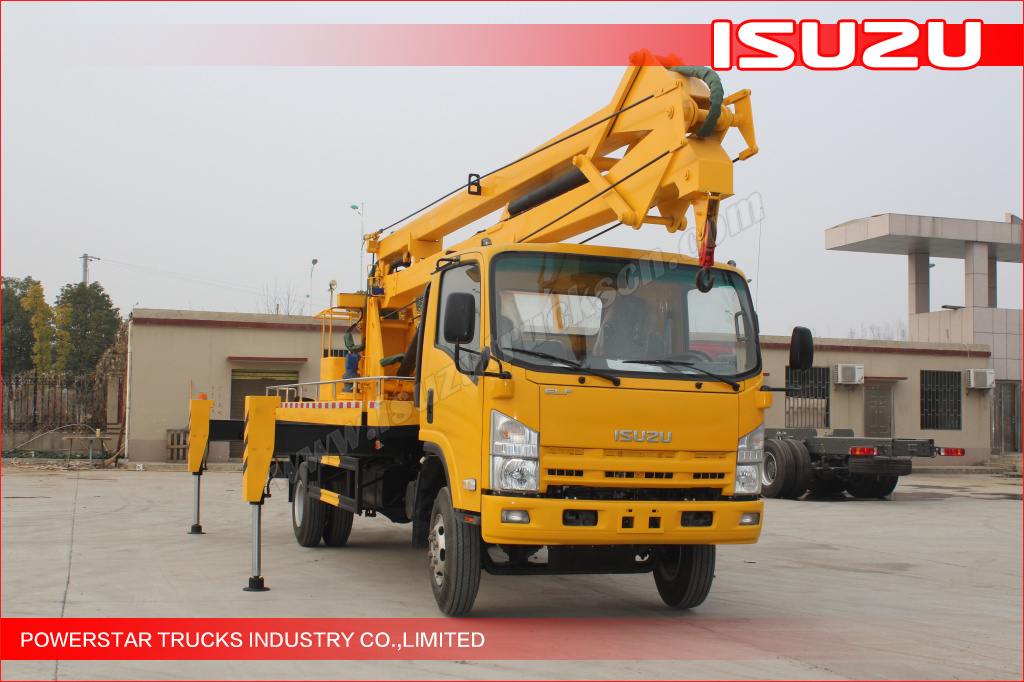

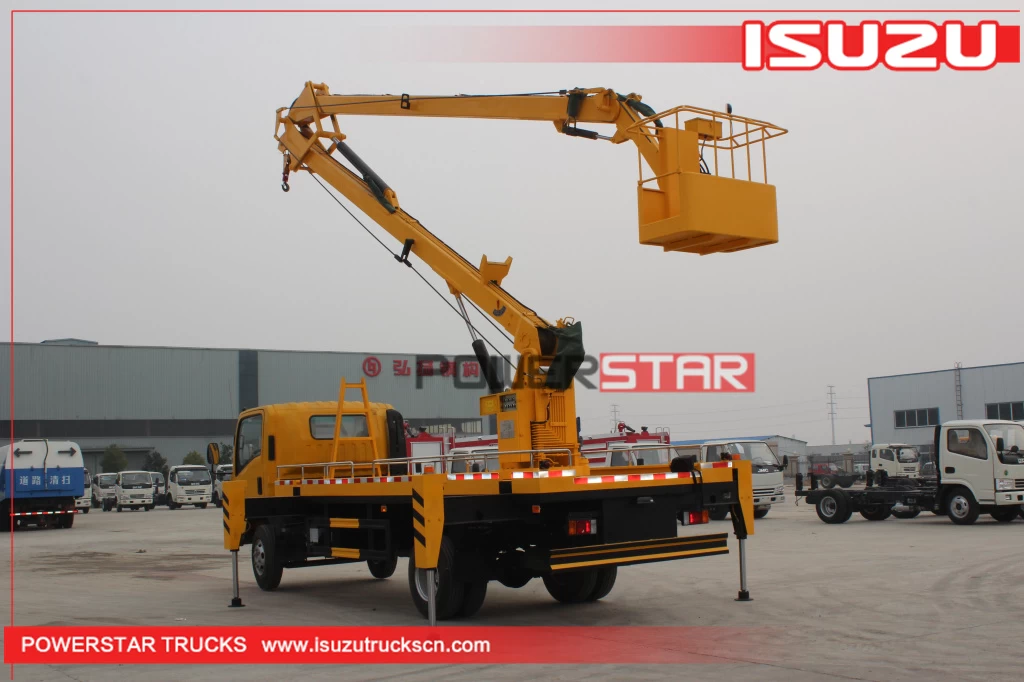

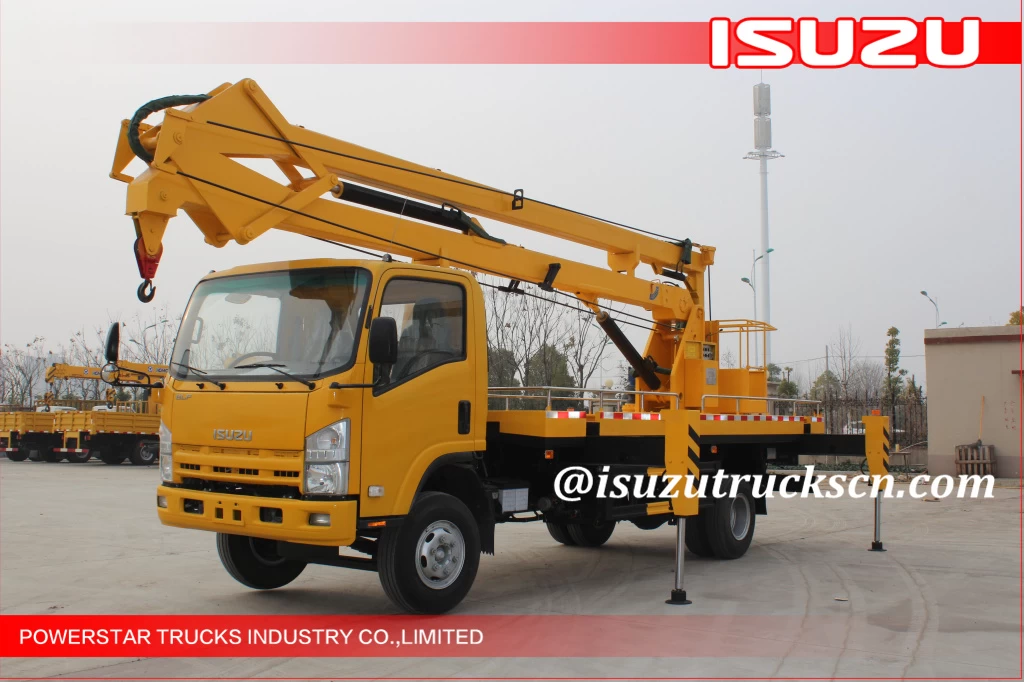

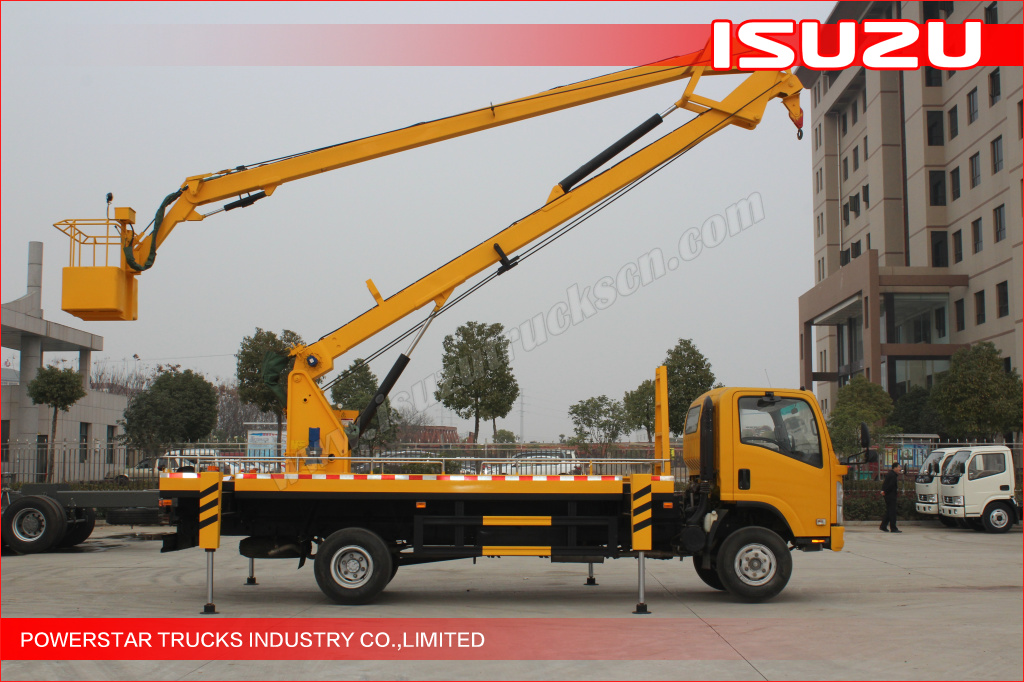

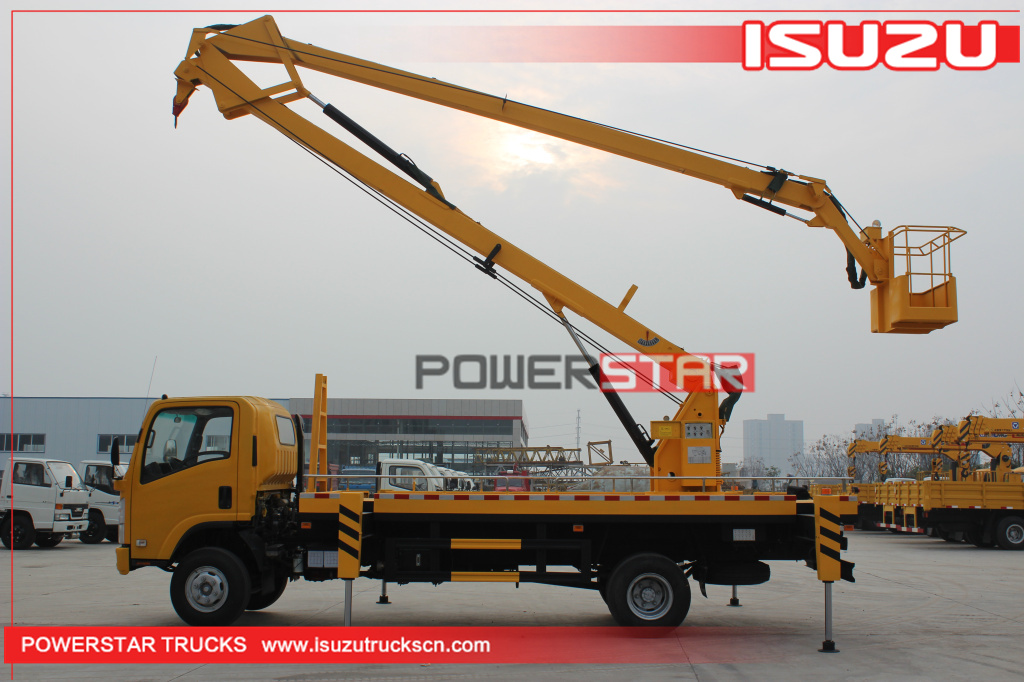

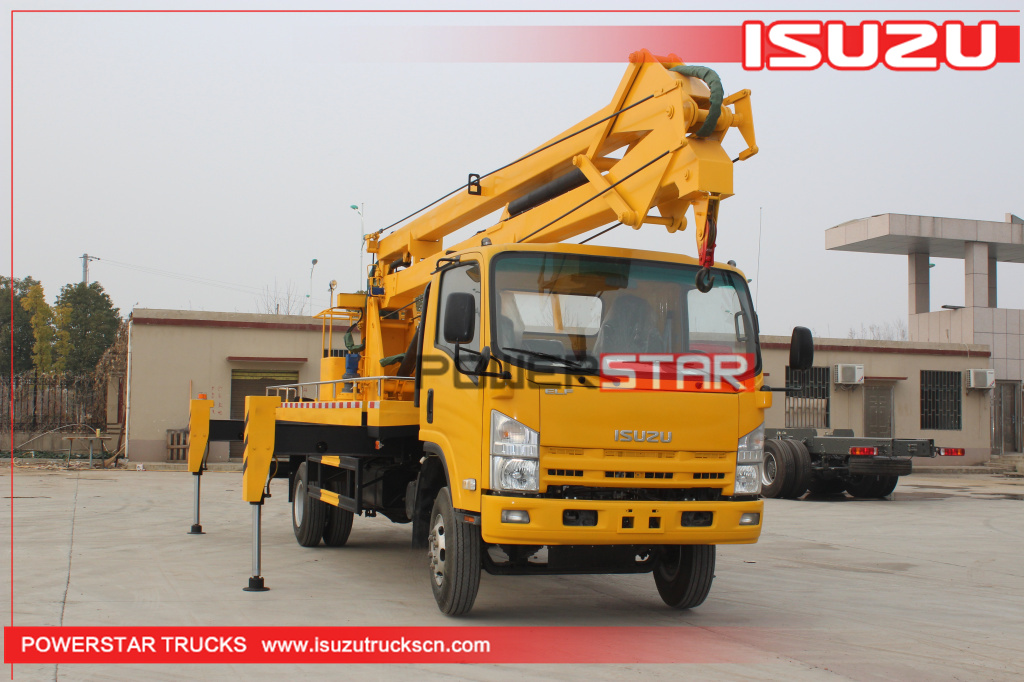

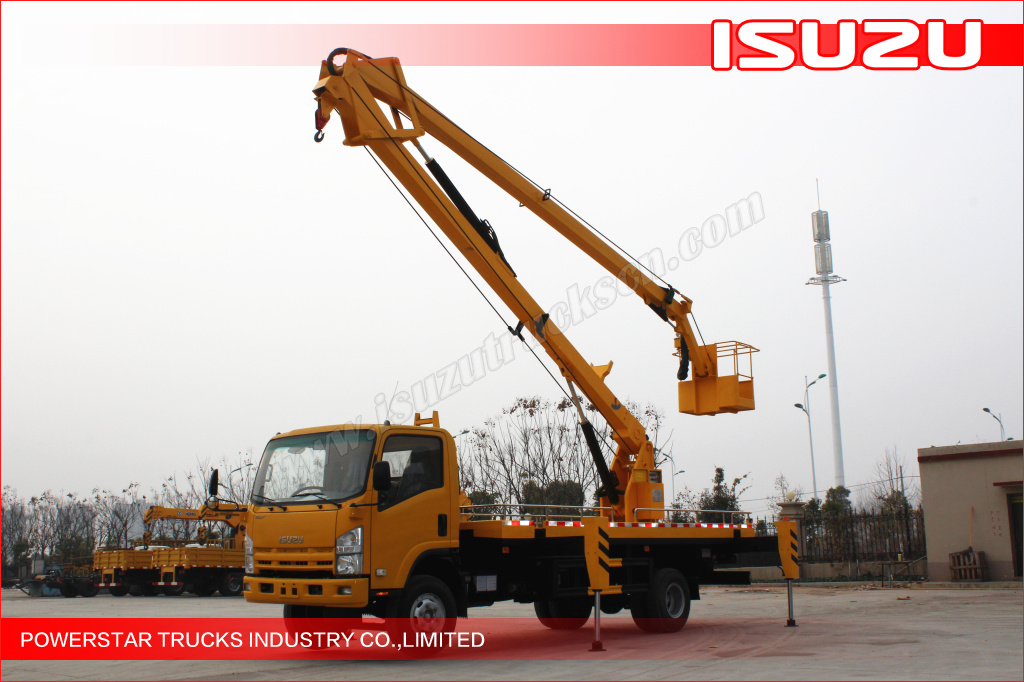

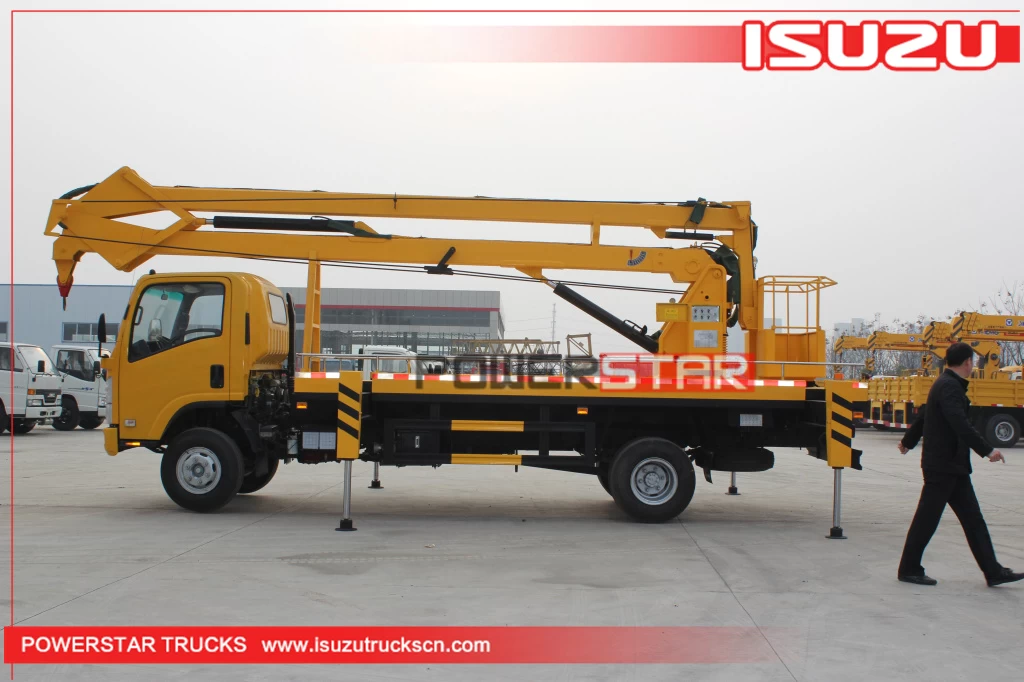

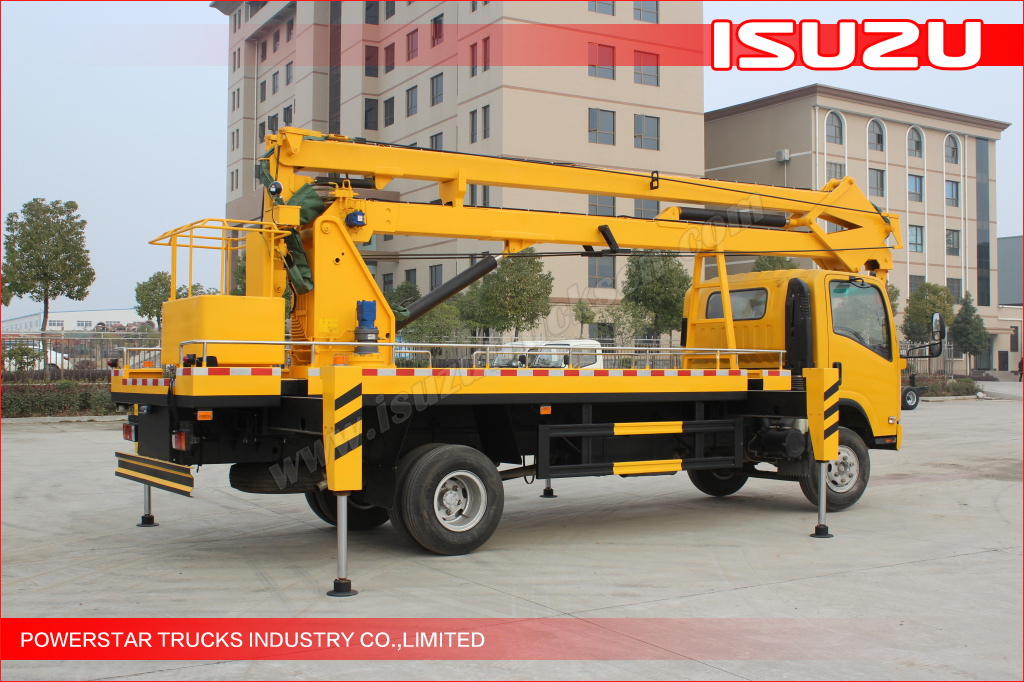

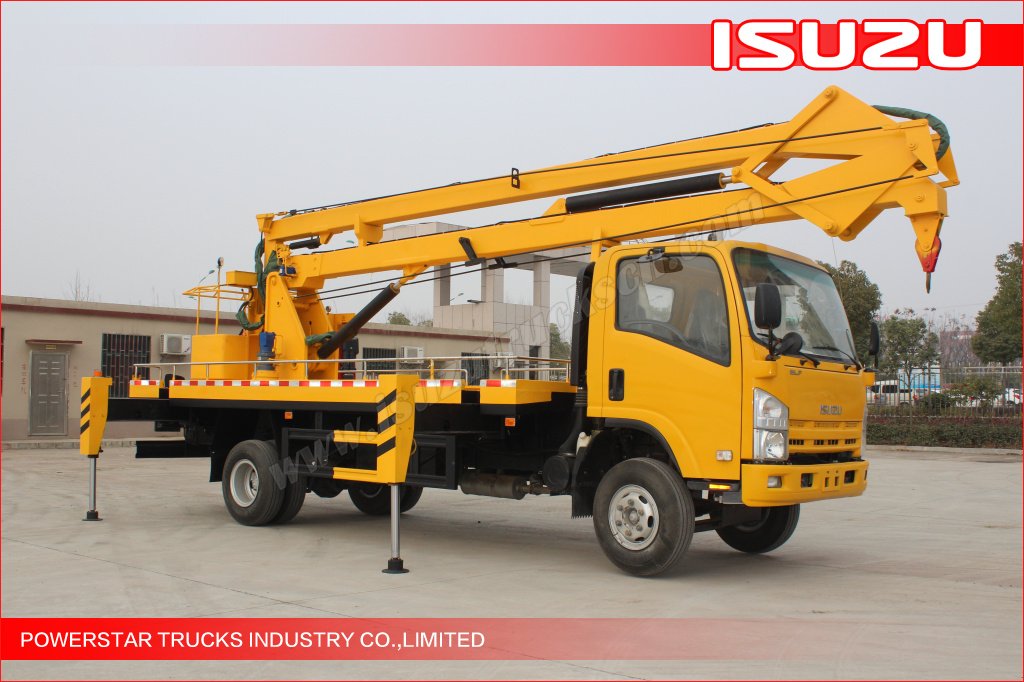

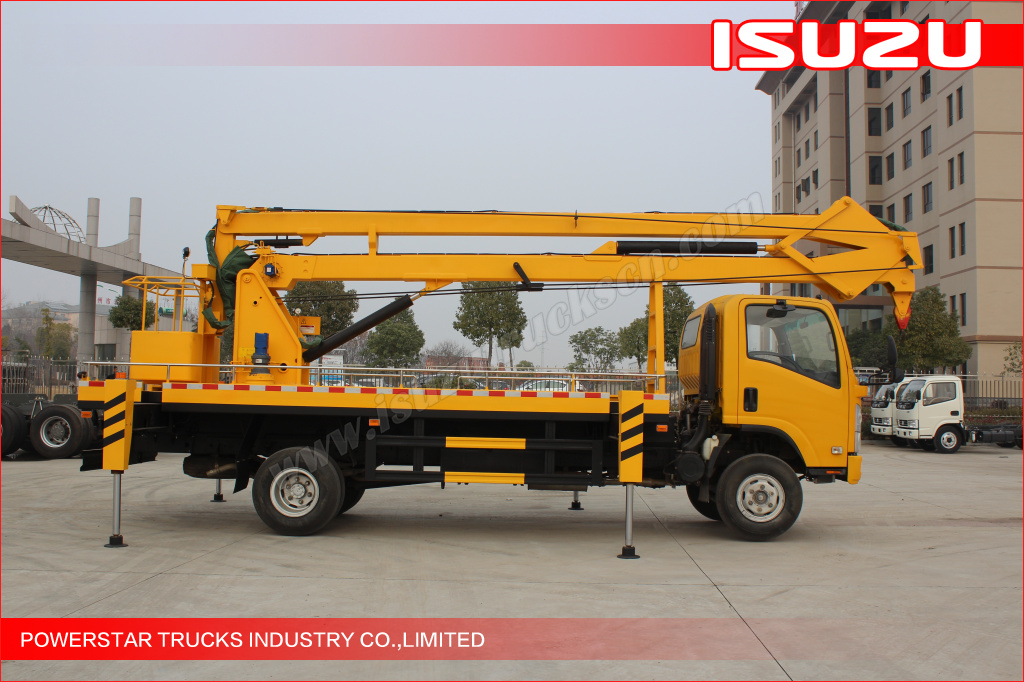

19m Syria Isuzu Aerial work platform truck with working cage

Model

PT5070JGK

Driving Type

4x2    (Left hand drive)

Wheelbase

4175mm

Engine

139 kw (190hp)

Structure type

Three-section articulated boom

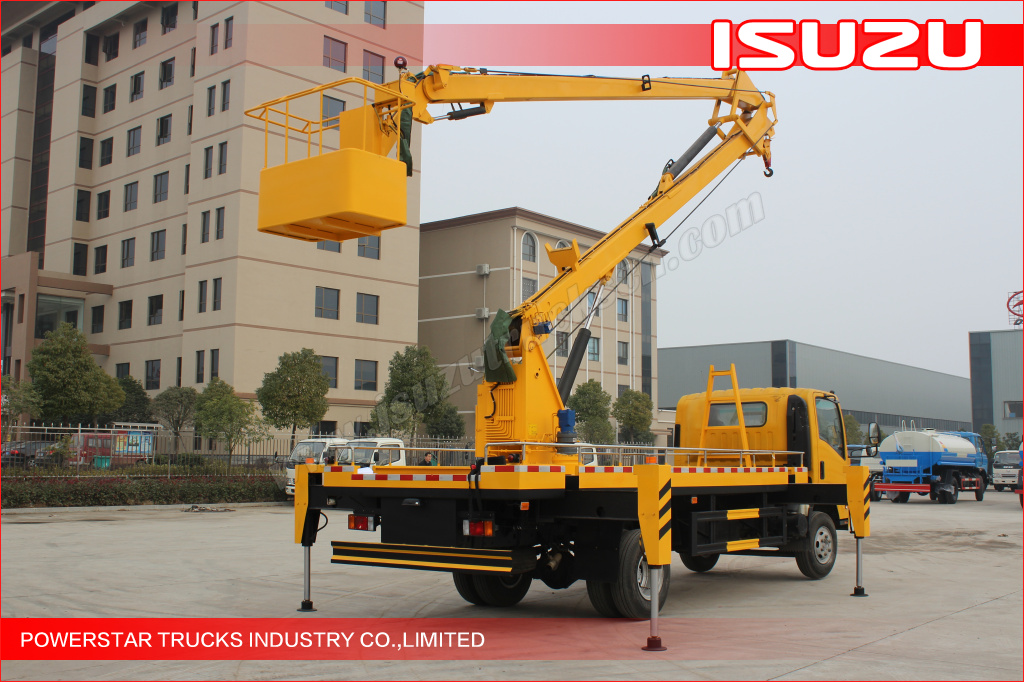

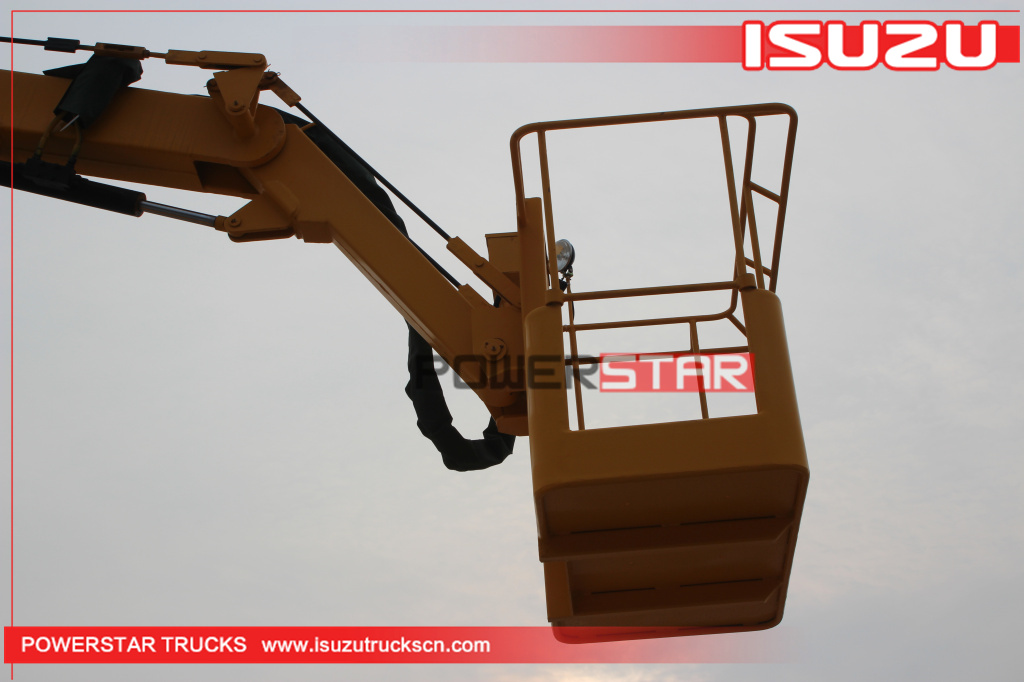

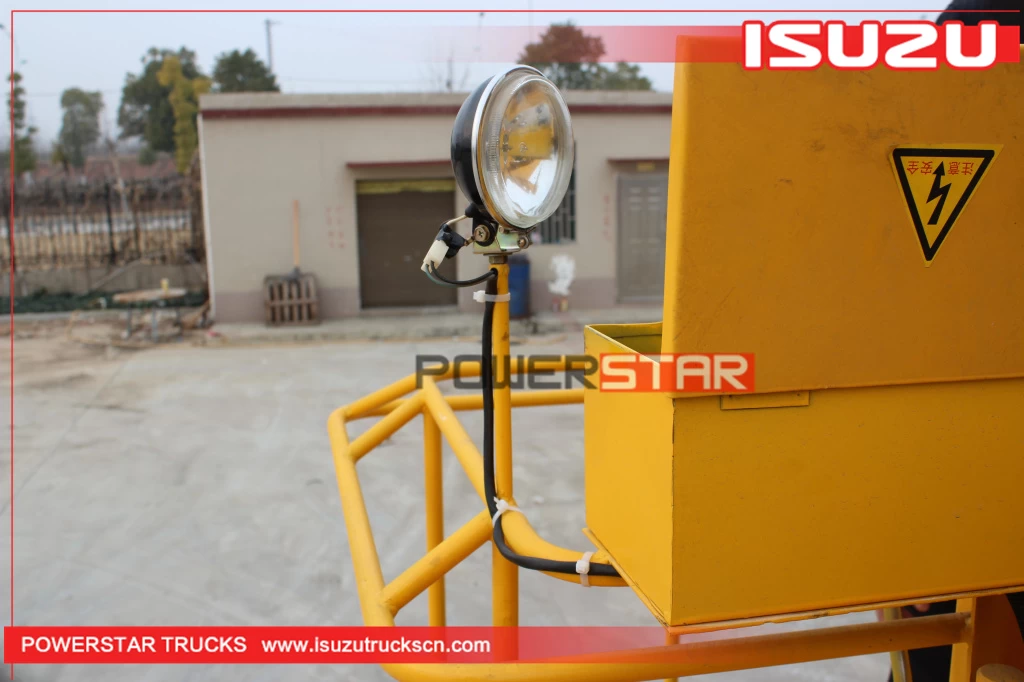

Working Platform

Internal size

1100×600×1100 mm

Rated loading

200kg  (or 2 persons)

Max. Working height

18 M

Max. Height from ground

12300 mm

Max. Working radius

7700 mm

Working radius when doing the highest height

2950 mm

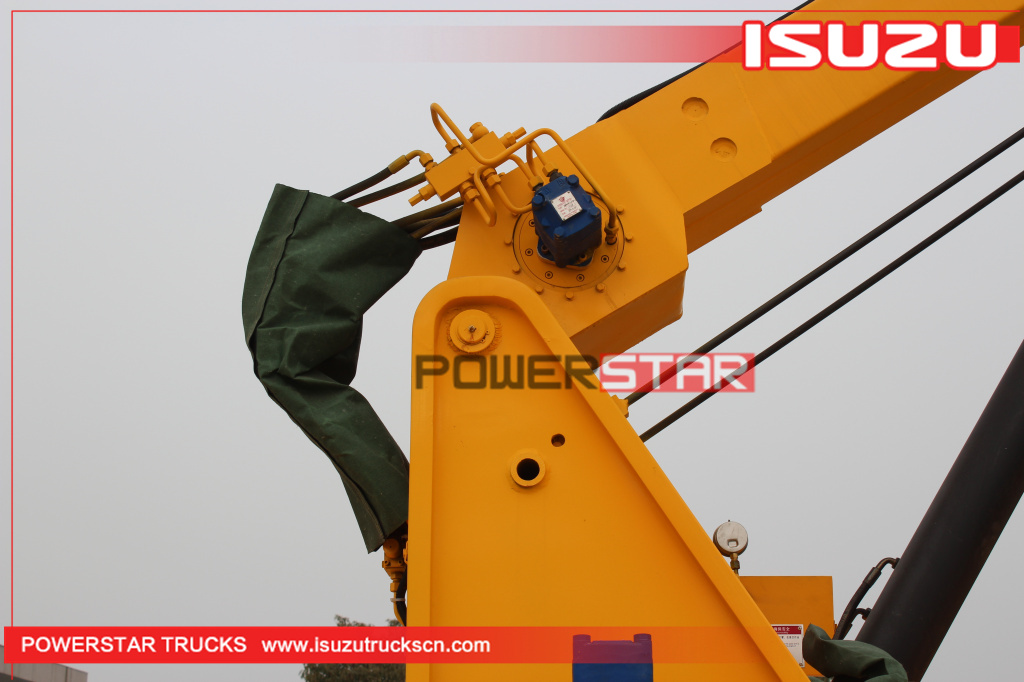

Working Boom

Max. Raising angle of lower boom

70 º

Max. Raising angle of upper boom

70 º

Max. Raising angle of jib

90 º

Boom rack ration angle

360 º

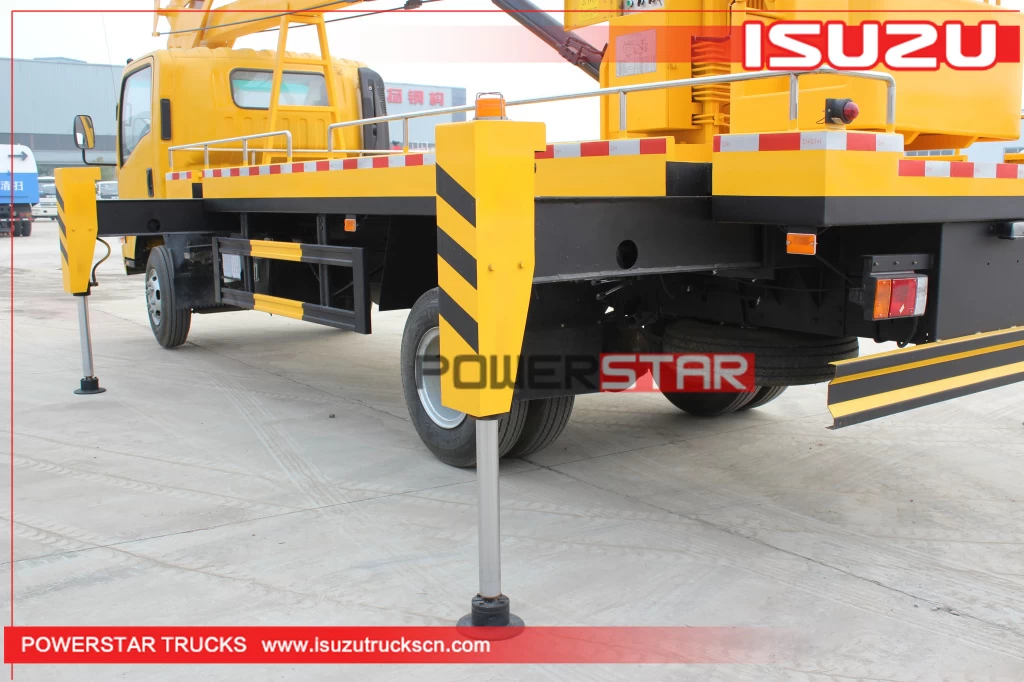

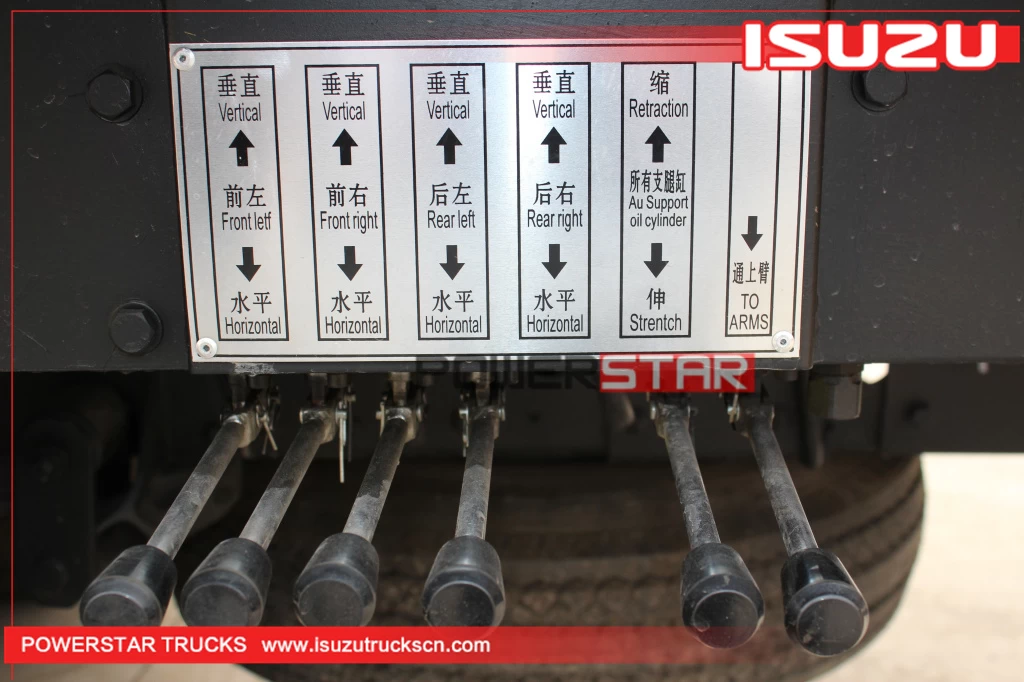

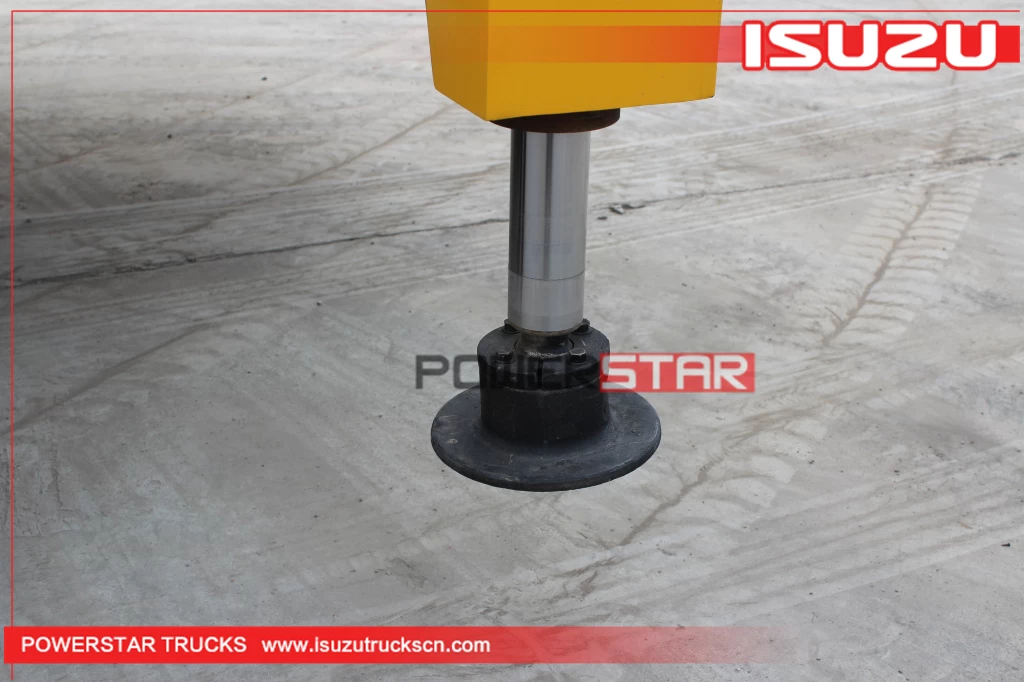

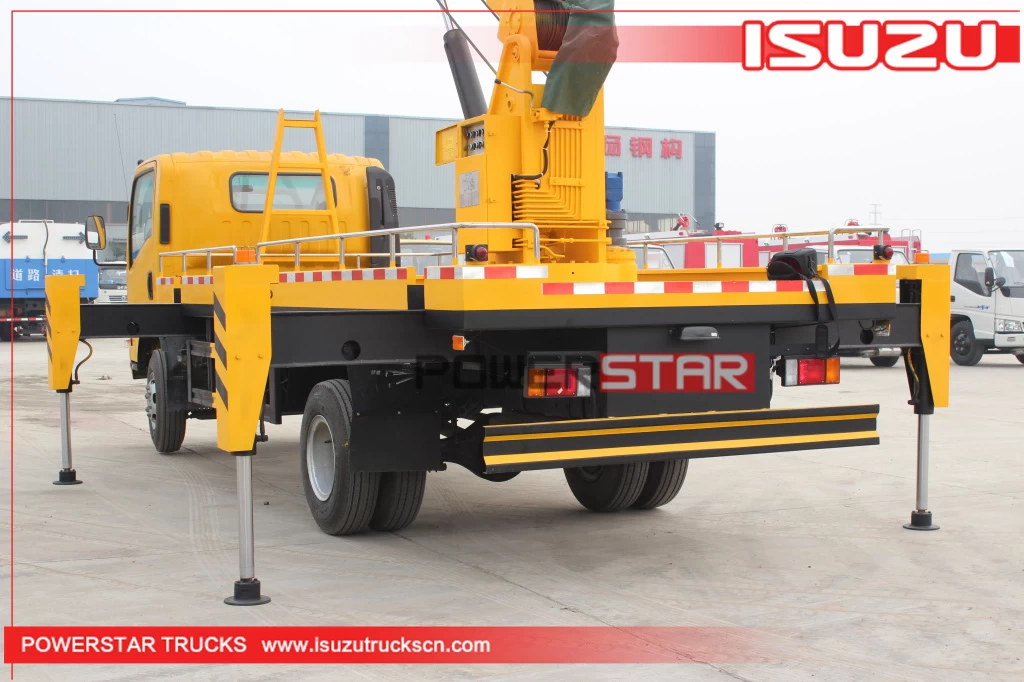

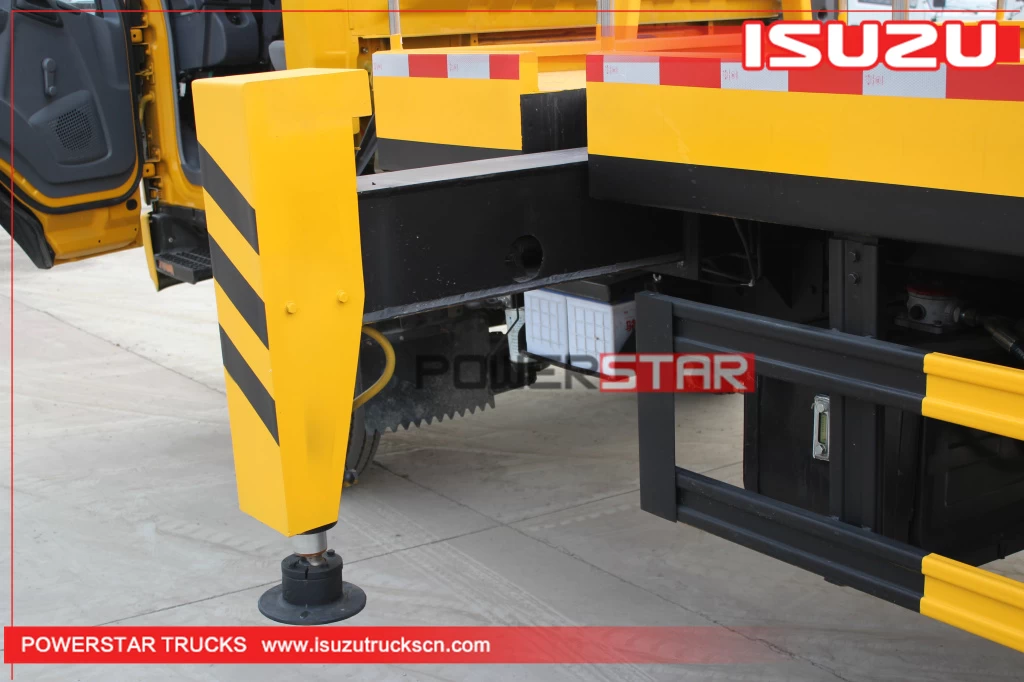

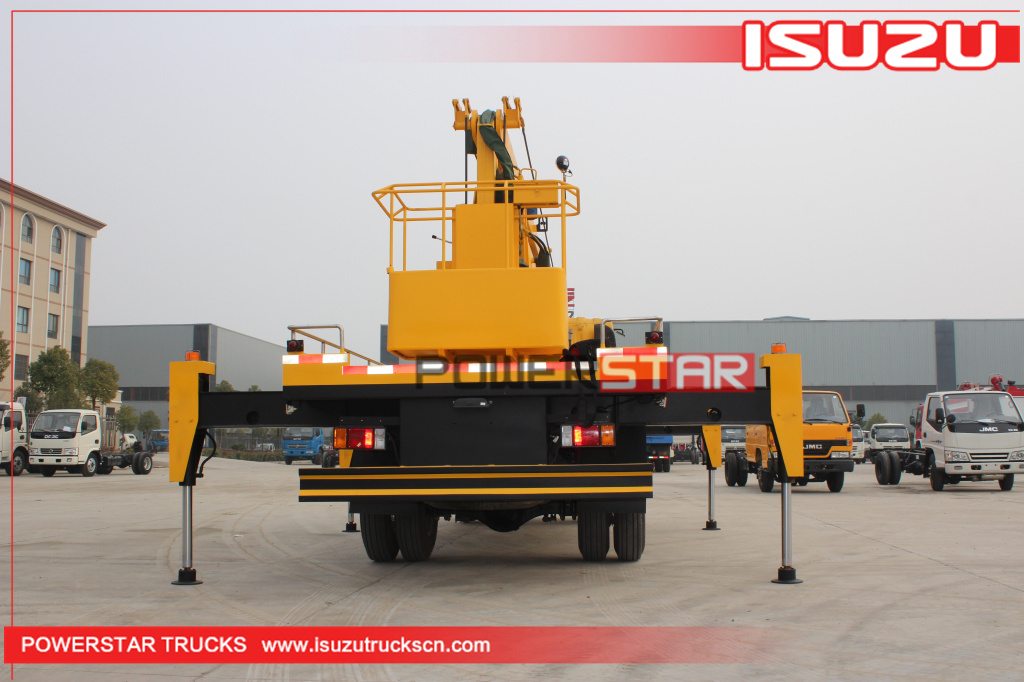

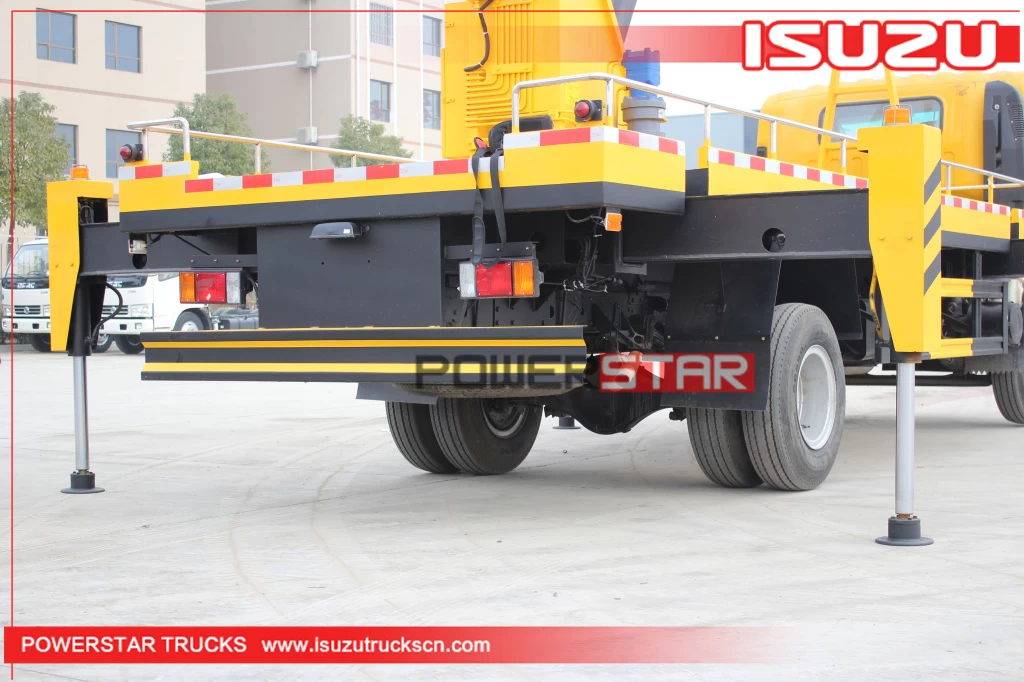

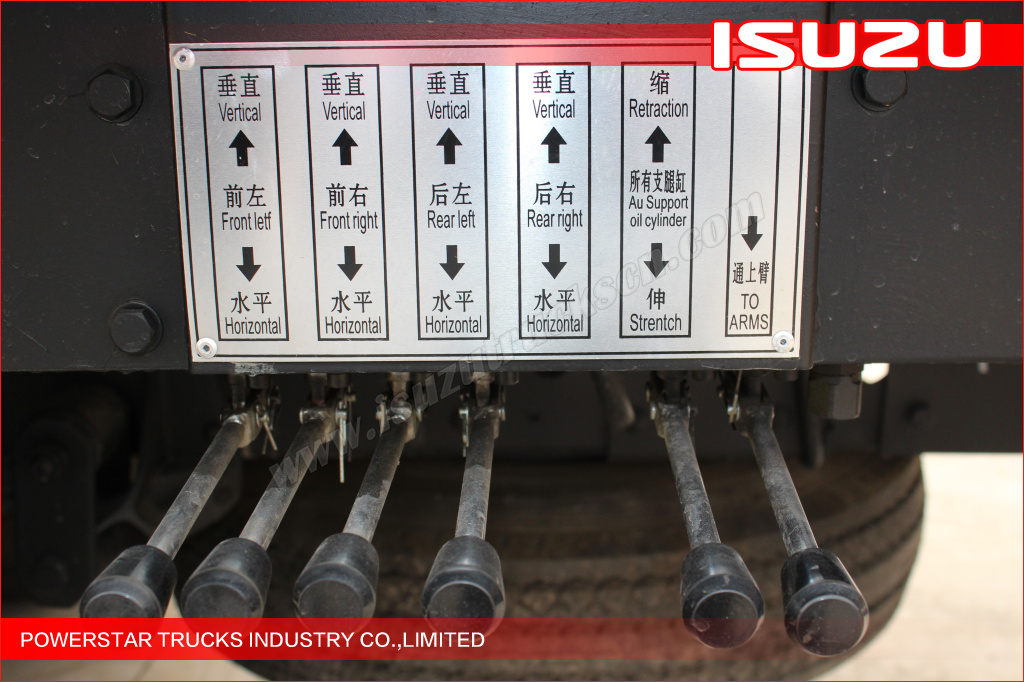

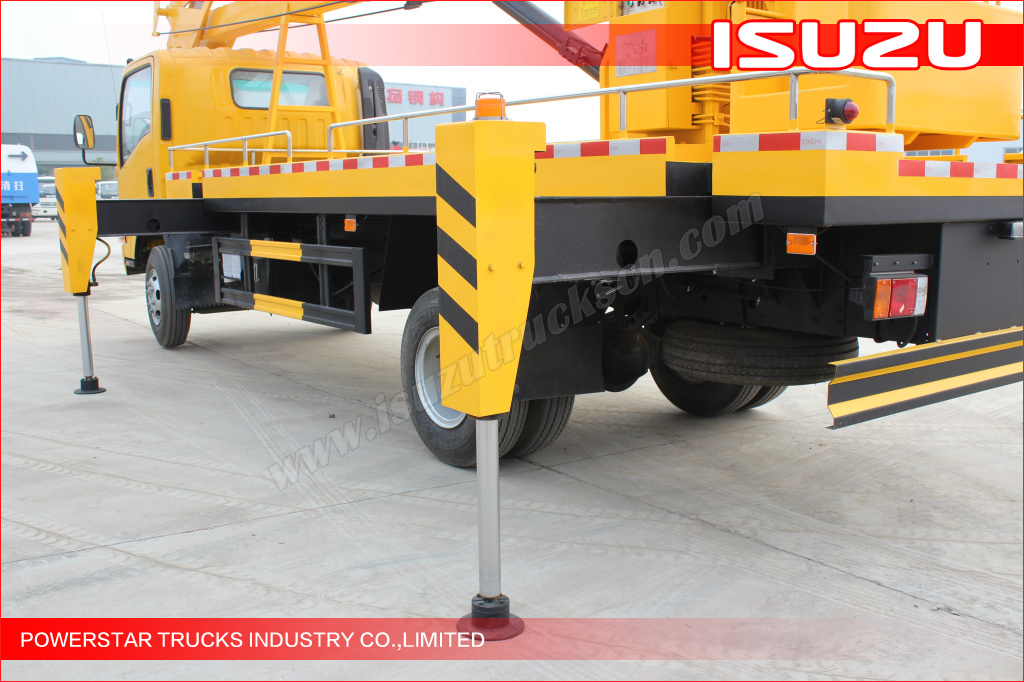

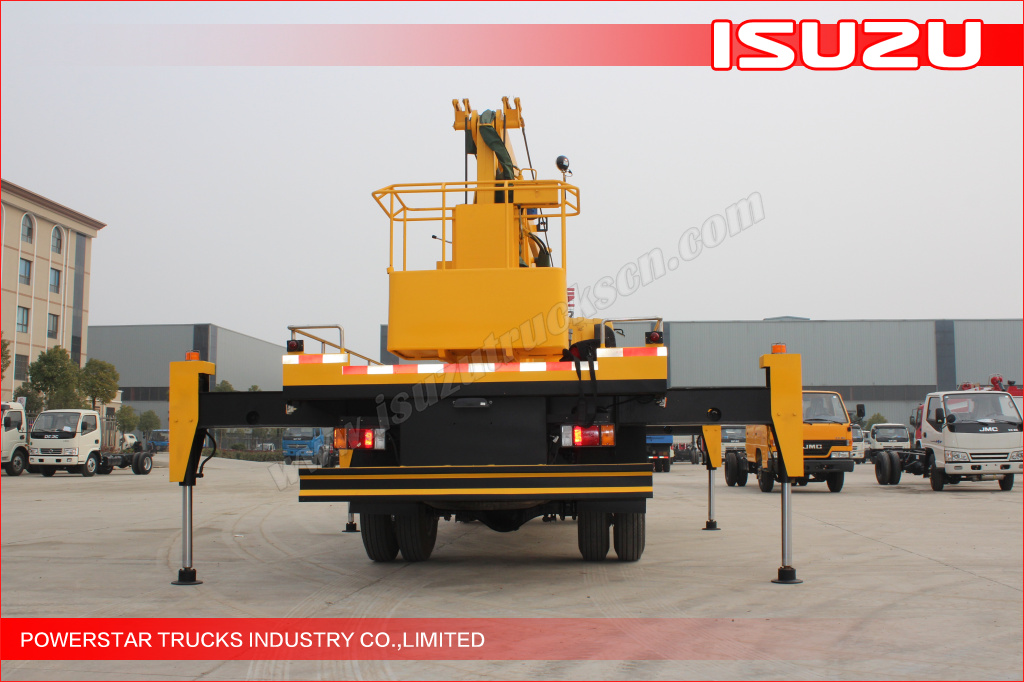

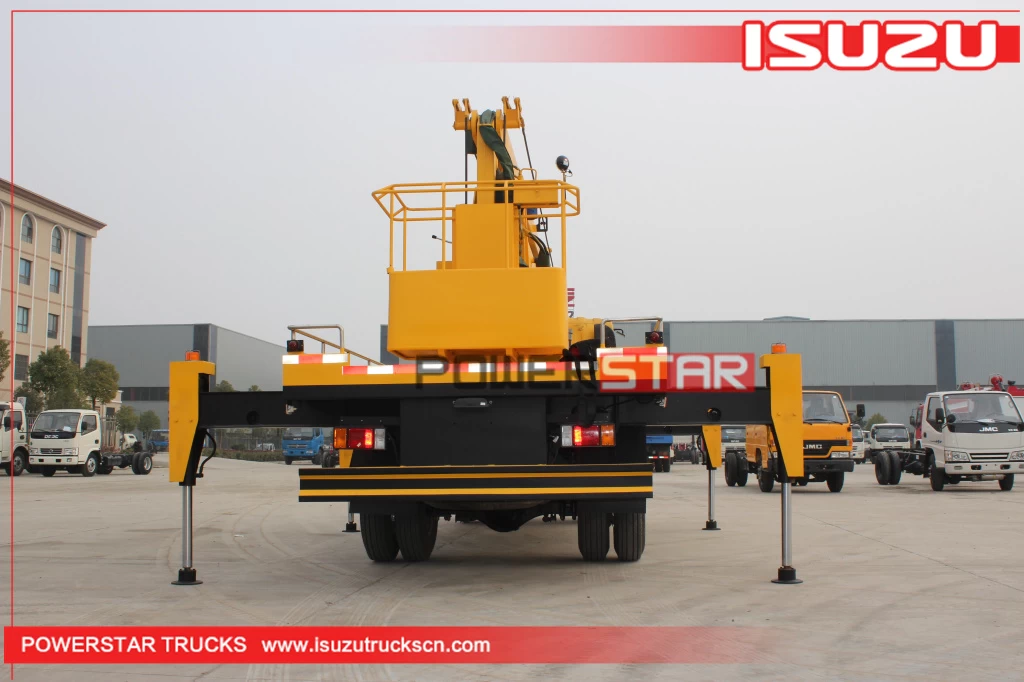

Outrigger

Vertical span

3200 mm

Horizontal span

3600 mm

Traveling of vertical outrigger

450 mm

Adjustment

Single adjustable

Color

Yellow   (Any color & logos up to wish)
