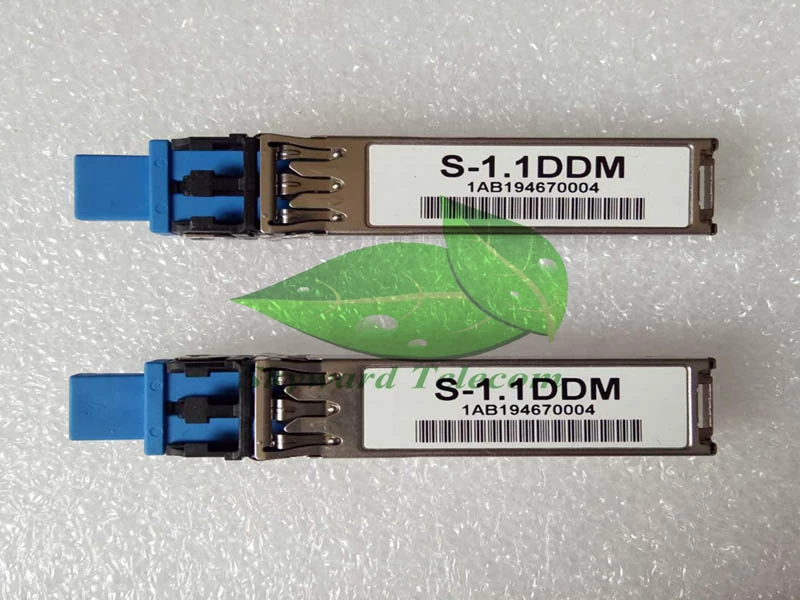

1AB194670004 - 155MBase OC-3c/STM-1 IR LC, 15 Km, 1310 nm SFP transceiver
Specification
|
Media Type:
|
Single-Mode Fiber (SMF)
|
|
TX Wavelength:
|
1310 nm.
|
|
RX Wavelength:
|
1310 nm.
|
|
Minimum Optical Budget:
|
19db
|
|
Maximum Distance:
|
15km
|
|
Supported Data Rate:
|
100-155Mbps
|
|
Supported Applications:
|
100M Ethernet
(100Mbps), STM-1 (155Mbps)
|
|
DDM/DOM:
|
Support
|
|
Temperature Range:
|
Standard
0°-70°C
|
|
Connectors:
|
Double LC
|
|
Tx Wavelength Bandwidth:
|
100 nm
(1260-1360 nm)
|
|
Rx Wavelength Bandwidth:
|
100 nm
(1260-1360 nm)
|
|
Minimum Transmitting Power:
|
-15 dB
|
|
Maximum Transmitting Power:
|
-8 dB
|
|
Receiver Sensitivity:
|
-34 dBm
|
|
Receiver Overload:
|
-3 dBm
|
|
Dispersion:
|
110-200
ps/nm
|
|
Transmitter Type:
|
FP Laser
|
|
Receiver Type:
|
PIN
photodiode
|
|
Power:
|
+3.3V
single power supply
|
|
Chipset:
|
MAXIM, MINDSPEED, SEMTECH
|
|
Compliance:
|
CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP
MSA
|
|
Transceiver Type:
|
SFP
|
|
Port Interface:
|
1 x 155MBase LC
|
|
Interface Details:
|
155MBase OC-3c/STM-1 IR
|
|
Connection:
|
Single-mode Fiber (SMF)
|
|
Hot Swappable:
|
Yes
|
|
Dimensions:
|
0.50" x 0.50" x 2.25"
|
