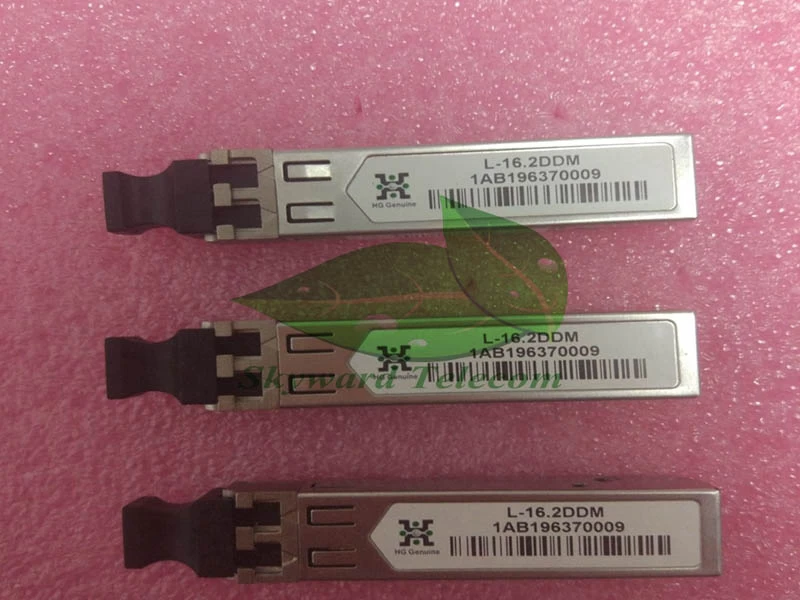

1AB196370009 - 2.5GBase OC-48/STM-16/2.5G SONET ZX LC, 80 Km, 1550 nm SFP transceiver
Alcatel
Transceiver 1AB196370009is promgrammed to be fully compatible and functional
with all intened Alcatel switching devices. The SFP optical transceiver is based
on the ATM/SONET/SONET standard and is desinged to be complaint with SFF-8472
SFP Multi-source Agreement(MSA). This mondule is desinged for single mode fiber
and operates at a nominal wavelength of 1550nm.
Specification
|
Media Type:
|
Single-Mode Fiber
(SMF)
|
|
TX Wavelength:
|
1550 nm.
|
|
RX Wavelenght:
|
1550 nm.
|
|
Minimum Optical Budget:
|
26
dB
|
|
Maximum Distance:
|
80km
|
|
Supported Data Rate:
|
100-2.67Gbps
|
|
Supported Applications:
|
Gigabit
Ethernet (1.25 Gbps), 100M
Ethernet (100Mbps), 2G
Fiber Channel (2.125 Gbps), 1G
Fiber Channel (1.0625 Gbps), STM-1
(155Mbps), STM-4
(622Mbps), STM-16
(2.488 Gbps), ODU0
(1.244Gbps), ODU1
(2.498Gbps), OTU1
(2.66Gbps), CPRI
option 1 (614.4 Mbps), CPRI
option 2 (1228.8 Mbps), CPRI
option 3 (2.458 Gbps), OBSAI
RP3 x 1 (768 Mbps), OBSAI
RP3 x 2 (1.536 Gbps)
|
|
DDM/DOM:
|
Support
|
|
Temperature Range:
|
Standard -10°C -85°C
|
|
Connectors:
|
Double
LC
|
|
Tx Wavelength Bandwidth:
|
37 nm (1528-1565
nm)
|
|
Rx Wavelength Bandwidth:
|
37 nm (1528-1565
nm)
|
|
Minimum Transmitting Power:
|
-2
dB
|
|
Maximum Transmitting Power:
|
3
dB
|
|
Receiver Sensitivity:
|
-28 dBm
|
|
Receiver Overload:
|
-7
dBm
|
|
Dispersion:
|
1600
ps/nm
|
|
Transmitter Type:
|
DFB Laser
|
|
Receiver Type:
|
APD Photodiode
|
|
Power:
|
+3.3V single
power supply
|
|
Chipset:
|
MAXIM, MINDSPEED, SEMTECH
|
|
Compliance:
|
CE, Class 1 FDA
and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA
|
|
Transceiver Type:
|
SFP
|
|
Port Interface
|
1 x 2.5GBase LC
|
|
Interface Details
|
2.5GBase OC-48/STM-16/2.5G SONET ZX
|
|
Data Rate
|
2.488 Gbps
|
|
Digital Diagnostics (DDM)
|
Yes
|
|
Connection
|
Single-mode Fiber (SMF)
|
|
Hot Swappable
|
Yes
|
|
Dimensions
|
0.50" x 0.50" x 2.25"
|
Compliance
-
ANSI-T1.646, ATM and SONET and SDH for OC-48/STM-16
-
SFP MSA SFF-8472
-
RoHS
-
Class 1 laser product EN 60825
Applications
-
SONET OC-48 LR-2/SDH STM L-16.2
-
SONET OC-12 LR-2/SDH STM L-4.2
-
SONET OC3 LR-2/SDH STM L-1.2
-
1.25GBd Gigabit Ethernet
-
2.125GBd/1.08GBd Fiber Channel
