Overview

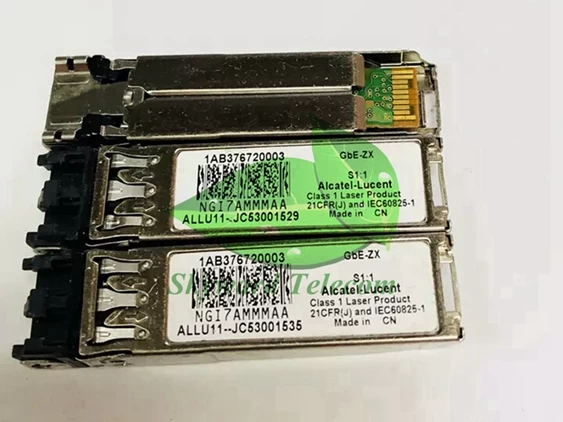

Alcatel 1AB376720003 is SFP Double Fiber Transceiver supporting 1.063-1.25Gbps data rate in 80 km distance over Single-Mode Fiber (SMF).
Specification
- Part Number: 1AB376720003
- HECI / CLEI: NGI7AMMMAA NGI7AMM
- Manfacturer: ALCATEL LUCENT
-
Product Description: 1000BASE-ZX SFP
-
Media Type: Single-Mode Fiber (SMF)
- TX Wavelength: 1550 nm.
- RX Wavelenght: 1550 nm.
- Minimum Optical Budget: 24 dB
-
Maximum Distance: 80km
-
Supported Data Rate: 1.063-1.25Gbps
-
Supported Applications: Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)
-
DDM/DOM: Support
-
Temperature Range: Standard 0°-70°C
-
Connectors: Double LC
- Tx Wavelength Bandwidth: 37 nm (1528-1565 nm)
- Rx Wavelength Bandwidth: 37 nm (1528-1565 nm)
- Minimum Transmitting Power: 0 dB
-
Maximum Transmitting Power: 5 dB
- Receiver Sensitivity: -24 dBm
-
Receiver Overload: -3 dBm
- Dispersion: 1600 ps/nm
- Transmitter Type: DFB Laser
- Receiver Type: PIN photodiode
- Power: +3.3V single power supply
- Chipset: MAXIM, MINDSPEED, SEMTECH
- Compliance: CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA
-
Transceiver Type: SFP
