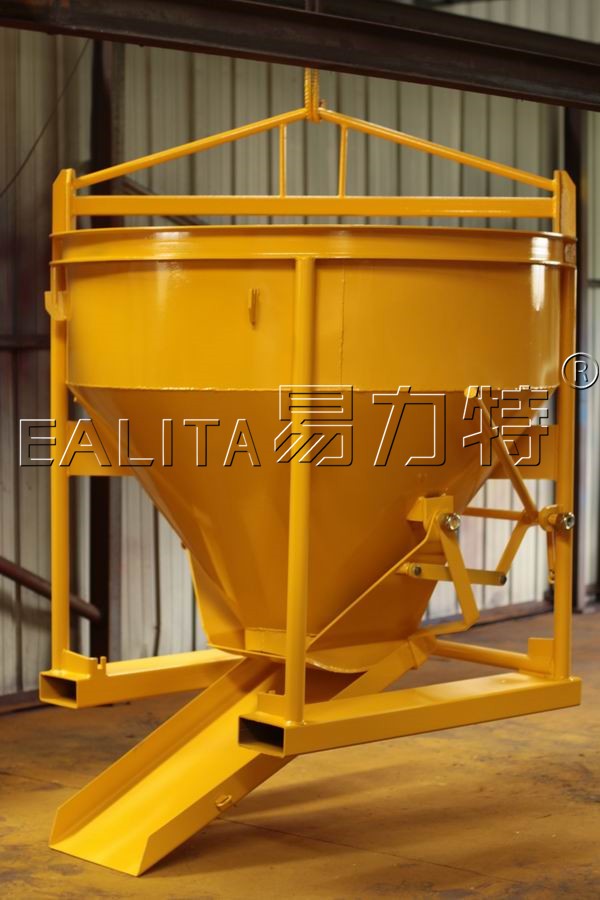

Concrete Kibbles have been designed for easy transfer of concrete on site by overhead crane.
- The type M-CK10 Concrete Kibble has a volume capacity of 1.0 cubic metres.
- This lightweight yet heavy duty Kibble can be used for both bottom discharge or side discharge
with the use of the adjustable chute.
- This unit is lever operated from either side, allowing flexible operation.

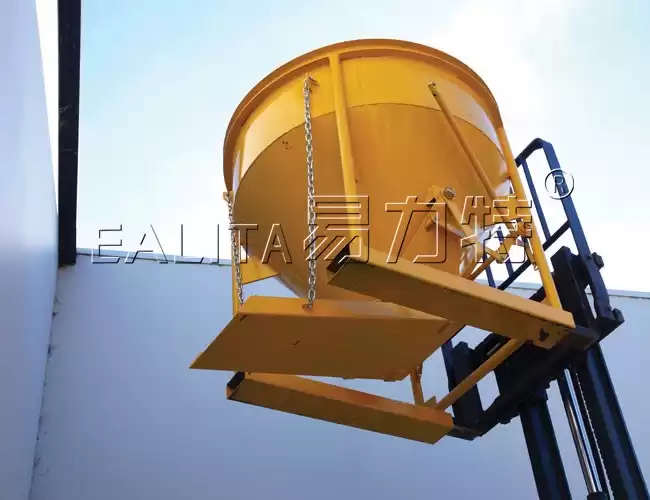

- The unit has been fitted with Forklift pockets for transport purposes about the work site.
Specifications
• Code: 03.07.06.0001
• Safe Working Load (SWL) 3000kg
• Volume Capacity 1.0 cubic metres
• Unit Weight 320kg
• Fork Pocket Size 165 x 65mm
• Fork Pocket Centres 870mm
• Painted ‘Safety Yellow” enamel
