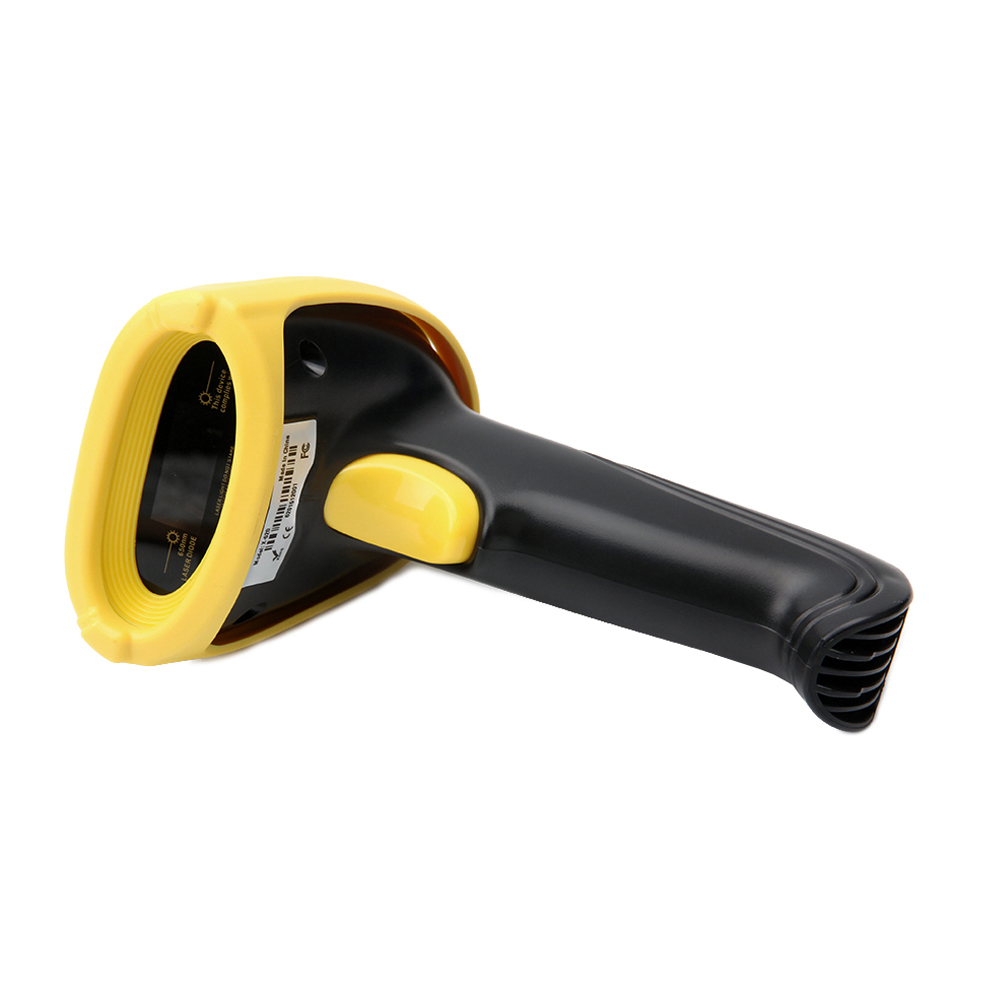

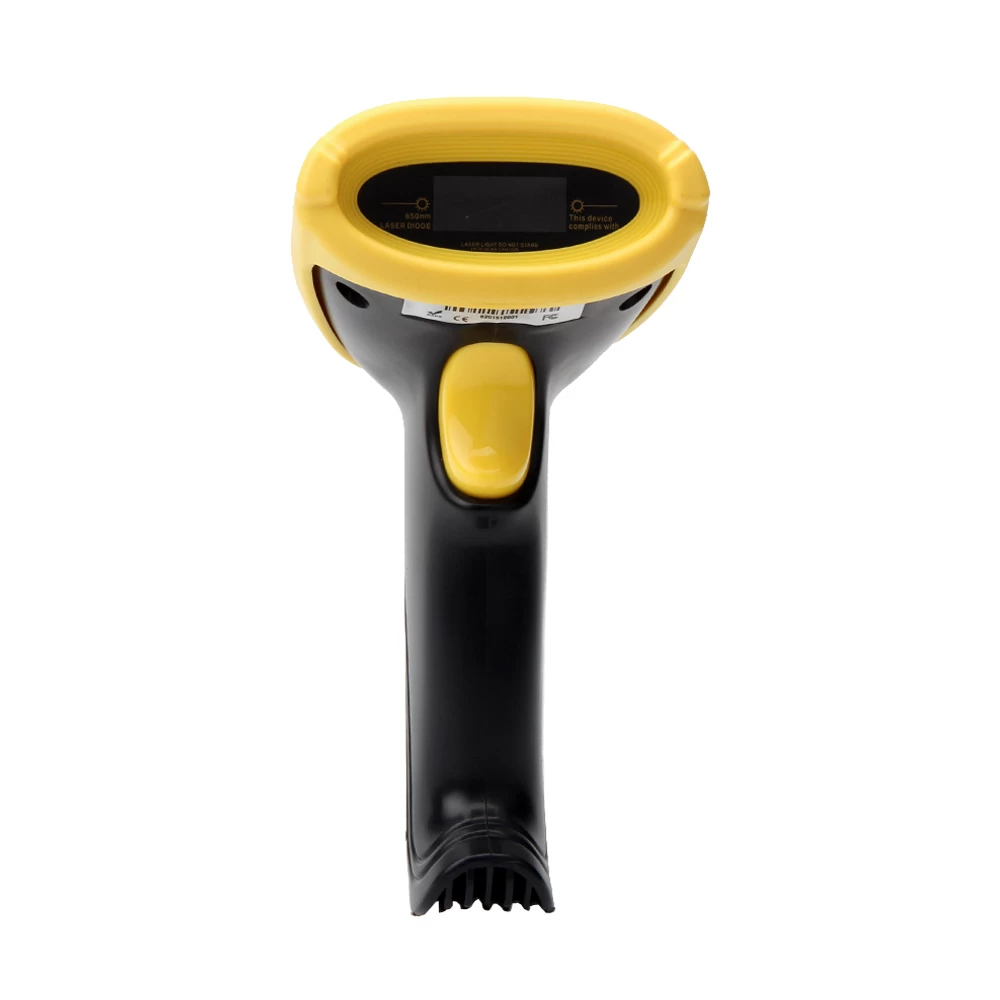

1D 2.4G Bidirectional Wireless Laser Barcode Scanner IPBS003

Bluetooth Barcode Scanner
1.Trial order acceptable
2.High quality

Facebook Twitter Pinterest LinkedIn 分享
Specifications
Product Name 2.4G Bidirectional Wireless Laser Barcode Scanner
Model No. IPBS003
Light source Visible laser diode, wavelength 650nm
Error rate 1/50,000,000
Safety EN60825-1, China National Laser Safety Standard Class1
Decoding Capability

1D barcode like UPC/EAN/JAN, UPC/EAN with Supplementals,

UCC/EAN 128, Code 39, MSI, Code11,

 Codabar, Code93, Discrete 2 of 5, IATA, RSSvariants, Chinese 2 of 5, I

nteleaved 2 of 5, China Post Code, etc.

Charging Interface

RJ-45 crystal plug, 2 meters long (5V charger,

 LED light is red when it’s charging and green when it gets full charged.)

Trigger mode Manual
Resolution ≥3mil
Depth of scanning field 5mm~630mm
Scanning speed 120 scans/sec
Scanning mode Single line
Scanning resolution Minimum 30% reflective difference
Transmission Frequency 2.4G
Transmission Distance 30 meters linear distance
Charging Time 3.5 hours
Charging Voltage DC 5V±5%
Setting Mode Manual(scan the setting barcodes)
Operating current 20mA(operating mode); 100mA(maximum peak)
Power 100MW(operating mode); 500MW(maximum peak)
Standby Current <20uA
Photic Intensity 3000~12000Lux
Scanning Angle ±60,±65,±42°(Left & right, Front & back, Turn)
Prompting Mode LED light
Temperature 0℃~50℃(operating mode); -40℃~60℃(storage)
Shock resistance 1.5 meters drop on concrete surface
Dememtion H*W*L: 162mm*76mm*96mm
Weight About 140g
Housing material ABS+PVC+PC
Color Black/White
EMC EN55022, EN55024
Electrical Safety EN60950-1
Packaging Level IP42
Test Standard EN55022:2006+A1:2007
EN55024:1998+A1:2001+A2:2003
EN61000-3-2:2006+A2:2009
EN6100-3-3:2008
