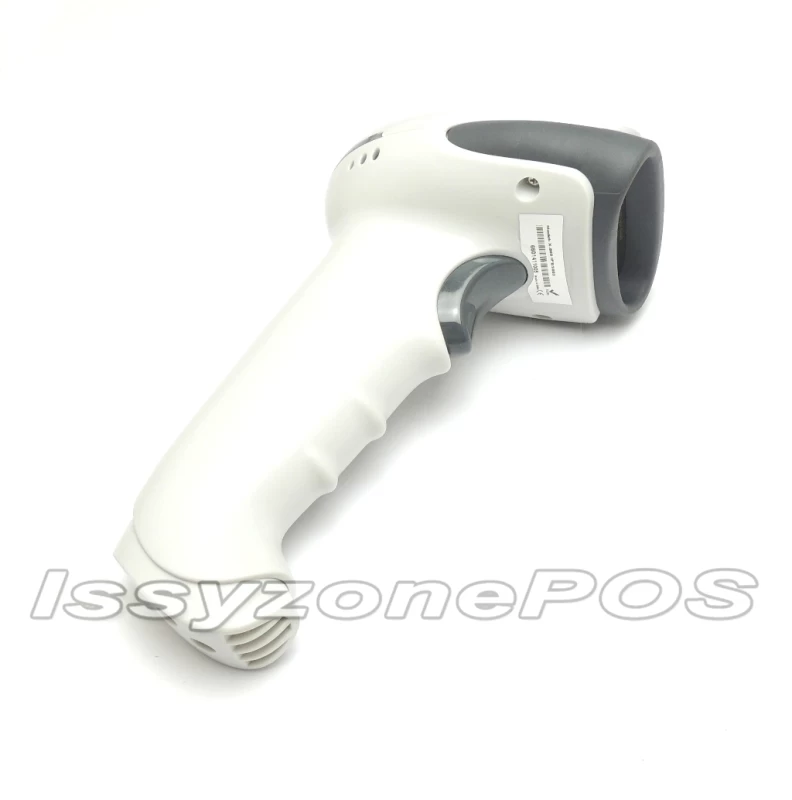

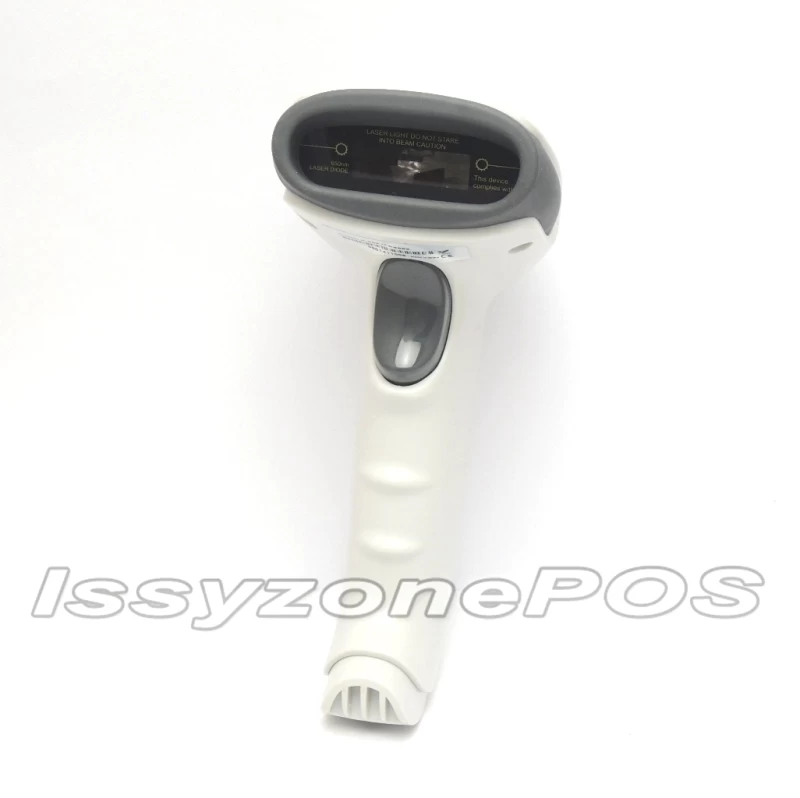

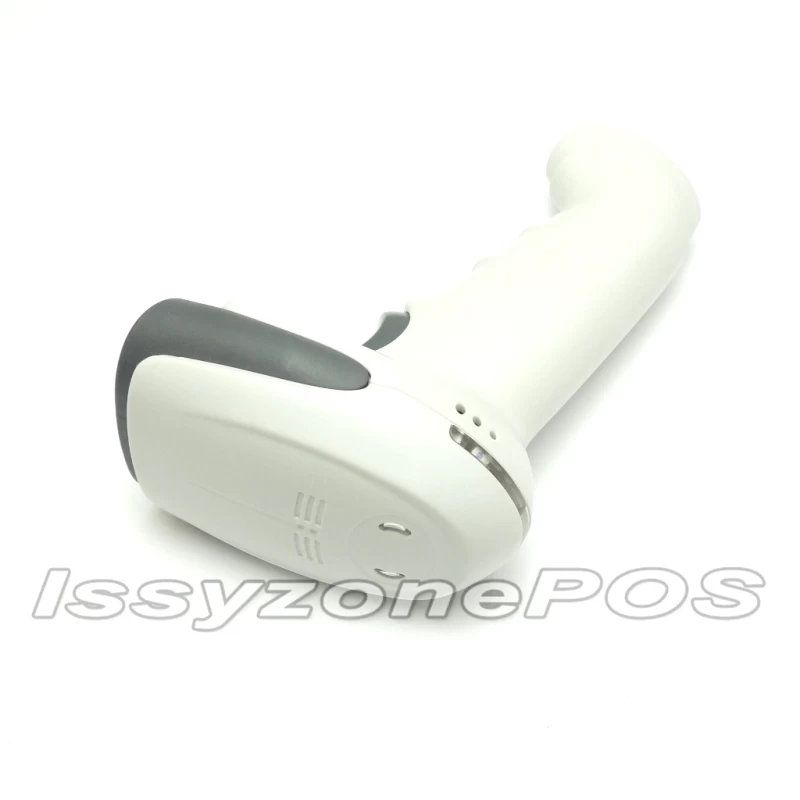

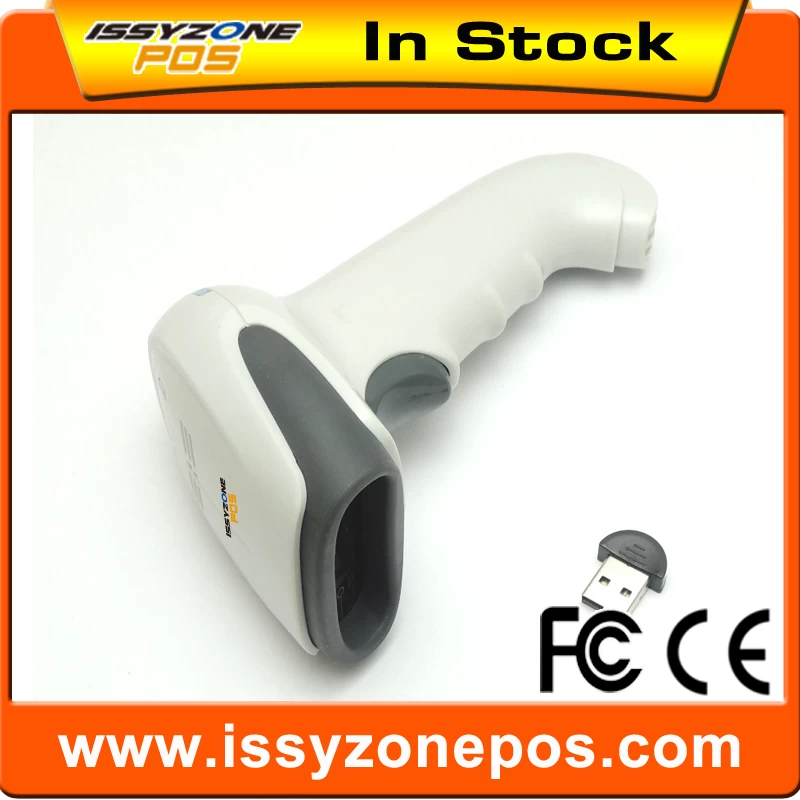

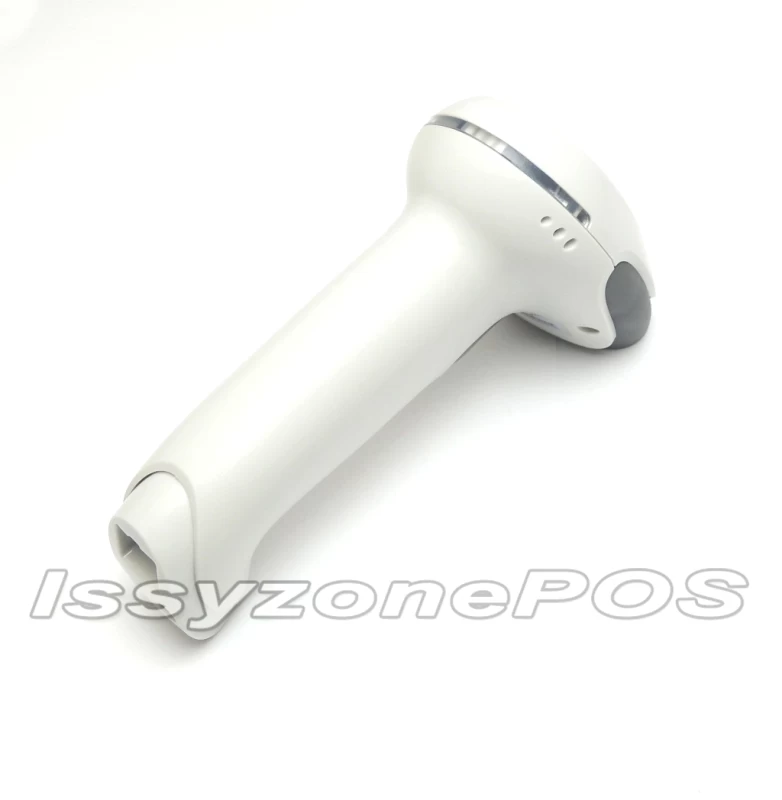

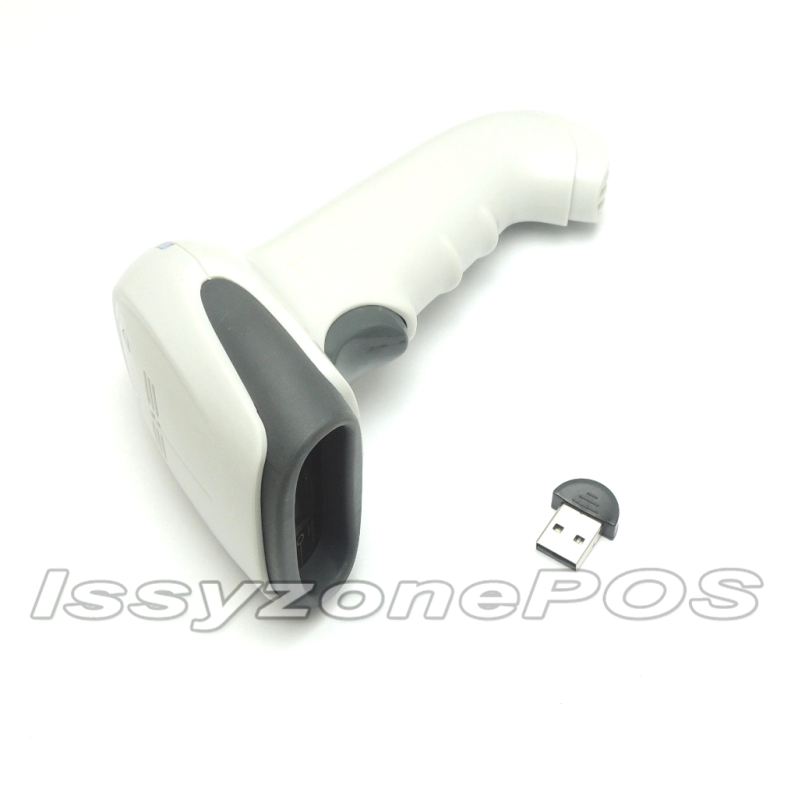

1D Bluetooth Barcode Scanner Support Android IOS Windows With Infrared Induction Function IPBS002

Technical Parameters

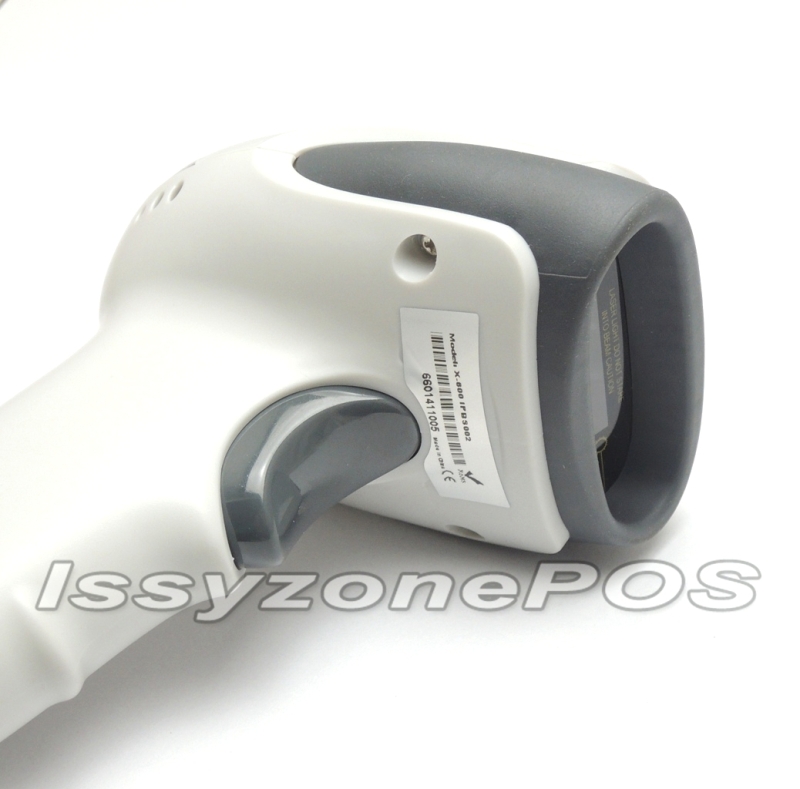

Model No:

X-660 PHYSICAL CHARACTERISTICS

Material:

ABS+TPE+PC

Size:

L*W*H:162mm*68mm*93mm

Color:

White, Black

Power Supply:

Built-in rechargeable 3.7V 750mA lithium battery

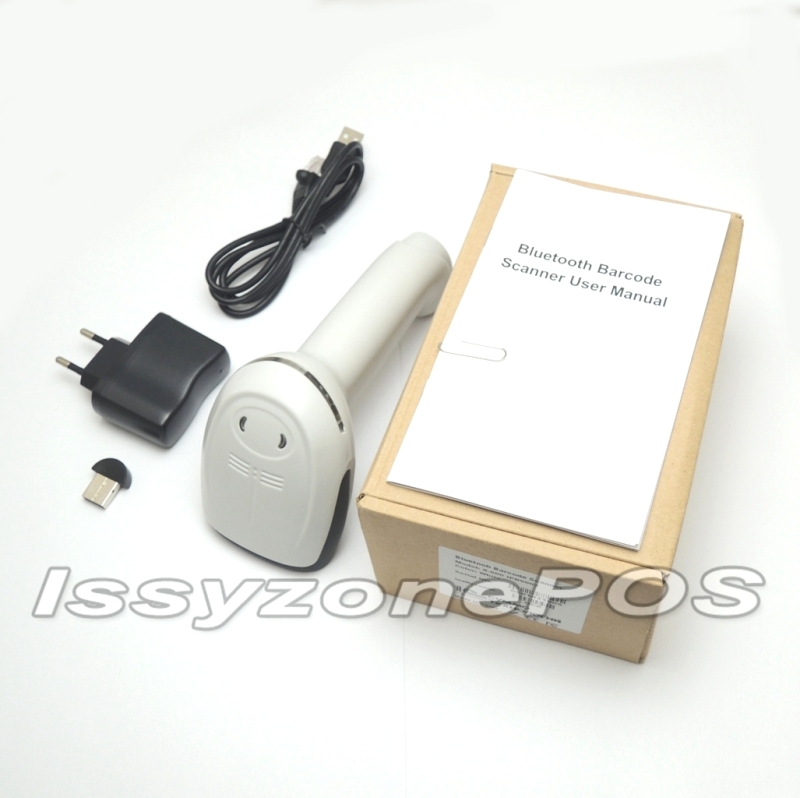

Accessories:

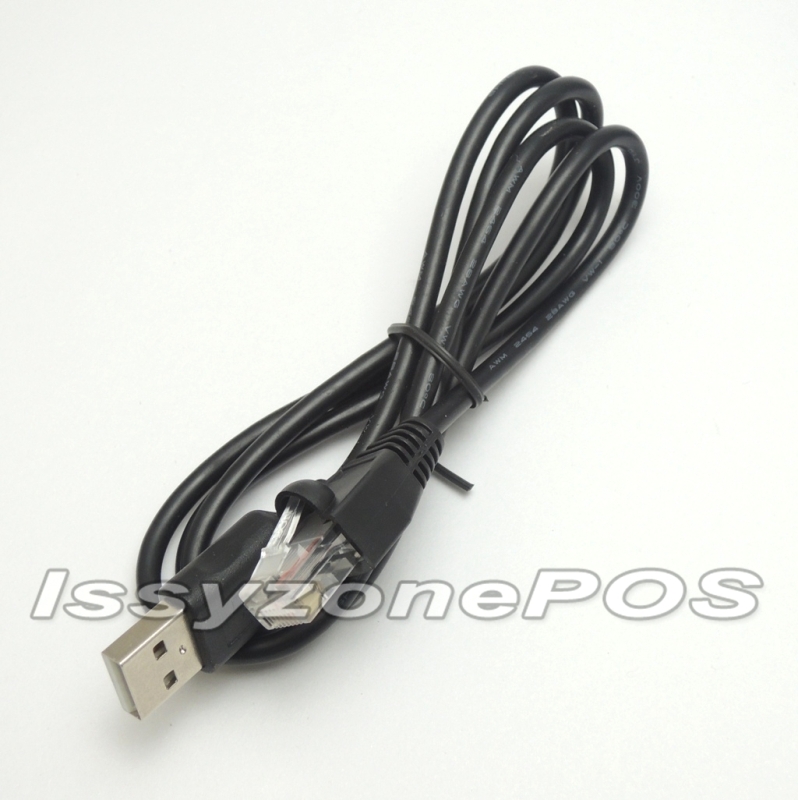

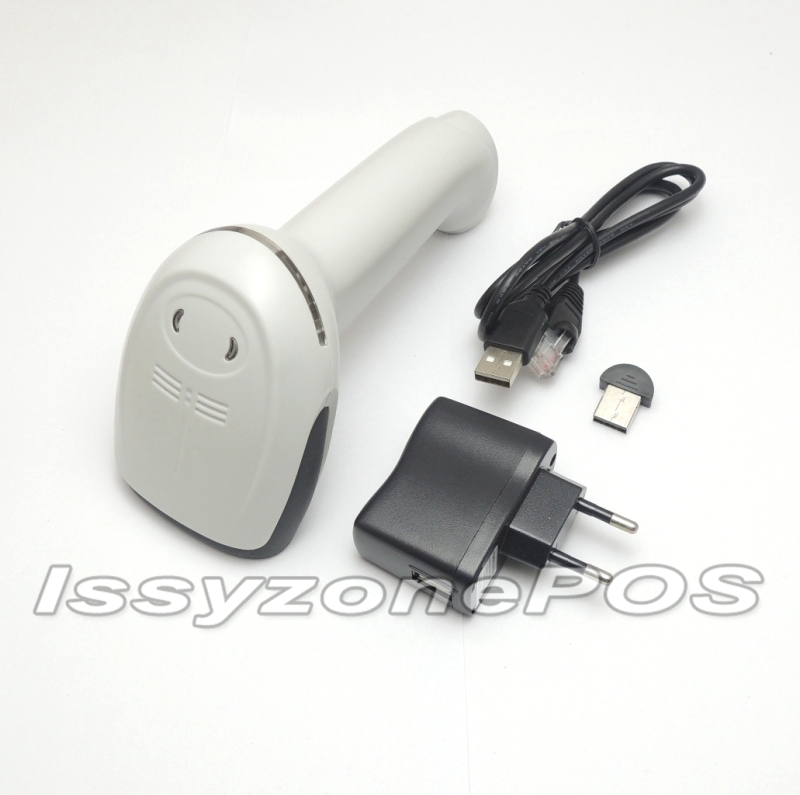

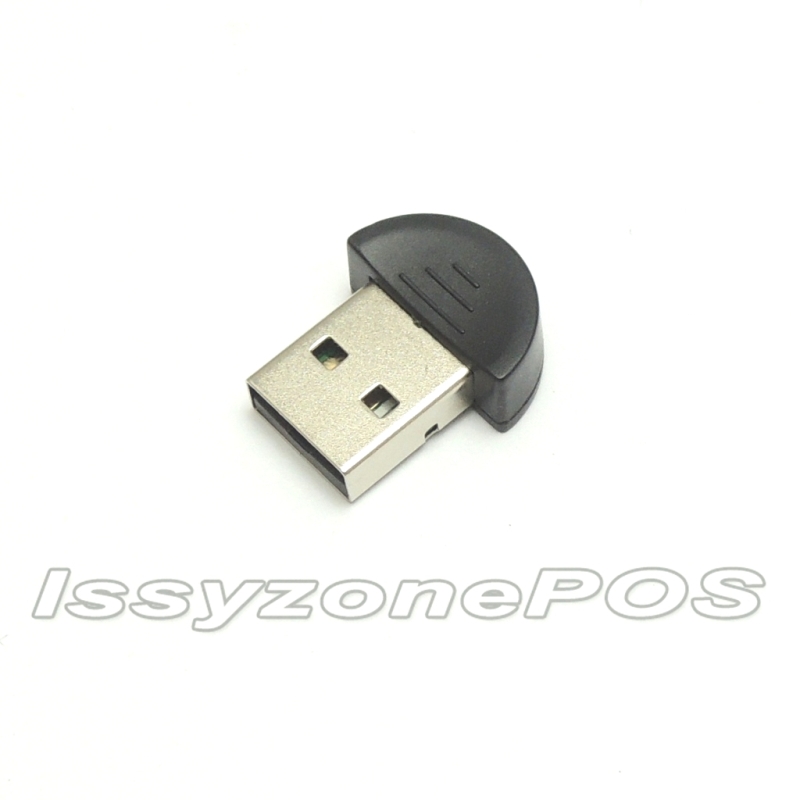

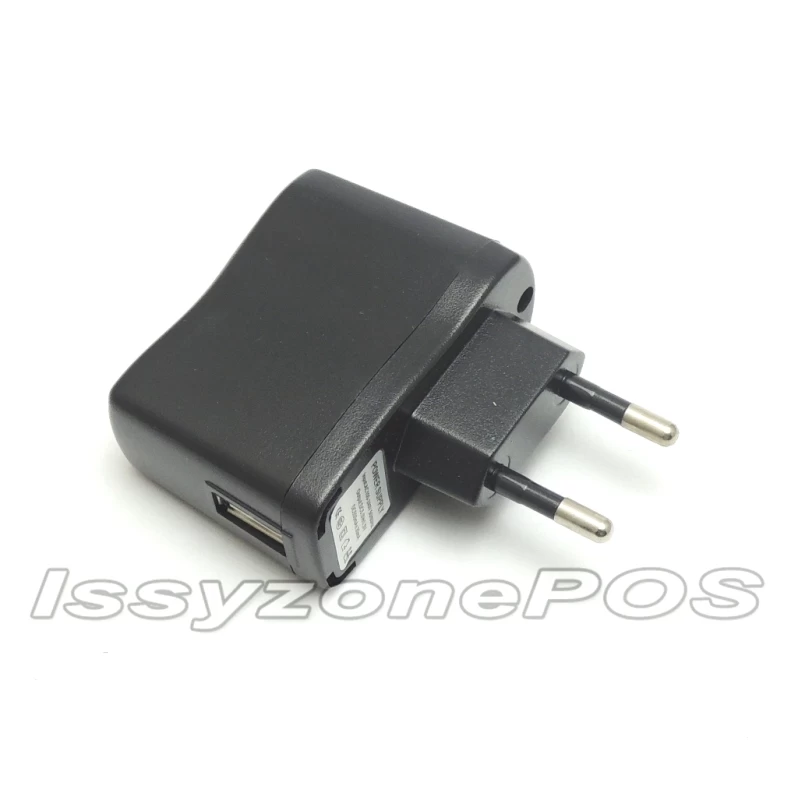

Lithium battery, Charger, Bluetooth adapter

Weight:

145g (With battery) PERFORMANCE CHARACTIESTICS

Radio Range:

10m Visual range

Module:

Bluetooth class 3.0Version+EDR

Interface Supported:

USB

Communicate Mode:

SPP

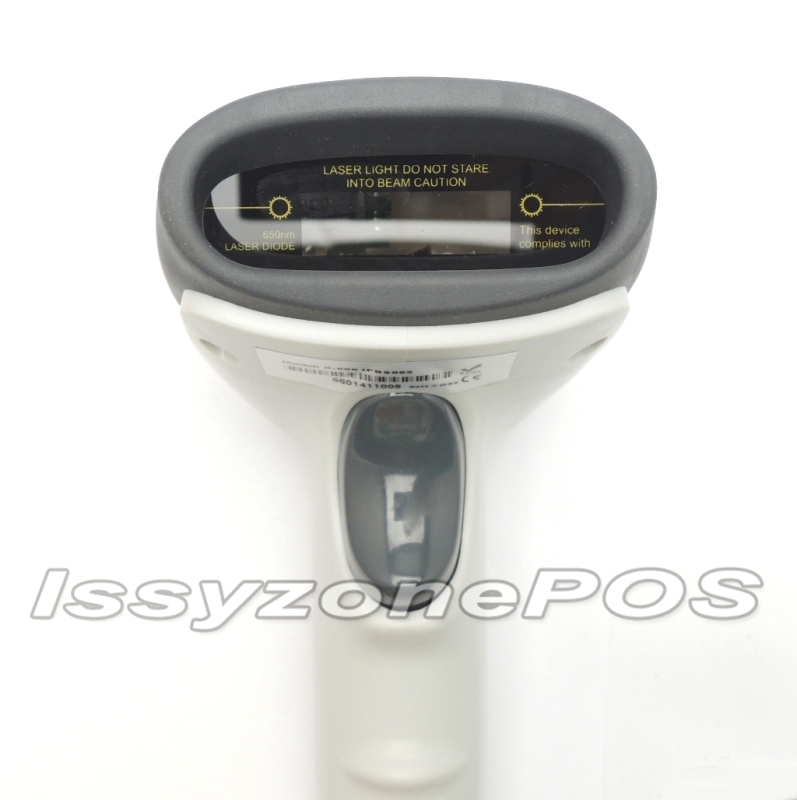

Light Source(Laser):

Laser LED 650± 20nm (national Class 1 laser safety standard)

Decode Capability:

Codabar, Code 11, Code 93, MSI, Code128, UCC/EAN-128, Code 39, EAN-8,EAN-13, UPC-A, ISBN, Industrial 25, Standard 25, 2/5 Matrix, etc.

Resolution:

Min 0.1mm(4mils)

Depth of Field:

3~9cm(0.1mm bar width); 3.5~45cm(0.3mm bar width)

Decoding Speed:

100 times/sec

Scan Width:

5cm~30cm

Prompting Mode:

Buzzer, Indicator light

Print Contrast:

30%

Scan Angles:

Roll 30°Pitch 75°Yaw65°

Cylinder Horizontal Scan:

Diameter 35mm USER ENVIRONMENT

Operating Temp:

0 to 50°C / 32 to 122°F

Storage Temp:

0 to 50°C / 32 to 122°F

Operating Humidity:

20~85% ( non-condensing )

Storage Humidity:

20~85% ( non-condensing )

Shock Resistance:

1.5m free fall on concrete surface
