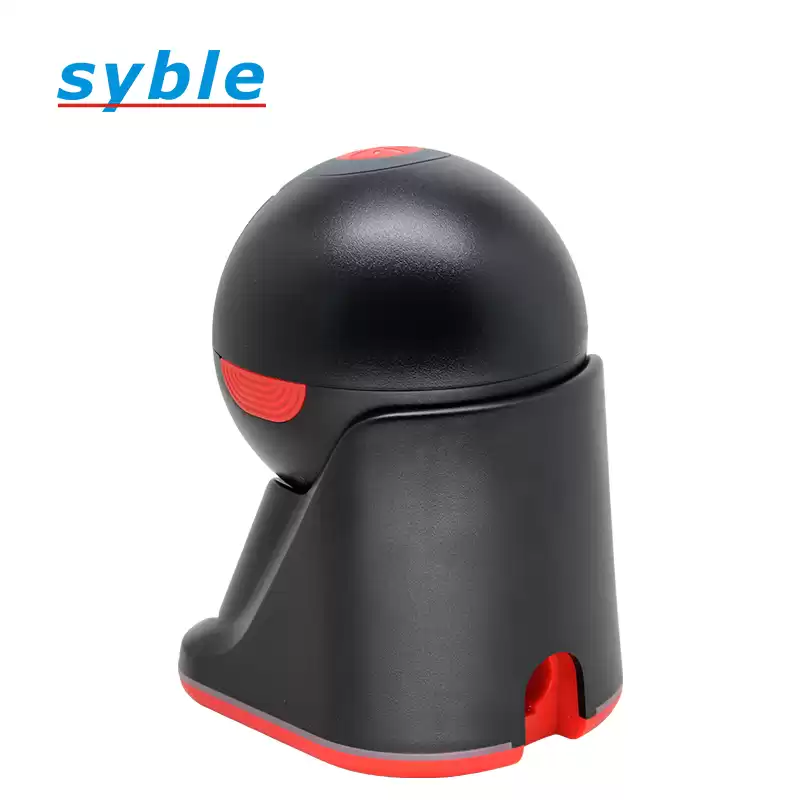

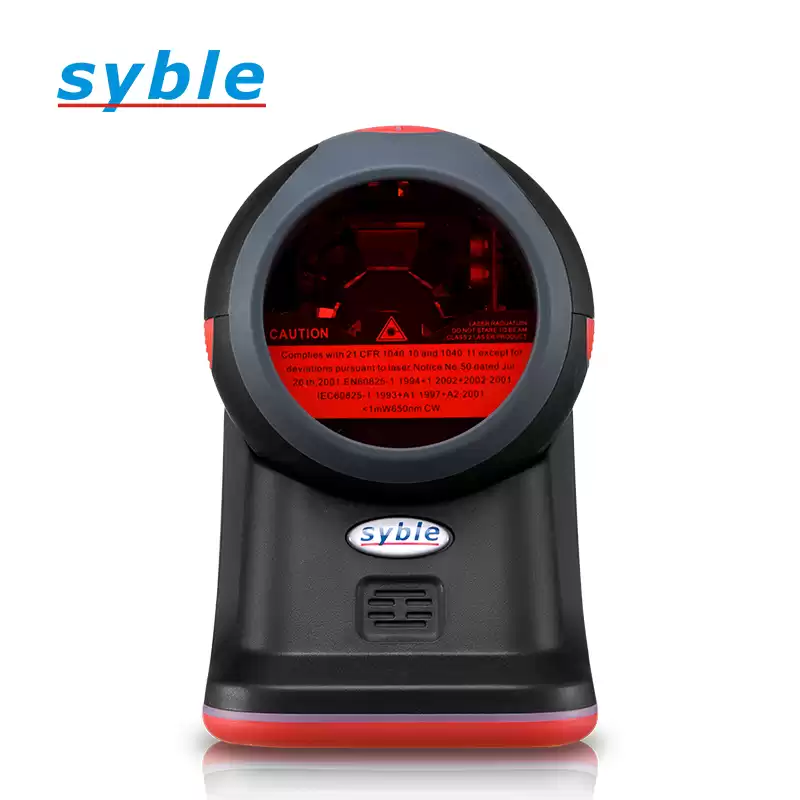

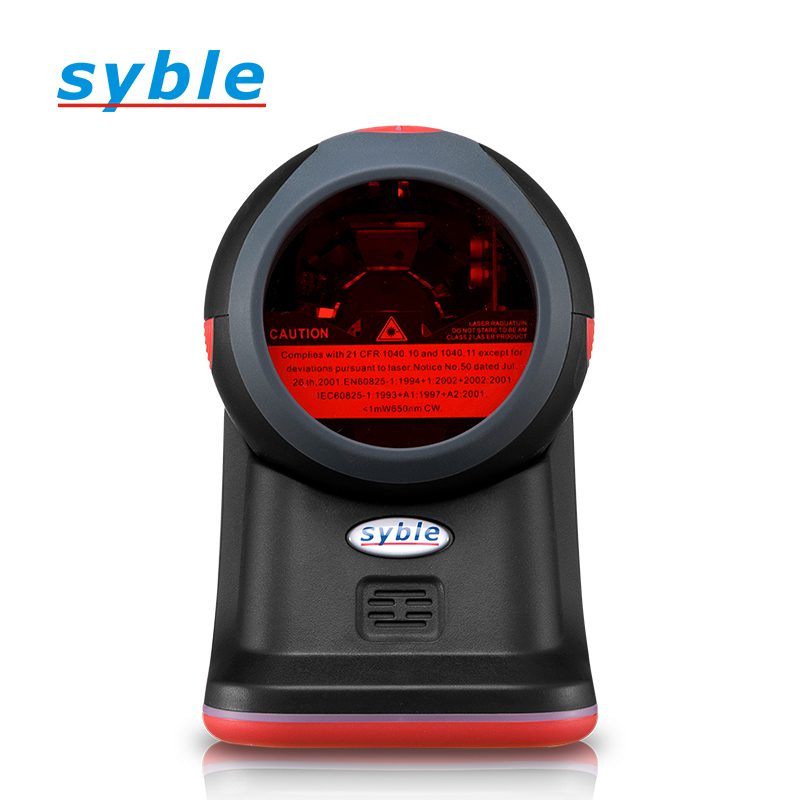

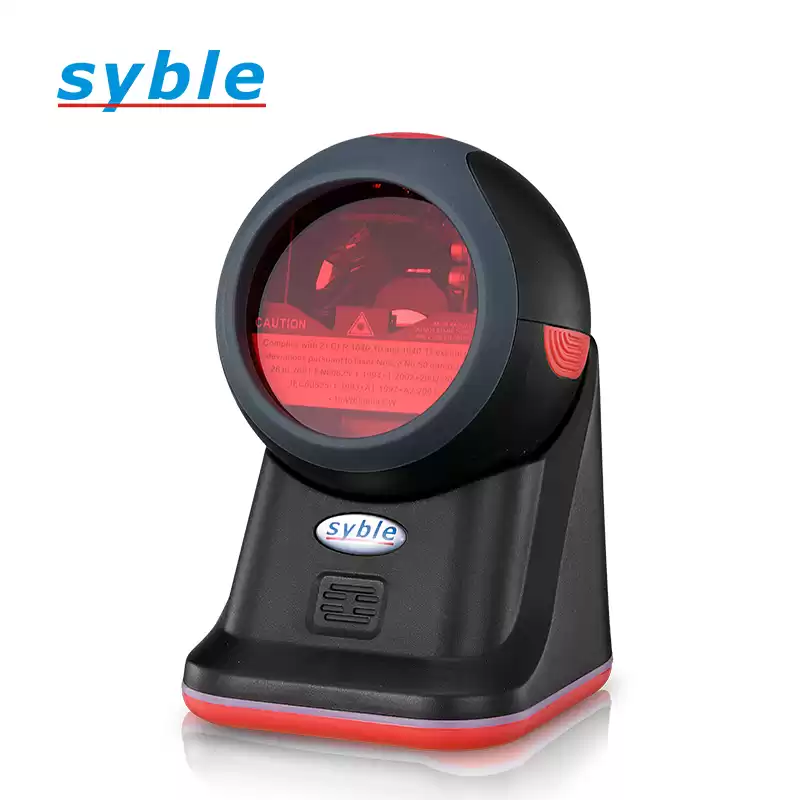

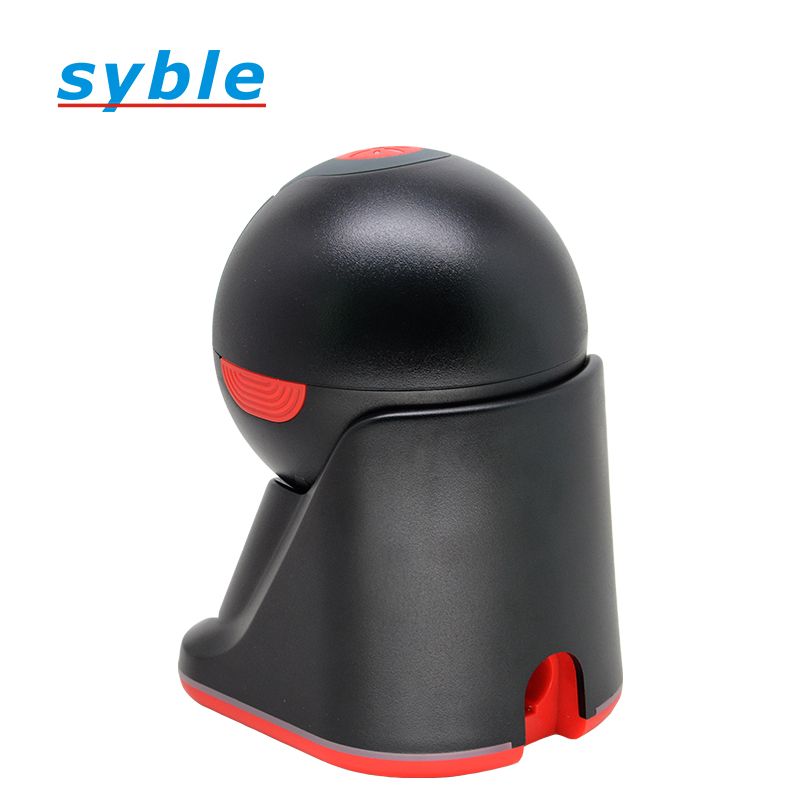

Laser Omnidirectional Barcode Scanner 1D Barcode Reader For Retail
Feature:
New decoding chip to scan various 1D codes
Plug and play, easy to set up, and can be used quickly with other office equipment

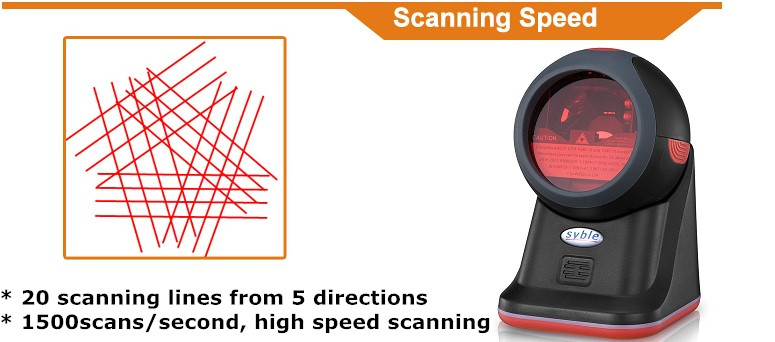

5 scan directional and 20 laser lines
withstand multiple times 1.5m drop to concrete

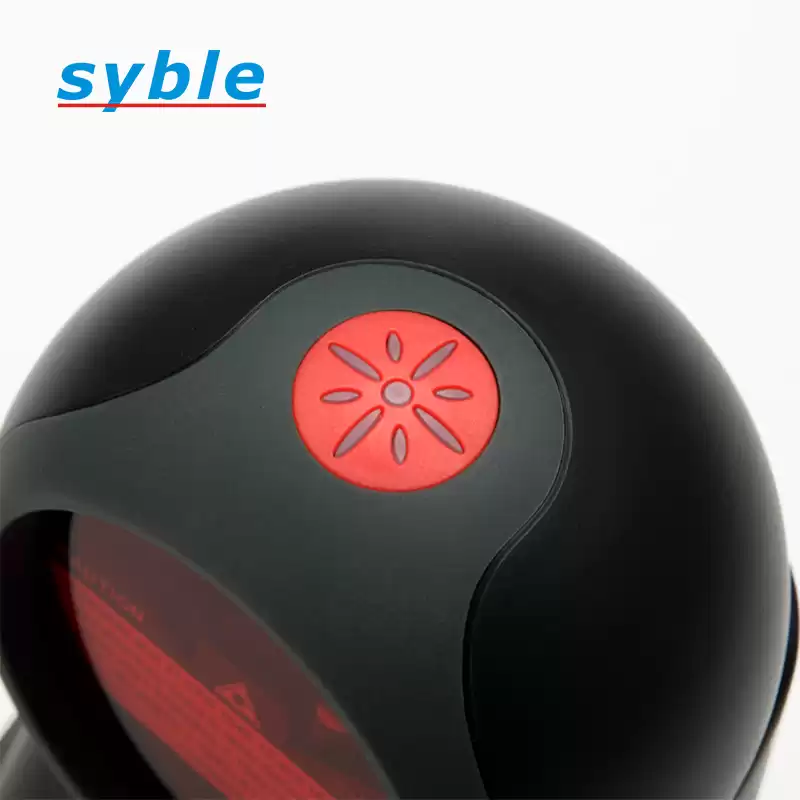

With touch button
Model : XB-3080
This 1d omnidirectional barcode reader with compact and rugged design can fit in most space constrained areas.Compatible with windows,linux,android systems POS.
|
Model Number
|
XB-3080
|
|
Performance Parameters
|
|
Light Sources
|
650nm laser（Safe visible laser diode）
|
|
Supported Symbologies
|
CODE128、EAN-13、EAN-8、CODE39、CODE 93,UPC-A、ISBN,GS1 Databar、Standard 2 0f 5,Plessey,UPC-E、 Codabar,UCC/EAN128、Industrial 2 of 5，Interleave 2 of 5，Matrix 2 of 5，MSI-plessey,1d codes.
|
|
Scan Method
|
20lines laser
|
|
Scan Angle
|
5 directional
|
|
Precision
|
0.127mm(5mil)@Code 39,PCS=90%
|
|
Interface
|
USB-HID,PS2,RS232
|
|
Visual Indicator
|
LED, Speaker
|
|
Print of Contrast
|
≥30%（UPC.EAN 100%)
|
|
Physical Parameters
|
|

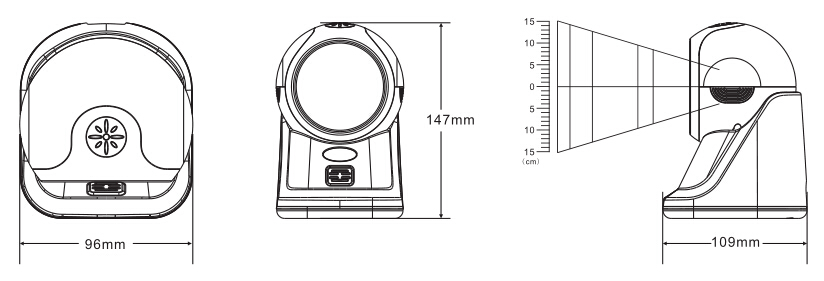

Dimensions
|
96mm*108mm*151mm
|
|
Weight
|
435g
|
|
Material
|
ABS+PC
|
|
Cable Length
|
2M
|
|
Environmental Parameters
|
|
Operating Temperature
|
-20℃~50℃
|
|
Storage Temperature
|
-40℃~70℃
|
|
Relative Humidity
|
5%~95%（Non-condensing)）
|
|
Electrical Parameters
|
|
Voltage
|
DC5V±1%
|
|
Current
|
270mA
|

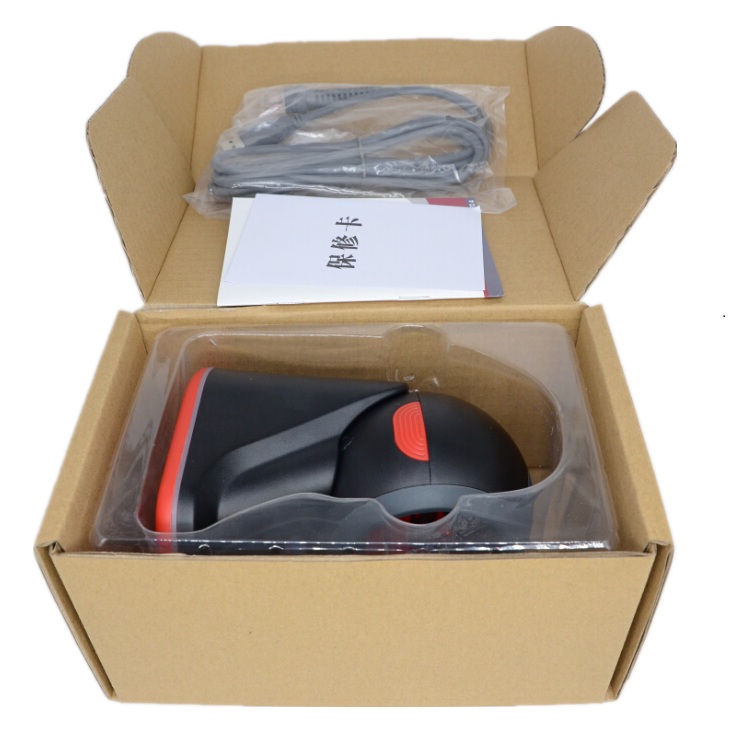

Product Overview
FAQ
|
Q1:How about the quality?
Professional QC team and testing machine. All the products pass CE, FCC, ROSH, etc.
|
|
Q2: Why so competitive?
With almost many years experience, we owned a large domestic market in China. We are the best-seller in China. So large quantity will reduce our raw material cost directly. What’s more we have mature technology to save cost.
|
|
Q3: How to control the performance stable?
We take the flow line production in the whole processing. Every product will test 4 times at least before it delivery.
|
|
Q4:Is OEM or ODM available?
Yes. We are the factory directly. We can make it as your requirement.
|
|
Q5:Why customer choose us?
Because our factory with strictly quality control system. Prompt after-sales service.
|
|
Q6:How about the factory?
We are approved the new high-tech enterprise by the government. Owned many technical and design patents in different professional fields.
Q7:Is sample order of barcode scanners accepted?
Yes, welcome sample order to test the quality and check our service, which is also helpful for promotion
|
