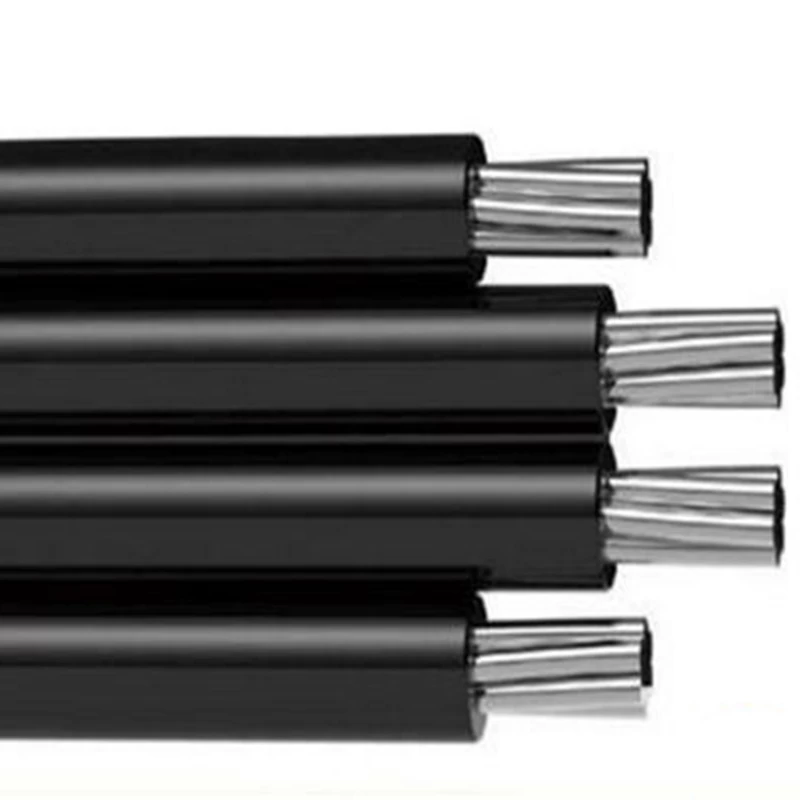

1kV single core JKLV aluminum conductor PVC insulated Aerial Cables
PRODUCTS KEYWORDS
JKLV cable, ABC cable, PVC insulated aerial cable; aluminum conductor
PVC insulated aerial cable.
APPLICATION CHARACTERISTICS
1kV single core JKLV aluminum conductor PVC Insulated Aerial Bundled
Cable, it applies to electrical overhead power
transmission and distribution lines with AC rated voltage U0/U
up to and including 1kV.

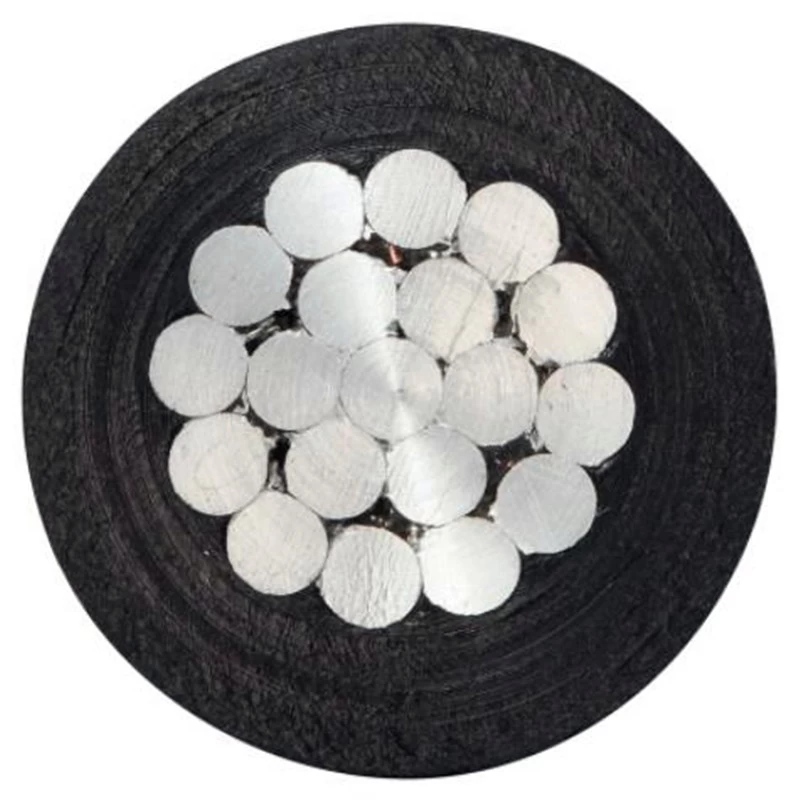

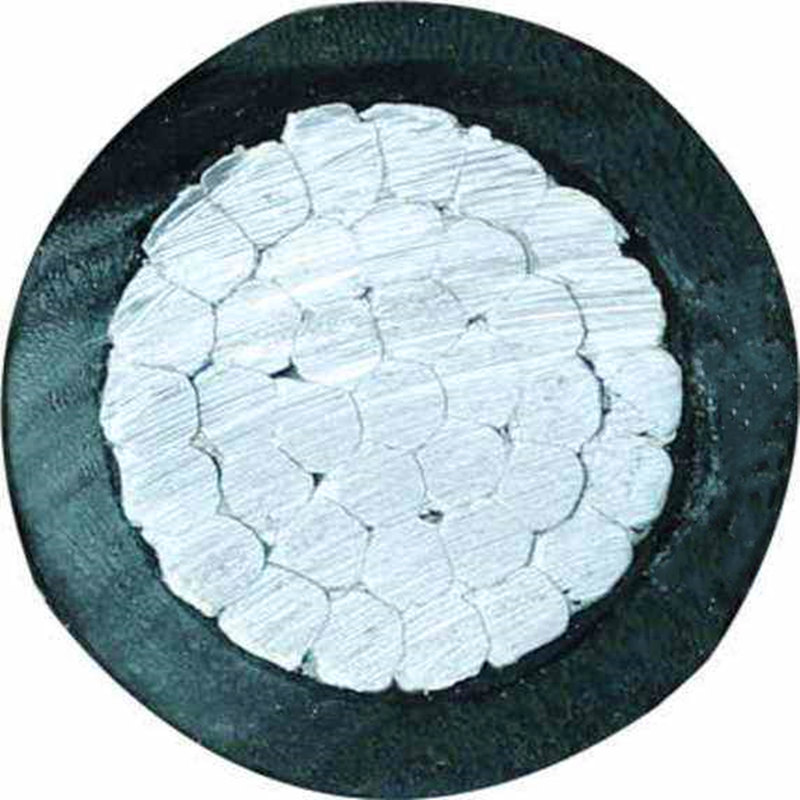

PRODUCTS STRUCTURE
---Conductor Material
Plain annealed aluminum wire, strand, class 2.
---Insulation Material
PVC (Polyvinyl chloride)
---Insulation Color
Black, or other colors.
---Sheath Material
Non-Sheath
---Core Number
Single core,
1C.
---Voltage Rate (U0/U)
1kV.
---Working Temperature
-15℃～+70℃.
---Minimum Bending Radius
6 x Overall Diameter.
---Production Standard
GB/T 12527-2008, GB/T1179-2008, IEC 60502
---Product Packing
Wooden drum, or others.
---Product MOQ
10000 meters.
---Production Delivery
Within 7-10 working days as soon as we received the deposit.
PRODUCTS SPECIFICATION
|
Cross
Section
Area
(mm2)
|
Aluminum
Conductor
Structure
(pcs/mm)
|
Insulated
Material
|
Insulated
Thickness
(mm)
|
Refer
Max.
Out
Diameter
(mm)
|
Refer
Net
Weight
(kg/km)
|
Max. DC
Conductor
Resistance
at
20℃
(Ω/km)
|
Min.
Breaking
strength
of
cables
(N)
|
Reference
Current
Carrying
at 25℃
(A)
|
|
1 x 10
|
7/1.35
|
PVC
|
1.0
|
5.9
|
42
|
3.98
|
1650
|
42
|
|
1 x 16
|
7/1.70
|
PVC
|
1.0
|
7.3
|
65
|
1.91
|
2517
|
56
|
|
1 x 25
|
7/2.14
|
PVC
|
1.2
|
8.5
|
94
|
1.20
|
3762
|
74
|
|
1 x 35
|
7/2.50
|
PVC
|
1.2
|
9.9
|
131
|
0.868
|
5177
|
90
|
|
1 x 50
|
19/1.78
|
PVC
|
1.4
|
11.3
|
176
|
0.641
|
7011
|
109
|
|
1 x 70
|
19/2.14
|
PVC
|
1.4
|
12.9
|
235
|
0.443
|
10354
|
137
|
|
1 x 95
|
19/2.50
|
PVC
|
1.6
|
15.0
|
322
|
0.320
|
13727
|
167
|
|
1 x 120
|
37/2.04
|
PVC
|
1.6
|
16.4
|
397
|
0.253
|
17339
|
194
|
|
1 x 150
|
37/2.25
|
PVC
|
1.8
|
18.4
|
496
|
0.206
|
21033
|
220
|
|
1 x 185
|
37/2.50
|
PVC
|
2.0
|
20.4
|
611
|
0.164
|
26732
|
253
|
|
1 x 240
|
48/2.50
|
PVC
|
2.2
|
23.0
|
787
|
0.125
|
34679
|
298
|
REMARK
---The above information is only for you
reference, the formal data, please refer the actual product testing.
---Highest working temperature of cable in
case of short circuit, the longest lasting time is not over 5 seconds: PVC
insulated ≤160℃, XLPE insulation ≤250℃.
---When the cable is applied to a dc
system, the rated voltage of the system shall not be greater than 1.5 times the
cable rating; the operating voltage of the system shall not be greater than 1.1
times the rated voltage of the system.
---The product can have flame retardant and
fire-resistant properties, the working temperature can be 90 degree, but the
production process, materials and production standard maybe has a few of different.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter
to us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable:
Good Material, Reasonable Weight, Enough Length, well-known brand wins your
trust.
