1kw 2kw 3kw 4kw 5kw 6kw 7kw 8kw Hybrid Solar Inverter With MPPT PWM Charge Controller All In One

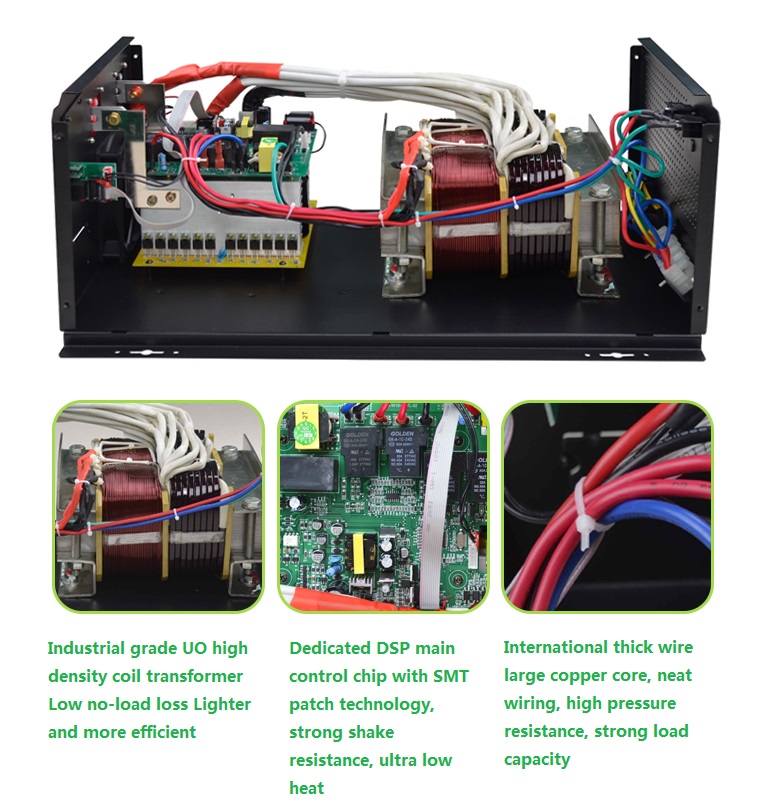

1.Industrial grade UO high density coil transformer Low no-load loss Lighter and more efficient

2.Dedicated DSP main control chip with SMT patch technology, strong shake resistance, ultra low heat
3.International thick wire large copper core, neat wiring, high pressure resistance, strong load capacity



1.Pure sine wave output; Industrial high efficiency I-shape transformer;

2.AC charge current 0-30A adjustable; AVR output; Built-in MPPT or PWM solar charge controller optional; 3.Integrated LCD display; One-button start with an external display screen( optional); Three types working modes:AC first, DC first, energy-saving mode;

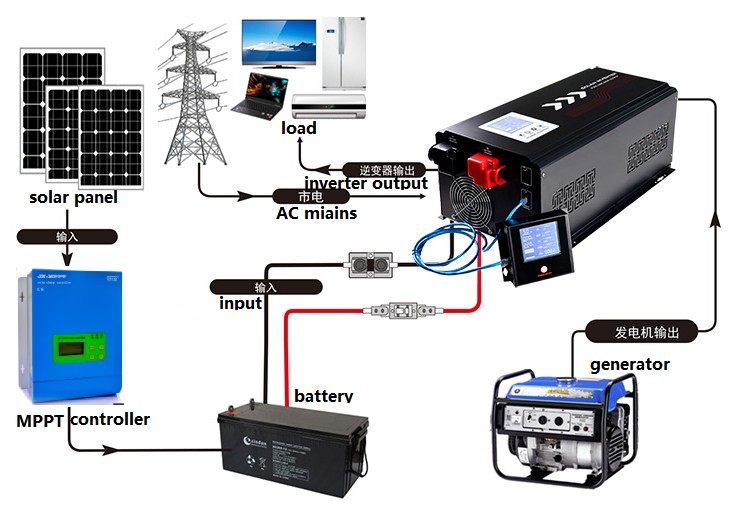

4.Supports diesel or gasoline generator, adapt anytough electricity situation; Various communication ports and remote controls (RS232/RS485/APP/SNMP/GSM optional).


Product Parameters
Specification
Model: W10 10212/24 15212/24 20212/24/48 30224/48 40224/48 50248 60248 70248/96
Rated Power 1000W 1500W 2000W 3000W 4000W 5000W 6000W 7000W
Battery Voltage 12/24VDC 12/24/48/96VDC 24/48/96VDC 48/96VDC 48/96VDC
Size(L*W*Hmm) 595*315*225 647*315*235
Packing Size(L*W*Hmm) 660*385*350 715*385*350
N.W.(kg) 17 24 26 29 41.5 42.5 45.5 48
G.W.(kg)(Carton Packing) 20 27 29 32 45 46 49 52
Parameter
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 85VAC~138VAC /89VAC~144VAC /  93VAC~150VAC / 170VAC~275VAC / 178VAC~288VAC /186VAC~300VAC
AC Input Frequency Range 45Hz~65Hz
Output Efficiency ≥85%
Output Voltage(Battery Mode) 110VAC±2% / 115VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery Mode) 50/60Hz±1%
Output Wave(Battery Mode) Pure Sine Wave
AC Output Voltage Range 110VAC±10% / 115VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
AC Output Frequency Range Tracking Automatically
Inside Solar controller
(Optional)
Charging Mode MPPT or PWM
Charging current 10A,20A,30A,40A,50A,60A
PV Input Voltage Range 12V System:15V-44V;24V System:30V-44V;48V System:60V-88V
Max PV Input Voltage
(At 25℃)
12V/24V System:50V;48V System:100V
PV Array Maximum Power 12V System:140W,280W,420W,560W,700W,840W;
24V System:280W,360W,840W,1120W,1400W,1680W;
48V System:560W,1120W,1680W,1120W,2240W,3360W
Working Mode Battery First/AC First/Saving Energy Mode
AC Charging current(selectable) 0~30A
Transfer Time ≤4ms
Display LCD(External LCD Display(Optional))
Thermal method Cooling fan in intelligent control
Battery Type
(selectable)
LEAD Charge Voltage:14V;Float Voltage:13.8V(Single battery voltage,x2 for 24V; x4 for 48V)
OP-LE Charge Voltage:14.2V;Float Voltage:13.8V(Single battery voltage,x2 for 24V; x4 for 48V)
LITHIUM Charge Voltage:13V;Float Voltage:12.6V(Single battery voltage,x2 for 24V; x4 for 48V)
Remark The charging parameters of other types battery can be user-defined
Protection Over-load / Over-discharge / Short circuit / High temperayure / Reverse polarity
Communication RS232/RS485/APP/SNMP/GSM(Optional)
Environment Noise ≤55dB
Temperature -10℃~40℃
Humidity 0~95%( No condensation)
Note: All specifications are subject to charge without prior notice
