1kw Raycus Fiber Laser Cutting Machine Guangzhou
Baisheng laser F3015E
Parameters of Baisheng Fiber Laser cutting Machine:
|
Brand and manufacturer
|
Baisheng Laser
|
|
Machine Model
|
F3015E
|
|
Dimension/ cutting size
|
4350*2500*1900mm /3000*1500mm
|
|
Laser power
|
500W ,700W,750w,1000w 1500W 2000W
2200W options
|
|
Machine weight
|
3500KG -3800KG
|
|
Fiber laser Generator
|
Raycus,IPG option
|
|
Laser wavelength
|
1064nm
|
|
Laser Beam quality
|
<0.373mrad
|
|
Worktable
|
Sawtooth slats pneumatic loading & offloading equipment
|
|
Fiber Laser cutting head
|
Worthing WSX ,Raytools, Precitec
|
|
Working life of fiber module
|
More than 100000 hours
|
|
Motors & Drives
|
Japan Brand
|
|
Reducer
|
high precision and torque, max one
arc precise
|
|
Guide Rails
|
Taiwan/America Brand
|
|
Transmit system
|
rack and pinion double drive system
,4 servo motors .
|
|
Chain system
|
Enclosed high quality
|
|
Water Chiller
|
TEYU( S&A) brand, Hanli
|
|
Control system
|
Professional laser control system--Cypcut
|
|
Position type
|
Red Dot pointer
|
|
Cutting thickness
|
≤7mm(stainless steel)
≤16mm(carbon steel)
|
|
Max. Idle Running Speed
|
120m/min idle acceleration
|
|
Max Cutting Speed
|
30M/Min
|
|
Geometric Position Accuracy
|
within ±0.05mm/M
|
|
Reorientation accuracy
|
within ±0.03mm/M
|
|
Lubrication system
|
Automatic ,evenly.
|
|
Min. Line Width
|
±0.02mm
|
|
Power Consumption
|
≤18KW
|
|
Auxiliary gas system
|
Japan SMC
|
|
Power supply Voltage
|
380V/50Hz/60Hz
|
|
Auxiliary Gas for cutting
|
Oxygen, Nitrogen, Air
|
|
Compatible software
|
Autocad, Coreldraw, etc
|
|
Graphic format
|
DXF/PLT/AI/
|
|
Working method
|
Industrial
PC control with console desk and romote
|
|
Total power protection rating
|
IP54
|
4000*1500 4000*2000 6000*2000 6000*2500 8000*2000 work table options.

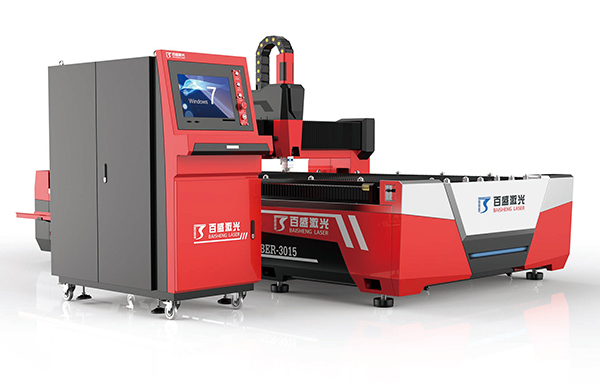

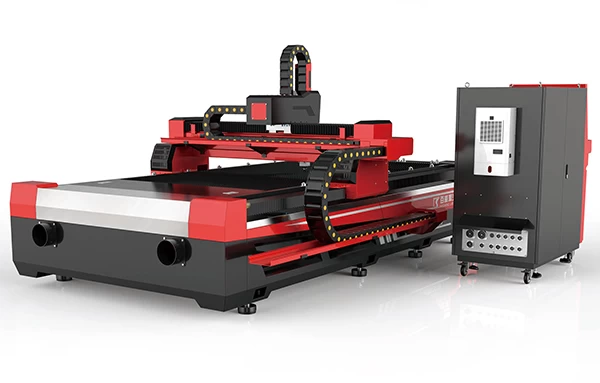

Laser Cutting Machine Details Photos :
Laser stucture：
