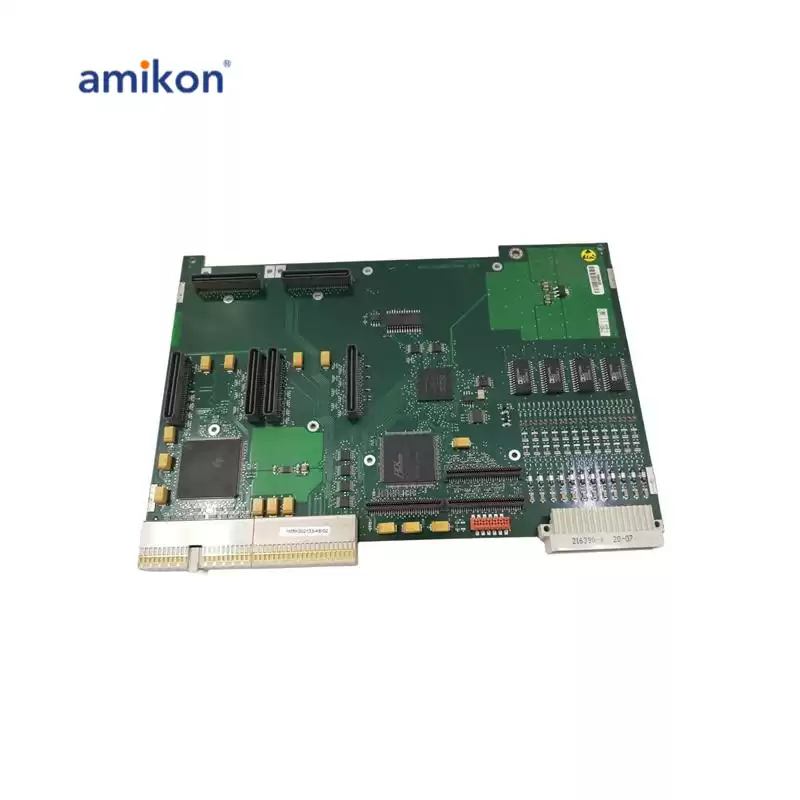

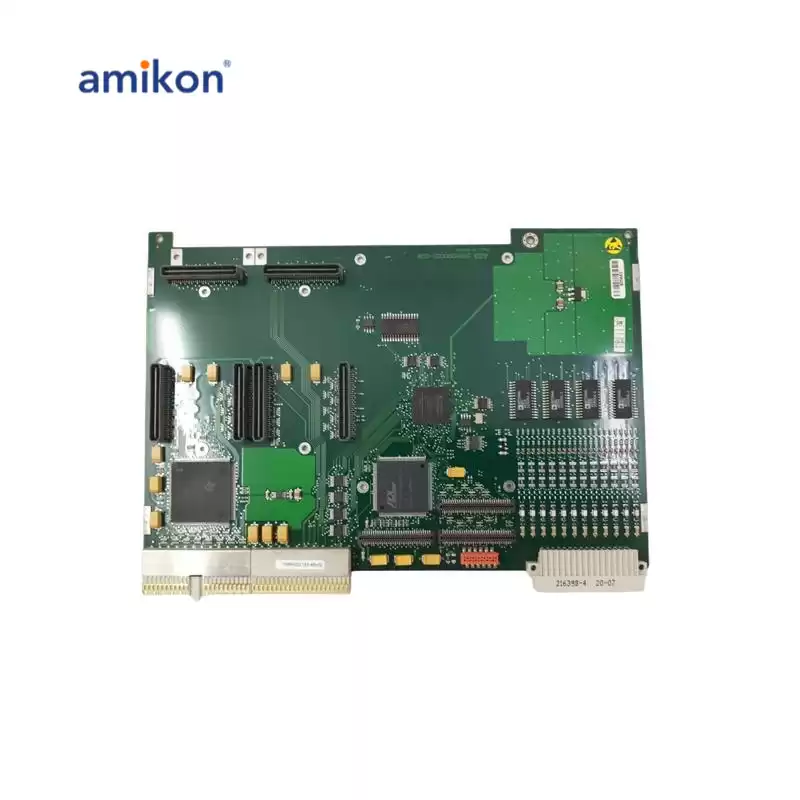

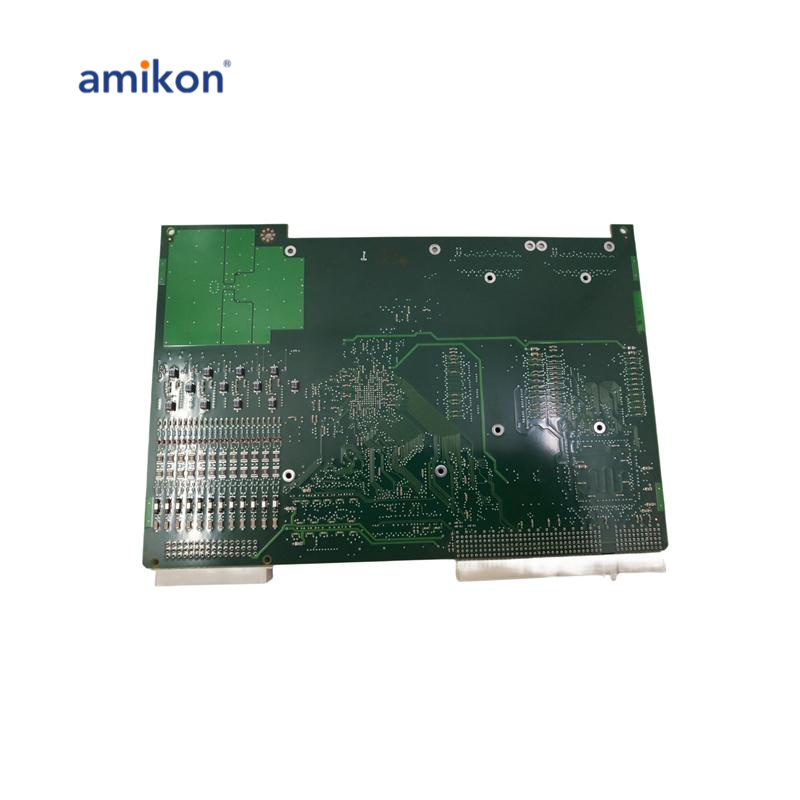

The Motherboard for the Inverter Unit (INU) are mounted on a doorthat can be opened for access to other components mounted insidethe INU.The Power Supply Card A3 is mounted on the back of thedoor.
|
|
|
1MRK000173-BBr03 Data sheet
|
All the connections to the door mounted cards are at the hingeside and the cable routing is such that the flexing of the cables isminimized by having them run parallel to the hinge.
|
|
The Pulse Amplifier Cardpart number depends on the rating of the Drive.
|
|
Located on theback panel is the A4 Pulse Amplifier Card.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
