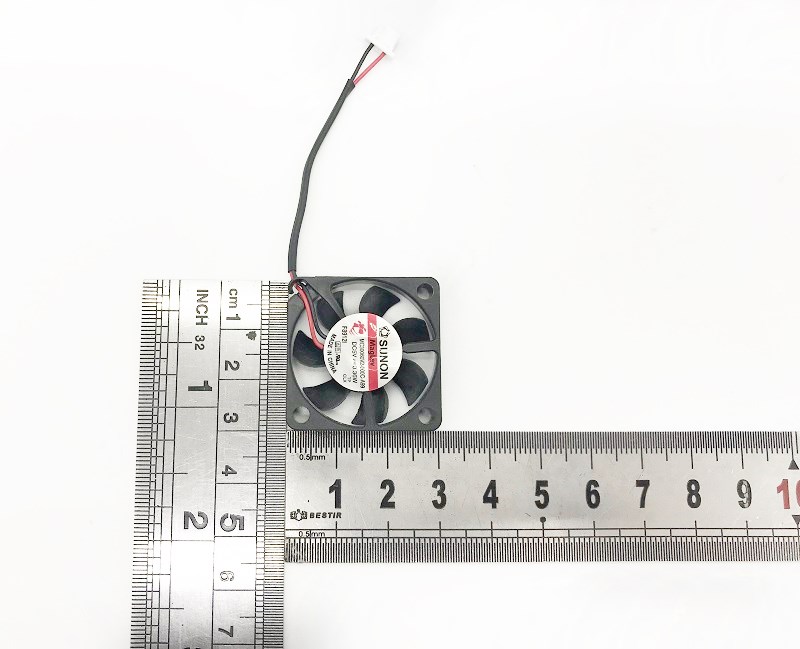

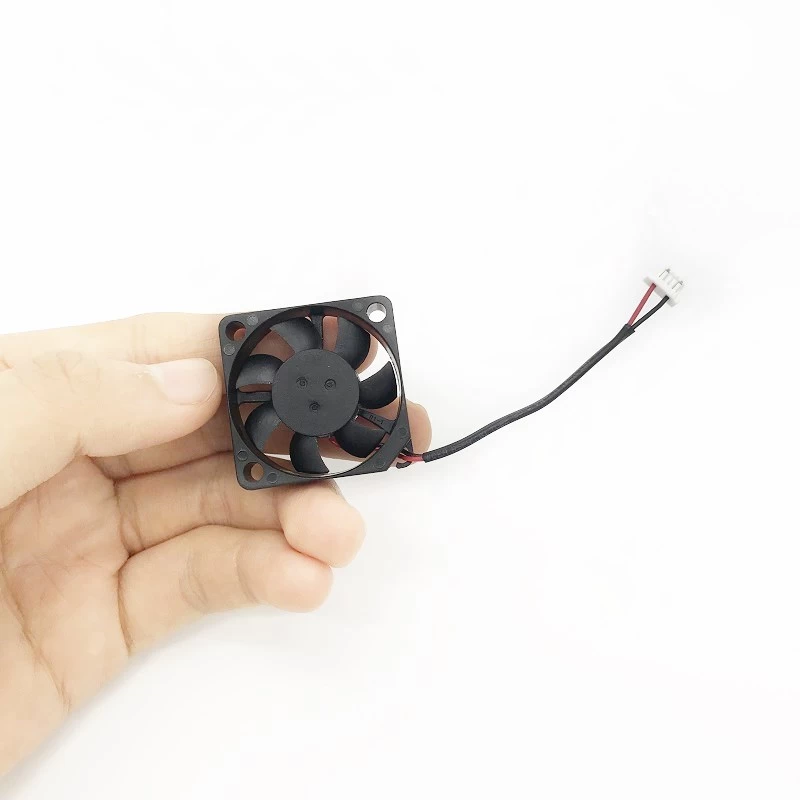

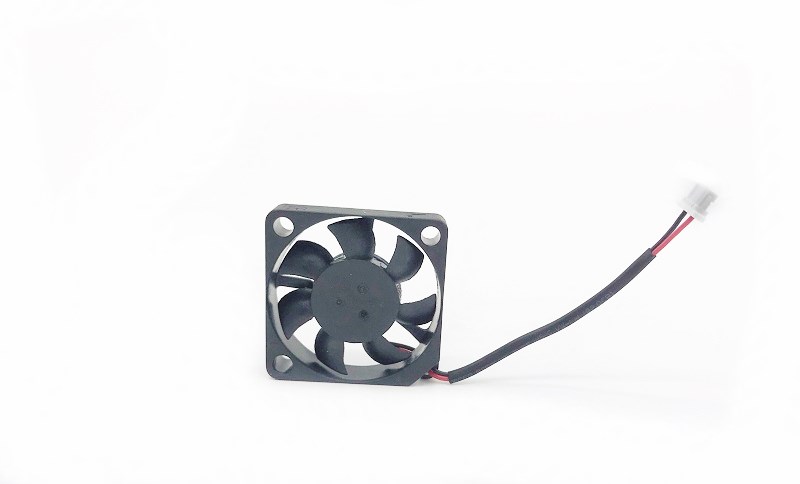

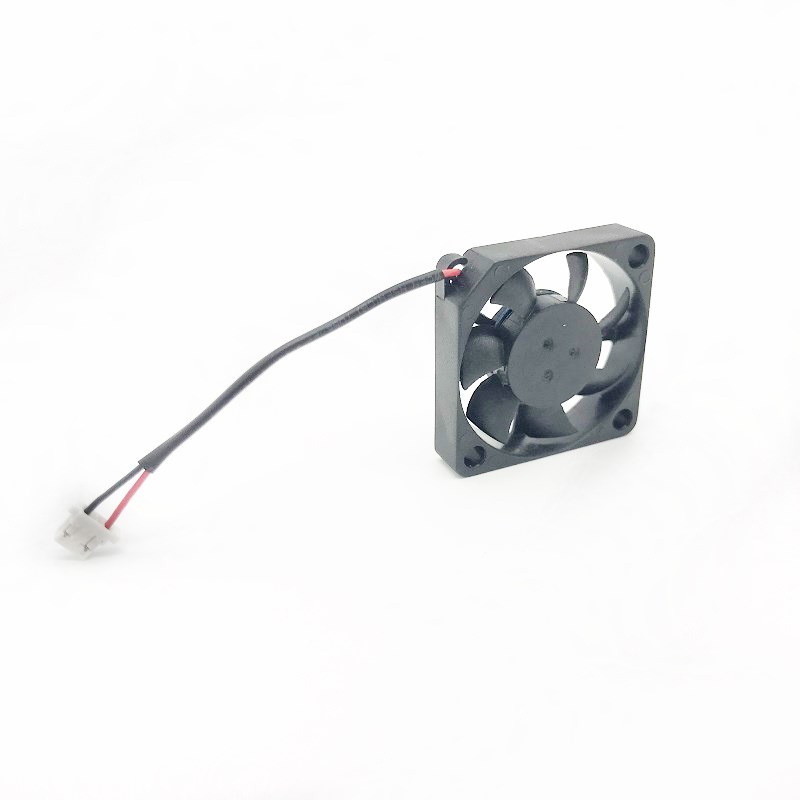

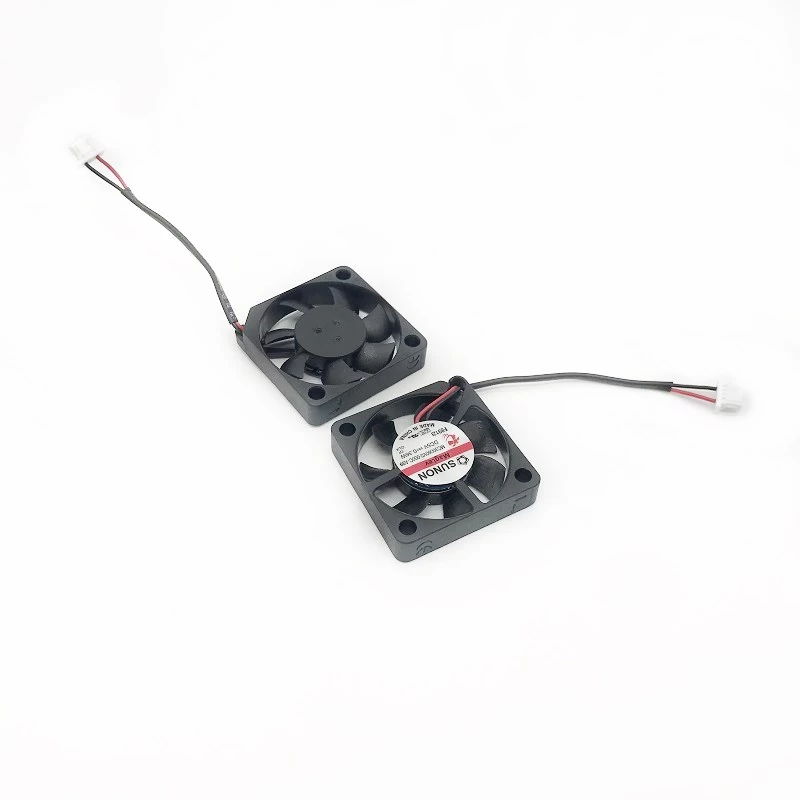

1pc SUNON DC Cooling Fan 30x30x6mm 5V

SUNON DC Cooling Fan with different sizes of 30x30x6mm, 35x35x10mm, 40x40x10mm, 50x5010mm, etc. goes to the leading wire of 2pin/3pin connector. 0.6W/0.8W/0.9W/0.96W/1.08W

Facebook Twitter Pinterest LinkedIn 分享
ITEM SPECIFICATION ITEM SPECIFICATION
Bearing Type
 Sleeve bearing Air Flow 5.95CFM
Rating Voltage DC 5V  Air Prressure 3.42mmH O
Working Voltage DC 3.8-4.8V Noise Level 29.54dB(A)
Start-up Voltage DC 4V (ON/OFF) Resistance Protected
 Yes
Rated Current 140mA±10mA
Pulse Width Modulation
 No
Rated Speed
 8000RPM±20%
Thermal Speed Controled
 No


7 blades cooling fan

small cooling fan

cooling fan

cooling fan 30×30×6mm
