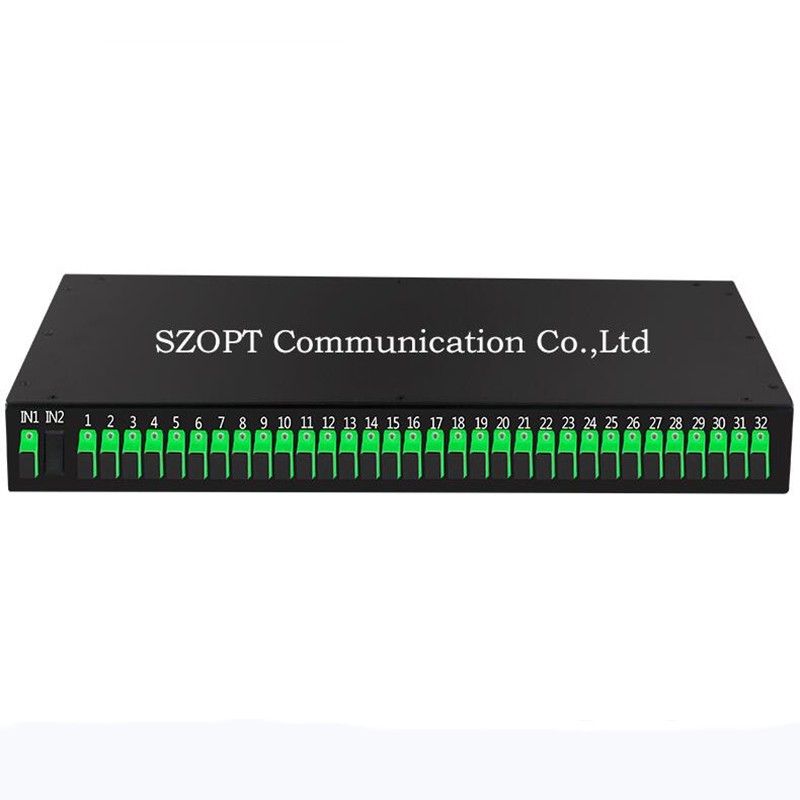

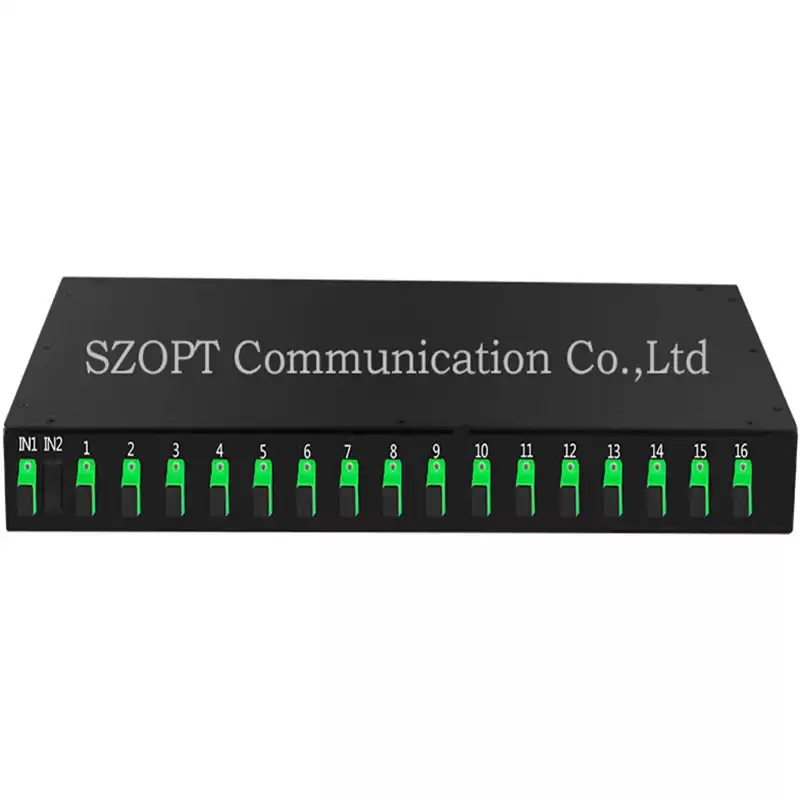

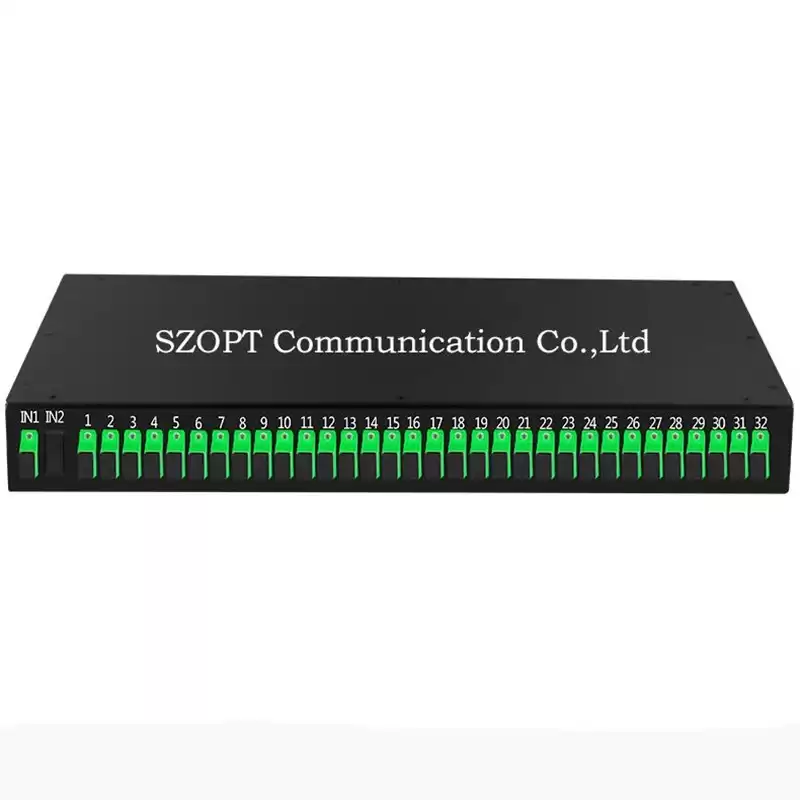

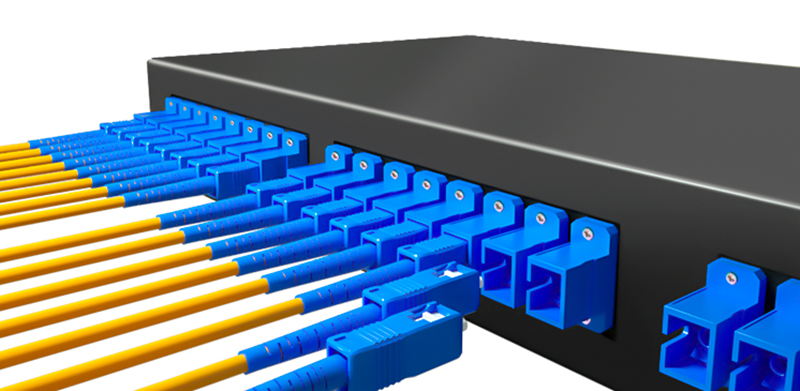

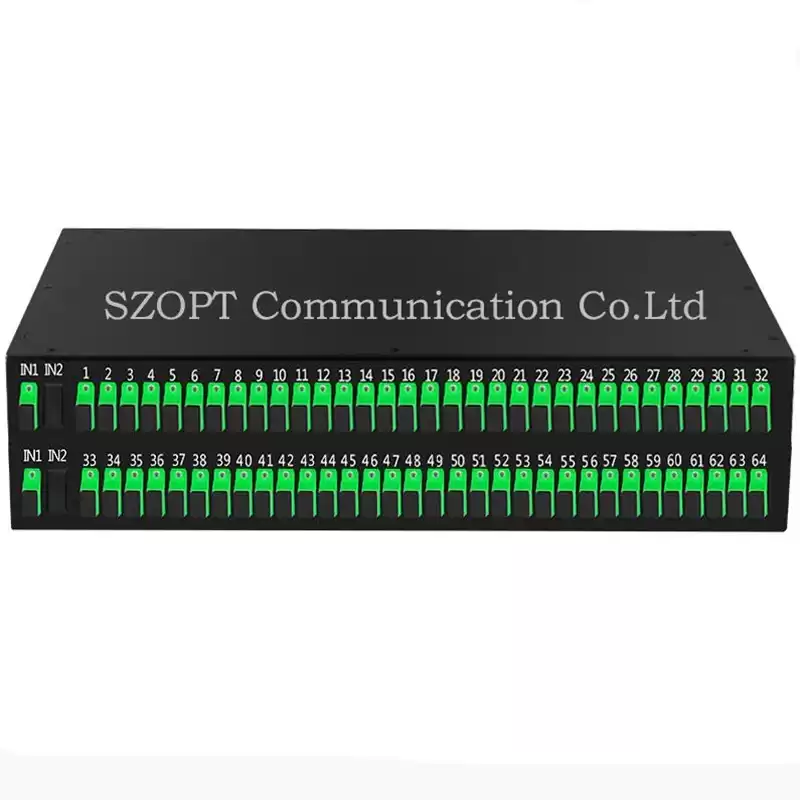

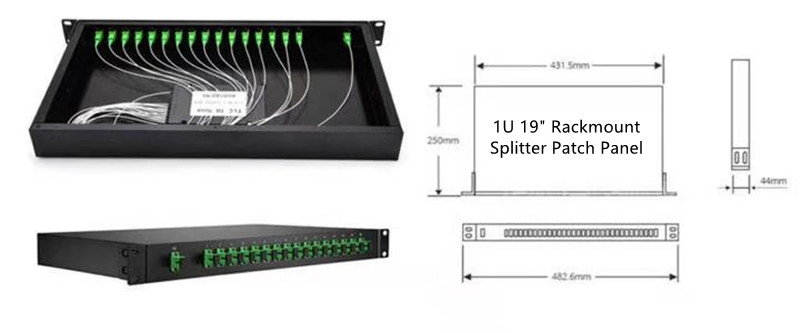

1U 19" Rackmount PLC Splitter Patch Panel 1X16/32/64 2x16/32/64
To keep the whole quality of the 19" PLC Splitter Patch Panel,we have the strict quality control system for all raw materials and every process during the production,only one has passed all the tests can be shipped to our customers.
Application:
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
Feature:
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Package:
Each one is put in a glister box,then put into a carton box.
Specification:
|
operation
wavelength
|
1260 - 1650
|
|
1*N PLC
Splitter
|
1*2
|
1*4
|
1*8
|
1*16
|
1*32
|
1*64
|
1*128
|
|
insertion
loss (dB)
|
MAX(p/s)
|
3.8
/4.0
|
7.0
/7.4
|
10.5
/10.7
|
13.6
/13.9
|
16.6
/16.9
|
21
/21.5
|
24
/24.5
|
|
uniformity
(dB)
|
MAX(p/s)
|
0.6
/0.6
|
0.6
/0.7
|
0.8
/1.0
|
0.9
/1.2
|
1.2
/*1.4
|
1.7
/1.9
|
2.2
/2.5
|
|
return
loss (dB)
|
MIN
|
55
|
|
pdl
(dB)
|
MAX(p/s)
|
0.15
/0.25
|
0.15
/0.25
|
0.2
/0.25
|
0.2
/0.3
|
0.25
/0.3
|
0.25
/0.35
|
0.4
/0.45
|
|
2*N PLC
Splitter
|
2*2
|
2*4
|
2*8
|
2*16
|
2*32
|
2*64
|
2*128
|
|
insertion
loss (dB)
|
MAX(p/s)
|
4.0
/4.3
|
7.4
/7.6
|
10.7
/11.0
|
14
/14.5
|
17.5
/18
|
21.4
/21.9
|
***
|
|
uniformity
(dB)
|
MAX(p/s)
|
0.9
/1.1
|
1.0
/1.2
|
1.0
/1.2
|
1.2
/1.5
|
1.5
/1.8
|
2.0
/2.3
|
***
|
|
return
loss (dB)
|
MIN
|
55
|
|
pdl
(dB)
|
MAX(p/s)
|
0.25
/0.3
|
0.25
/0.3
|
0.25
/0.3
|
0.3
/0.35
|
0.3
/0.35
|
0.35
/0.4
|
***
|
|
temperature
stability(dB)
|
MAX
|
0.5(0.3)
|
|
operation
temperature β
|
-40 ~ 85
|
|
storage
temperature β
|
-40 ~ 85
|
