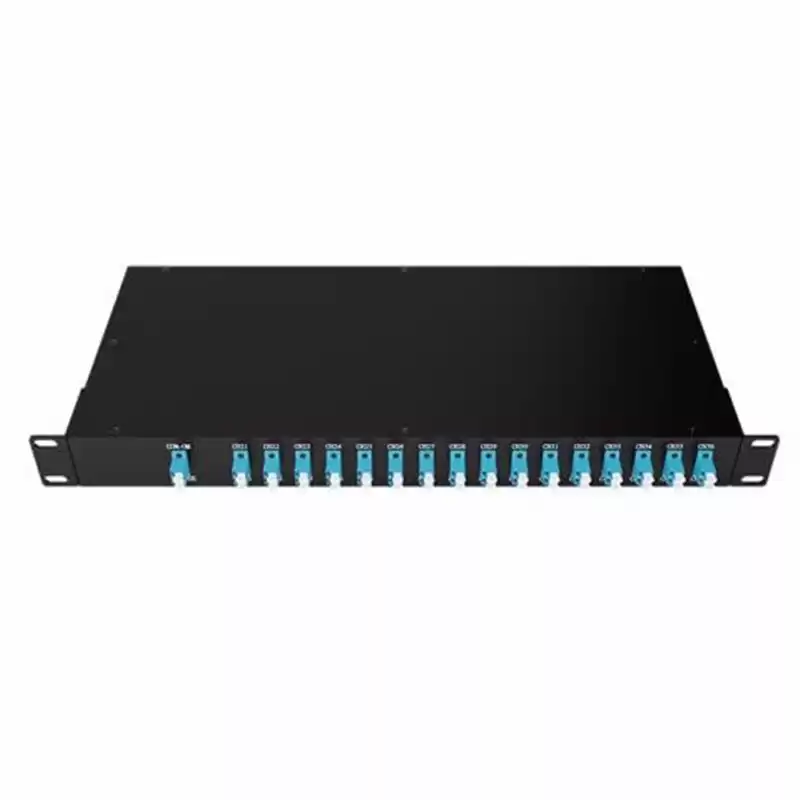

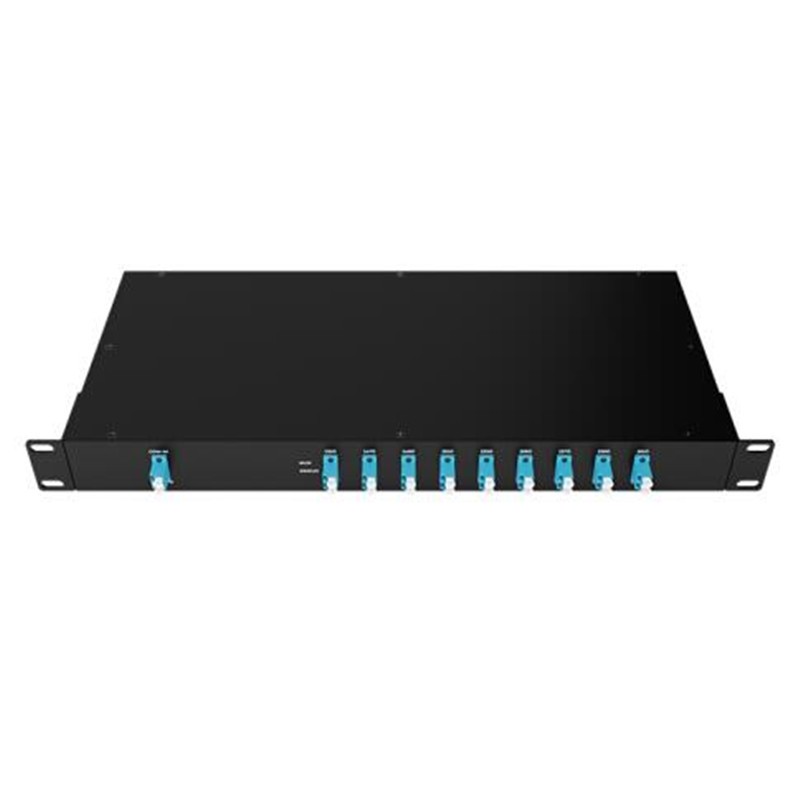

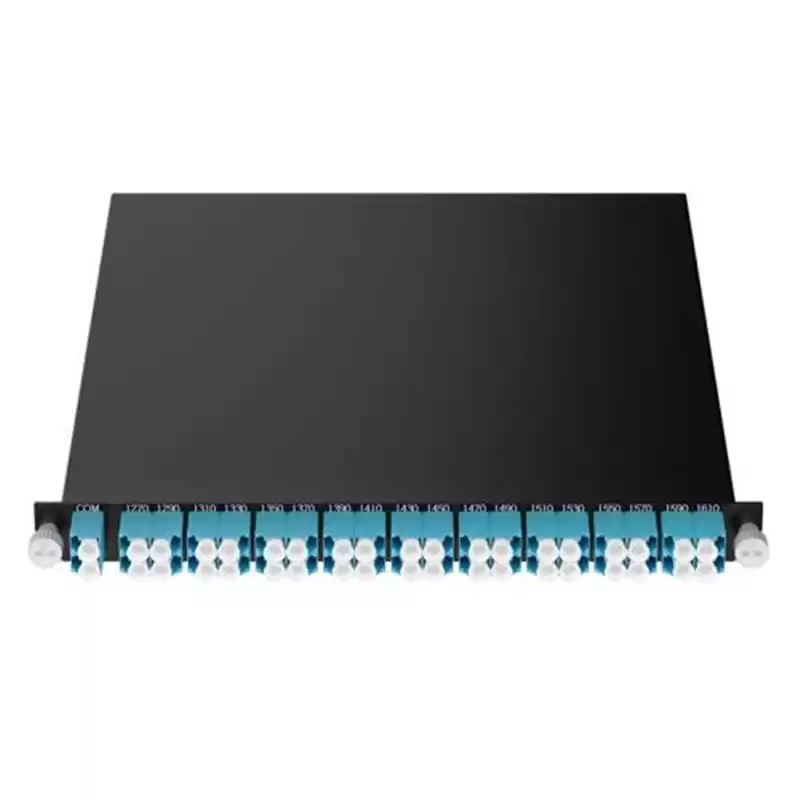

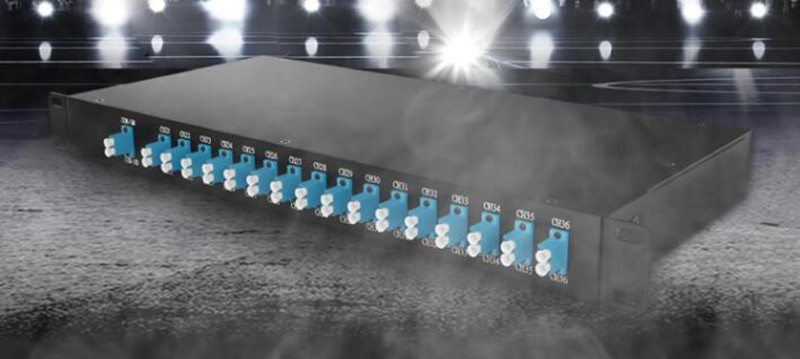

1U Rack Mount Patch Panel 100GHz Flat-Top SC/LC/FC/ST Mux Demux CWDM DWDM WDM
Our CWDM Mux Demux series provide up to 16-channel or even 18-channel Multiplexing on a single fiber,keep the the low insertion,otherwise,DWDM achieves uplink and downlink according to the membrane
filter technique and proprietary non-flux metal bonding micro-optics packaging
design, it provides ITU
channel center wavelength with low insertion loss, high channel isolation, low
power consumption and wide passband characteristics, no glue loop, excellent
thermal stability and reliability.
Application:
Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical amplifier
Acess Network
Feature:
Low Insertion loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Package:
Each one is put in a glister box,then put into a carton box.
Specification:
|
Parameter
|
4 Channel
|
8 Channel
|
16 Channel
|
|
Mux
|
Demux
|
Mux
|
Demux
|
Mux
|
Demux
|
|
Channel Wavelength(nm)
|
1270~1610
|
|
Center wavelength Accuracy(nm)
|
±0.5
|
|
Channel Spacing(nm)
|
20
|
|
Channel Pass band(@-0.5dB bandwidth (nm)
|
>14
|
|
Insertion Loss(dB)
|
≤1.4
|
≤2.6
|
≤5.0
|
|
Channel Uniformity (dB)
|
≤0.5
|
≤0.5
|
≤0.5
|
|
Channel Ripple (dB)
|
0.3
|
|
Isolation (dB)
|
Adjacent
|
N/A
|
>30
|
N/A
|
>30
|
N/A
|
>30
|
|
|
Non-adjacent
|
N/A
|
>40
|
N/A
|
>40
|
N/A
|
>40
|
|
Insertion Loss Temperature Sensitivity (dB/℃)
|
<0.005
|
|
Wavelength Temperature Shifting (nm/℃)
|
<0.002
|
|
Polarization Dependent Loss (dB)
|
<0.1
|
|
Polarization Mode Dispersion (PS)
|
<0.1
|
|
Directivity (dB)
|
>50
|
|
Return Loss(dB)
|
>45
|
|
Maximum Power Handling(mW)
|
500
|
|
Operating Temperature(℃)
|
-5~+75
|
|
Storage Temperature (℃)
|
-40~85
|
|
Package dimension(mm)
|
1. L100 x W80 x H10 ( 2 CH~8CH Module)
|
|
2. L120xW800xH18 (9 CH~18CH Module)
|
