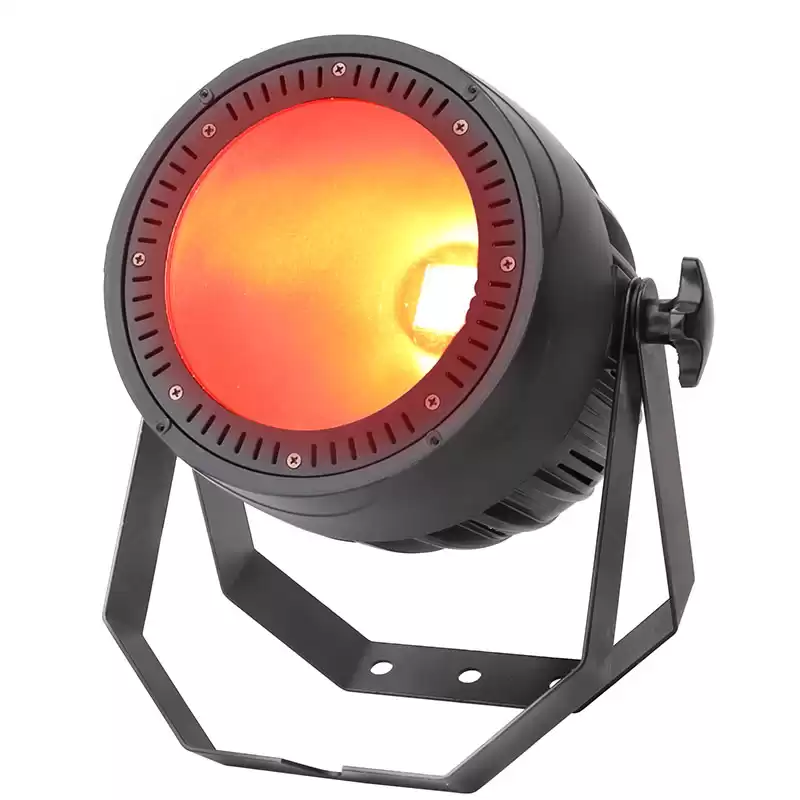

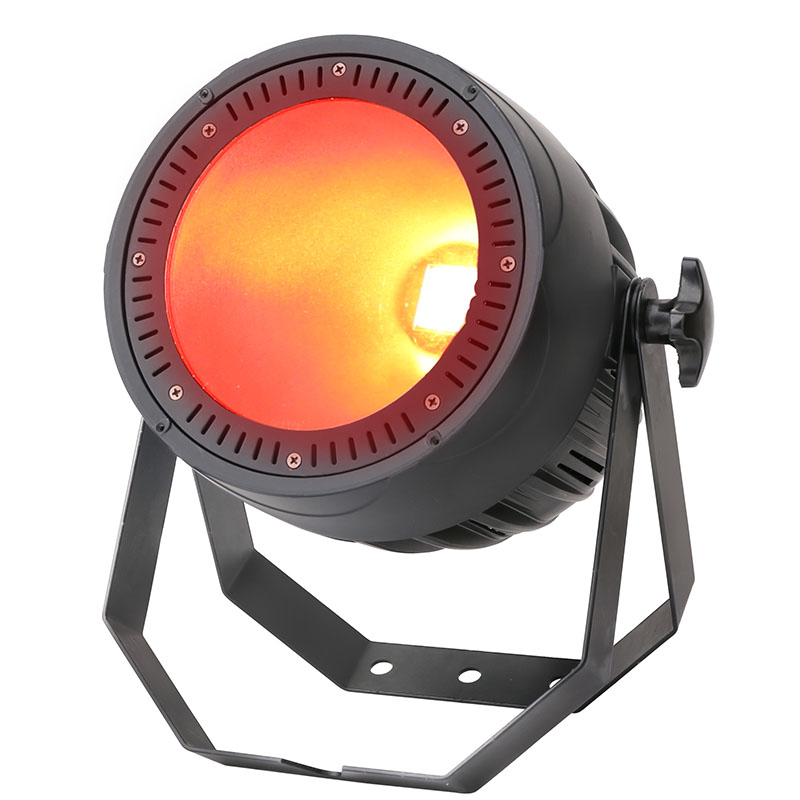

It is all-aluminum alloy structure, elegant design, using a single 200W COB RGBWA as the light source, the light angle is 45 °, with a perfect color mixing, providing a wide range of color rendering effects, providing a unique cooling system. The powerful function makes it an ideal choice for projection lighting, stage, theater and other places. In addition to DMX control, it also has powerful RMD two-way control technology.
● Optics
. LED type: COB 200W RGBWA, excellent color mixing effect
. Beam angle: 45 °
. Life: 50000H, low power consumption, energy saving and environmental protection
● Colour
. Uniform RGBWA color mixing system
. White balance can be adjusted manually
● Specification
. 5 DMX channel modes: 2CH / 3_1CH / 3_2CH / 5CH / 10CH international standard DMX512 channels
. 2 control modes: DMX512, master-slave
. Beam angle: 45 °
. Strobe effect：0-20HZ strobe、Pulse strobe、Ramp up strobe、Ramp down strobe、Random strobe、 Strobe Break Effekt, 5s…..1s、Strobe0-20Hz
. Dimming: 0-100% linear dimming, which can simultaneously control the change of light and dark of 5 colors and close the light
. DMX function: dimming, strobe, RGBW, macro color, color jump, color gradient, voice control, dimming curve selection, function setting.
. Stand-alone mode: color jump, color gradient, self-propelled, voice control, slave, macro color, static color settings.
● Display
. LCD display
● Software
. Software upgrade: convenient and quick software upgrade through DMX data cable
. Display the lamp usage time to facilitate customers to understand the lamp usage in time
. 4kinds of dimming curve：linear dimmer、Sqaure dimmer、I. Sqaure dimmer、S-Curve dimmer
. LED dimming method: LED mode and halogen lamp mode
. Intelligent temperature protection to ensure the service life of LED.
● Other functions
. Setting and addressing: RDM
. Fan cooling (waterproof fan changes speed with temperature change)
. LED temperature detection system to protect the service life of lamp beads

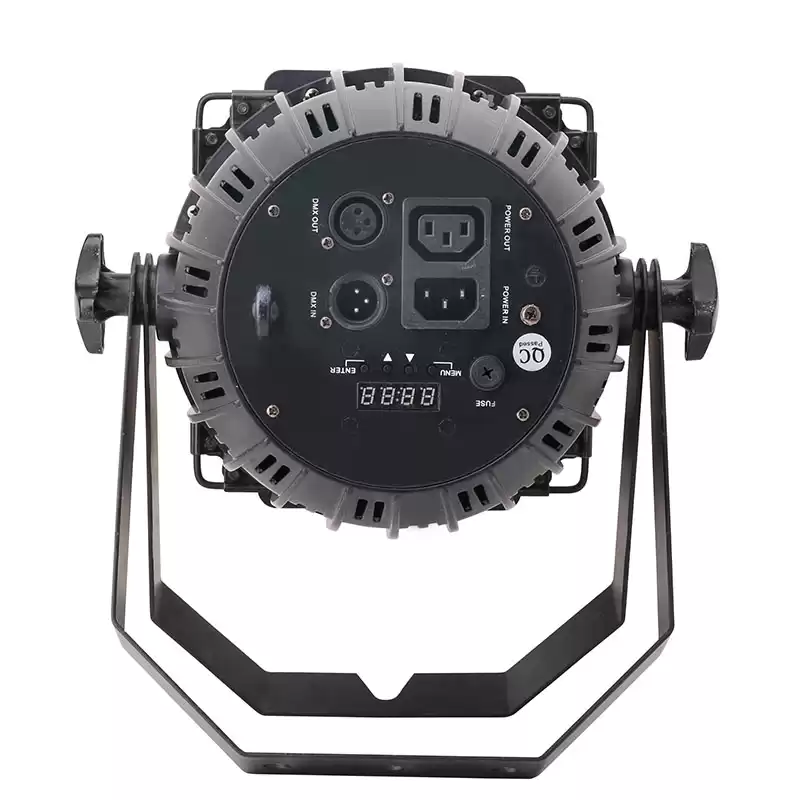

● Power / Signal Connection
. Power connection: PowerCON input & output
. DMX: 3-pin card dragon seat input and output
● Power supply
. AC100-240V 50 / 60HZ
. Power: 210W
● Protection level
. Housing material: die-cast aluminum
. Waterproof grade: IP20
● Working environment
. Indoor working temperature: -20 ° C ～ + 40 ° C
● Size and weight
. Package size: 465x355x305mm
. Net weight: 4.9KG
. Gross weight: 6.3KG
● Certification
. CE, ROHS
