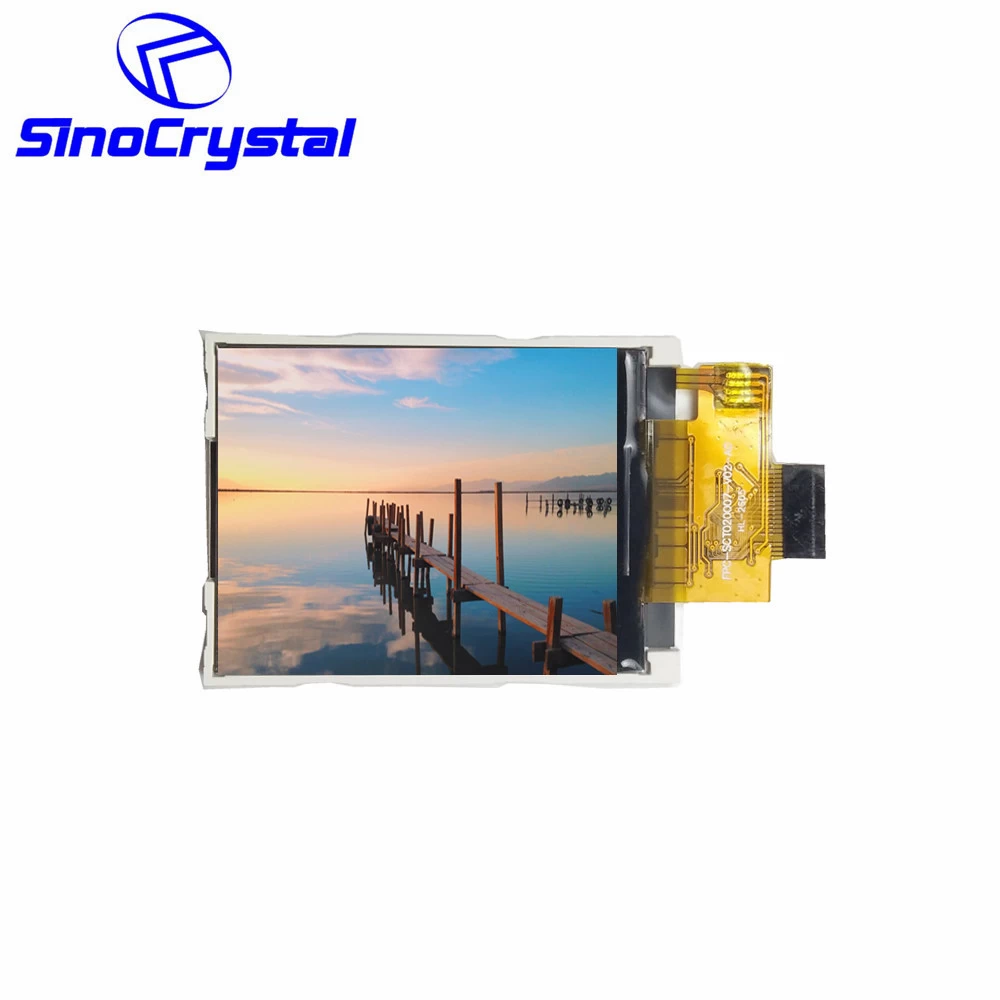

2.0'' TFT 8bit ST7775R Driver IC lcd display with 176RGB*220 resolution MCU interface

SCT020007-V02 is a 2.0'' TFT LCD Display with 176RGB*220 resolution, it built in with ST7735R IC, and it supports 8bit MCU interface, 20 PIN, 6 o'clock View direction.


  • IC Part No.ST7775R
  • Interface8bit MCU
  • View Direction6
  • Active Area (mm)35.30*46.45
  • Viewing Area (mm)32.28*40.40
  • Outline Dimension (mm)37.68*51.30*2.23
  • Resolution176*220
  • Brightness (cd/m²)300
  • Touch ScreenNo
  • Temperature (℃)-20°C~70°C

Basic Information


Resolution:                    176RGB*220

Outline Dimension:        37.68*51.30*2.25

Active Area:                  31.68*39.60

View area:                     32.28*40.40

Interface:                      8bit MCU

Driver IC:                       ST7735R

View Direction:              6 o'clock

PIN:                                20

Backlight:                      White LED

Touch Screen:               No touch screen with standard module, But can be added if customer needed.

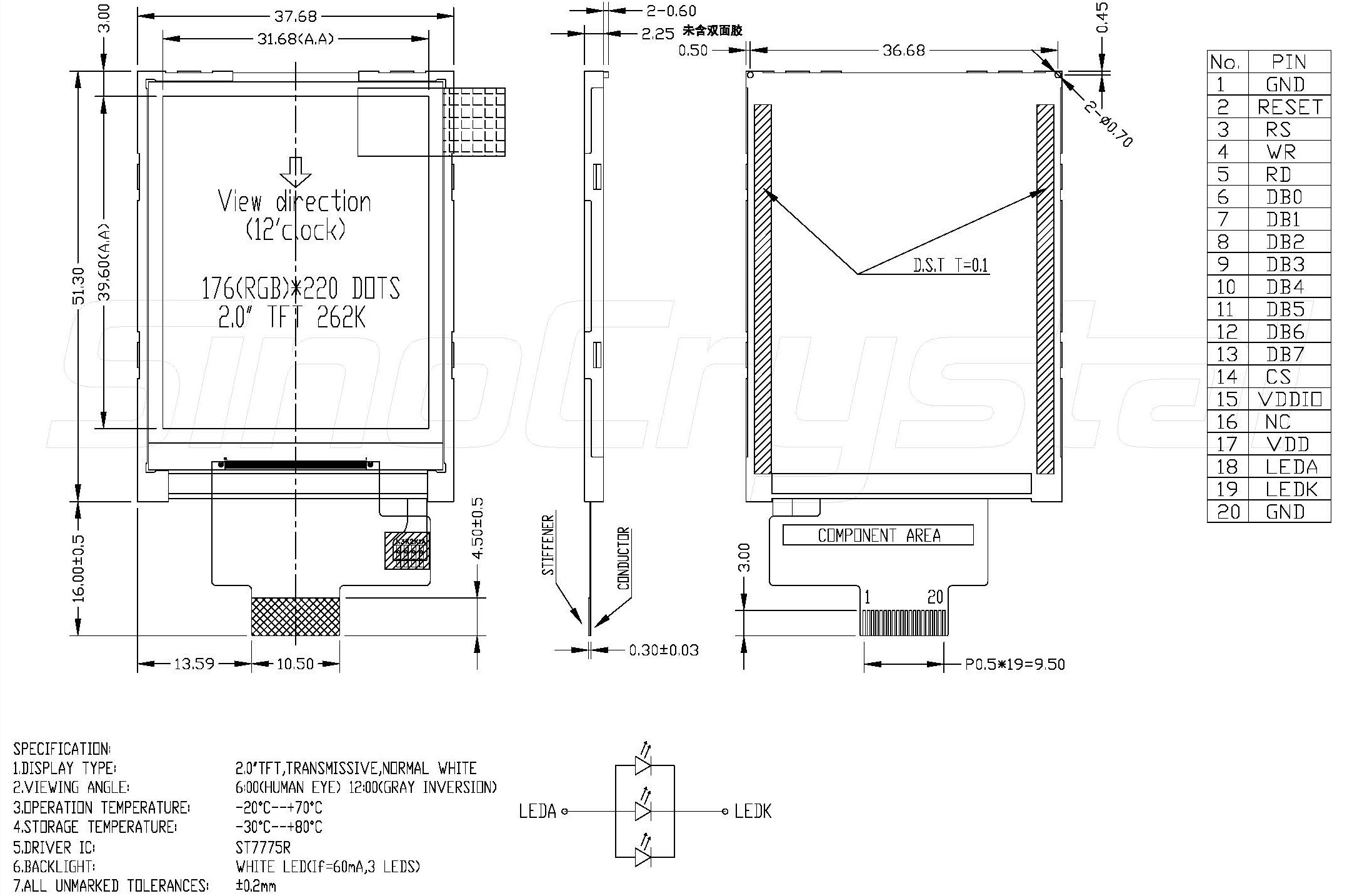

Drawing






General Specification


Item Nominal Dimension Unit
  Dot Matrix 176 x RGB x 220 Dots
  Module Size ( W×H×T ) 37.68 x 51.30 x 2.25 mm.
  Active Area ( W×H ) 31.68 x 39.60 mm.
  Pixel arrangement RGB Stripe mm.
  Dot Pitch ( W×H ) 0.18 x 0.18 mm.
  Color depth 262K(MAX) colors
  Interface 8 bit MCU -
  Driving IC Package COG -
  Operating temperature -20 ~70 ºC
  Storage temperature -30~80 ºC
  LCD Type a-Si TFT -
  LCD Mode TN/Normal White -
  Backlight Type LED x 3 PCS





Interface Definition


Pin No Pin Symbol Level Description
1 GND 0V Ground
2 RESET H/L Chip reset signal
3 RS H/L Register select signal. 0:index register; 1: data register
4 WR H/L Write signal
5 RD H/L Read signal
6-13 DB0-DB7 H/L Data bus
14 CS H/L Chip Select signal
15 IOVCC 1.65-3.3V Power supply for logic
16 NC -
17 VDD 2.5-3.3V Power supply
18 LEDA - LED light, anode
19 LEDK - LED light, cathode.
20 GND 0V Ground
