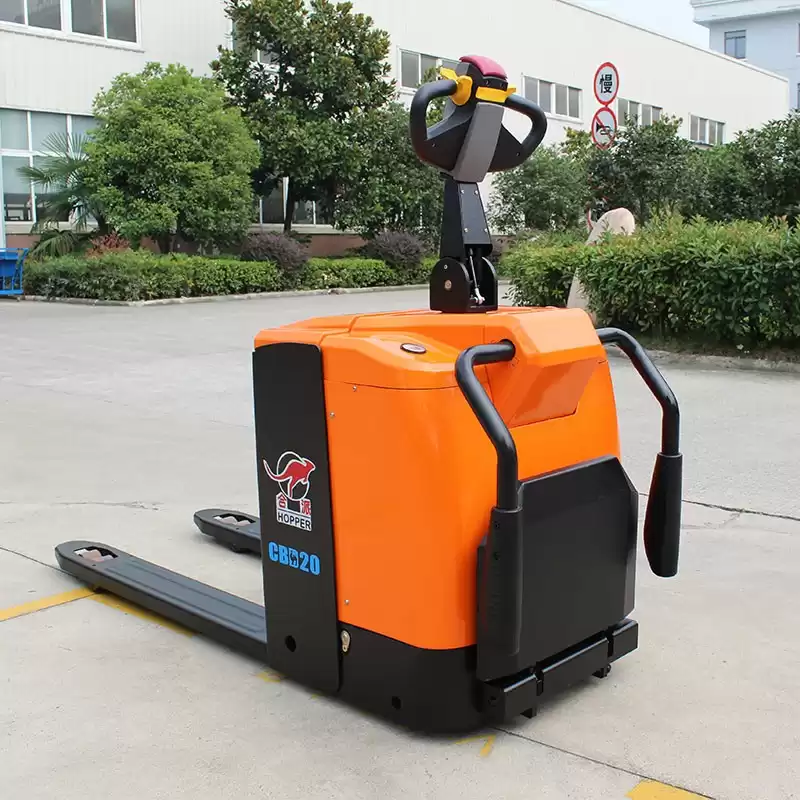

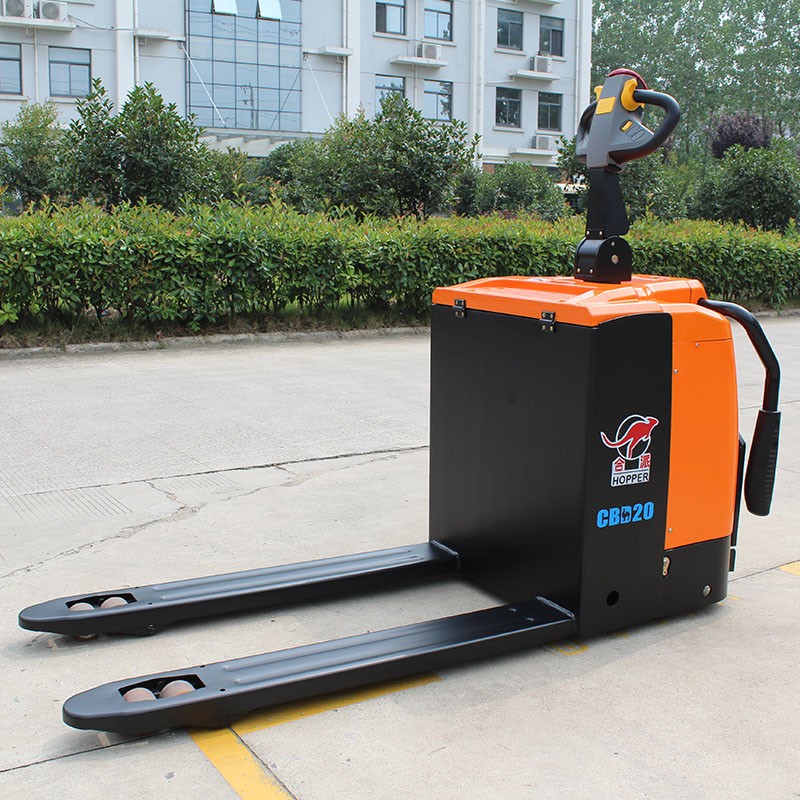

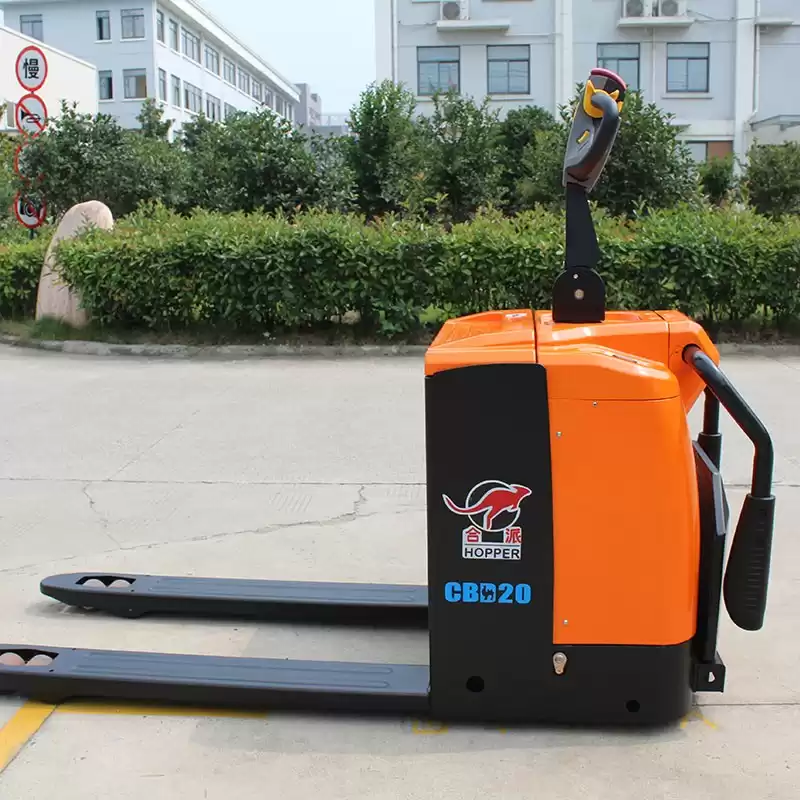

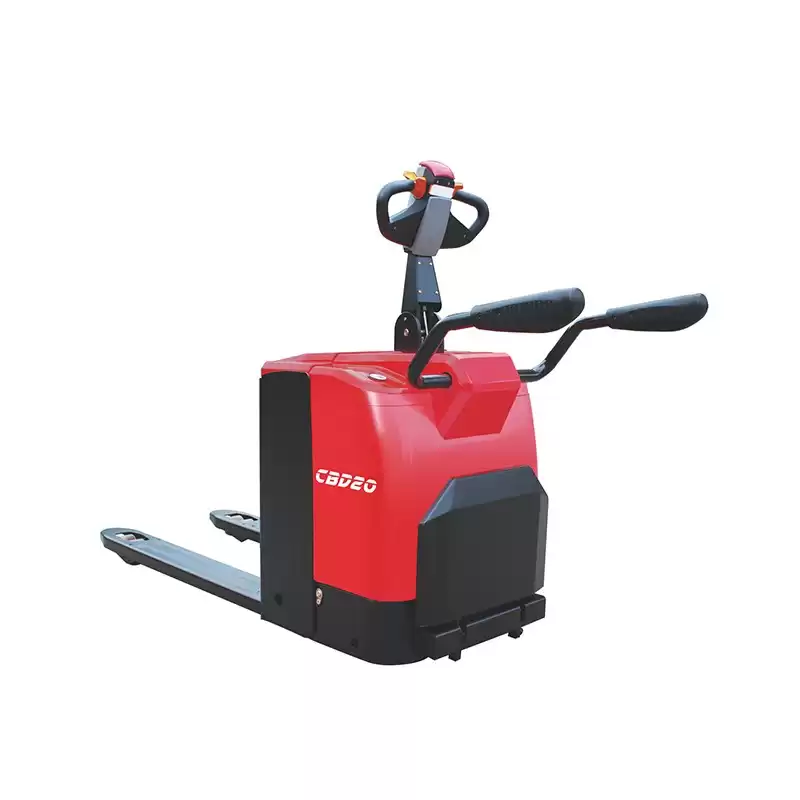

2.0 ton ~ 3.0 ton Series Electric Pallet Truck CBD20

High-quality hydraulic power unit, low noise, low vibration, strong sealing,



Precise electrical limit switch, accurately control the maximum lifting height, prevent damage to the motor;



The mechanized design of the control handle makes it convenient for left and right hand operations, simple operation, and improved driving comfort.



The drive motor adopts an AC motor, which is maintenance-free, has a long life,



No level to control the driving speed, and meet different driver rhythm;



Notification 1.1 Manufacture's type designation HOPPER
1.2 Model     CBD20
1.3 Power Type     Electric
1.4 Type of operation     Stand-on
1.5 Steering Mode     Electric Power Steering
1.6 Load capacity/rated load Q kg 2000
1.7 Load center distance C   600
1.8 Wheel base y mm 1400
Weight 2.1 Total Weight(with battery)     585
2.2 Axle Load(laden):Drive side/Load-bearing side   kg 885/1700
2.3 Axle Load(unladen):Drive side/Load-bearig side   kg 490/95
Dimension 3.1 OverallLength(Pedalretracted/expanded) L1/L2 mm 1850/2265
3.2 Overall Width W1 mm 720
3.3 Fork Dimension l/e/s   1200×160×50
3.4 Width of Fork b2 mm 540/685
3.5 Min.Fork Height h3   85
3.6 Lift Height h2 mm 195
3.7 Ground Clearance at center of wheelbase m1   35
3.8 Height of Operating Handlebar(Min./Max) h14 mm 000  /145
3.9 Turning Radius(Pedal retracted/expanded) Wa   1675/2110
3.1 Aisle width for lengthways(Palletsize1000*1200)(Pedal retracted/expanded) Ast mm 41
3.11 Aisle width for lengthways(Pallet size 800*1200)(Pedal retracted/expanded) Ast mm 2320/2755
Tyre 4.1 Tyre Type     Polyurethane
4.2 Tyre Size(Front)   mm φ80x60
4.3 Tyre Size(Auxiliary wheel)     φ115x55
4.4 Tyre Size(Driving Wheel)   mm φ230x75
4.5 Wheels Quantity, front/rear(x=driving wheels)     4/1x+1
Performance 5.1 Drive Damping Method
5.2 Traveling Speed (laden/unladen)   Km/h 44718
5.3 Lifting Speed(laden/unladen)   mm/s 2
5.4 Lowering Speed(laden/unladen)   mm/s 30/26
5.5 Max.Gradient performance(laden/unladen)   % 44691
5.6 Service Brake Type     Electromagnetic/regeneration
5.7 Parking Brake Type     Electromagnetic
PowerUnit 6.1 Drive Motorrating(AC) S260min   kW 12
6.2 Lift Motor rating(DC) S3 -15%   kW 0.8
6.3 Battery Voltage/Capacity K5   V/Ah 24/210
6.4 Battery Weight   kg
Others 7.1 Controller Brand     Z1A8P8I
7.2 Controller Model     AC-0
7.3 Sound levelatdriver's ear according to EN 12 053   dB 70
