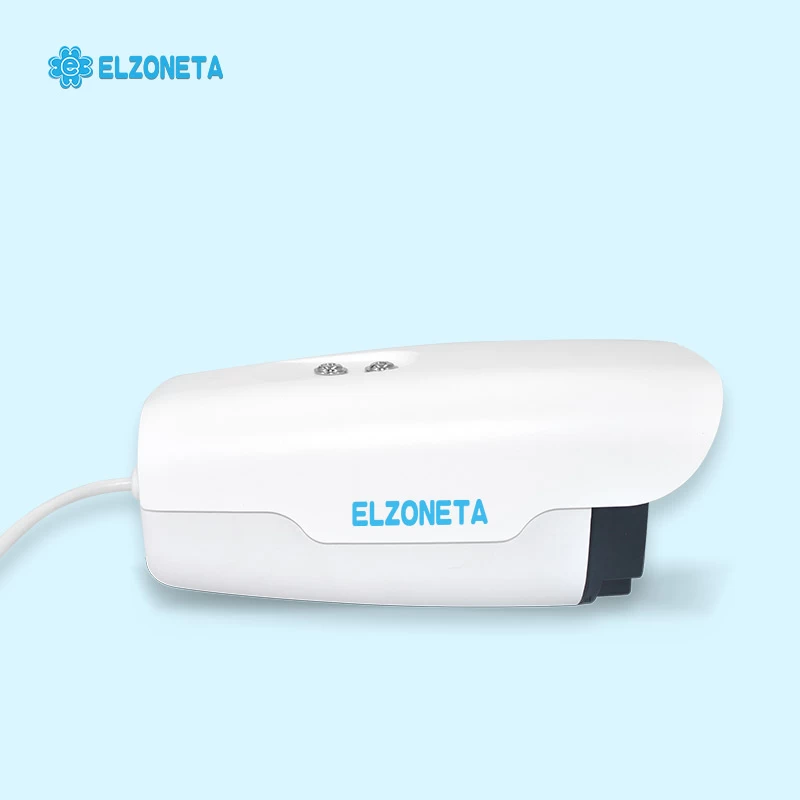

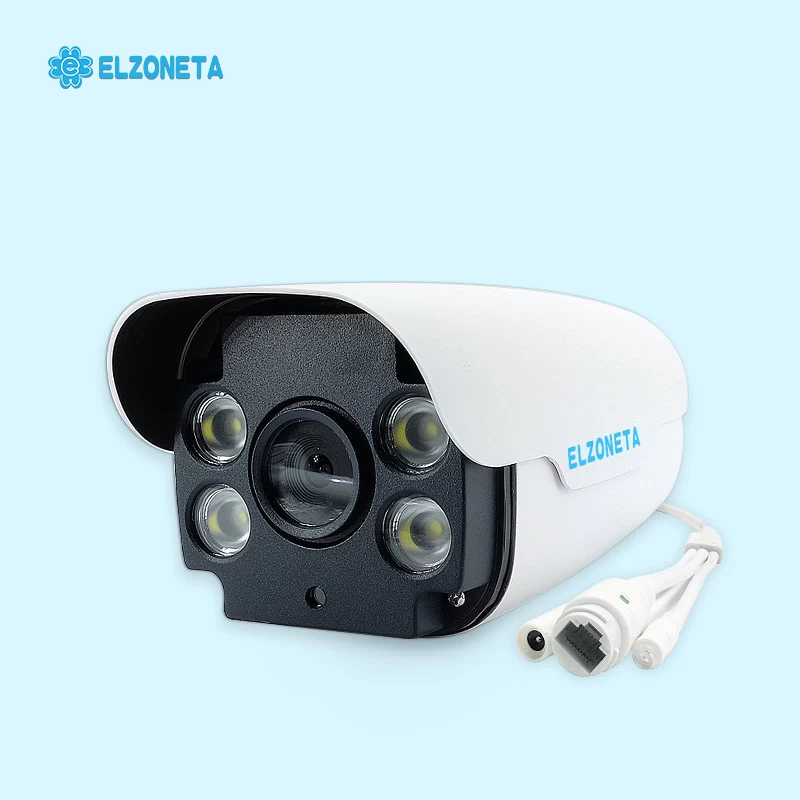

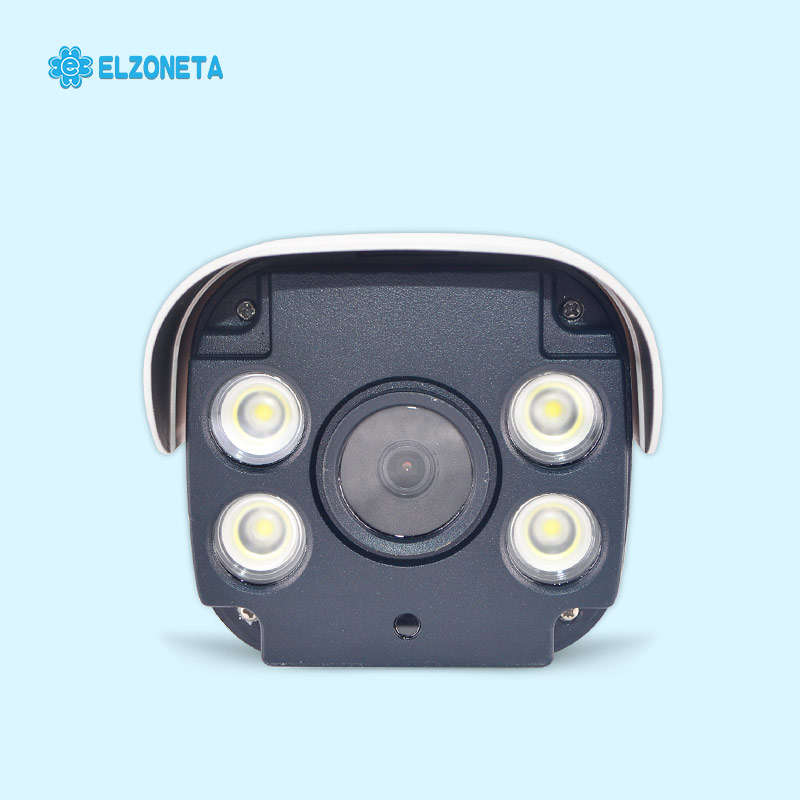

EC-G04S-BG Colorful Night Vision Security Camera
1080P outdoor white light bullet camera will switch to white visible light and show you a colour image when the PIR is activated.
Product Information
Image sensor:1/2.7” CMOS
Video resolution:1920*1080
Pixel:2.0MP
Compression:H.264 / JPEG
Frame rate:up to 25fps
Video bit rate:56Kbps~6Mbps adjustable
Lens
Viewing angle :
4mm:horizontal 91.4°vertical 47.7°diagonal 107.3°
6mm:horizontal 56.1°vertical 30.8°diagonal 65.4°
8mm:horizontal 43.2°vertical 23.5°diagonal 50.0°
Features
Auto exposure:Support
Auto gain control:Support
Auto white balance:Support
3D DNR:Support
OSD information setting:Support OSD big font function , OSD and time can be set separately
Network timing:Support
QR code scan:Support to create the QR code and scan to add equipment
Timing restart:Support
Intelligent fog removal:Support
ROI coding:Support ROI enhancement coding and enhancement exposure
Privacy masking:Can mask 4 areas at the same time
Motion detection:Support
Image setting:Contrast, Brightness, Saturation, Acutance are adjustable
Scene switching: Support 4 scene switches:Indoor, outdoor, default and soft
Day and night function:White light full color mode
Screen setting:Support exposure time setting
Night vision optimization:Support
Software WDR:Support
Picture setting:Mirror image, reversal image
IP adaptive technology:Support automatically adapt IP address optional function
Detection alarm:Email alarm push, clients alarm push
Remote control:System management, Bit stream management, User management, Network management
External extended interface:Audio Input
Network
Network:1 RJ45 10M/100Mbps self-adaptable Ethernet port
Video coding:1080P, 720P, Internet
Network Protocol:HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,PPPOE
Control protocol:ONVIF
Web Browser:Support IE8+,Chrome18+,Firefox5.0+,Safari5.02+ . Support Chinese and English
User rights:Administrator, Ordinary user, Visitor
Other Features
Level of protection:IP66
Power supply:DC 12V
Operating Temperature:-20℃~+60℃
Operating Humidity:10%~90%
Power consumption: Daytime:＜3W; Night: ＜6W
Color / Material:Metal
Size(W×H×D)(mm):210*100*100mm
Weight(g):567g
