Voltage Controlled Temperature Compensated Crystal Oscillators PVC2016
VC-TCXO in ceramic seam seal SMD packages - HCMOS/ LVCMOS output
Electrical
Parameters
|
Item
|
Value
|
|
Frequency Range
|
12.288~52MHz
|
|
Standard Frequency
|
13/19.2/20/26/38.4/40/52MHz
|
|
Supply Voltage Range
|
+1.7~+3.5V
|
|
Supply Voltage (Voc)
|
+1.8/+2.6/+2.8/+3.0/+3.3V
|
|
Current Consumption
|
+1.5mA max. (f≤26MHz)
+2.0mA max. (f>26MHz)
|
|
Output Level
|
0.8Vp-p min. (Clipped Sinewave/ DC-coupled)
|
|
Output Load
|
10kΩ//10pF
|
|
Frequency Stability Tolerance
|
±1.5×10-6max. (After 2reflows)
|
|
vs. Temperature
|
±2.0×10-6max. /-30~+85℃ @CDMA;
±2.5×10-6max. /-30~+85℃ @GSM
|
|
vs. Supply Voltage
|
±0.2×10-6max. (Vcc±5%)
|
|
vs. Aging
|
±0.1×10-6max. /year
|
|
vs. Load Variation
|
±0.2×10-6max. (10kΩ//10pF±10%)
|
|
Frequency Control
|
|
|
Control Sensitivity
|
±7.8×10-6 ~
±12×10-6/Vcont=+1.4±1V @CDMA
±9.0×10-6 ~ ±15×10-6/Vcont=+1.5±1V @Vcc≥+2.6V
±9.0×10-6 ~ ±15×10-6/Vcont=+0.9±0.6V @Vcc=+1.8V
|
|
Response Slope
|
Positive
|
|
Start up Time
|
2.0ms max.
|
|
Phase Noise
|
[f≤15MHz] [15<f≤26MHz] [26<f≤40MHz]
|
|
Offset 100Hz
|
-115dBc/Hz -110dBc/Hz -105dBc/Hz
|
|
Offset 1kHz
|
-135dBc/Hz -130dBc/Hz -125dBc/Hz
|
|
Offset 10kHz
|
-145dBc/Hz -140dBc/Hz -135dBc/Hz
|
|
Offset 100kHz
|
-145dBc/Hz -145dBc/Hz -145dBc/Hz
|
|
Packing Unit
|
2000pcs./reel(Φ180)
|

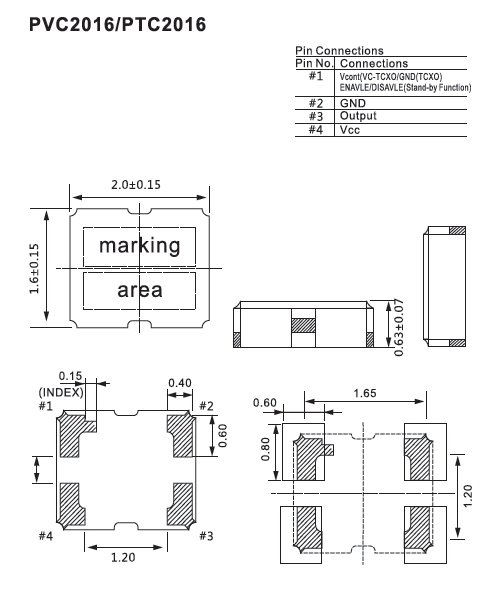

Dimensions
Reflow
|
Profiles
Feature
|
Pb-Free
Assembly
|
|
Average Ramp-up Rate (Ts max to Tp)
|
3℃/second max.
|
Preheat
■ Temperature Min
(Ts min)
■ Temperature
Max (Ts max)
■ Time (ts
min to ts max)
|
125℃
200℃
60~180 seconds
|
Time maintained above
■ Temperature
(TL)
■ Time
(tL)
|
217℃
60~150 seconds
|
|
Peak/Classification Temperature (Tp)
|
260℃
|
Time within 5℃ of
actual Peak
Temperature (tp)
|
20~40
seconds
|
|
Ramp-down rate
|
6℃/second max.
|
|
Time 25℃ to
Peak Temperature
|
8
minutes max.
|
|
Suggest reflow times
|
3
Times max
|
