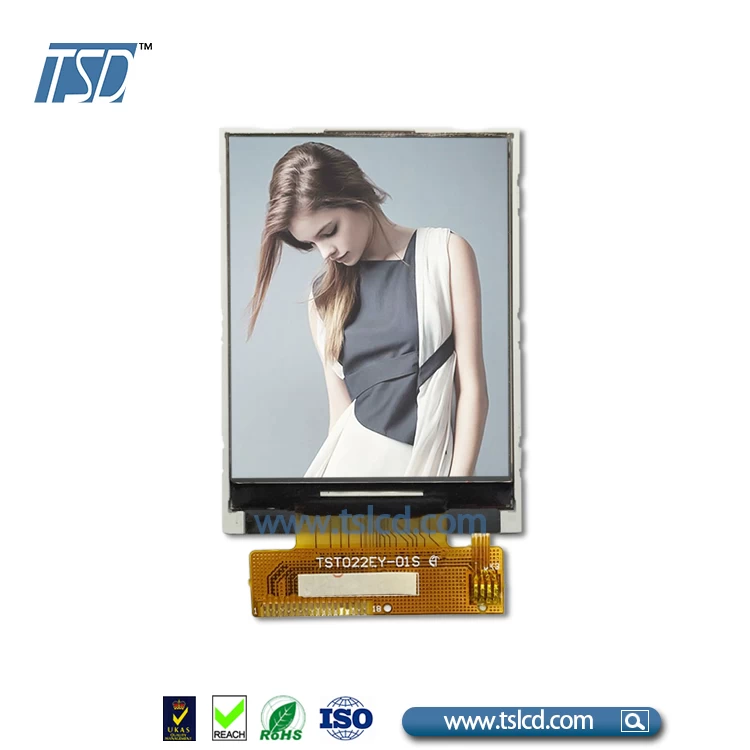

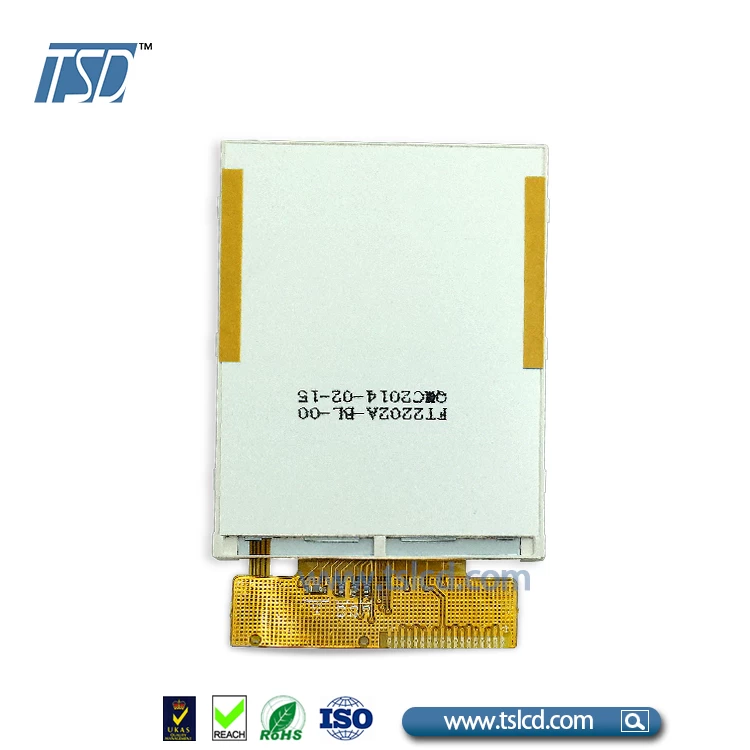

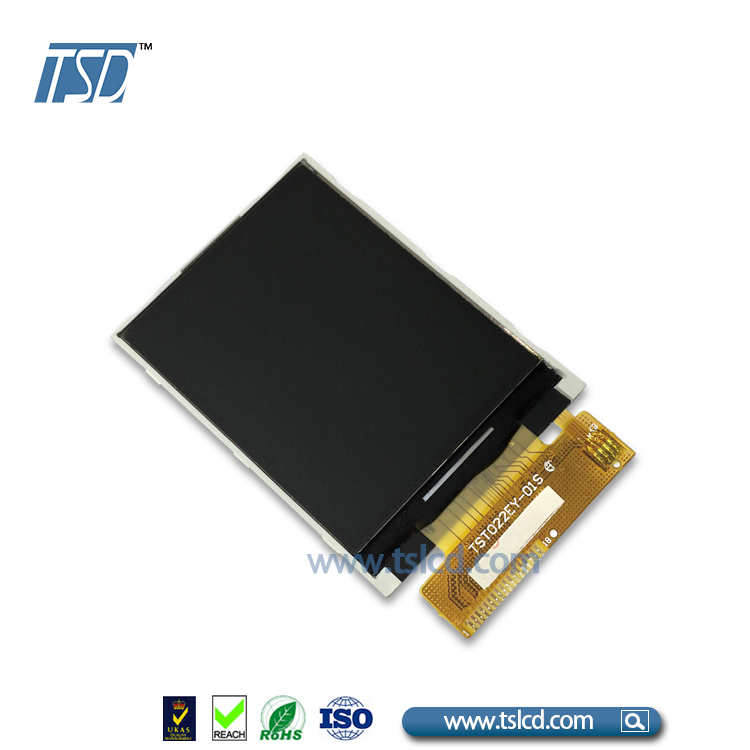

2.2" 176x220 resolution TFT LCD Module with Touch panel SPI interface

4 wire Serial Peripheral Interface

176x220 resolution

2.2" TFT LCD Module

18 pin FPC interface

Facebook Twitter Pinterest LinkedIn 分享
Specification
LCD type TFT, Transmissive, TFT color LCD
Display type 2.2" TFT, 262k color, normal white
Description tft 2.2 inch spi
Driver element a-si TFT Active matrix

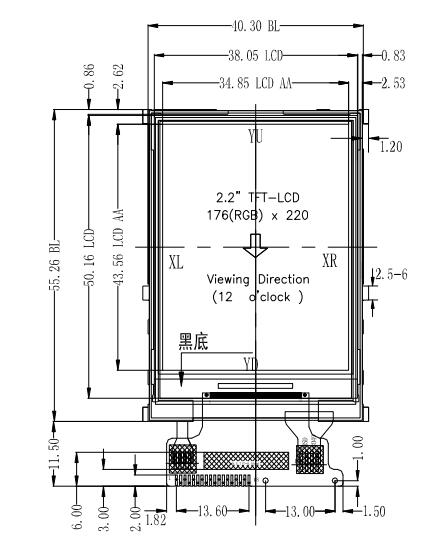

Outline Dimension(mm) 40.3x55.26x3.65
A.A.(mm) 34.85x43.56mm
Driver IC ILI9225G(SPI)
Resolution(dots) 176x220 resolution
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Weight(g) TBD
Backlight 3 LED, White
Weight(g) TBD
Interface SPI
Module lifetime(Hours) 50,000-100,000
