Electrical wires widely used as connectors of drive,lighting,electric equipments,instrument and telecommunication equipments with rated voltage 450/750Vor below.Part of the plastic wires are used at the equipment with AC rated voltage 300/300V or below.

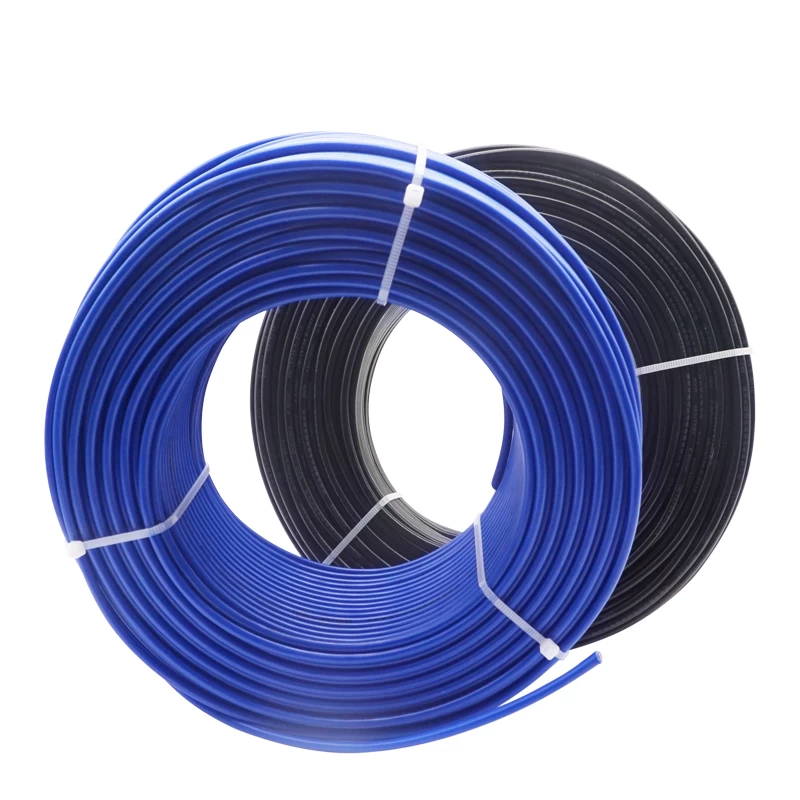

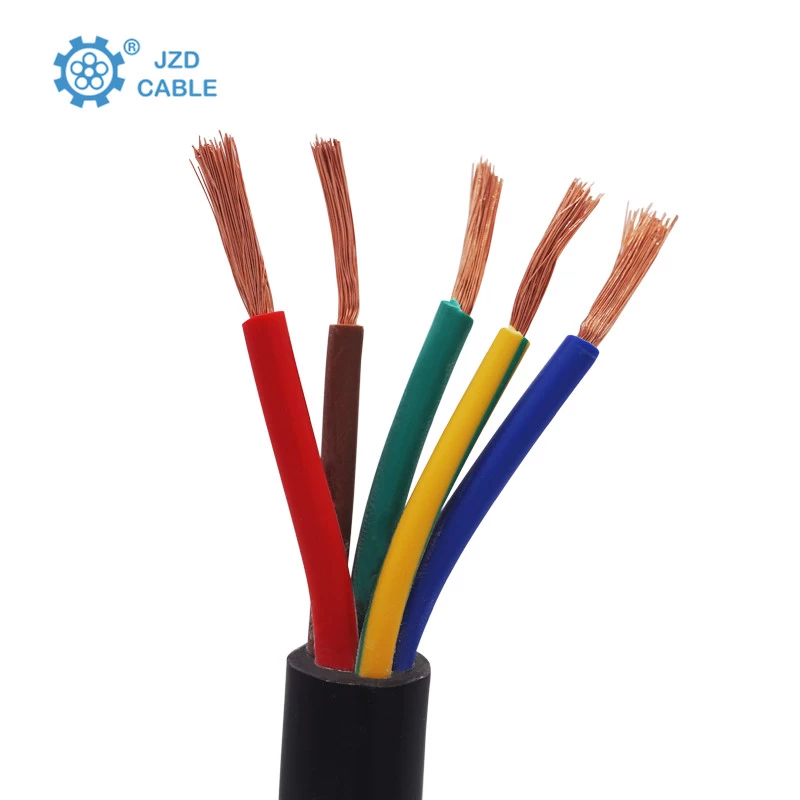

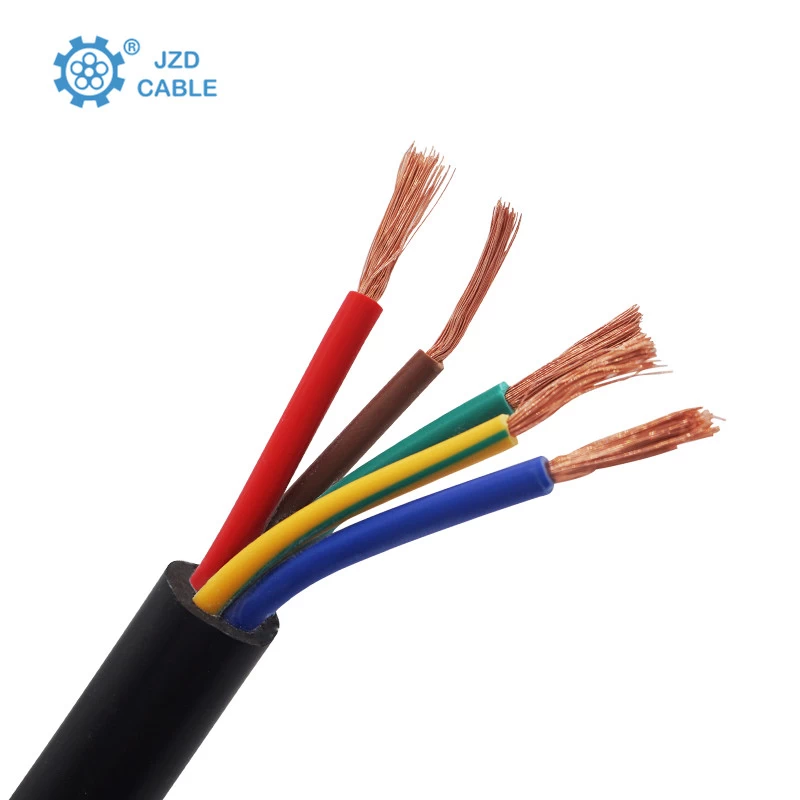

2 3 4 5 Core Flexible PVC Insulation Wire H05vv-F Electrical Wires
Technical Data
1, Nominal Voltage: 300/500V, 450/750V
2, Conductor: Class 5 flexible copper conductor follows BS EN 60228:2005
3, PVC insulation, PVC Filling, PVC Outer Sheat follows BS7655
4, Max. operating temperature 70 ºC, Short circuit temperature 160 ºC
5, Min. Bending Radius: 6 x cable O.D
6, Certificates: CE, RoHS, CCC, VDE
7, Standard: TS 9760, IEC 227, VDE 0281, BS 6500 ( 0.5 - 2.5mm² to BS6500, 4.0mm² to BS7919, 6.0mm² generally to BS7919 VDE28) 2 3 4 5 Core Flexible PVC Insulation Wire H05vv-F Electrical Wires
Application
The Product is fit for ac rated voltage 450/750V and below domestic electrical appliances of smaller size motoriace tools of instruments and motorized lighting installations. Also for household appliances under medium mechanical stress-also in damp and wet areas.
