2.4'' color TFT Display with ST7789V 8 bit parallel Interface and 40PIN

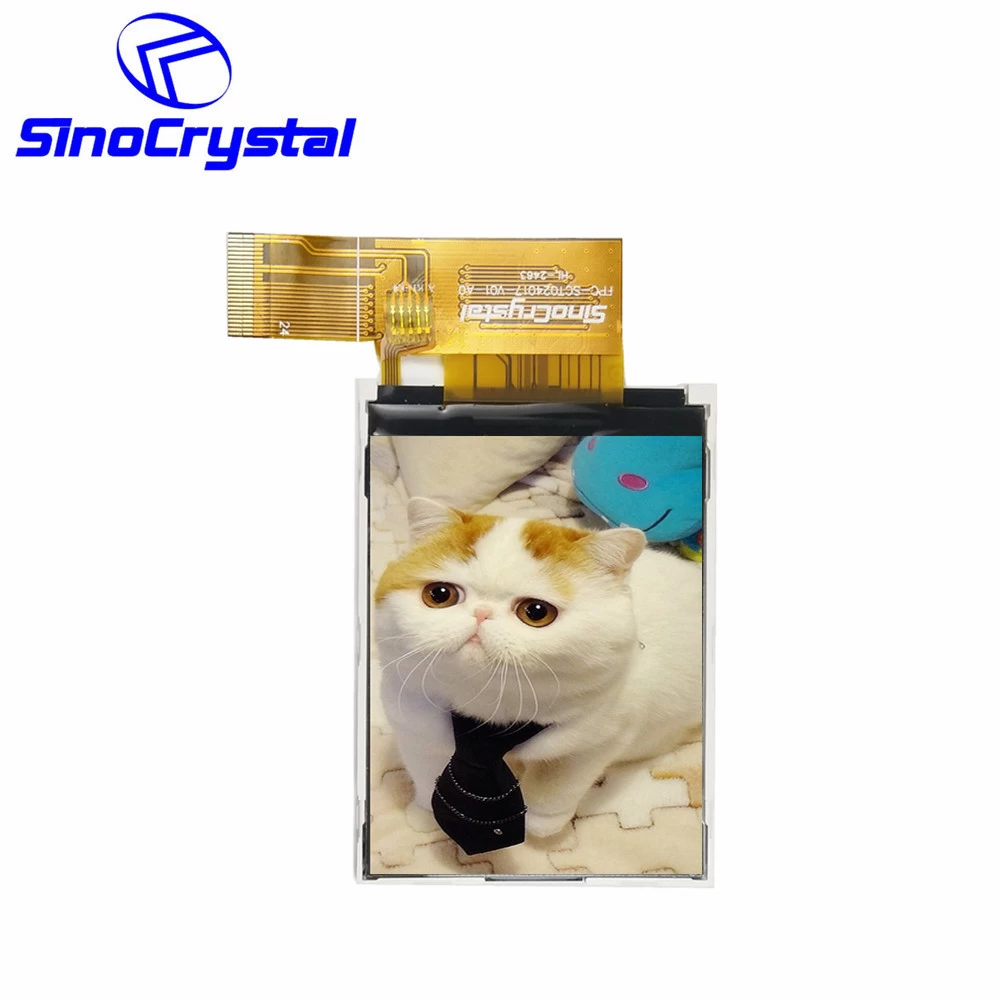

SCT024017-V01 is a 2.4'' TFT LCD Display with 240RGB*320 resolution, it built in with ST7789V IC, and it supports 8-bit parallel interface, 24 PIN, 12 o'clock View direction.



  • IC Part No.ST7789V
  • Interface8-bit parallel
  • View Direction12
  • Active Area (mm)36.72*48.96
  • Viewing Area (mm)40.32*56.26
  • Outline Dimension (mm)47.72*60.20*2.30
  • Resolution240*320
  • Brightness (cd/m²)300
  • Touch ScreenNo
  • Temperature (℃)-20°C~70°C
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


Resolution:                    240RGB*320

Outline Dimension:        47.72*60.26*2.40

Active Area:                  36.72*48.96

View area:                     40.32*56.26

Interface:                       8-bit parallel

Driver IC:                       ST7789V

View Direction:              12 o'clock

PIN:                                24

Backlight:                      White LED

Touch Screen:               No touch screen for standard. If you need touch, click for a inquiry.

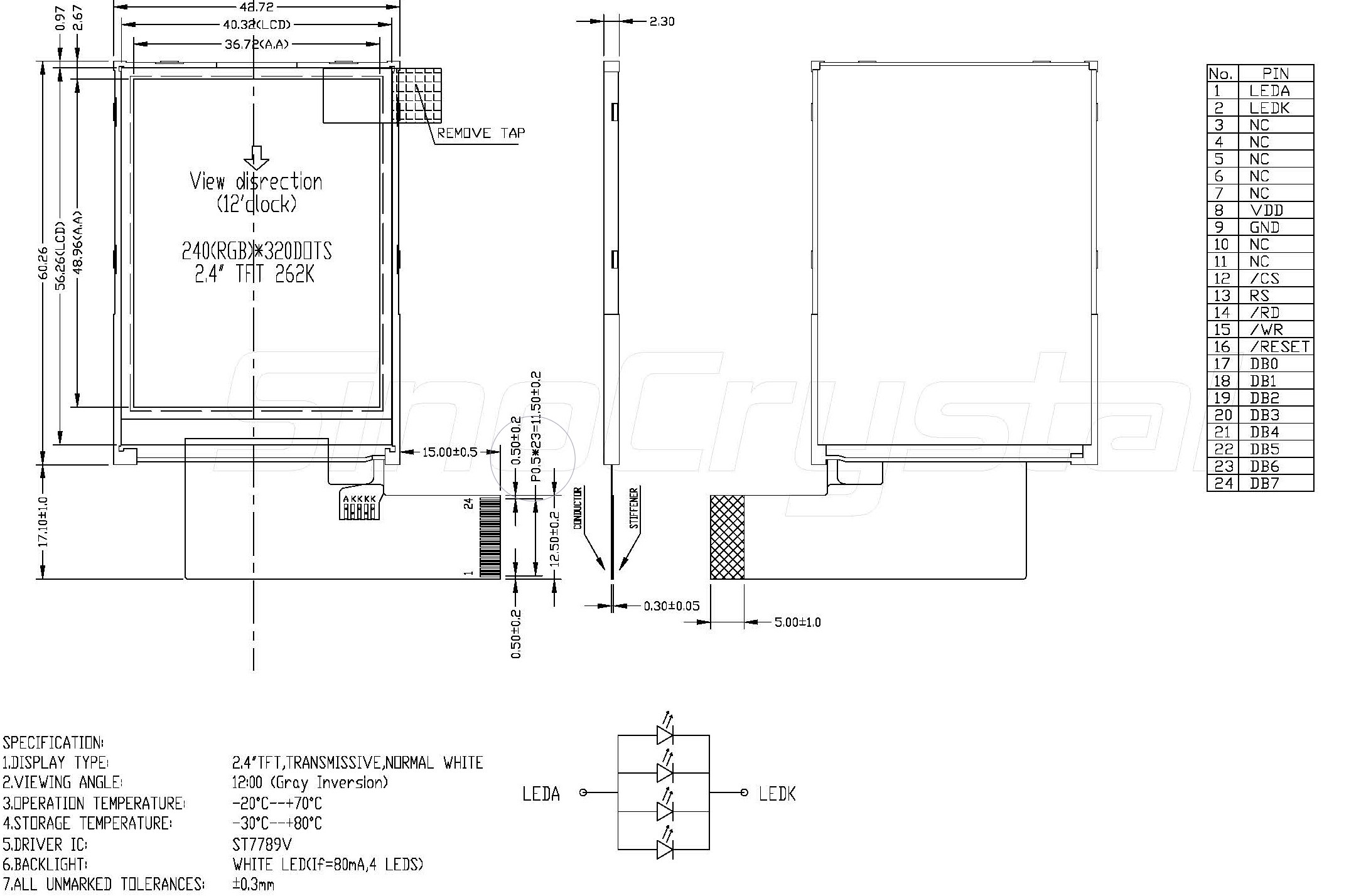

Drawing




General Specification

Item Nominal Dimension Unit
  Dot Matrix 240 x RGB x 320 Dots
  Module Size ( W×H×T ) 42.72 x 60.26 x 2.45 mm.
  Active Area ( W×H ) 36.72 x 48.96 mm.
  Pixel arrangement RGB Stripe mm.
  Dot Pitch ( W×H ) 0.153 x 0.153 mm.
  Color depth 262K(MAX) colors
  Interface 8 bit MCU -
  Driving IC ST7789V -
  Operating temperature -20 ~70 ºC
  Storage temperature -30~80 ºC
  LCD Type a-Si TFT -
  LCD Mode TN / Normal White -
  Backlight Type LED x 4 PCS





Interface Definition


Pin No Pin Symbol Type Description
1 LEDA P LED light, anode
2 LEDK P LED light, cathode.
3 NC - No connected
3 NC - No connected
4 NC - No connected
5 NC - No connected
6 NC - No connected
7 NC - No connected
8 VDD P Power supply
9 GND P Ground
10 NC - No connected
11 NC - No connected
12 /CS I Chip Select signal
13 RS I Register select signal. 0:index register; 1: data register
14 /RD I Read signal
15 /WR I Write signal
16 /RESET I Chip reset signal
17 DB0 I/O Data bus
18 DB1 I/O Data bus
19 DB2 I/O Data bus
20 DB3 I/O Data bus
21 DB4 I/O Data bus
22 DB5 I/O Data bus
23 DB6 I/O Data bus
24 DB7 I/O Data bus
