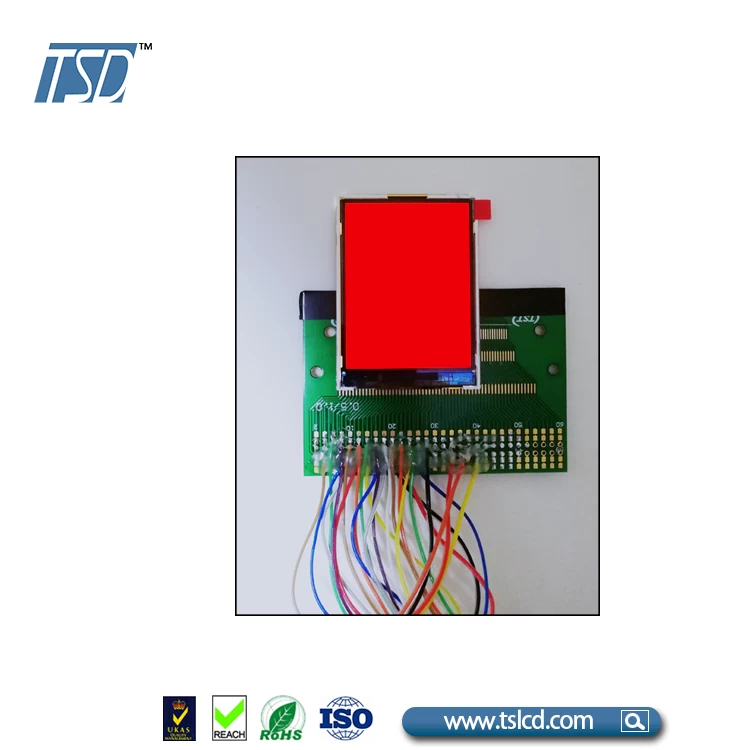

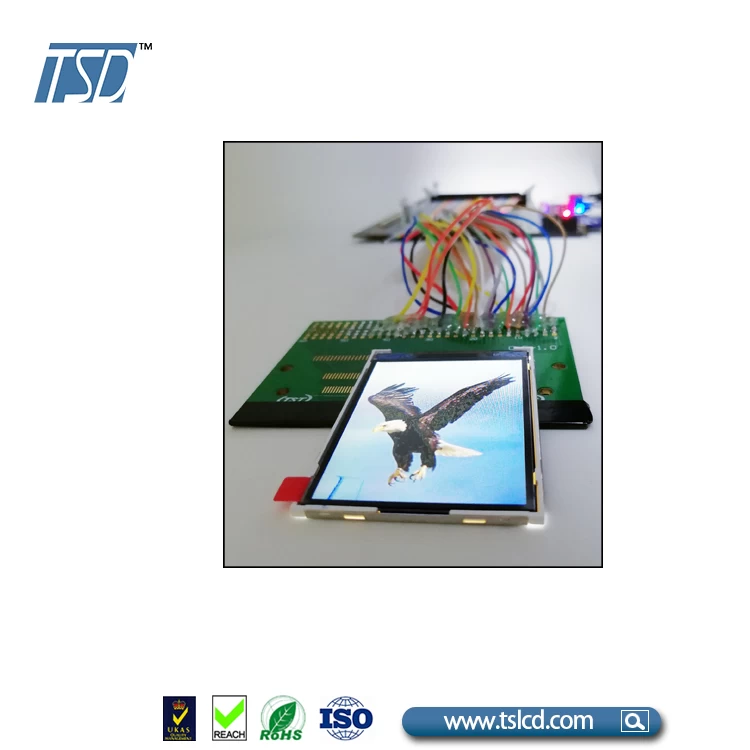

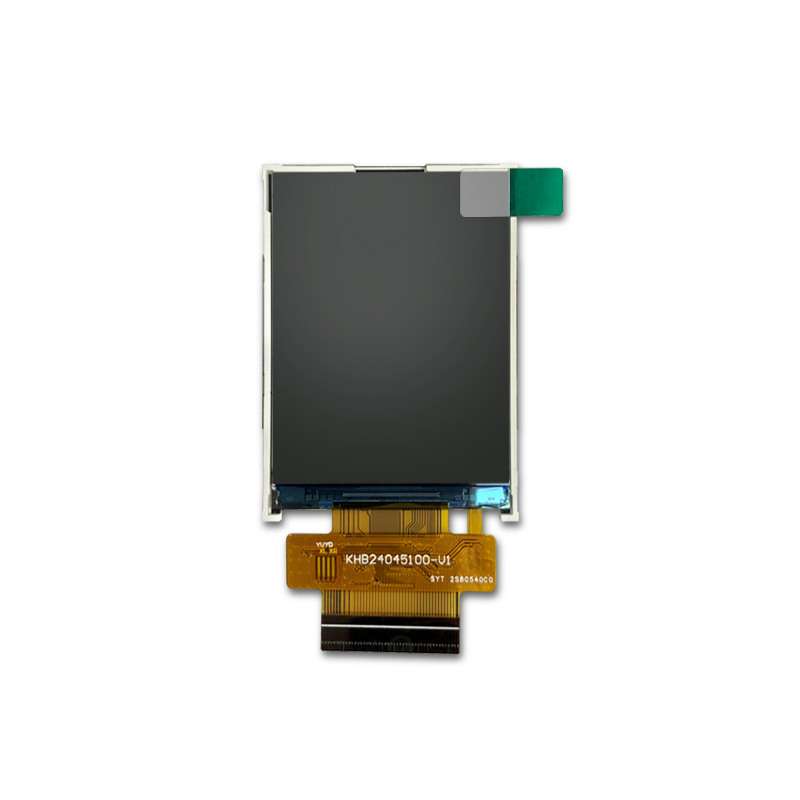

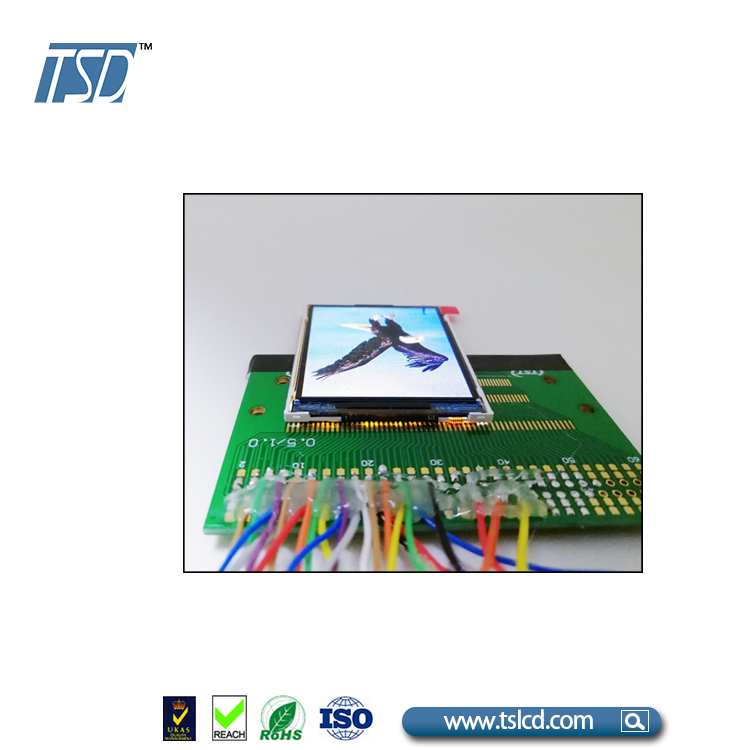

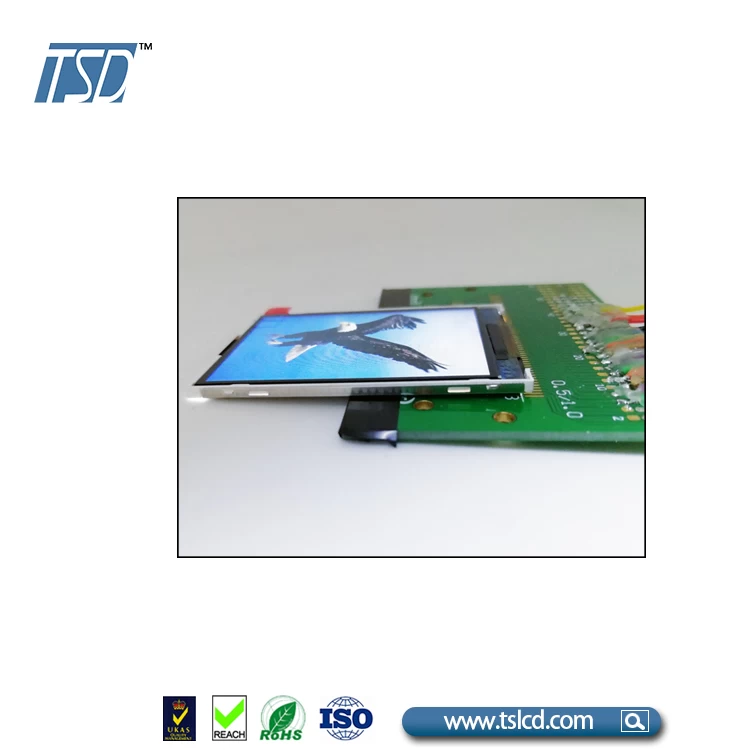

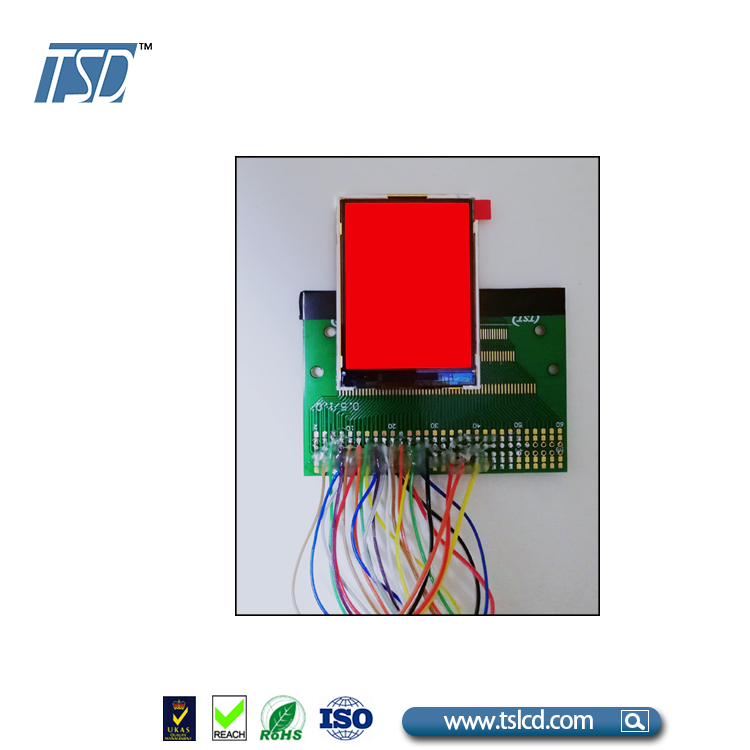

2.4 inch 240x320 resolution IPS TFT LCD display panel with ILI9341

2.4 inch 240x320 resolution IPS TFT LCD display panel with ILI9341


Facebook Twitter Pinterest LinkedIn 分享
Specification
LCD type 2.4 inch IPS tft display module,Transmissive
Display type 2.4" TFT, 262k color
Driver element a-si TFT Active matrix
Outline Dimension(mm) 42.72x59.46x2.30
A.A.(mm) 36.72x48.96
Driver IC ILI9341
Resolution(dots)_ 240*RGB*320
Viewing Direction All
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Operating Volatge 3.2v
Logic Voltage 1.8v-2.8v
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Brightness 300 nits
Weight(g) TBD
Interface MCU/SPI/
SPI+RGB
Module lifetime(Hours) 50,000-100,000
