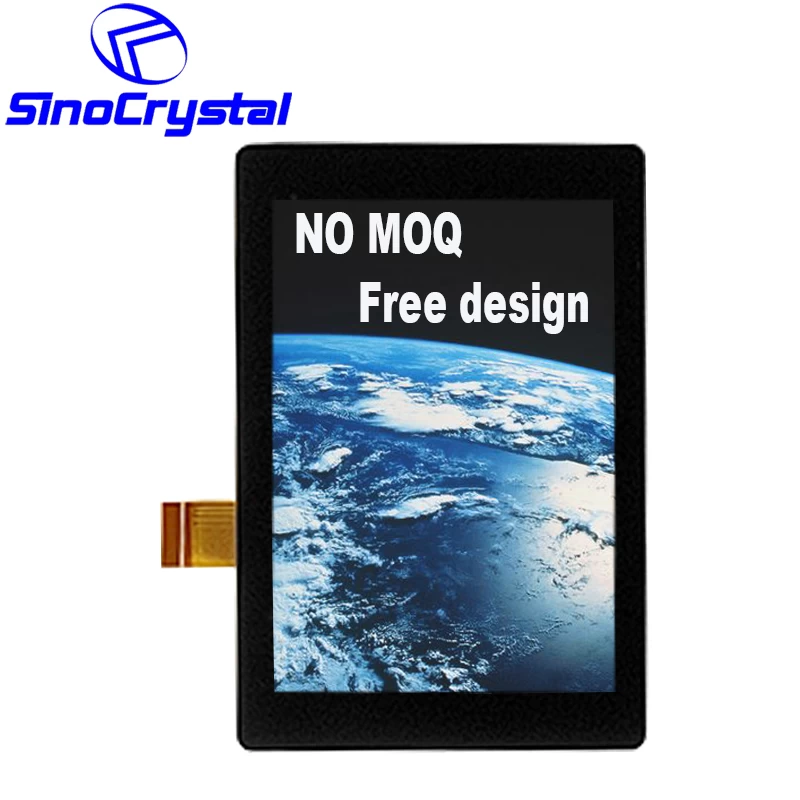

2.4 inch IPS Display with ST7789V 8 bit MCU 25 PIN TFT Display

SCT024019-V01 is a 2.4'' IPS TFT LCD Display with 240RGB*320 resolution, it built in with ST7789V IC, and it supports 8 bit MCU interface, 25 PIN, Full View direction.

  • IC Part No.ST7789V
  • Interface8 bit MCU
  • View DirectionIPS
  • Active Area (mm)36.72*48.96
  • Viewing Area (mm)-
  • Outline Dimension (mm)42.72*60.26*2.45
  • Resolution240*320
  • Brightness (cd/m²)350
  • Touch ScreenNo
  • Temperature (℃)-20°C~70°C
Facebook Twitter Pinterest LinkedIn 分享

Basic Information

Resolution:                    240RGB*320

Outline Dimension:        47.72*60.26*2.40

Active Area:                  36.72*48.96

View area:                     40.32*56.26

Interface:                      8 bit MCU

Driver IC:                       ST7789V

View Direction:              IPS

PIN:                                25

Backlight:                      White LED

Touch Screen:               No touch screen for standard. If you need touch, click for a inquiry.

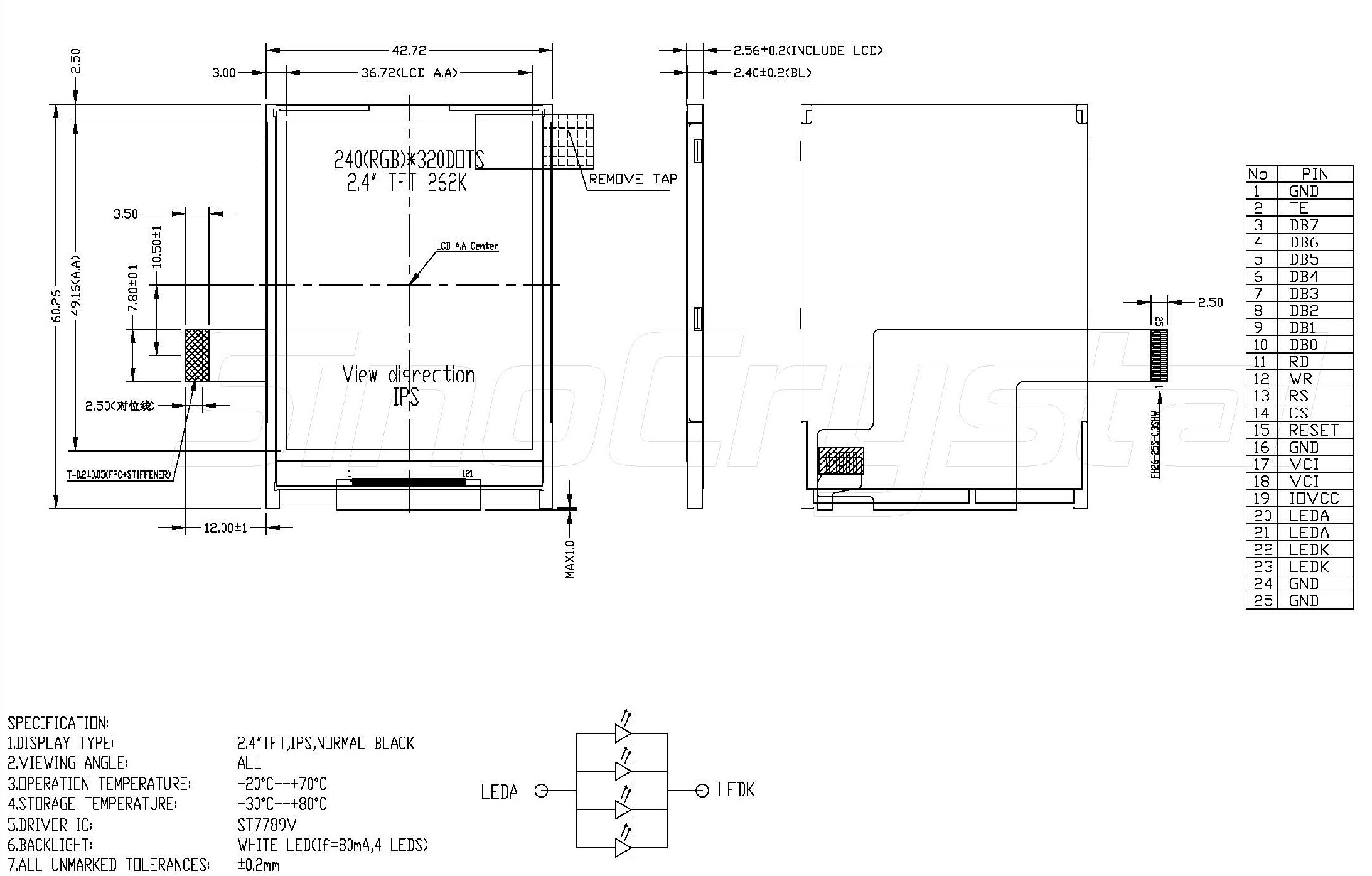

Drawing




General Specification


Item Nominal Dimension Unit
  Dot Matrix 240 x RGB x 320 Dots
  Module Size ( W×H×T ) 42.72 x 60.26 x 2.45 mm.
  Active Area ( W×H ) 36.72 x 48.96 mm.
  Pixel arrangement RGB Stripe mm.
  Dot Pitch ( W×H ) 0.153 x 0.153 mm.
  Color depth 262K(MAX)
 colors
  Interface 8 bit MCU -
  Driving IC Package COG -
  Operating temperature -20 ~70 ºC
  Storage temperature -30~80 ºC
  LCD Type a-Si TFT -
  LCD Mode Normal Black -
  Backlight Type LED x 4 PCS



Interface Definition


Pin No Pin Symbol Level Description
1 GND 0V Ground
2 TE H/L Tearing effect signal output
3 DB7 H/L Data bus
4 DB6 H/L Data bus
5 DB5 H/L Data bus
6 DB4 H/L Data bus
7 DB3 H/L Data bus
8 DB2 H/L Data bus
9 DB1 H/L Data bus
10 DB0 H/L Data bus
11 /RD H/L Read signal
12 /WR H/L Write signal
13 RS H/L Register select signal. 0:index register; 1: data register
14 /CS H/L Chip Select signal
15 /RESET H/L Chip reset signal
16 GND 0V Ground
17 VCI 2.4-3.3V Power supply
18 VCI 2.4-3.3V Power supply
19 IOVCC 1.65-3.3V Power supply for logic
20 LEDA - LED light, anode
21 LEDA - LED light, anode
22 LEDK - LED light, cathode.
23 LEDK - LED light, cathode.
24 GND 0V Ground
25 GND 0V Ground
