2.4 inch IPS LCD with ST7789V SPI & RGB interface 34 PIN TFT Display

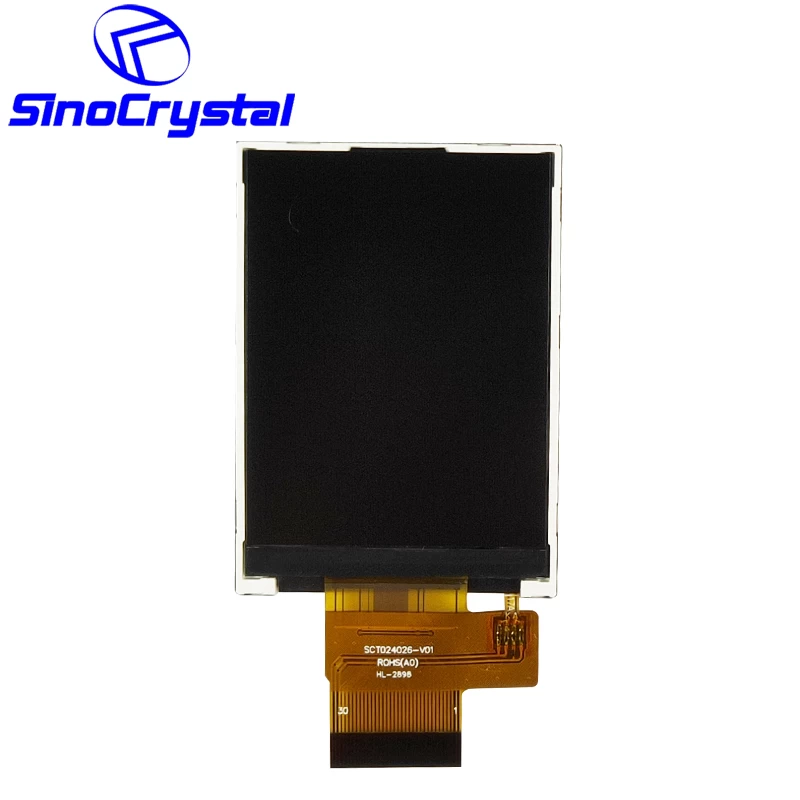

SCT024019-V01 is a 2.4'' IPS TFT LCD Display with 240RGB*320 resolution, it built in with ST7789V IC, and it supports SPI & RGB interface, 34 PIN, Full View direction.

  • IC Part No.ST7789V
  • InterfaceSPI & RGB
  • View DirectionIPS
  • Active Area (mm)36.72*48.96
  • Viewing Area (mm)-
  • Outline Dimension (mm)42.52*60.50*2.2
  • Resolution240*320
  • Brightness (cd/m²)300
  • Touch ScreenNo
  • Temperature (℃)-20°C~70°C
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


Resolution:                    240RGB*320

Outline Dimension:        47.72*60.26*2.40

Active Area:                  36.72*48.96

View area:                     40.32*56.26

Interface:                      SPI & RGB

Driver IC:                       ST7789V

View Direction:              IPS

PIN:                                34

Backlight:                      White LED

Touch Screen:               No touch screen for standard. If you need touch, click for a inquiry.

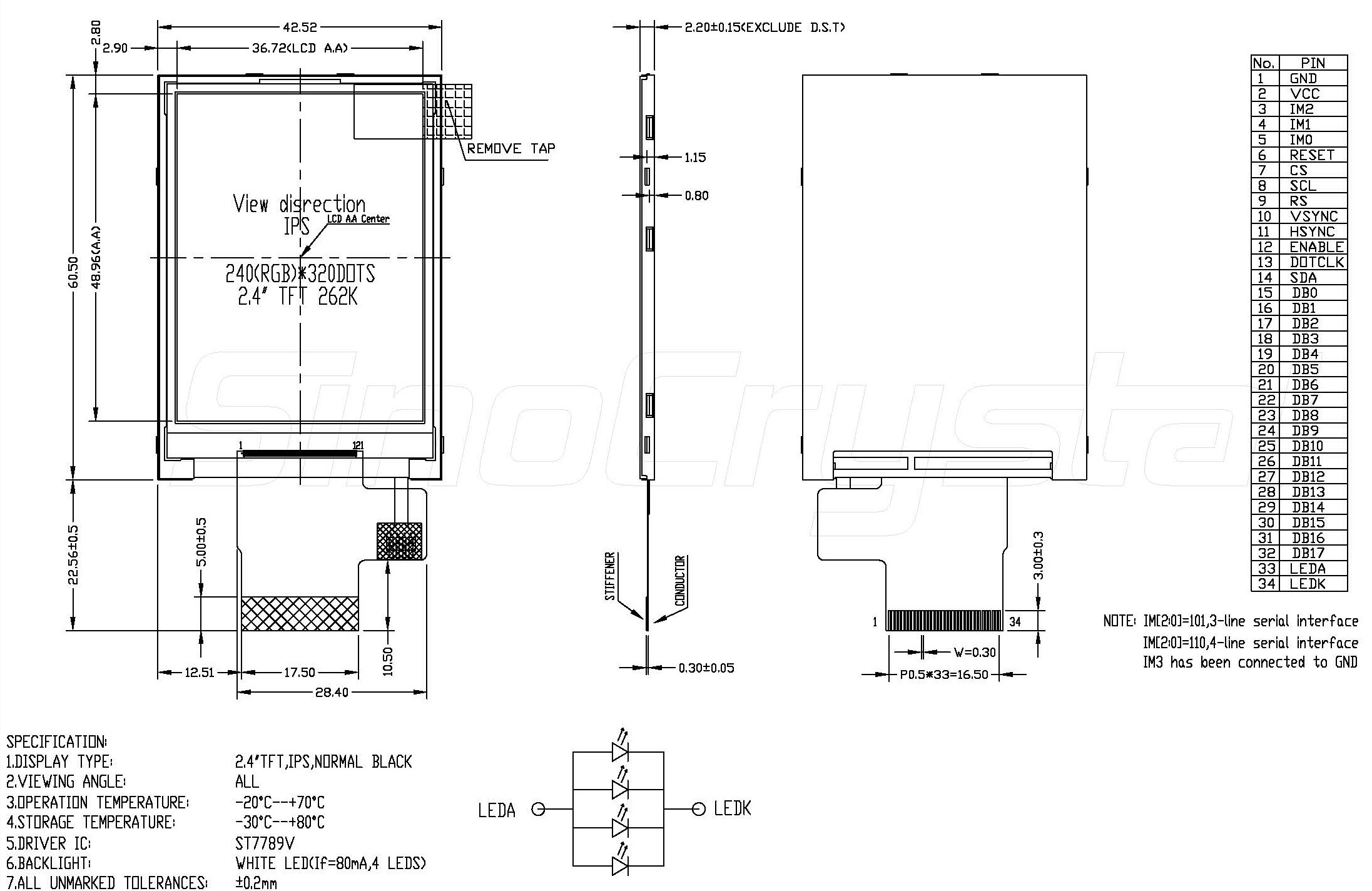

Drawing




General Specification


Item Nominal Dimension Unit
  Dot Matrix 240 x RGB x 320 Dots
  Module Size ( W×H×T ) 42.52 x 60.50 x 2.20 mm.
  Active Area ( W×H ) 36.72 x 48.96 mm.
  Pixel arrangement RGB Stripe mm.
  Dot Pitch ( W×H ) 0.153 x 0.153 mm.
  Color depth 262K(MAX) colors
  Interface SPI & RGB -
  Driving IC Package COG -
  Operating temperature -20 ~70 ºC
  Storage temperature -30~80 ºC
  LCD Type a-Si TFT -
  LCD Mode Normal Black -
  Backlight Type LED x 4 PCS



Interface Definition


Pin No Pin Symbol Level Description
1 GND 0V Ground
2 VCC 2.4-3.3V Power supply
3 IM2 H/L IM3 has been connected to GND
4 IM1 H/L
5 IM0 H/L
6 /RESET H/L Chip reset signal
7 CS H/L Chip selection signal
8 SCL H/L Serial Clock signal


H/L Display data/command selection pin in 4-line serial interface.
9 RS
Second Data lane in 2 data lane serial interface.
10 VSYNC H/L Vertical (Frame) synchronizing input signal
11 HSYNC H/L Horizontal (Line) synchronizing input signal
12 ENABLE H/L Data enable signal
13 DOTCLK H/L Dot clock signal
14 SDA H/L Serial data input/output pin
15-32 DB0-DB17 H/L RGB interface data bus
33 LEDA - LED light, anode
34 LEDK - LED light, cathode.

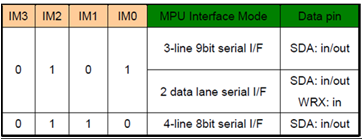

PIN3-5:
