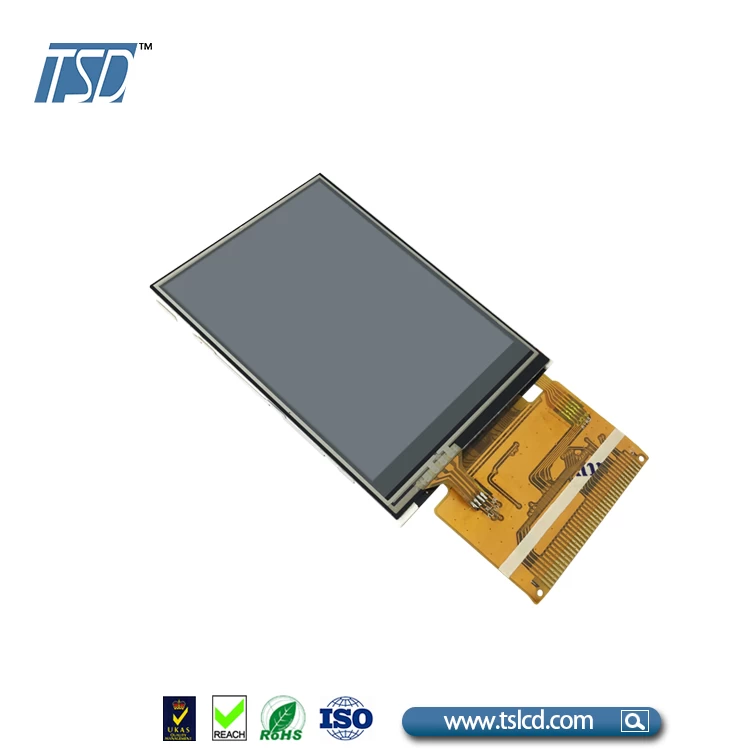

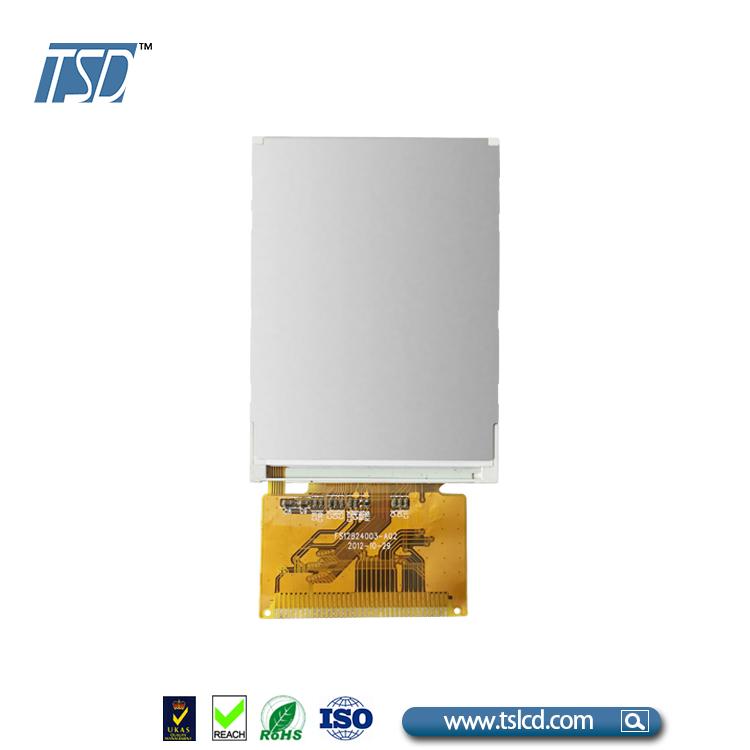

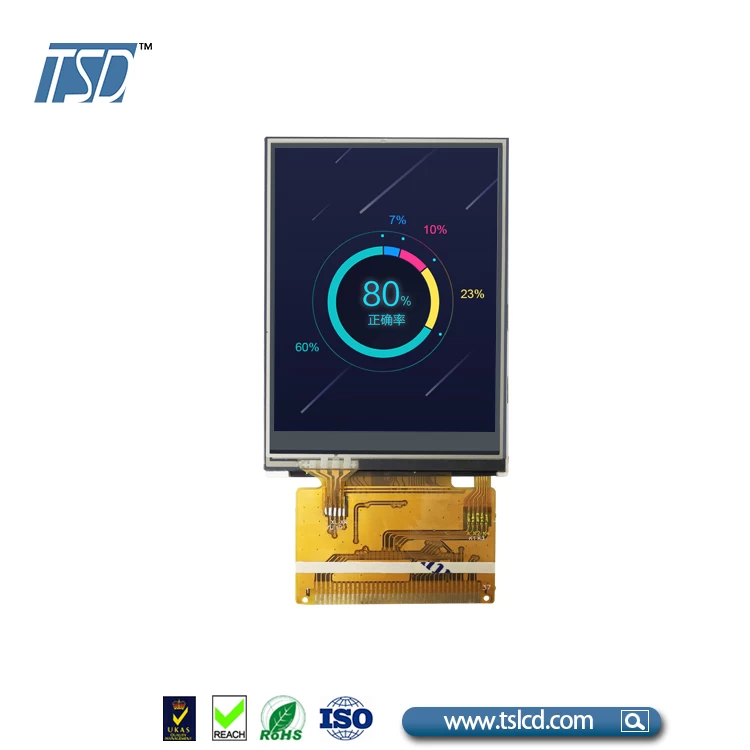

2.4 inch color TFT LCD display ,LCD COLOR TFT module display, TFT with touch screen ,high brightness and transmissive .
1-12 year's experience of TFT LCM;
2-CE&ISO9001; ISO:TS16949
3-Delivery in time;
4-Long life time;
5-1year warranty;
|
Specification
|
|
LCD type
|
2.4 inch tft display module with CTP,Transmissive
|
|
Display type
|
2.4" TFT, 262k color
|
|
Driver element
|
a-si TFT Active matrix
|
|
Outline Dimension(mm)
|
42.72x60.26X2.3
|
|
A.A.(mm)
|
36.72x49.00
|
|
Driver IC
|
ILI9341
|
|
Resolution(dots)_
|
240*RGB*320
|
|
Viewing Direction
|
12H
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
240(H)x 3RGB x 320(V)
|
|
Operating Volatge
|
3.2v
|
|
Logic Voltage
|
1.8v-2.8v
|
|
Pixel arrangement
|
RGB Vertical Stripe
|
|
Display mode
|
Normally white
|
|
Surface treatment
|
Antiglare, Hard-Coating(3H)
|
|
Weight(g)
|
TBD
|
|
Backlight
|
4 LEDs, White
|
|
Weight(g)
|
TBD
|
|
Interface
|
8080 system 16 bits parallel interface
|
|
Module lifetime(Hours)
|
50,000-100,000
|
