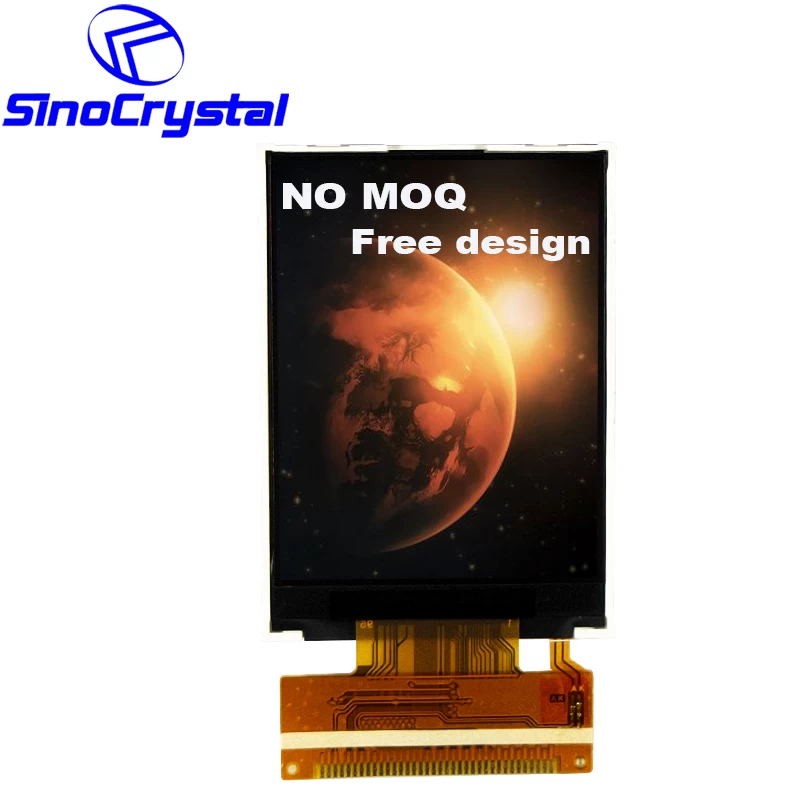

2.4'' Sunlight readable tft lcd with 240RGB*320 resolution MCU ILI9341 IC

SCT024006-V01 is a 2.4'' TFT LCD Display with 240RGB*320 resolution, it built in with ILI9341 IC, and it supports MCU interface, 36 PIN, 12 o'clock View direction.


  • InterfaceMCU
  • View Direction12
  • Active Area (mm)36.72*48.96
  • Viewing Area (mm)40.32*56.26
  • Outline Dimension (mm)47.72*60.26*2.40
  • Resolution240*320
  • IC Part No.ILI9341V
  • Brightness (cd/m²)300
  • Touch ScreenNo
  • Temperature (℃)-20°C~70°C

Basic Information


Resolution:                    240RGB*320

Outline Dimension:        47.72*60.26*2.40

Active Area:                  36.72*48.96

View area:                     40.32*56.26

Interface:                      MCU

Driver IC:                       ILI9341

View Direction:              12 o'clock

PIN:                                36

Backlight:                      White LED

Touch Screen:               No touch screen with standard module, But can be added if customer needed.

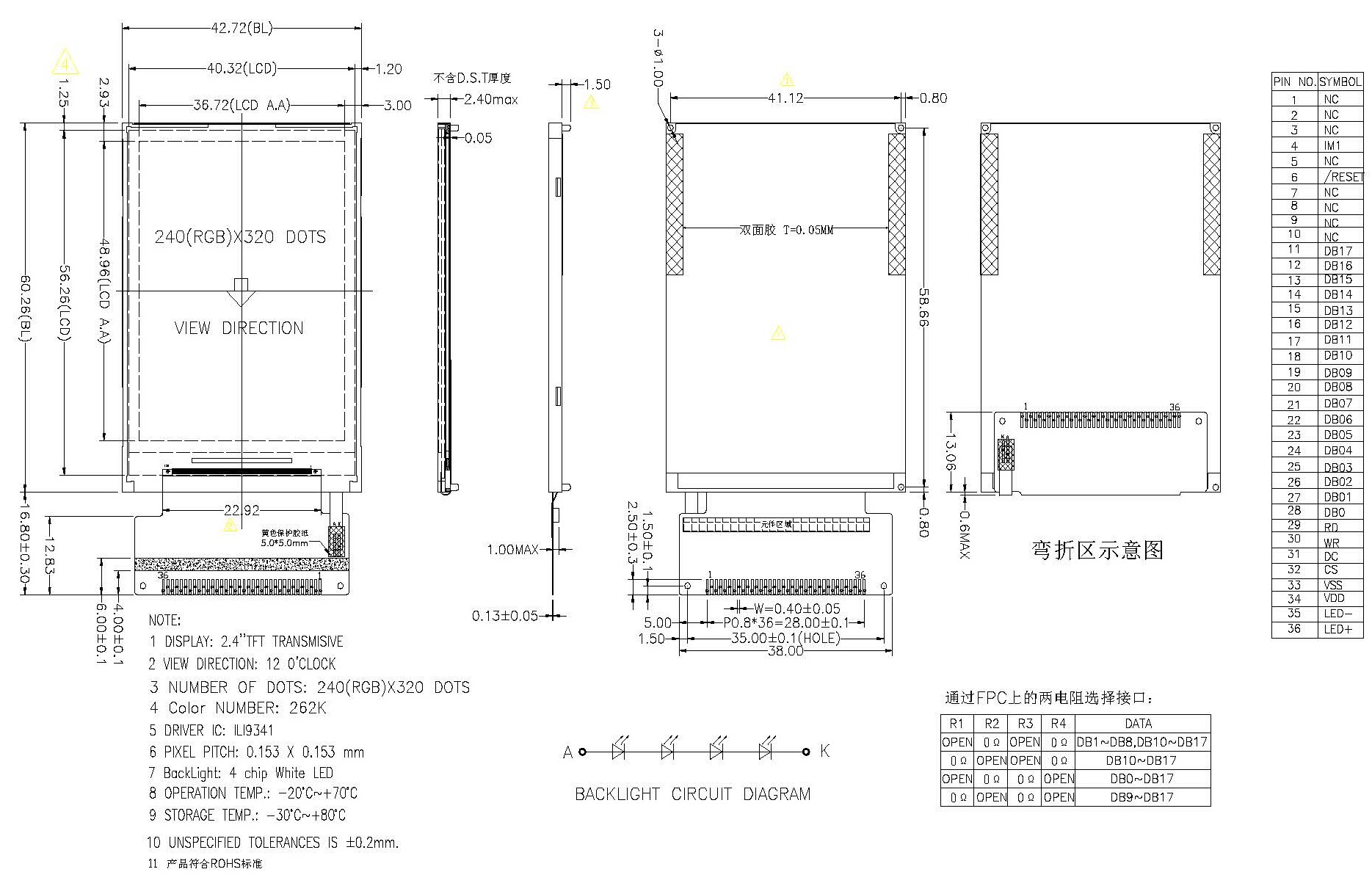

Drawing




General Specification


Item Nominal Dimension Unit
Dot Matrix 240 x RGB x 320 Dots
Module Size ( W×H×T ) 42.72 x 60.26 x 3.55 mm.
Active Area ( W×H ) 36.72 x 48.96 mm.
Pixel arrangement RGB Stripe mm.
Dot Pitch ( W×H ) 0.153 x 0.153 mm.
Color depth 262K(MAX) colors
Interface MCU -
Driving IC Package COG -
Operating temperature -20 ~70 ºC
Storage temperature -30~80 ºC
LCD Type a-Si TFT -
LCD Mode TN/Normal White -
Backlight Type LED x 4 PCS



Interface Definition


Pin No Pin Symbol Level Description
1--3 NC - No use
4 IM1 H/L MCU Interface Mode Select, IM1 has been set to 0
5 NC - No use
6 /RESET H/L Reset signal
7--10 NC - No use
11--28 D17 - D0 H/L Data bus , Fix to VSS level when not in use D[17:10] and D[8:1] used
29 RD H/L Read Signal
30 WR H/L Write Signal
31 DC H/L selector of command or parameter
32 CS H/L Chip Select
33 GND 0V Ground
34 VDD 2.8-3.2V Power supply
35 K - LED light, cathode
36 A - LED light, anode
