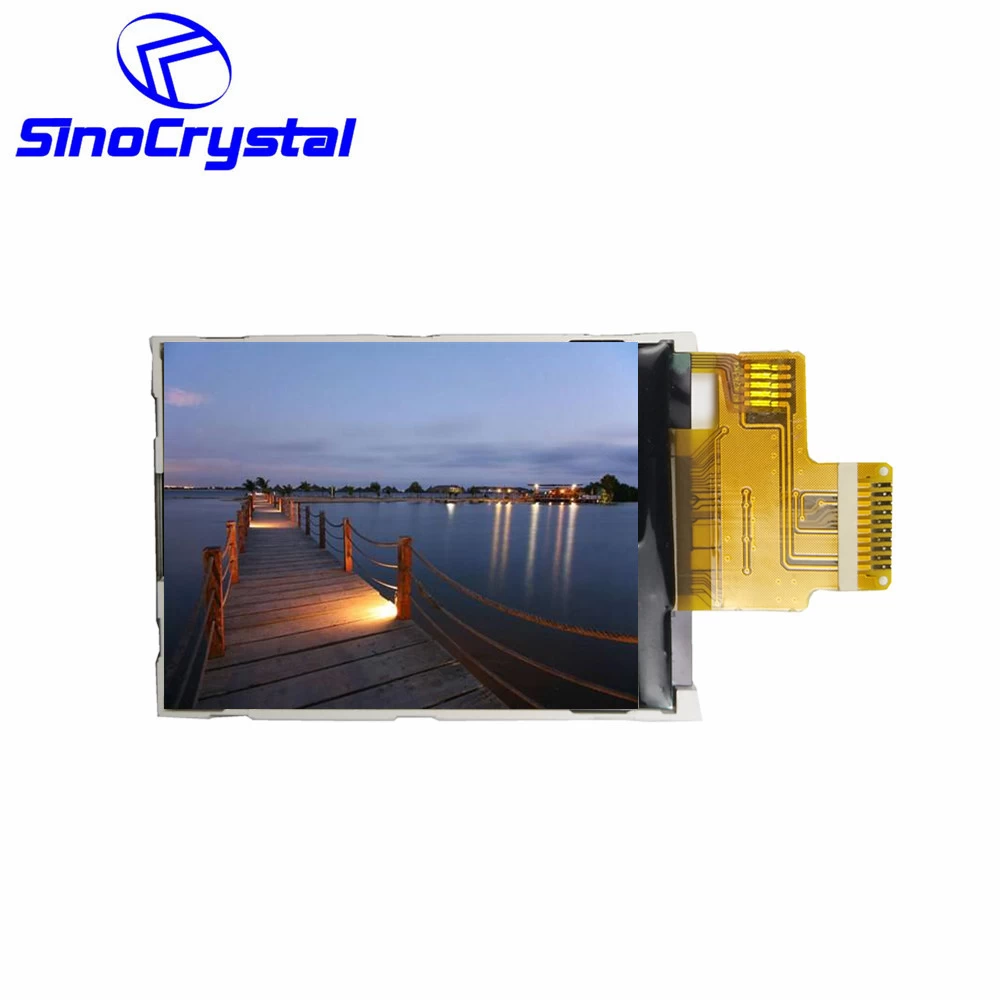

Basic Information
Resolution: 240RGB*320
Outline Dimension: 47.72*60.26*2.40
Active Area: 36.72*48.96
View area: 40.32*56.26
Interface: 4-line SPI
Driver IC: HX8347I
View Direction: 6 o'clock
PIN: 10
Backlight: White LED
Touch Screen: No touch screen with standard module, But can be added if customer needed.

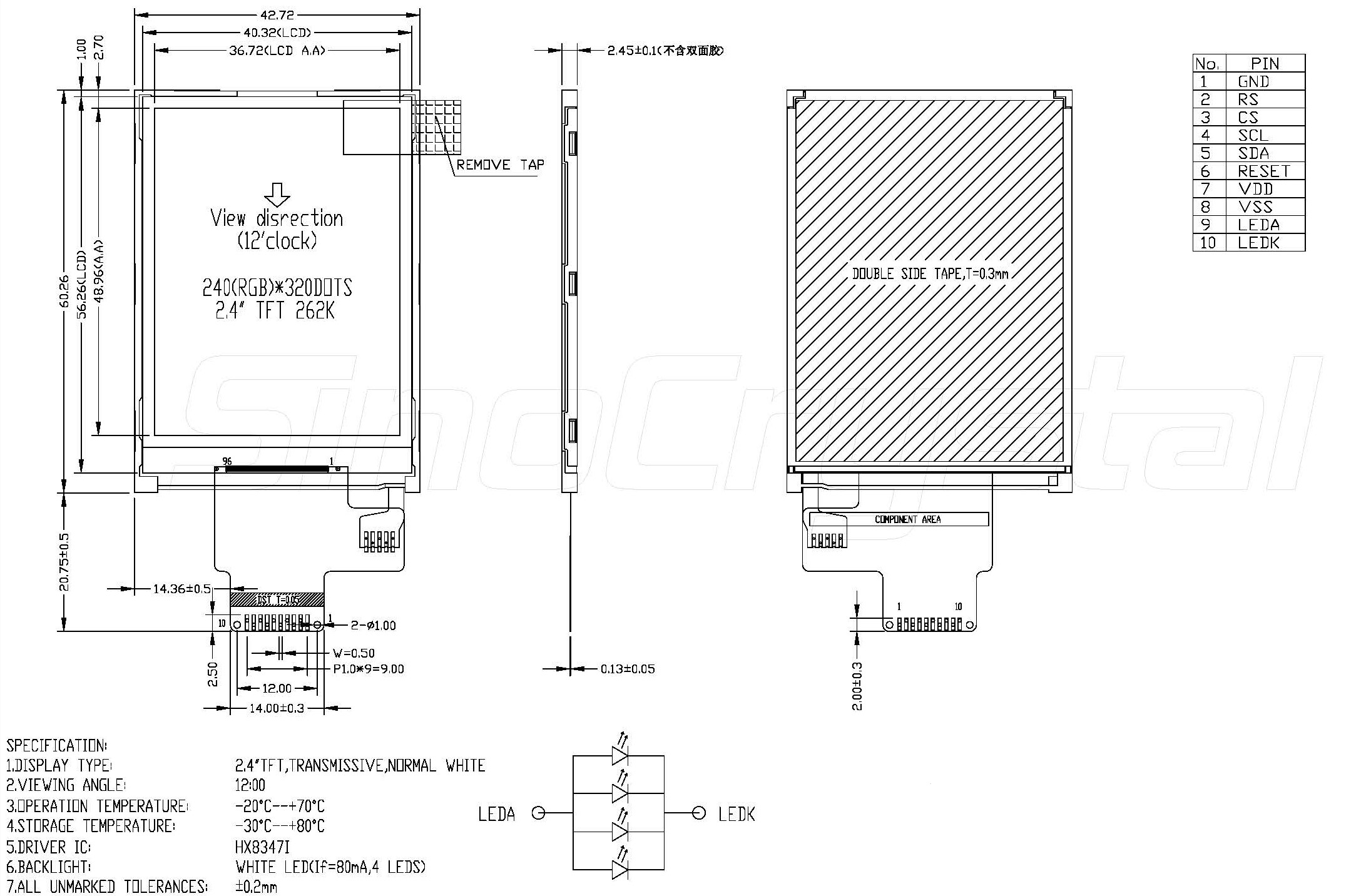

Drawing
General Specification
|
Item
|
Nominal Dimension
|
Unit
|
|
Dot Matrix
|
240 x RGB x 320
|
Dots
|
|
Module Size ( W×H×T )
|
42.72 x 60.26 x 2.45
|
mm.
|
|
Active Area ( W×H )
|
36.72 x 48.96
|
mm.
|
|
Pixel arrangement
|
RGB Stripe
|
mm.
|
|
Dot Pitch ( W×H )
|
0.153 x 0.153
|
mm.
|
|
Color depth
|
262K(MAX)
|
colors
|
|
Interface
|
4-line SPI
|
-
|
|
Driving IC Package
|
COG
|
-
|
|
Operating temperature
|
-20 ~70
|
ºC
|
|
Storage temperature
|
-30~80
|
ºC
|
|
LCD Type
|
a-Si TFT
|
-
|
|
LCD Mode
|
TN/Normal White
|
-
|
|
Backlight Type
|
LED x 4
|
PCS
|
Interface Definition
|
Pin No
|
Pin Symbol
|
Level
|
Description
|
|
1
|
GND
|
0V
|
Ground
|
|
|
|
Command / parameter or display data selection 0: Command or parameter
|
|
2
|
RS
|
H/L
|
1: Display data
|
|
3
|
CS
|
0V
|
Chip select
|
|
4
|
SCL
|
H/L
|
SPI clock
|
|
5
|
SDA
|
H/L
|
SPI data
|
|
6
|
RESET
|
H/L
|
Reset signal
|
|
7
|
VCC
|
2.8-3.2V
|
Power supply
|
|
8
|
GND
|
0V
|
Ground
|
|
9
|
LEDA
|
-
|
LED light, anode
|
|
10
|
LEDK
|
-
|
LED light, cathode.
|
